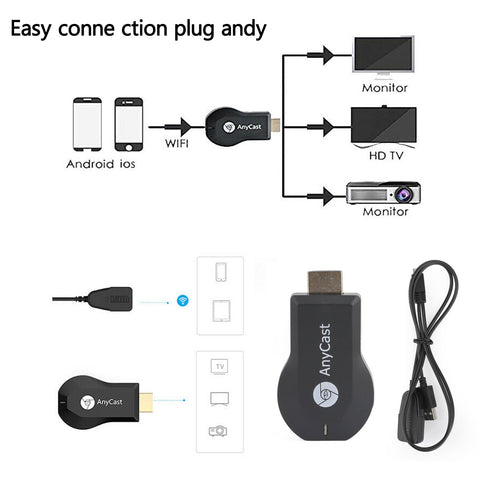

The wifi display dongle supports DLNA/Airplay Mirror/Miracast/Ezcast Function for iOS/Android devices, which is perfect for watching movies, conference use and gaming to pursuit different audio-visual feast. Compared with traditional receiver, the item has better connectivity and strong anti-jamming that give smoother data transfer.
Connection Instructions:{Connection for iOS device}Step 1: Get SSID and PSK/Password on Anycast page;
Step 2: Connect AnyCast in WiFi Setting on iPhone;
Step 3: Go to a browser and input 192.168.203.1 to come to the setting menu(You can connect your home wifi here by clicking "Internet" and Choosing your home Wifi to connect);
Step 4: Pull up the Control Center on iPhone and turn on Airplay, and select AnyCast dongle to start mirroring.
Two method to mirror your iOS device onto the TV screen keeping internet surfing
Keep your iOS device connected to your home router Wifi, and your Anycast dongle connected to the same WIFI. Your iOS device surfing through the router wifi directly
NOTE: This way is very convenient, you only need set the Anycast dongle connected to the router wifi. One time, and you can mirror your device which always connect to the router automatically
{Connection for Android device}Step 1: Enable WIFI on your mobile device, and find the ¡°wireless display¡± in the ¡°setting¡±menu, touch and your will see the AnyCast¡¯ SSID;
Step 2: Touch AnyCast SSID and start the connection mobile device with the Anycast dongle. And then your mobile device is mirrored to big screen;
Step 3: Your device can connect to the WIFI router to keep internet surfing.
Features:Supports chromecast, for Google home, Netflix, hulu, etc., X5L 2.4G frequency
Supports 2.4G WIFI network, to achieve real high-speed with the screen fluent.
Item type:Wireless WiFi Display Receiver
Power Comsumption: Main unit ¡Ü 750mA@5V
Functions: Miracast DLNA Airplay Chrome
Miracast: Android Wi-Fi Display (Miracast)
DDR3: 128MB
.NOR flash: 128M Bytes
WiFi: IEEE 802.11 b/g/n (Built-in Realtek 8188 USB WiFi Module)
CPU: RK3036
Airplay:To support IOS airplay mirroring
DLNA: Digital Living Network Alliance
Phone Model:Support Most Smart phone
Video Player: MPEG2, MPEG4, AVI, WMV, MKV, MOV, RM, RMVB
Music: MP3, WMA, WAV, OGG, AAC, FLAC, 3GP
Chromecast: To support for Google home(app)and for Google chrome
Chip: quad-core; MTK Quad; RK30/RK31; Allwinner A31
OS: Android 4.2
Gallery:JPG, BMP, PNG
Note:1. This product is not suitable for use on Korean TV brands, such as Samsung, LG, etc. There may be abnormal playback speed or screen mosaic during playback, please pay attention.
2. This product is not suitable for use on Korean Smartphone brands, such as Samsung, LG, etc. If the mobile device you use to synchronize the screen is a Samsung mobile phone, it will not be able to use it, because Samsung¡¯s same-screen protocol does not allow other devices to share the same screen. Please use other mobile phone brands.
Package Includes:1 x WiFi display dongle
1x WiFi Antenna
1 x User Manual
