Description
Description:
1. Wind Solar Hybrid Controller for 12V 24V 36V 48V 60V Battery Charging.Auto-focus MPPT tracking charging, high charging efficiency, non-stop detection during the charging process two-way focus tracking.
2. Large-screen LCD display, adjustable charging and discharging parameters UItra-wide charge and discharge can be adjusted.accurate real-time display of temperature, charging current, and discharging current, and the cumulative power generation is clear at a glance.
3. Complete 3-stage charge management, effectively protect the battery, and the battery is more durable.This controller is suitable for all kinds of lead-acid batteries (including open, sealed, and colloida. Lithium batteries require user-defined parameters).
4. Both charging and discharging are combined with multiple MOS, high-power charging and discharging, and the Phoenix wing aluminum alloy has good heat dissipation performance.Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat generation.
5. Built-in overheating, overcurrent, short circuit, open circuit protection, reverse connection protection, when the fault is eliminated, the controller will automatically recover without damaging the equipment. It is strictly forbidden to short-circuit the boost output power port!
Note:
1. The BL4600 wind solar hybrid charge controller is the strongest current focus tracking MPPT charging and boosted MPPT charging.
2. The first group of batteries is to track the current and focus on the highest power point of the MPPT to adjust the internal charging method to maximize the conversion of light energy into electrical energy. The second set of batteries is MPPT charging with low-voltage boost and high-voltage constant voltage tracking. Please recognize the technical characteristics when purchasing, so as to avoid misunderstanding.
3. This MPPT Controller don't have APP Control function ,please know that.
4.The actual operating current is not as high as the rated current. The rated current works for a short period of time without problems, the power will be reduced later to ensure that the product is reliable and safe without breaking down as a principle, the actual application current will be reduced, please know. Our machines are a little more cost effective, if you must reach a very high standard, please buy with caution.
Features:
1. Industrial-grade main control chip, 16-level AD sampling accuracy, accurate real-time display of temperature, charging current, and discharging current, and the cumulative power generation is clear at a glance
2. Auto-focus MPPT tracking charging, high charging efficiency, non-stop detection during the charging process two-way focus tracking. Input 15V to 40V boost MPPT for efficient charging.
3. Large-screen LCD display, adjustable charging and discharging parameters UItra-wide charge and discharge can be adjusted. As long as you understand the characteristics of the battery and set its corresponding charging parameters, you can charge any battery. The output power off minute and hour can be adjusted, which is more convenient (the market only has no minute adjustment)
4. Complete 3-stage charge management, effectively protect the battery, and the battery is more durable.This controller is suitable for all kinds of lead-acid batteries (including open, sealed, and colloida. Lithium batteries require user-defined parameters).
5.To charge the 12V/24V/36V/48V/60V battery, the voltage value of the solar panel is 1.5 times the voltage value of the battery to be recharged.
6. Built-in overheating, overcurrent, short circuit, open circuit protection, reverse connection protection, when the fault is eliminated, the controller will automatically recover without damaging the equipment. It is strictly forbidden to short-circuit the boost output power port!
7. Two-way MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat generation.
8. Both charging and discharging are combined with multiple MOS, high-power charging and discharging, and the Phoenix wing aluminum alloy has good heat dissipation performance
9.No battery is needed to supply power to the load, it is a real sunshine application.
Specifications:
Type: MPPT Controller
Color: Gold
Self-Consume: <10mA
USB Output: 5V/2A Max
Operating Temperature: -10-+60¡æ
Siez/Weight : 268*138*66mm/650g
MPPT-30A Gold:
Rated Charge Current: 30A
Rated Discharge Current: 10A
MPPT-60A Gold:
Rated Charge Current: 60A
Rated Discharge Current: 20A
MPPT-100A Gold:
Rated Charge Current: 100A
Rated Discharge Current: 30A
Package Included:
1 * MPPT Controller
1 * Detailed User manual
Shipping:
Free Shipping
Delivery Time: 2-6 working days
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
Customer Reviews

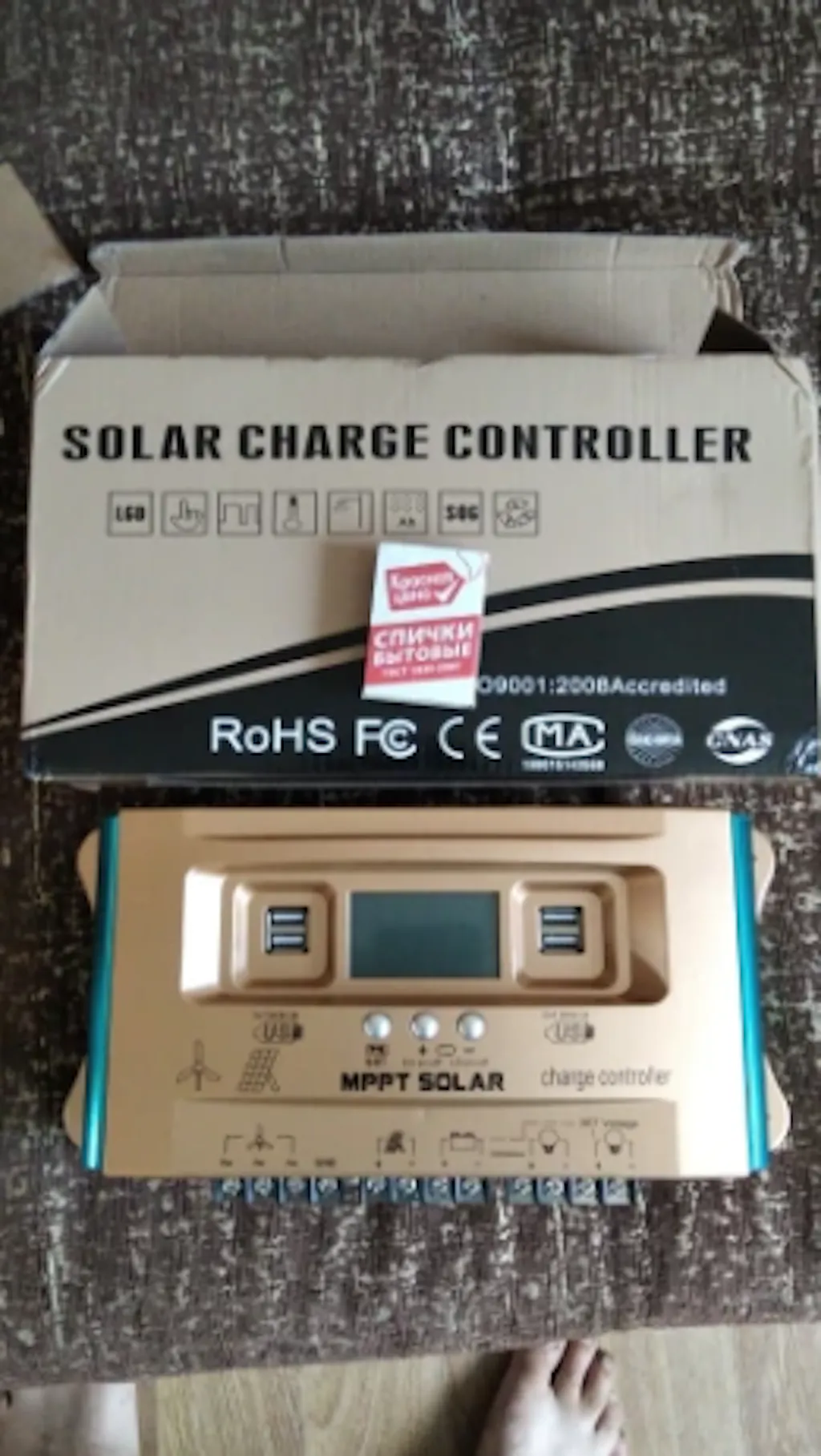

Excellent controller!
