GRUPPO TERMICO CILINDRO PISTONE PER YAMAHA TT-R 110 TTR110E CRYPTON T110 08-25

Cylinder Piston Gasket Top End Rebuild Kit 51mm Fit For Yamaha TTR110 TT-R110E 2008-2025

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.
Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 51 mm x 54 mm stroke, 13 mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Engine: 4-Stroke
Displacement: 110cc
Bore Type: Standard Bore
Bore diameter: 51 mm
Stroke: 54 mm
Pin diameter: 13 mm

Replacement Part Number:
Cylinder: 5TP-E1310-01, 5TN-E1310-01
Cylinder Base Gasket: 4ST-E1351-02
Cylinder Head Gasket: 5TN-E1181-00
Piston: 3S0-E1631-00-A0
Pin, Piston: 5LM-E1633-00
Piston Ring Set (Std): 5TP-E1603-20
Circlips, piston (2): 93450-14088
Chain Tensioner Gasket: 3S0-E2213-00
Valve Stem Seal (2): 4S9-E2119-00

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Yamaha TTR110E 2008-2025
Fit for Yamaha Spark-Z 110
Fit for Yamaha Jupiter-Z 110
Fit for Yamaha Crypton T110
Fit for Yamaha C8 New Club 110cc

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

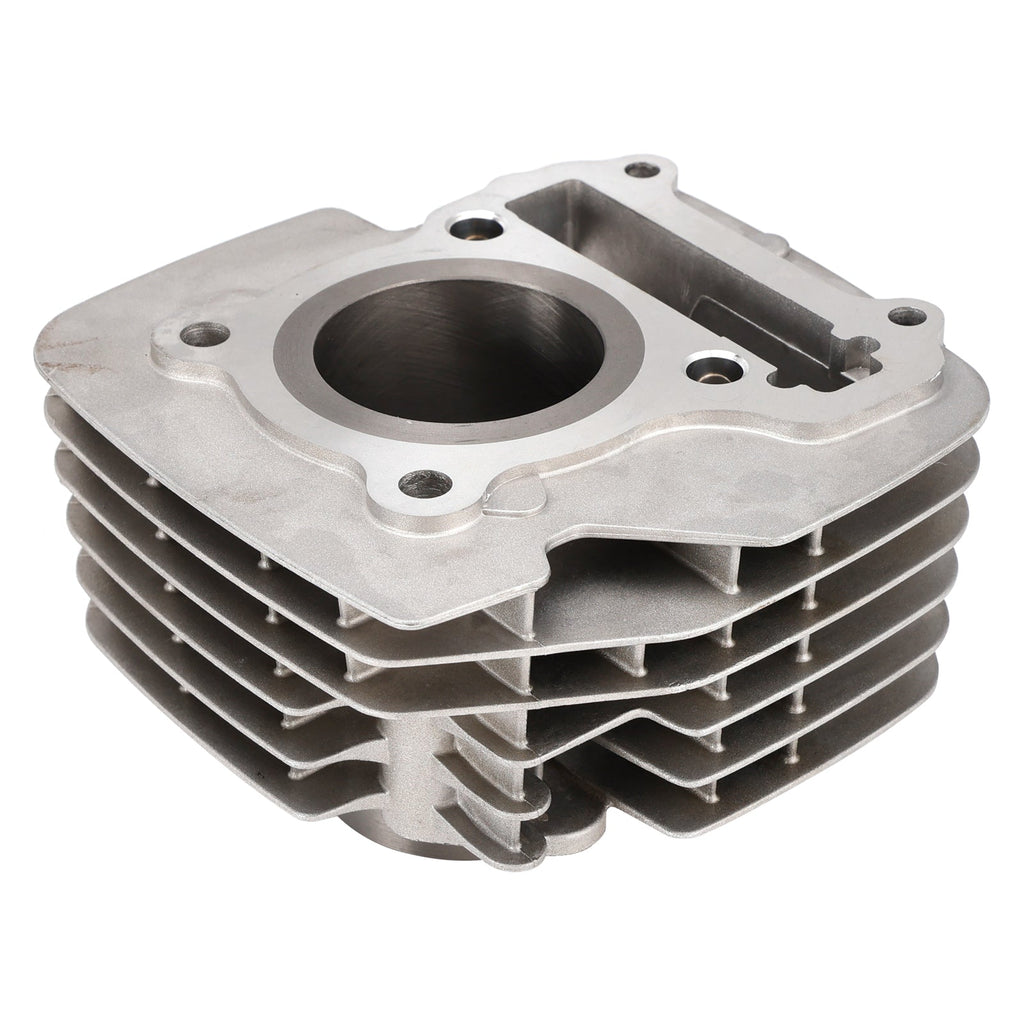

1x 51mm Cylinder

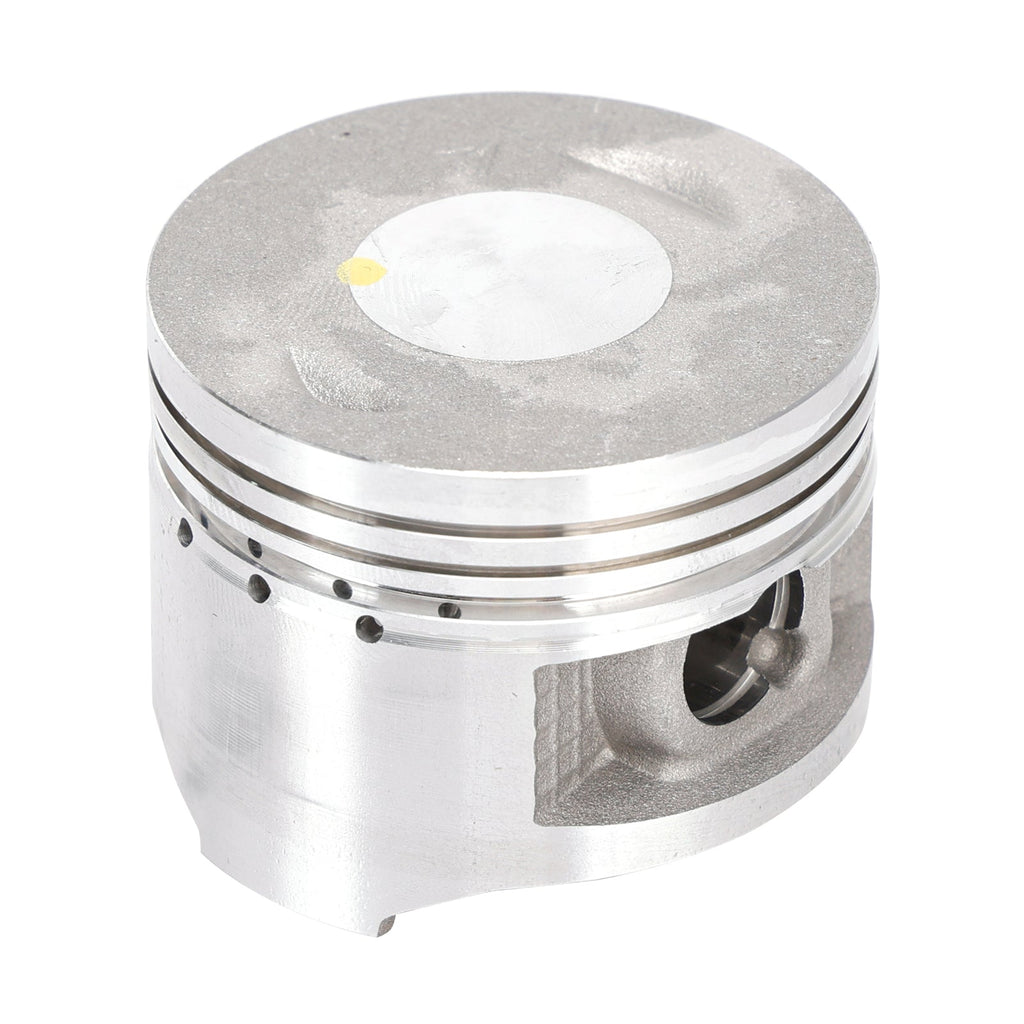

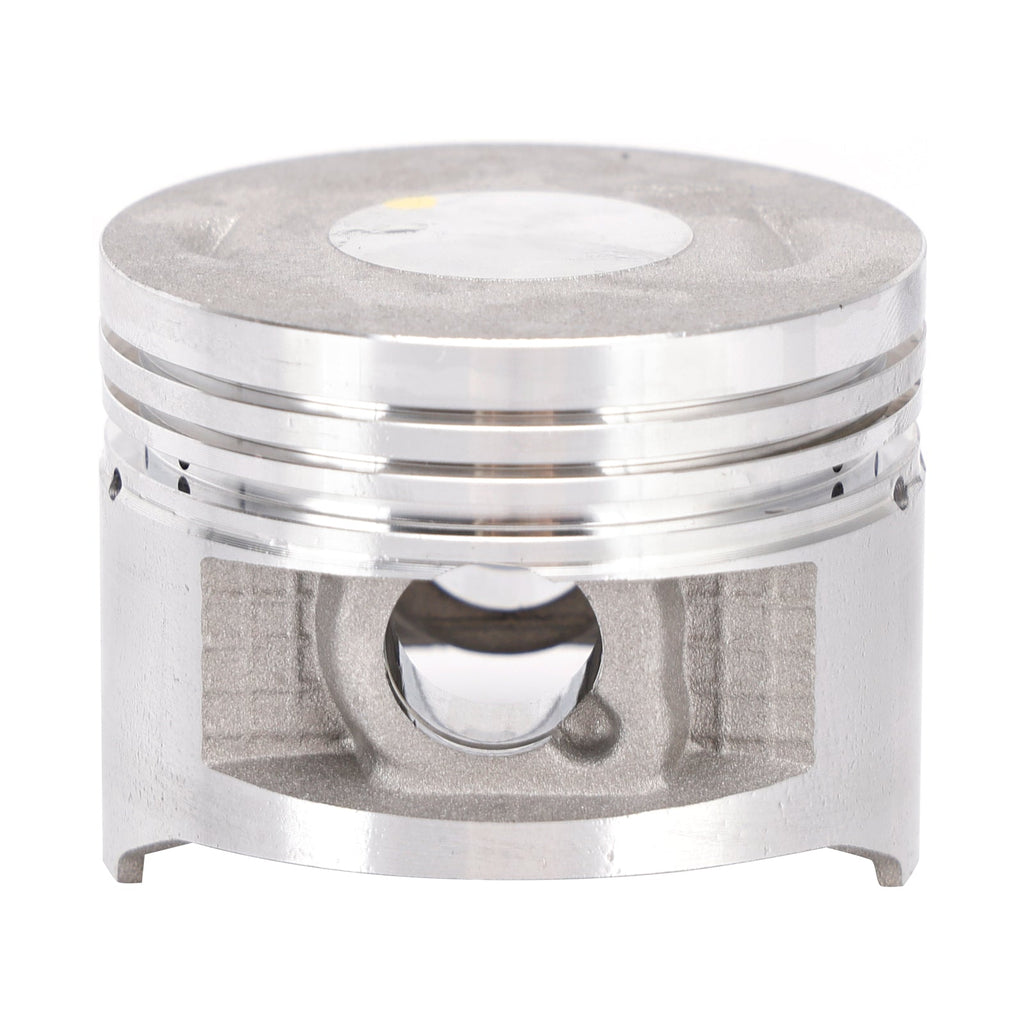

1x Piston

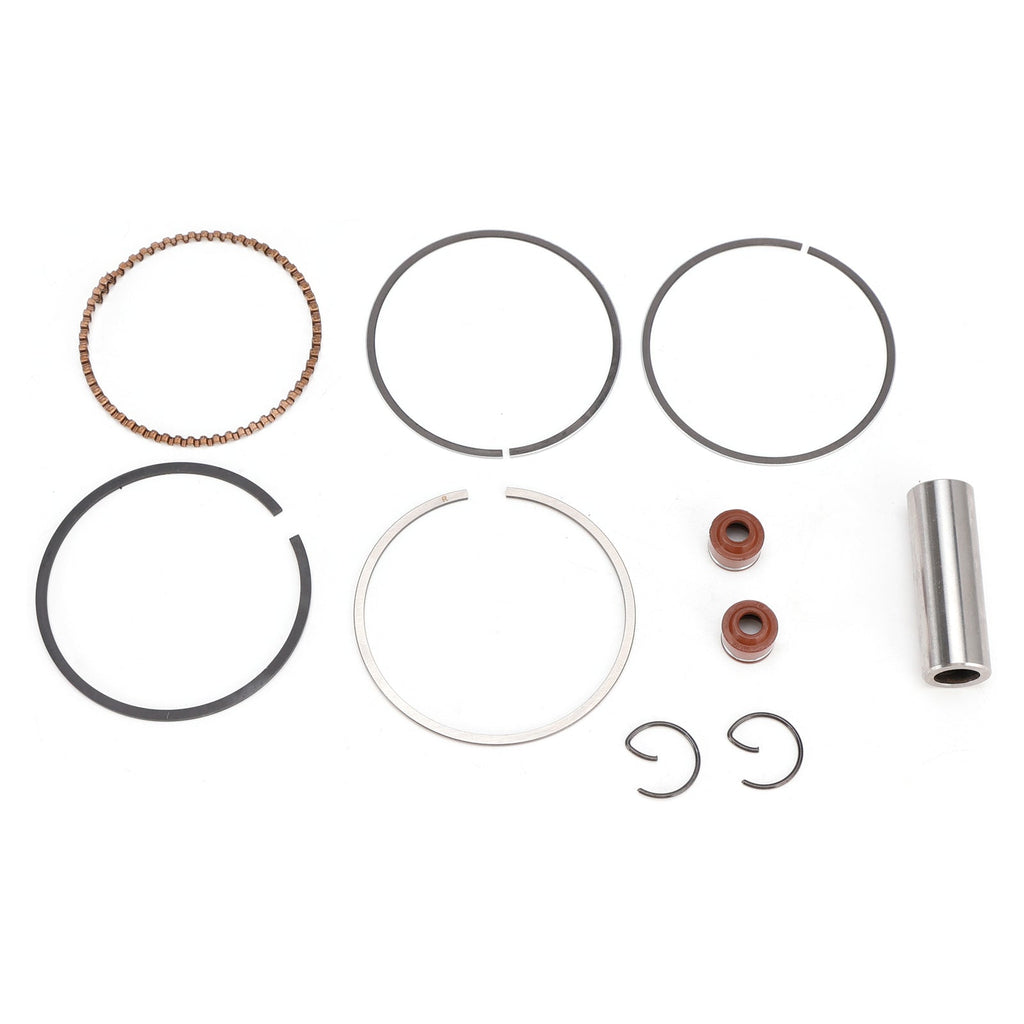

1x Piston Ring Set
1x 13mm Wristpin
1x Circlip(2)

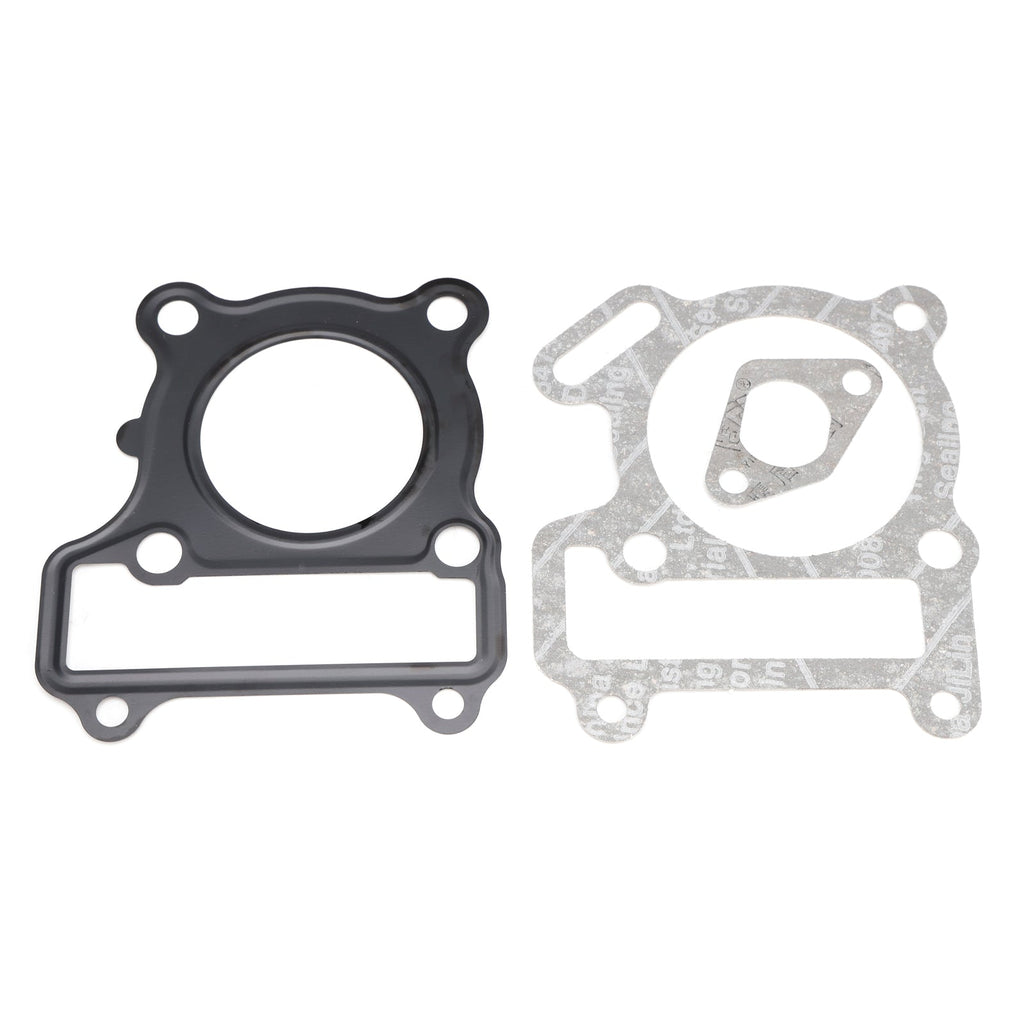

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
2x Valve Stem Seals

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
