Description
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

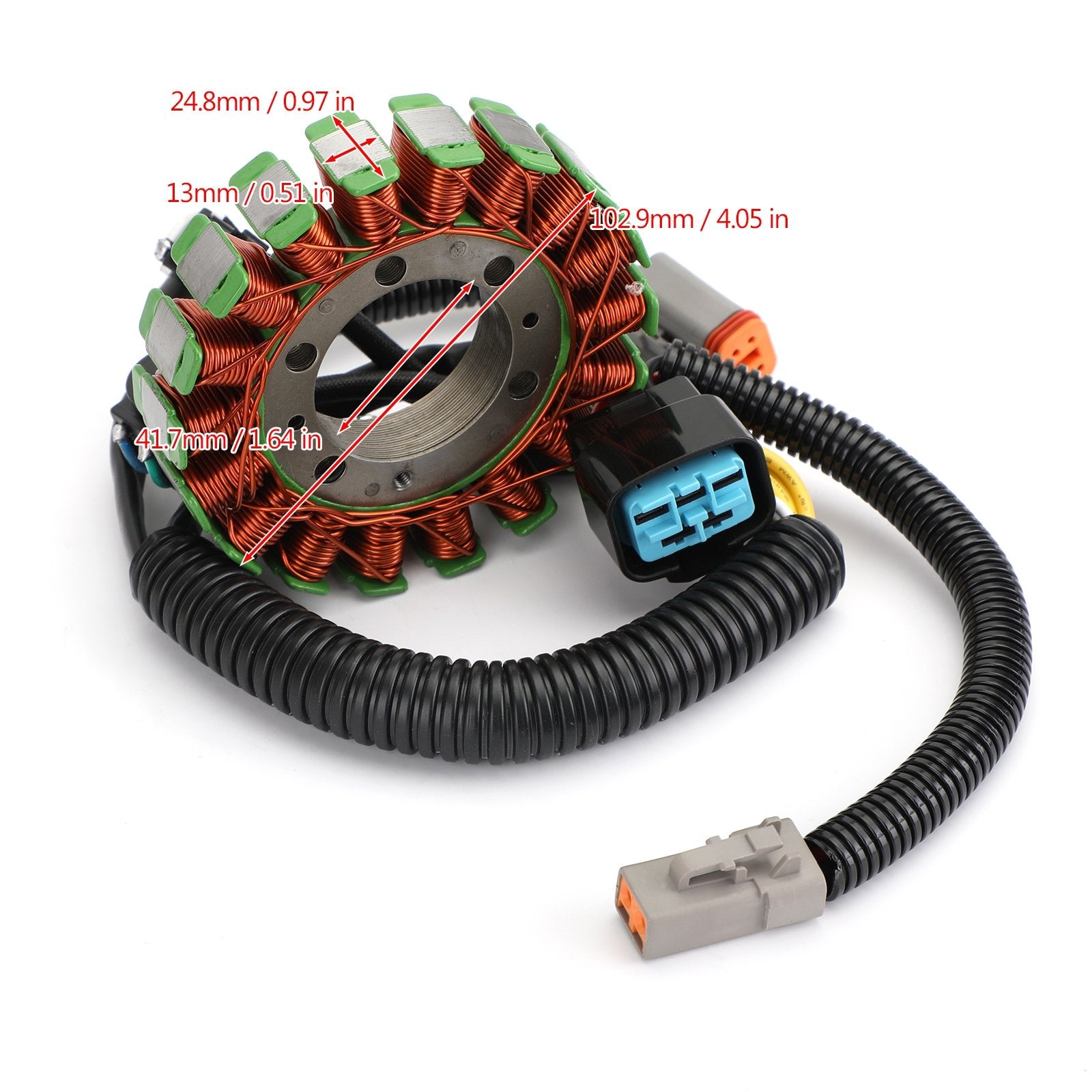

Dimensions :
Interior diameter : 41.7mm / 1.64inches
Exterior diameter : 102.9mm / 4.05 inches
Pole's Thickness : 24.8mm / 0.97 inches
Pole's Width : 13mm / 0.51 inches
Other specifications :
Number of wires: 7
Number of pins: 11
Number of plugs: 3
Number of fixation holes: 5(+2)
Number of poles: 18
REPLACEMENT PART NUMBER:
420889907,420889908,420889909,420889904
Fits Lynx Rave 600 2010
Fits Lynx Rave RE 800 R 2009-2010
Fits Lynx Rave RS 600 2008
Fits Lynx Xtrim 800 R 2010
Fits Lynx Xtrim SC 800 R 2009
Fits Ski-Doo Grand Touring Sport 600 Carb 2010-2014
Fits Ski-Doo GSX 500 SS Sport Carb 2008
Fits Ski-Doo GSX 600 Sport Carb 2010
Fits Ski-Doo GSX 800 R Limited Carb 2008
Fits Ski-Doo GTX 500SS Sport Carb 2009
Fits Ski-Doo MX Z 500SS TNT Carb 2008-2009
Fits Ski-Doo MX Z 500SS Trail Carb 2008
Fits Ski-Doo MX Z 600RS Carb 2008
Fits Ski-Doo MXZ 600 CARB 2018
Fits Ski-Doo MX Z 600RS Magneto 2008
Fits Ski-Doo MX Z 600 Sport Carb 2010-2015
Fits Ski-Doo MX Z 600 TNT Carb 2010-2012
Fits Ski-Doo MX Z 800 HO Renegade PTEK Carb 2008
Fits Ski-Doo MX Z 800R Adrenaline Carb 2008-2010
Fits Ski-Doo MX Z 800R Carb 2011
Fits Ski-Doo MX Z 800R Renegade Carb 2008
Fits Ski-Doo MX Z X-RS 800 R Carb 2010
Fits Ski-Doo MX ZX 800 HO Renegade X Carb 2008
Fits Ski-Doo MX ZX 800 R Carb 2009-2010
Fits Ski-Doo MX ZX 800 R Renegade X Carb 2008-2009
Fits Ski-Doo Renegade 800 R Adrenaline Carb 2010-2011
Fits Ski-Doo Renegade 800 R Backcountry Carb 2010-2011
Fits Ski-Doo Renegade 800 R SP Carb 2011
Fits Ski-Doo Renegade X 800 R Carb 2010
Fits Ski-Doo Renegade X 800R Backcountry 2010
Fits Ski-Doo Summit 500 SS Everest Carb 2009
Fits Ski-Doo Summit 600 Sport Carb 2010-2015
Fits Ski-Doo Summit 800 R Carb 2009
Fits Ski-Doo Summit 800 R Everest Carb 2008-2011
Fits Ski-Doo Summit 800 R Hillclimb Carb 2009-2010
Fits Ski-Doo Summit 800 R HO X Carb 2008
Fits Ski-Doo Summit 800 R SP Carb 2011
Fits Ski-Doo Summit 800 R Sport Carb 2012-2015
Fits Ski-Doo Summit X 800 R Carb 2009-2010
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Delivery Time: 2-6 working days
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
