Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
All products shipped are tested.
Condition: Aftermarket 100% Brand New

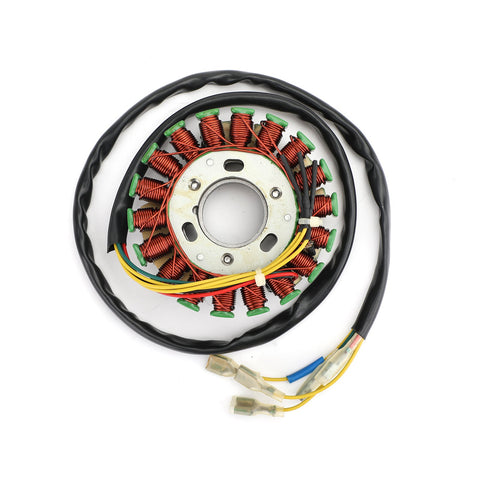

Type: Generator Stator Coil
Replacement Part Number:RM01193-R00
Interior diameter : 28mm / 1.09"
Exterior diameter : 92mm / 3.61"
Thickness : 10mm / 0.41"
Other specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 6
Number of fixation holes: 3
Fixation holes length: 32mm / 1.28"
For Husaberg FC470 2001-2002
For Husaberg FC470E 2002
For Husaberg FC550 2001-2002
For Husaberg FC600 1999-2000
For Husaberg FE400 1999-2000
For Husaberg FE400E 1999-2003
For Husaberg FE501 1999-2000
For Husaberg FE501E 1999-2003
For Husaberg FE600 2000
For Husaberg FE600E 1999-2000
For Husaberg FE650E 2001-2003
For Husaberg FS400E 2003
For Husaberg FS600E 1999
For Husaberg FS650E 2002-2003
For Husaberg FX470E 2001-2002
For Husaberg FX501E 1999
For Husaberg FX600E 1999-2000
For Husaberg FX650E 2001-2003
For Husqvarna Many Models
1x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
