Description
Features:

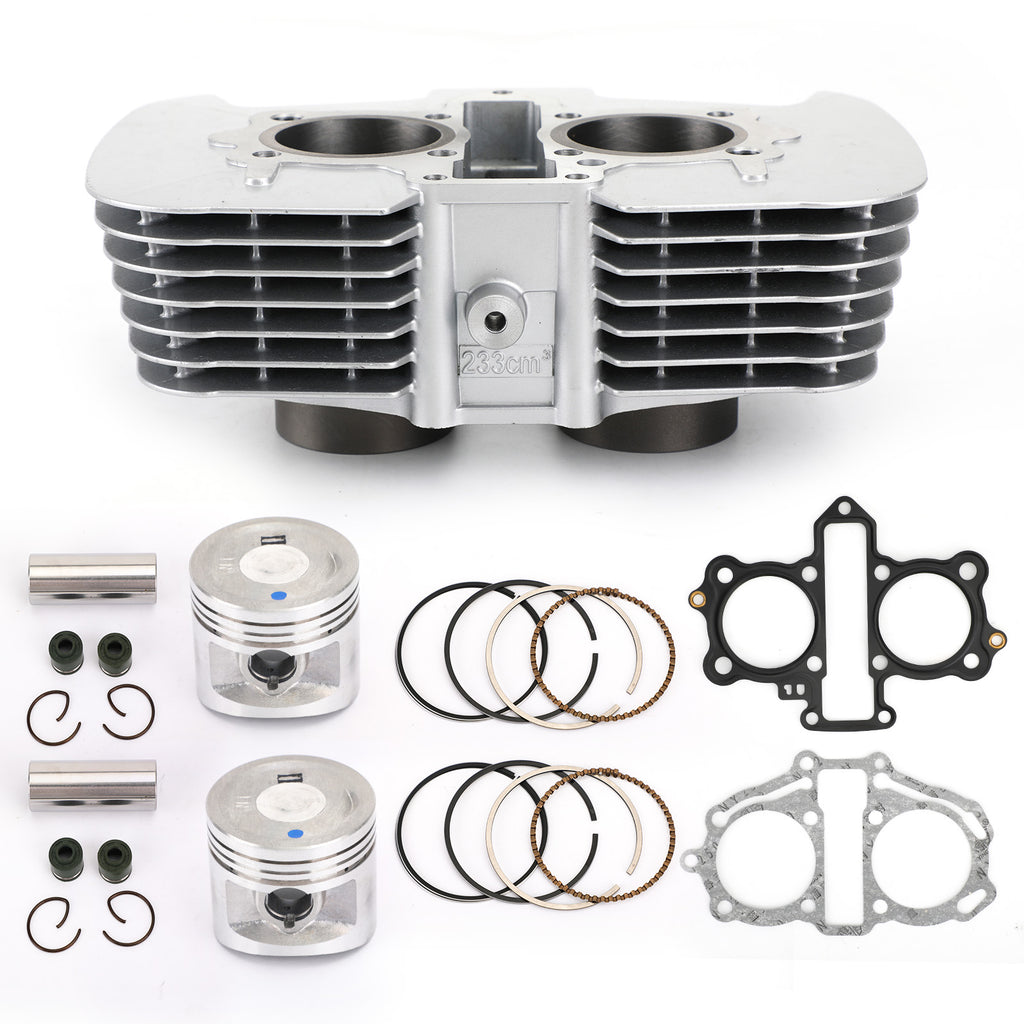

Kit includes piston, rings, pin, clips, & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 53.00mm.
All of the components within this kit are bolt-on ready for a hassle free installation.
Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 233 cc
Cylinder Height: 76 mm
Bore Size: STD 53 mm
Piston Length: 47 mm
Pin Size: 15 mm
Thickness of the upper piston ring: 1 mm
Thickness of the 2nd piston ring: 1 mm
Replaces Part Number:
Cylinder: 12100-KBG-671
Cylinder Head Gasket: 12251-KBG-671
Cylinder Base Gasket: 12191-KBG-770, 12191-KBG-771
Piston: 13101-KR3-013
Valve Stem Seals: 7342632
Circlips: 94601-15000
Fitment:
Honda CA250 Rebel 250 1996-2011
Honda CMX250C Rebel 250 1996-2015
Honda CB250 Nighthawk 250 1996-2008
Package Includes:

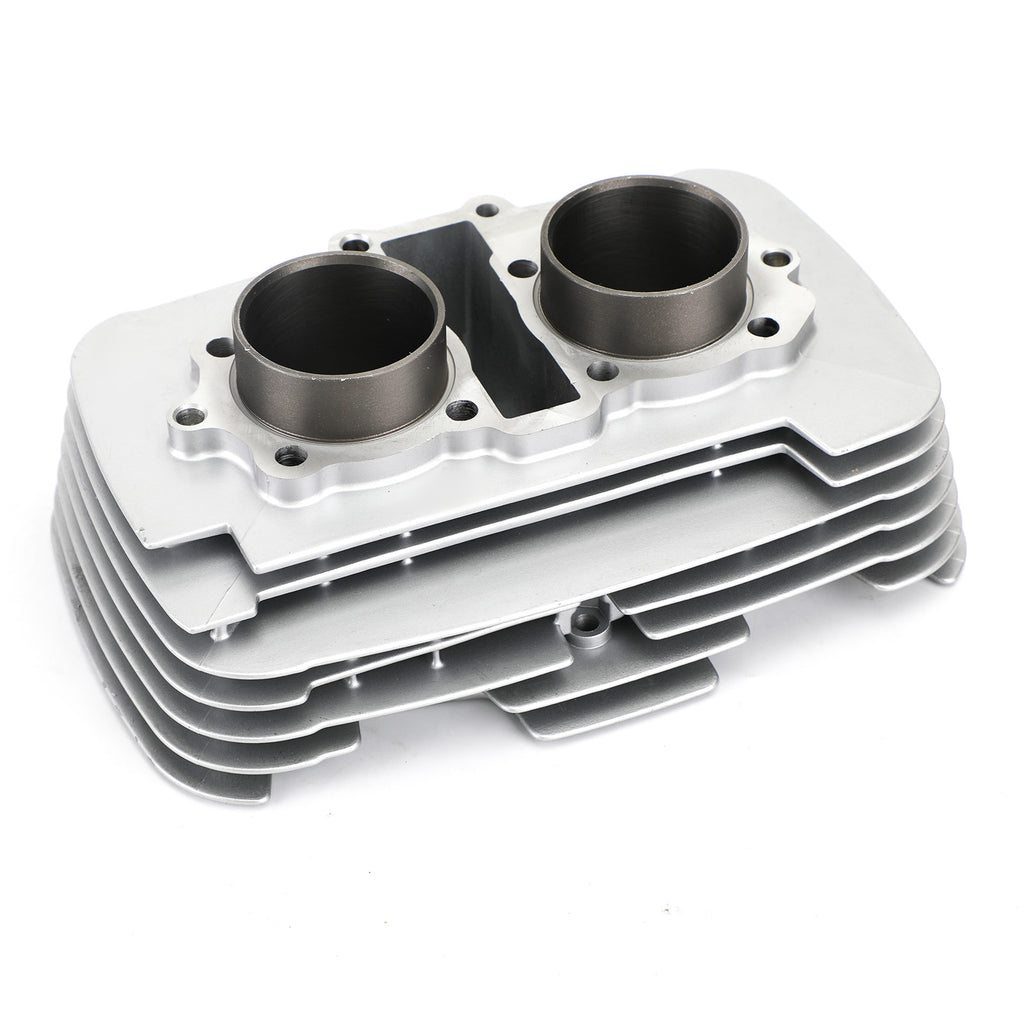

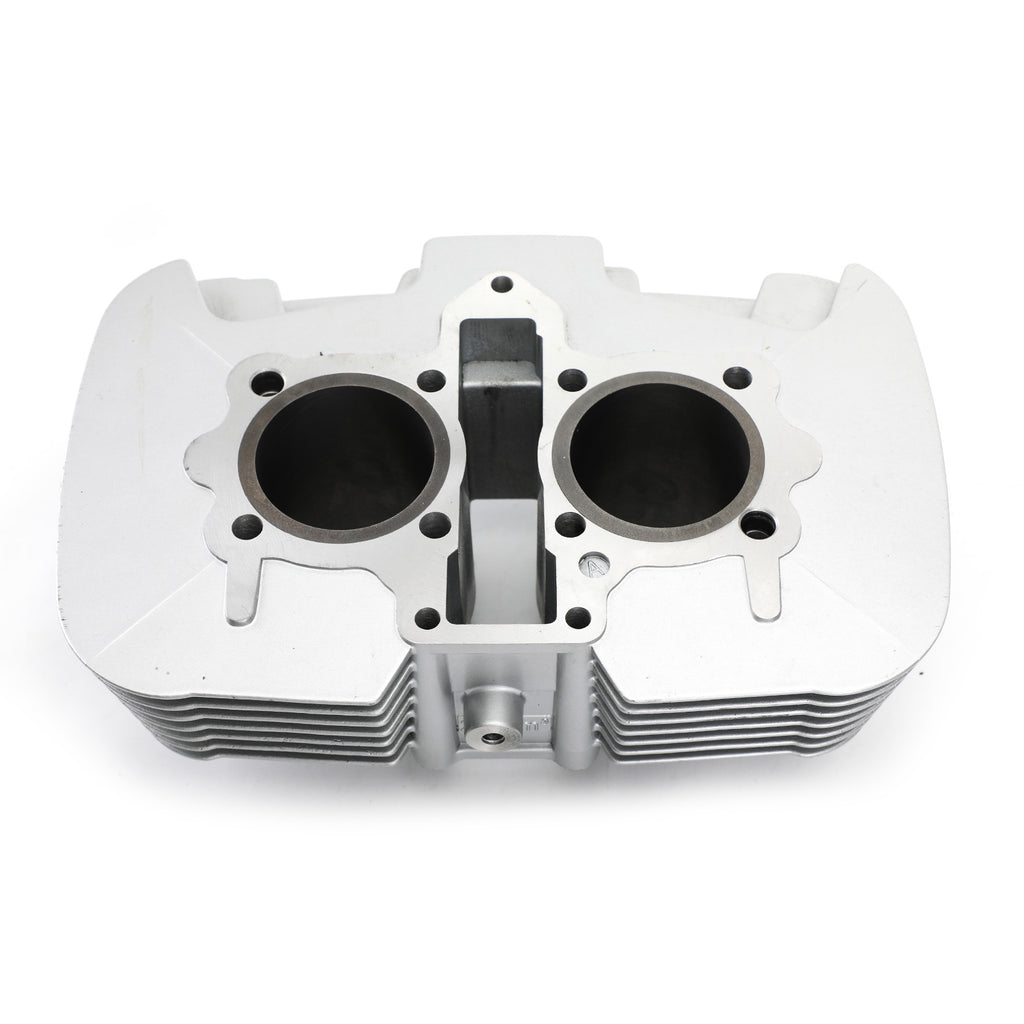

1x Cylinder

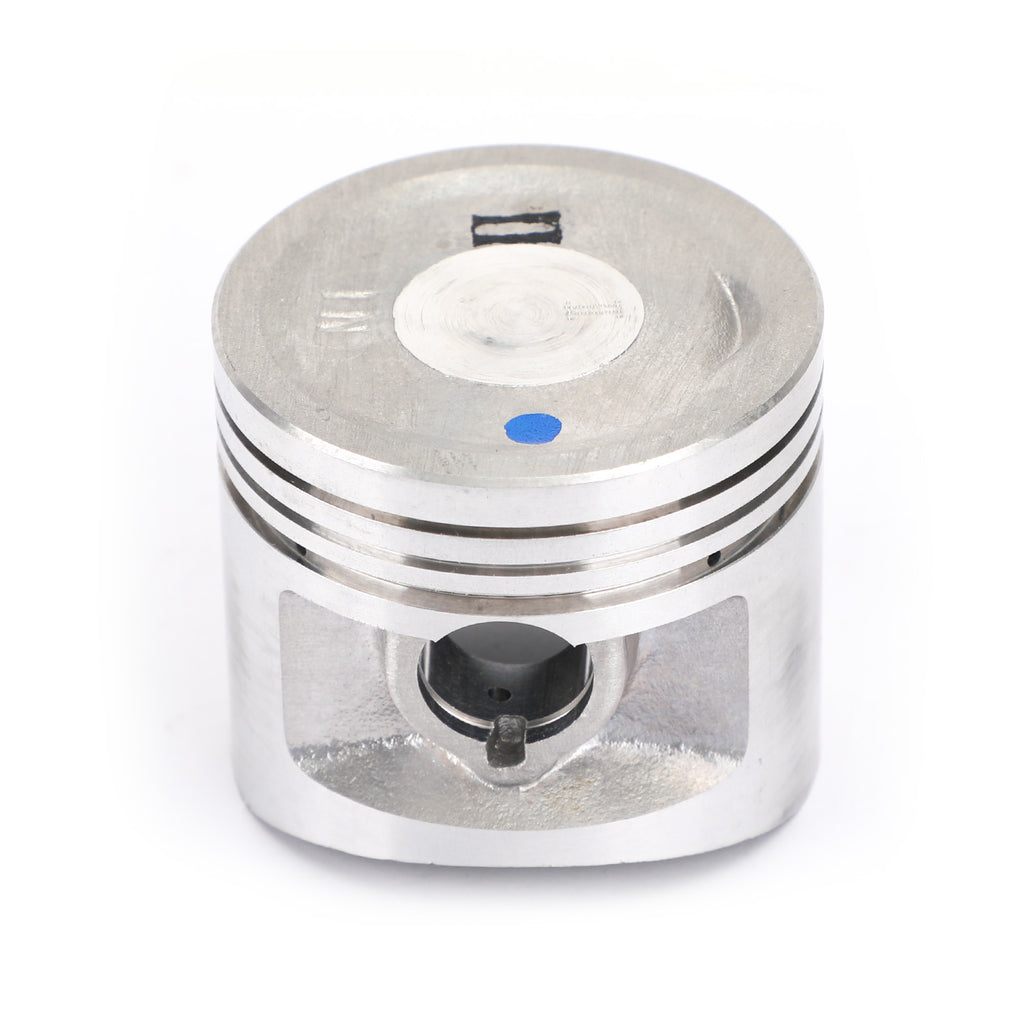

2x STD Pistons

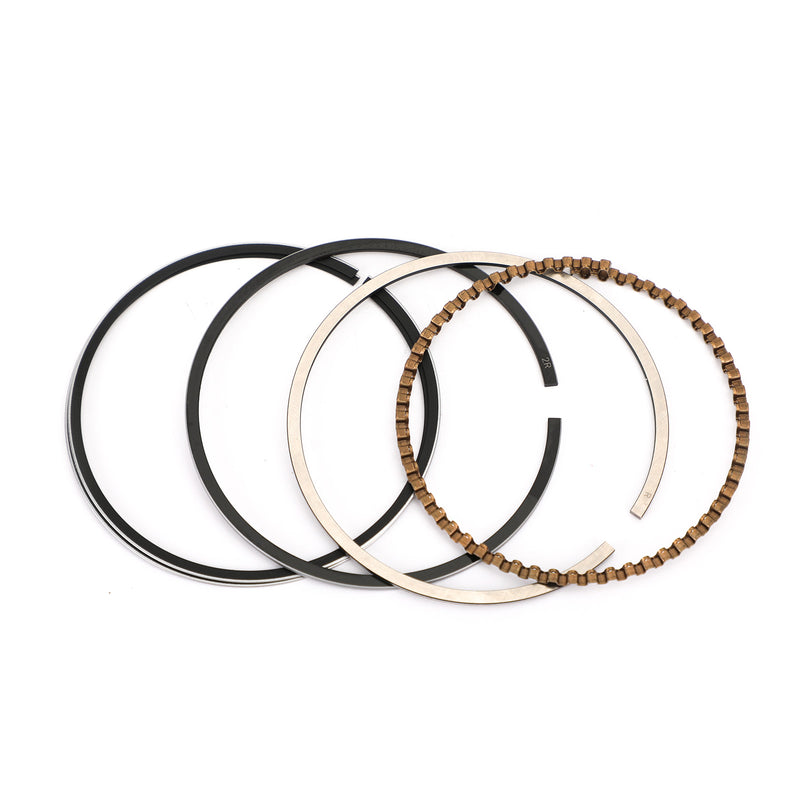

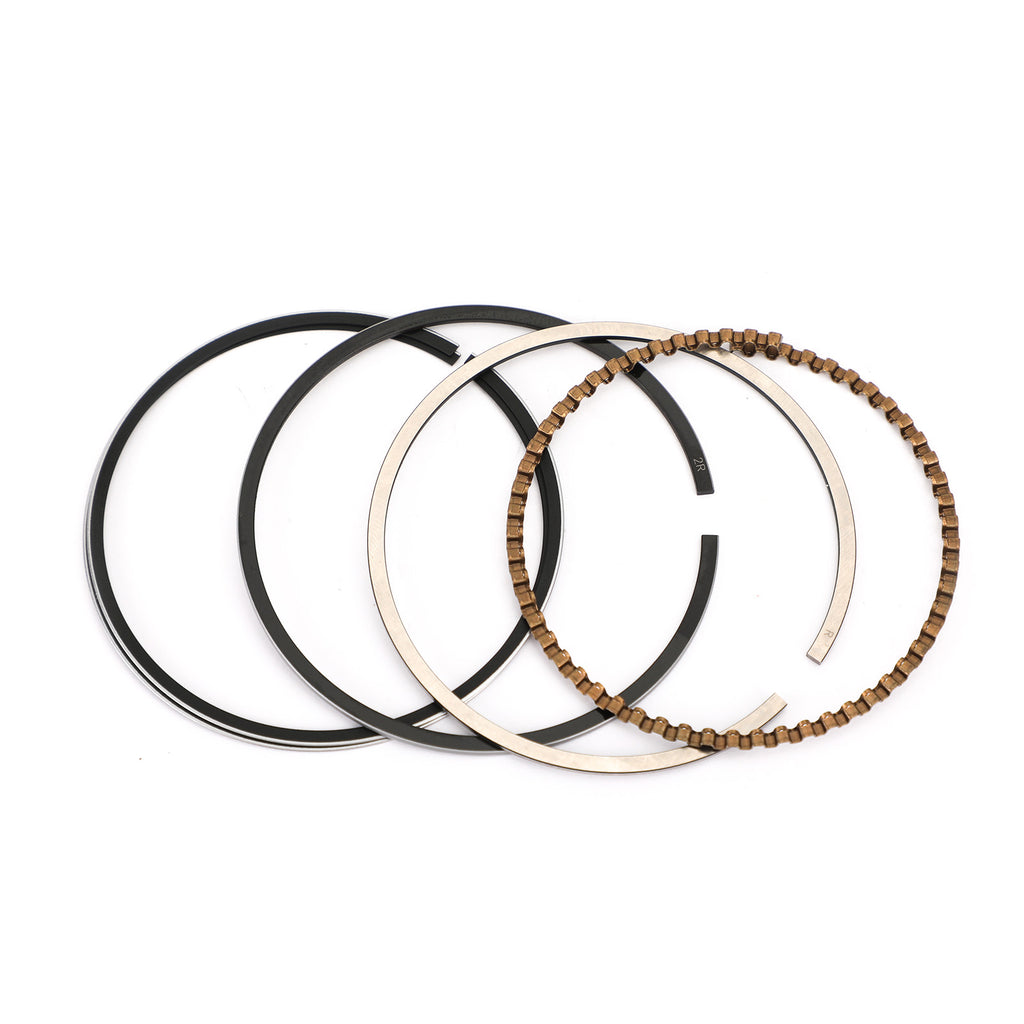

2 sets of Rings

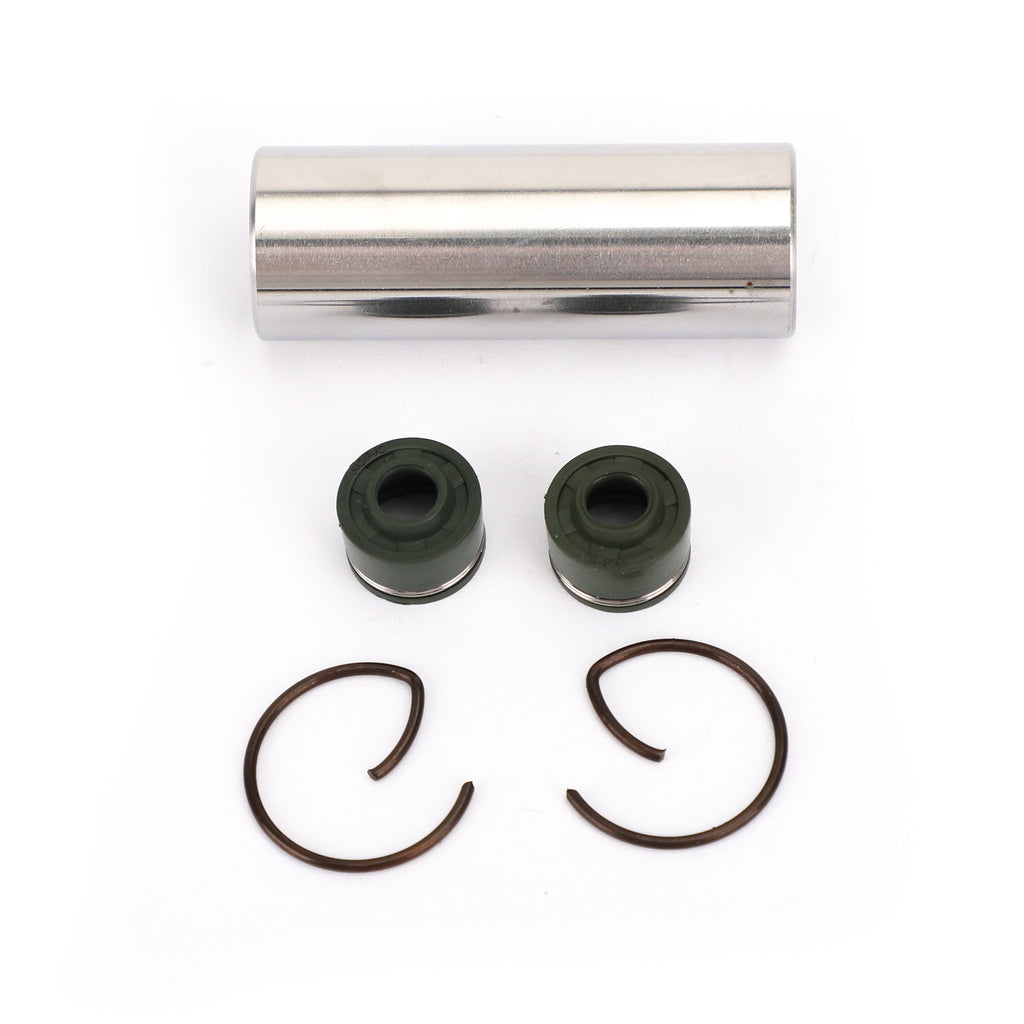

2 sets of Wristpin
2 sets of Circlip

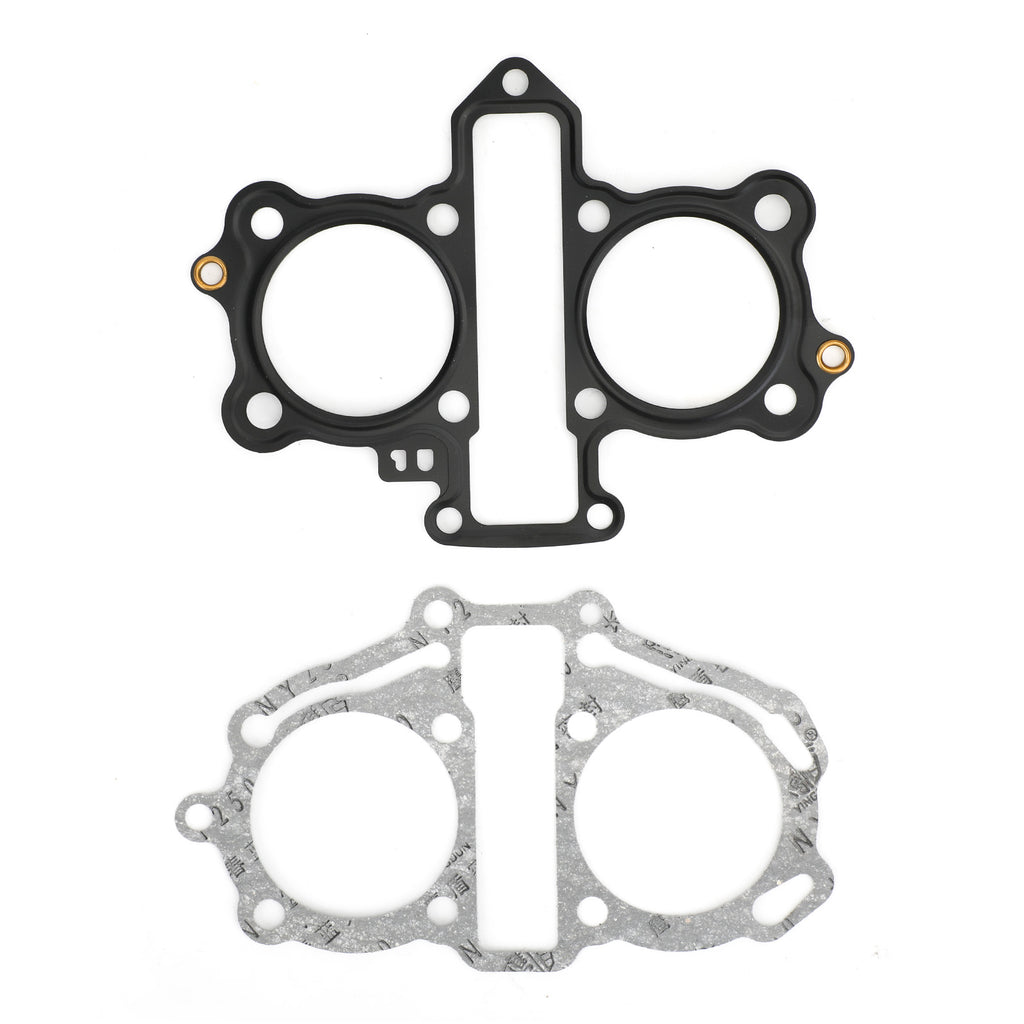

1x Cylinder Head Gasket
1x Cylinder Base Gasket
4x Valve Stem Seals
Note:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
Customer Reviews
Overall, I am fairly pleased with this product.
The kit includes almost all the necessary components for a complete cylinder and piston replacement, and everything seems to be of decent quality. The cylinder itself is made of durable materials and has a good finish, while the piston appears to be well-made and fits snugly inside the cylinder.
The installation process was relatively straightforward and I was able to get everything installed and running in a reasonable amount of time. Once installed, the chainsaw ran smoothly and seemed to have improved performance compared to before the replacement.
Fast shipping,great value.
Great deal and good shipping. I will use them again.
installing was easy everything bolts right together only have couple rides on it still in break in process but after the first initial start and brake in I've been running it fairly hard and just keeps amazing me definitely would recommend and don't have rejet the card runs perfectly on stock carb with no adjustment done
Good parts, they fit just as well as the 1979 oem parts.
