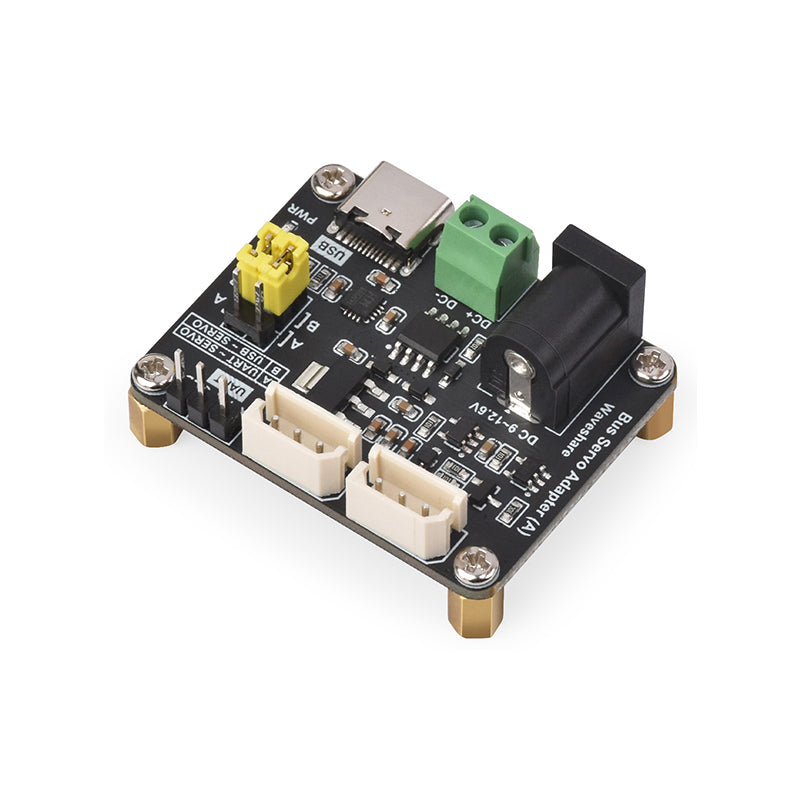

Description
Raspberry Pi Serial Bus Servo Driver Board Module USB/UART Communication Compatible With ESP32/Arduino
Features:

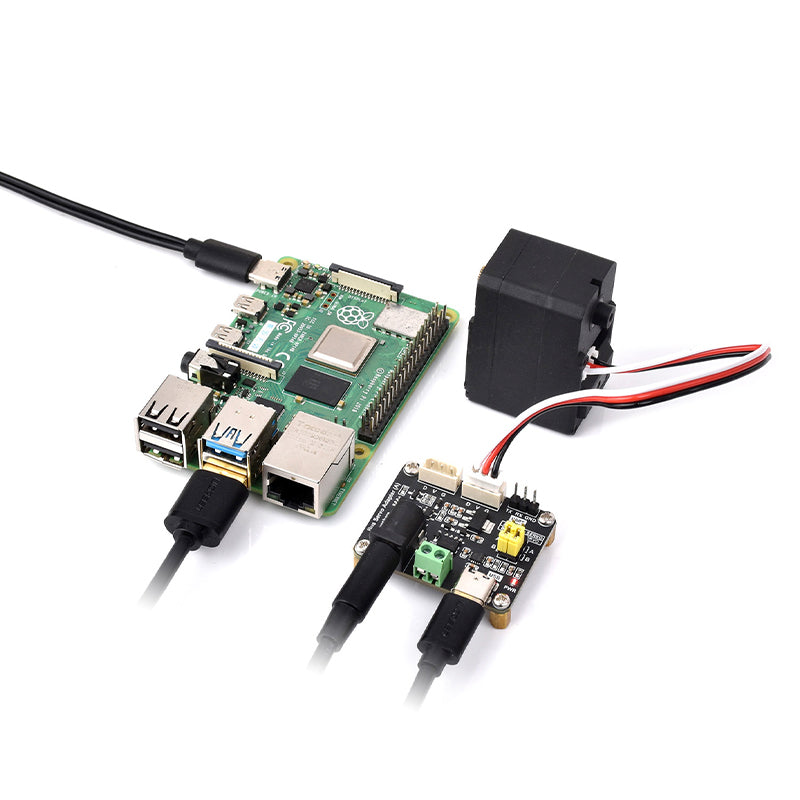

Used to connect to a host computer or MCU to control the rotation of the bus servo
Can control up to 253 ST/SC series bus servos at the same time (provided that the power supply is sufficient)
9~12.6V voltage input (the input voltage must match the servo voltage)
Provide a convenient bus servo control solution
Integrate a stable control circuit to ensure the stable operation of the bus servo
Mini and compact, save space, suitable for embedding into various projects with high space requirements
Specifications:
Power supply voltage: DC 9~12.6V (ST series servos)
Power supply interface: 5.5*2.1mm DC

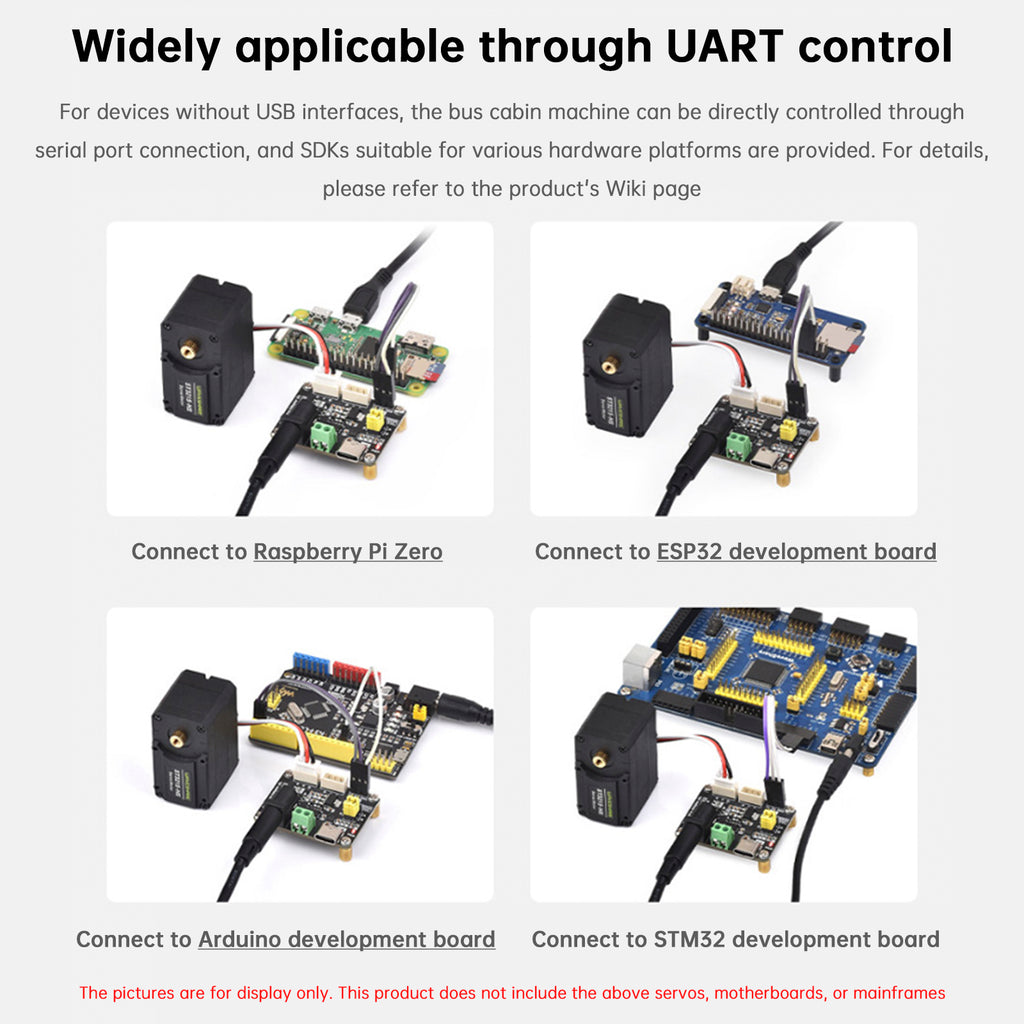

Communication interface: UART

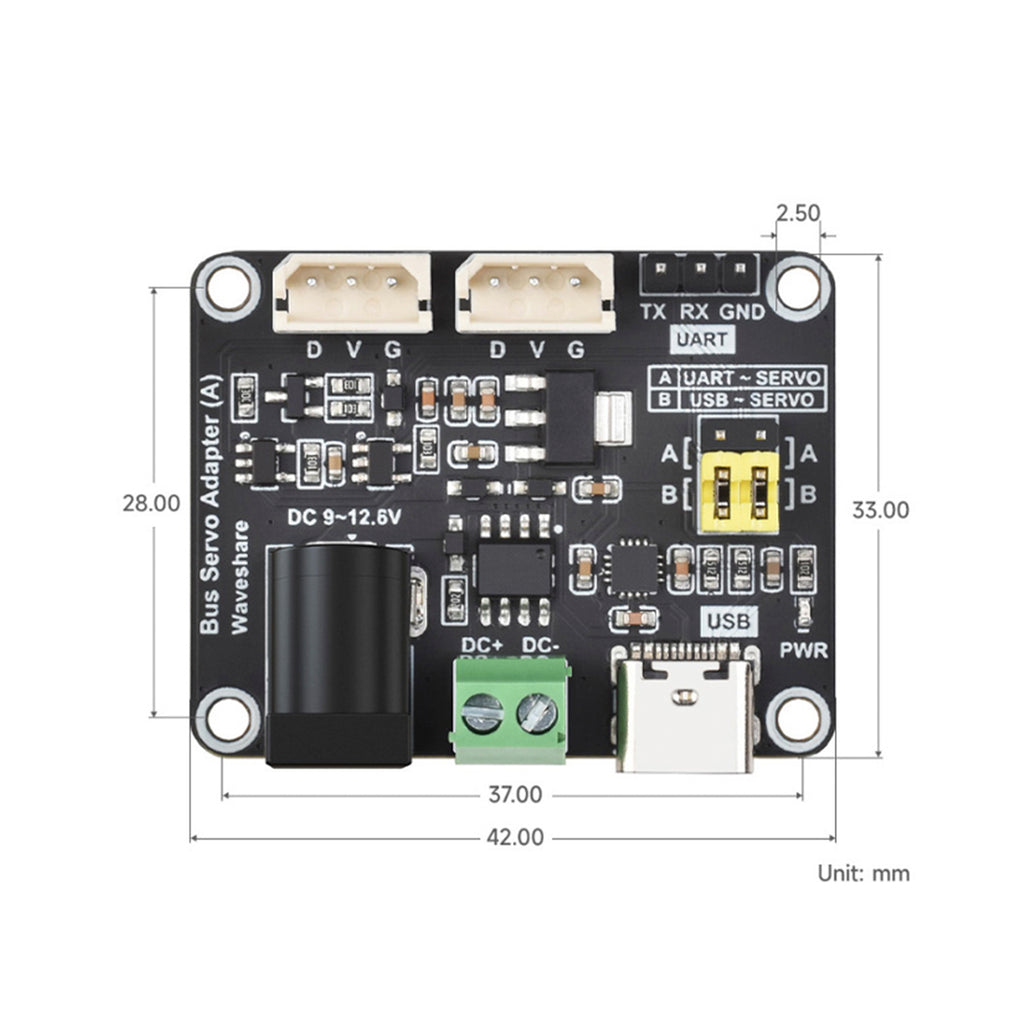

Product size: 42.00x33.00mm
Positioning hole diameter: 2.50mm
Positioning hole spacing: 37.00x28.00mm
Package Included:
1x Bus Servo Adapter(A)
