Suzuki VL1500 Boulevard C90/T 05-09 Magneto Stator+Voltage Rectifier+Gasket

vipih.comSKU: M550-C098

Price:
$119.88

Description

Features:

Made of high grade magnetically conductive material to minimize the magnetic losses.
Computerized winding to optimize quality of copper wiring
Higher grade of electric components.
Dramatically improves reliability and durability comparing to stock units.
Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
Rectifier made of highest quality electro-conducting lamination materials.
Improved heat sink and charging capabilities.
Direct replacement to your original unit.
Plug-and-play, direct fit, instruction is NOT Included.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator + Regulator + Gasket

Suzuki VL1500 Boulevard C90/T 05-09 Magneto Stator+Voltage Rectifier+Gasket Generic

Replacement Part Number:
Stator Assy: 32101-10F10, 32101-10F11
Rectifier, regulator: 32800-41F10, 32800-47H00
Gasket, generator cover: 11483-10F00, 11483-10F10

Fitment:
For Suzuki VL1500 Intruder C1500 2005-2009
For Suzuki VL1500 Boulevard C90 2005-2009
For Suzuki VL1500T Boulevard C90T 2005-2009

Package Includes:
1 x Stator Coil
1 x Regulator Rectifier
1 x Generator Gasket

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Delivery Time: 2-6 working days

Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems

Customer Reviews

Based on 9 reviews
78%
(7)
22%
(2)
0%
(0)
0%
(0)
0%
(0)
G
George Landers (San Mateo, US)

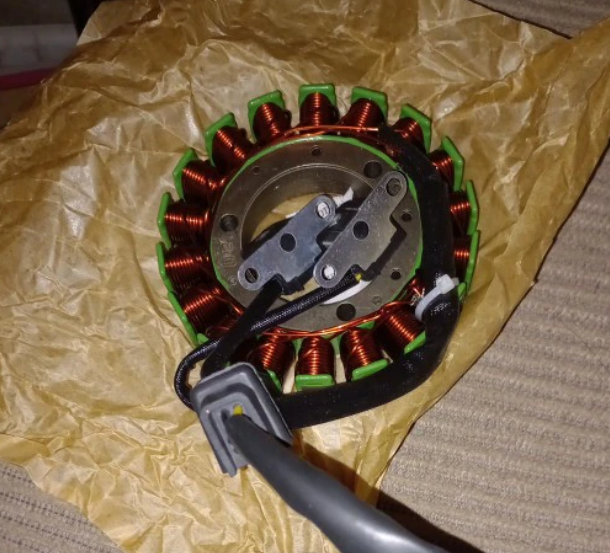

The Stator works better than the original one did. Better put some sealer on the rubber plug that goes through the case so it doesn't leak though. I didn't but the original had it and I had to add some later because it was getting a little oil residue around it.

A
Anonymous (San Mateo, US)

Works for my Suzuki VL1500. It looks well made, weighs about the same as the old model, and has quality connectors. We'll see how long it lasts...

R
Roger Marple (San Mateo, US)

Works good so far, bike running like new, great customer service.

C
C.J. (San Mateo, US)

I installed this stator and performed the dynamic stator test while the motorcycle was running. I had earlier installed a smaller stator that fit my Suzuki VL, but that stator did not produce the required AC voltage and so was unable to charge my battery. This Suzuki stator works perfectly and of course looks identical to the stator originally installed in the motorcycle. I could not be happier.

A
Anonymous
Great!Fast Shipping!

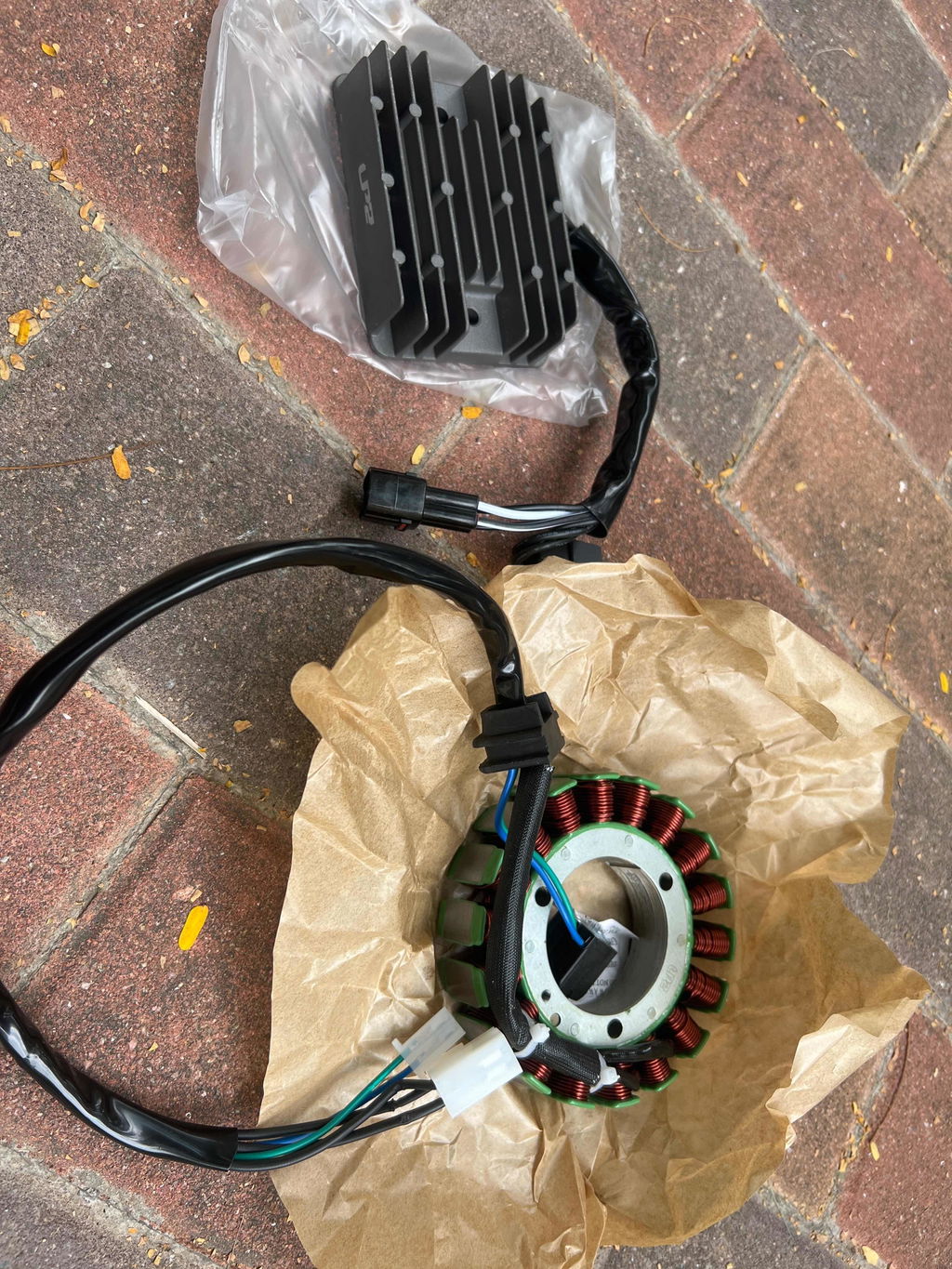

Product came in quicker than expected and visual observation it looks to be good..Stator and rectifier regulator worked good after insrall with 14.6 charging volts. Soldered all connections using no plugs in this installation to avoid over heating and melted plugin connectors over time.Excellent performance with excellent price.
