Description
WaterProof 30-90V to 12V 1-30A Step Down DC/DC Power Converter Regulator
Feature:
1:Made of high-quality materials, long service life, long term stable and reliable.
2:With overcurrent, overvoltage, overtemperature and short circuit protection, reliable multi-protection design to enhance your using safety.

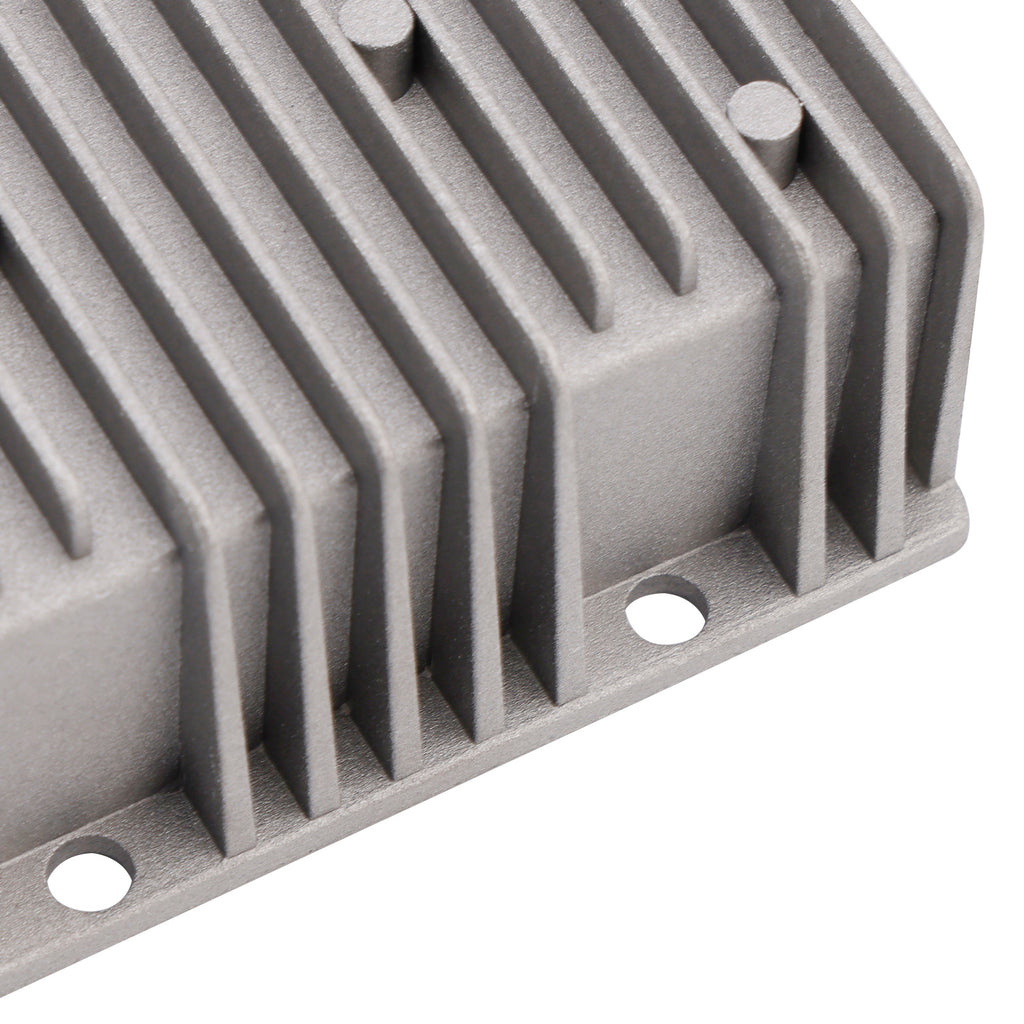

3:Waterproof, shockproof Design,good heat dissipation, easy to install
4:This product does not have the function of charging the battery, it is only used for voltage conversion.
5:Widely used in LED photo lighting, LED display screens, monitoring systems, power automation, communication systems and other fields.
Specifics:
Condition: 100% Brand New
Input rated voltage: 36V/48V/60V/72V DC
Input voltage range: 30 ~ 90V DC
Output voltage: 12V DC
Model: There are 14 options as follows:

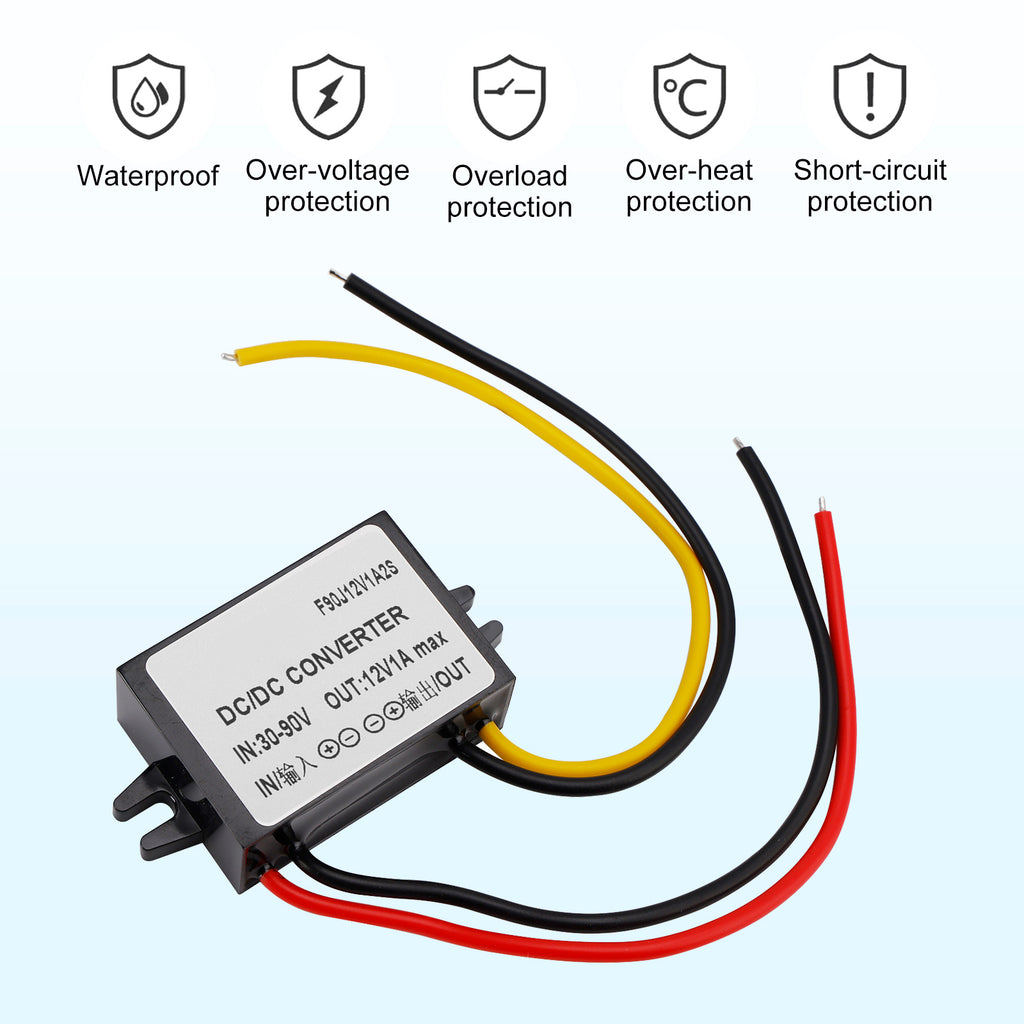

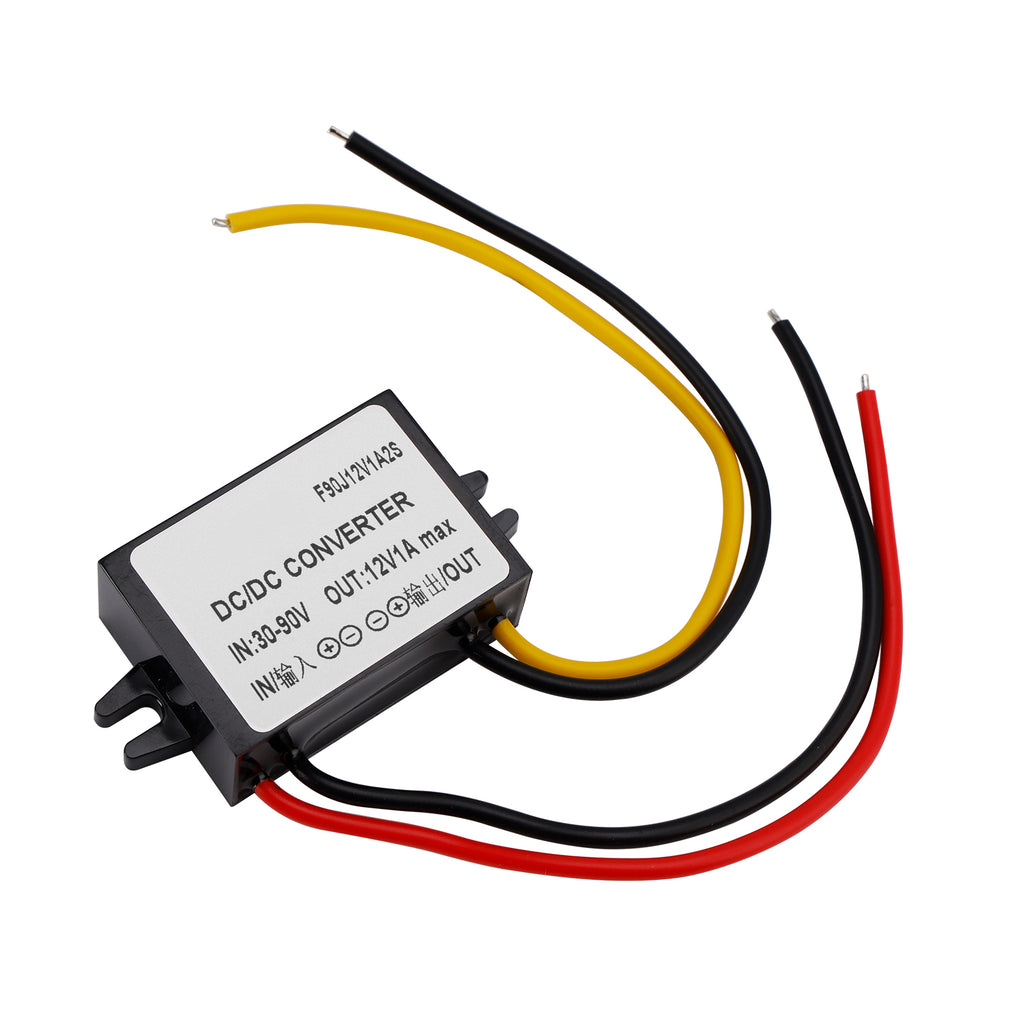

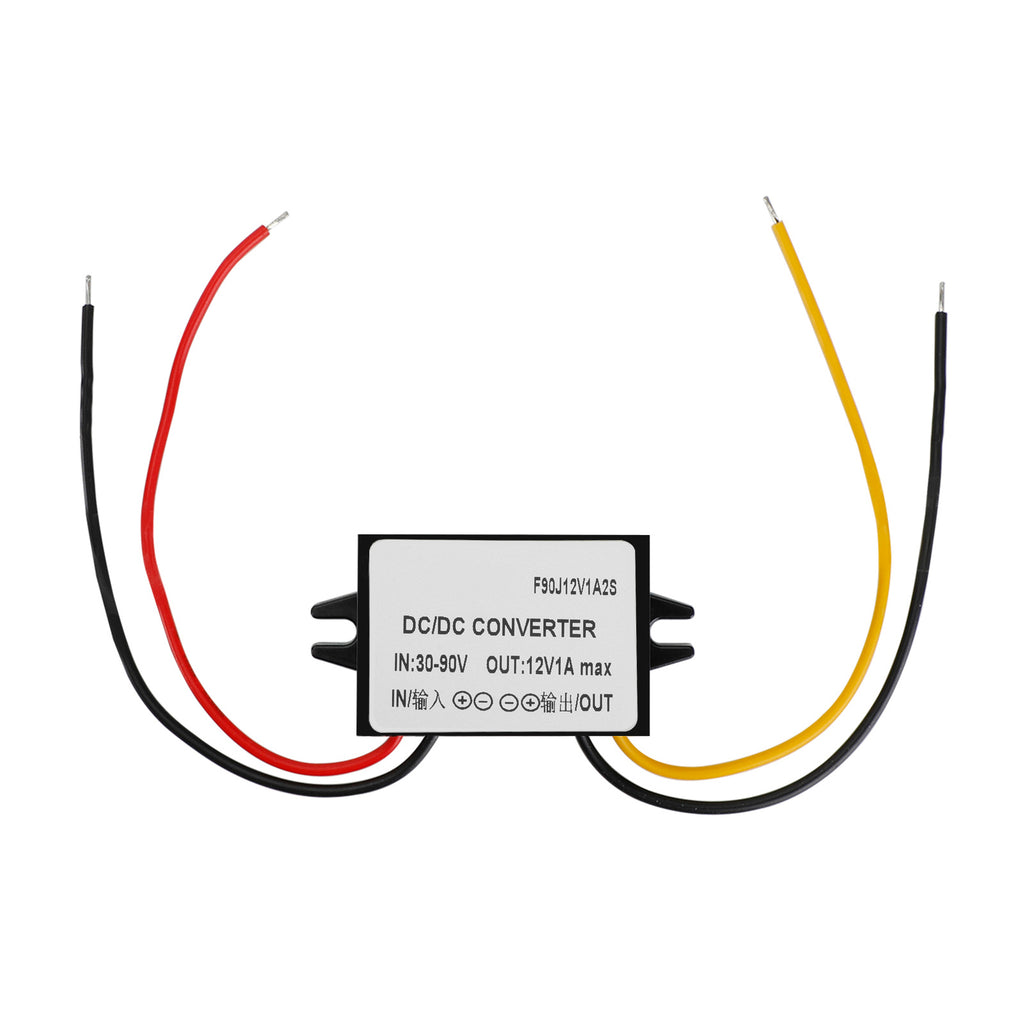

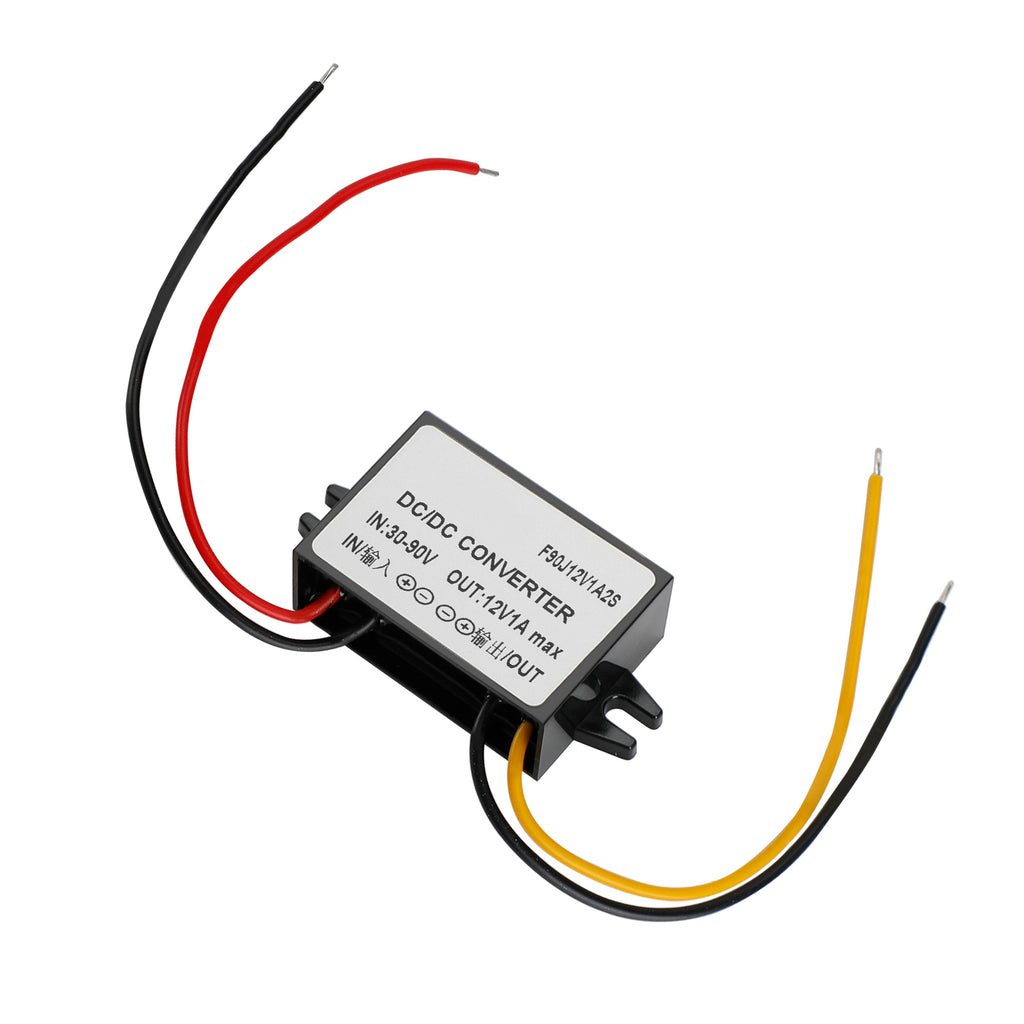

Option 1:DC30-90V To 12V 1A 12W 2S

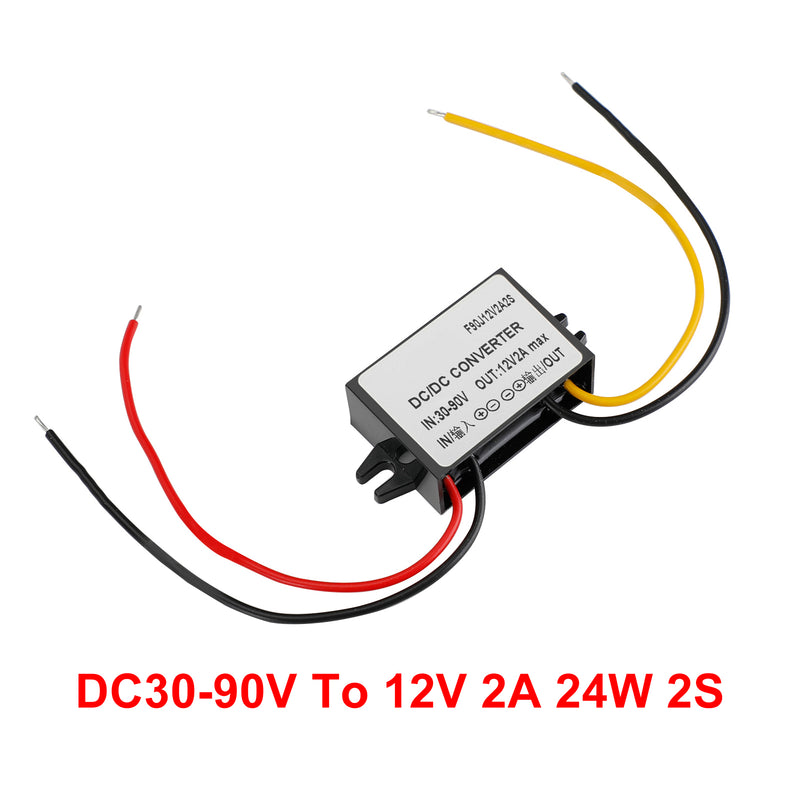

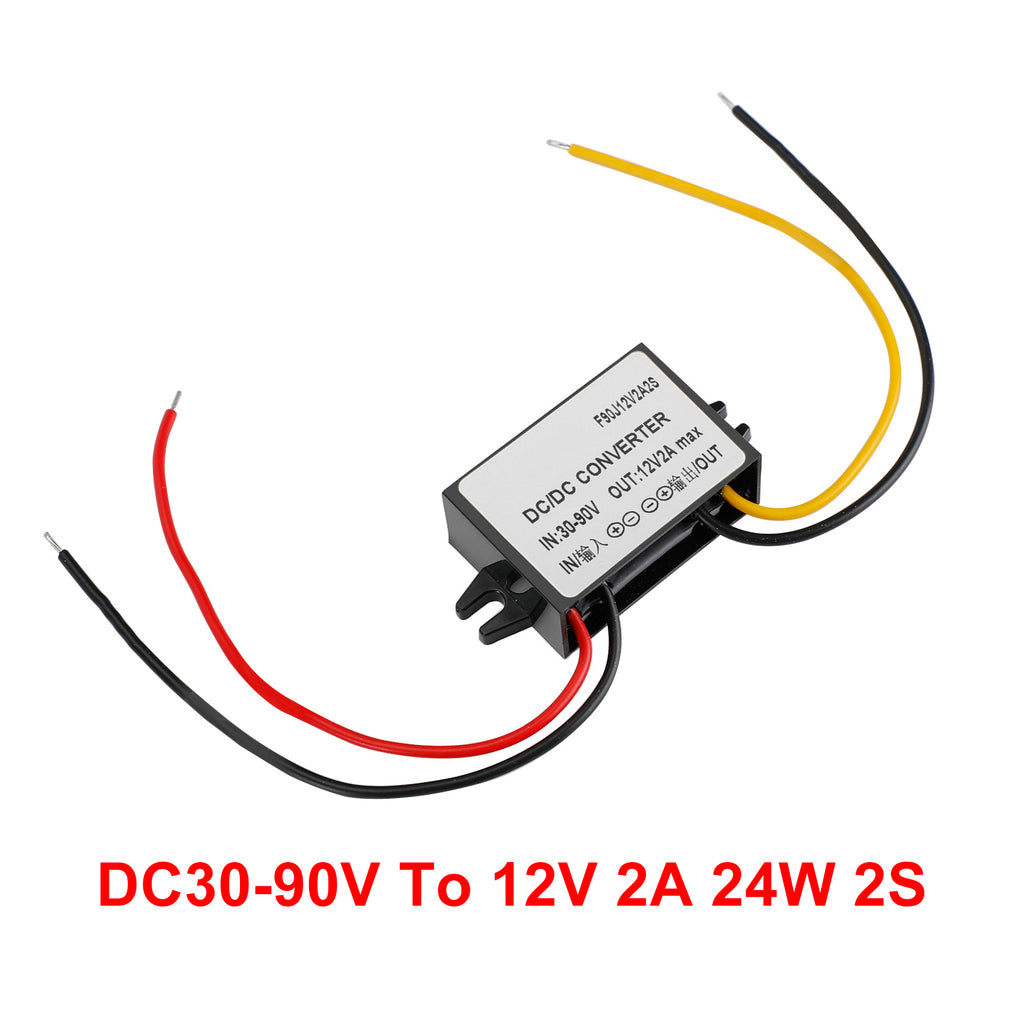

Option 2:DC30-90V To 12V 2A 24W 2S
Option 3:DC30-90V To 12V 3A 36W 2S

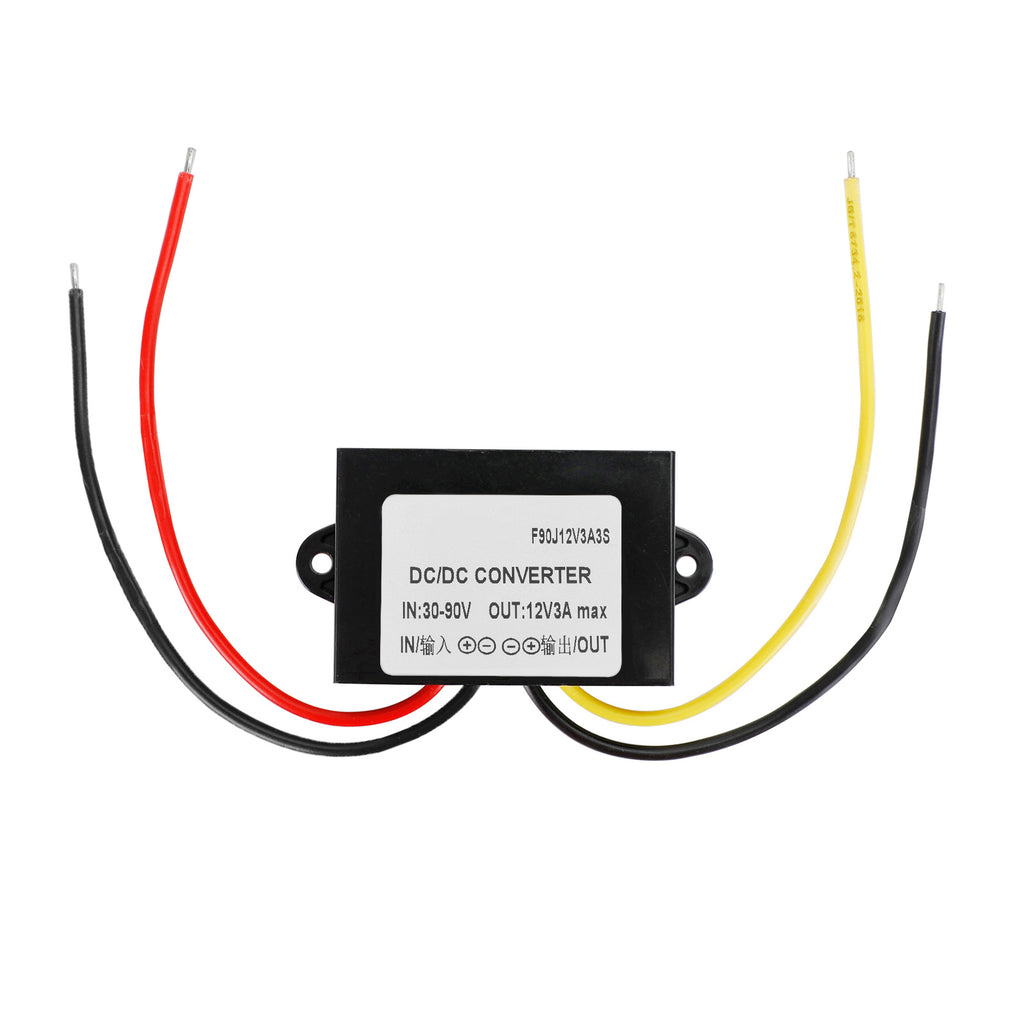

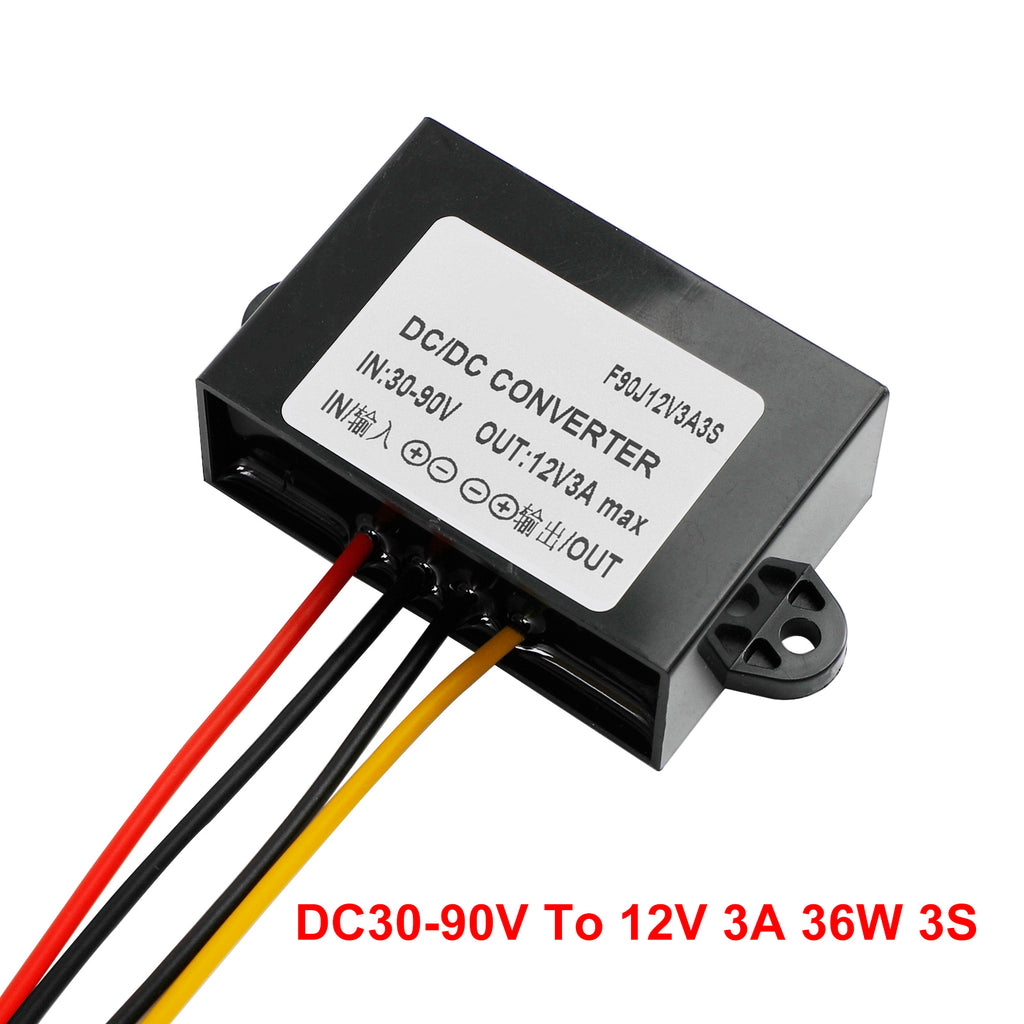

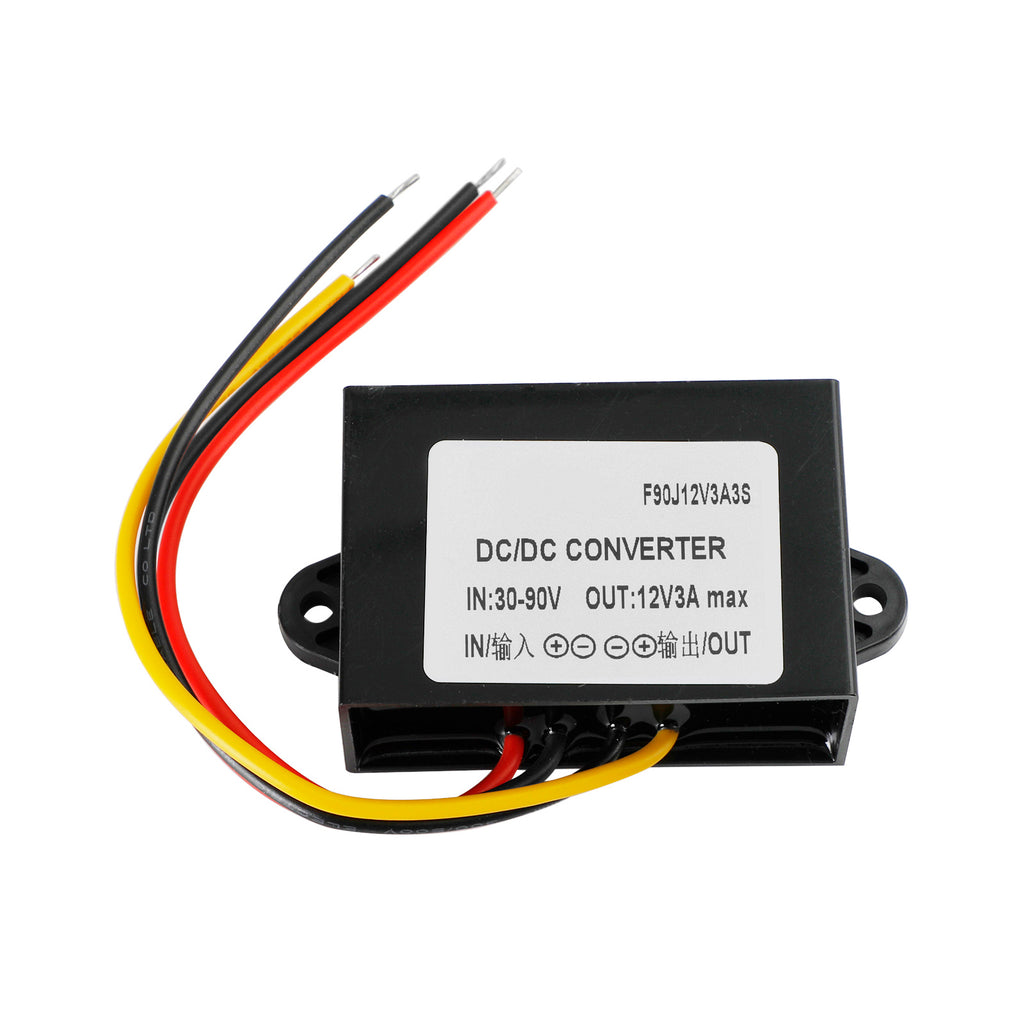

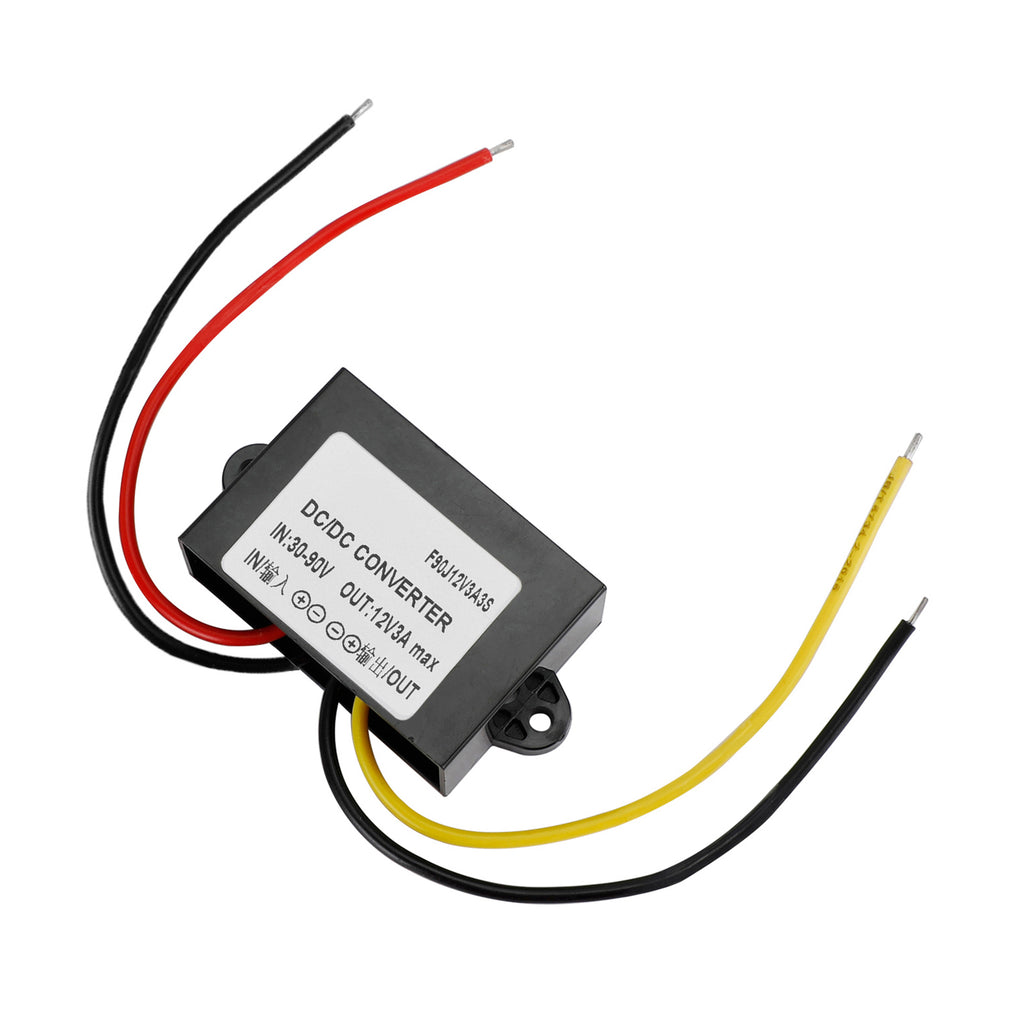

Option 4:DC30-90V To 12V 3A 36W 3S
Option 5:DC30-90V To 12V 5A 60W 3S

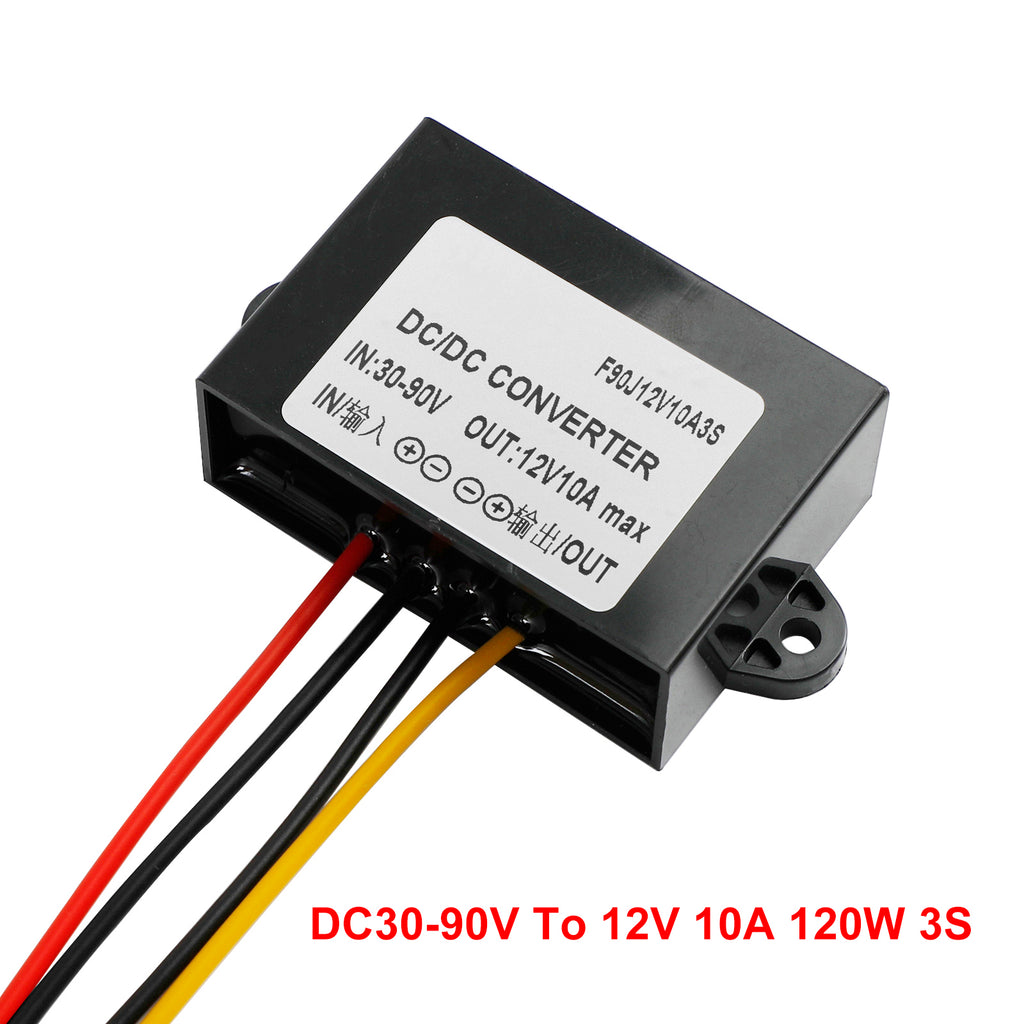

Option 6:DC30-90V To 12V 10A 120W 3S

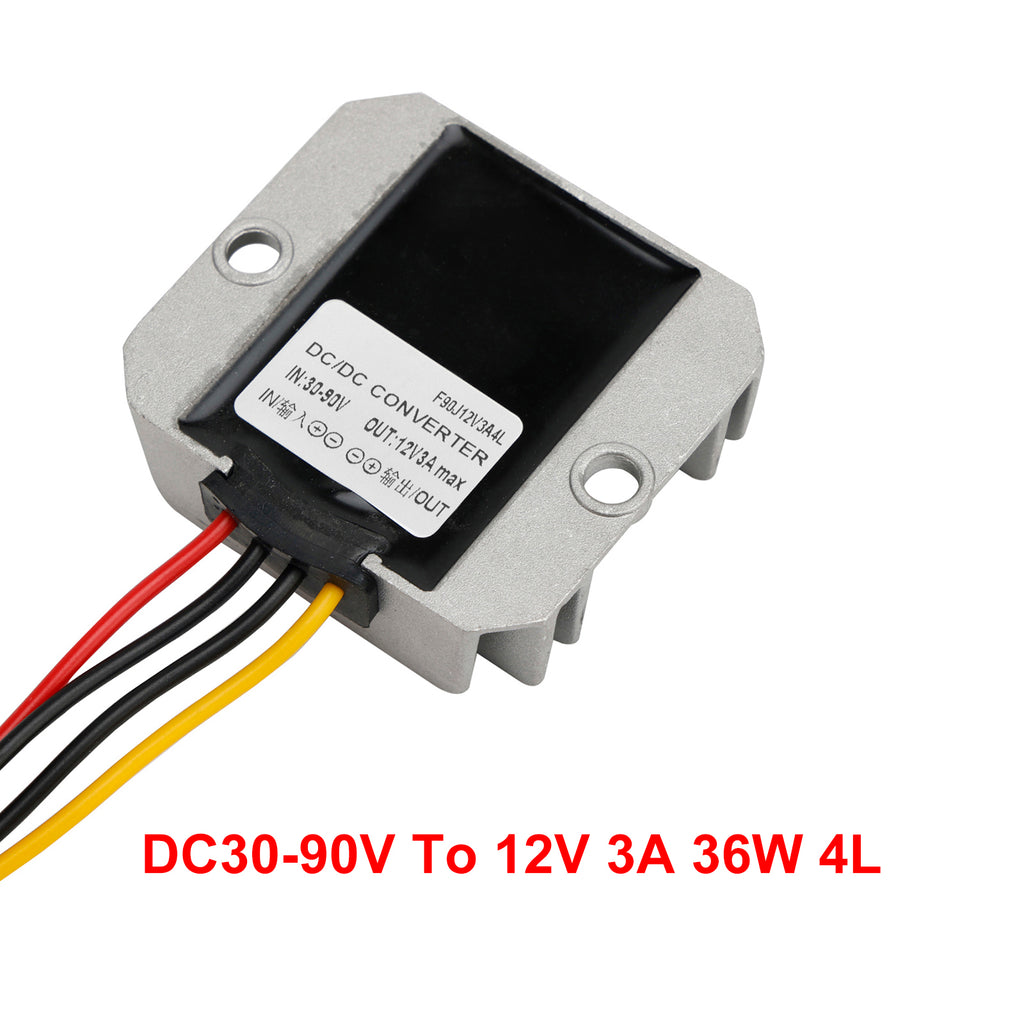

Option 7:DC30-90V To 12V 3A 36W 4L

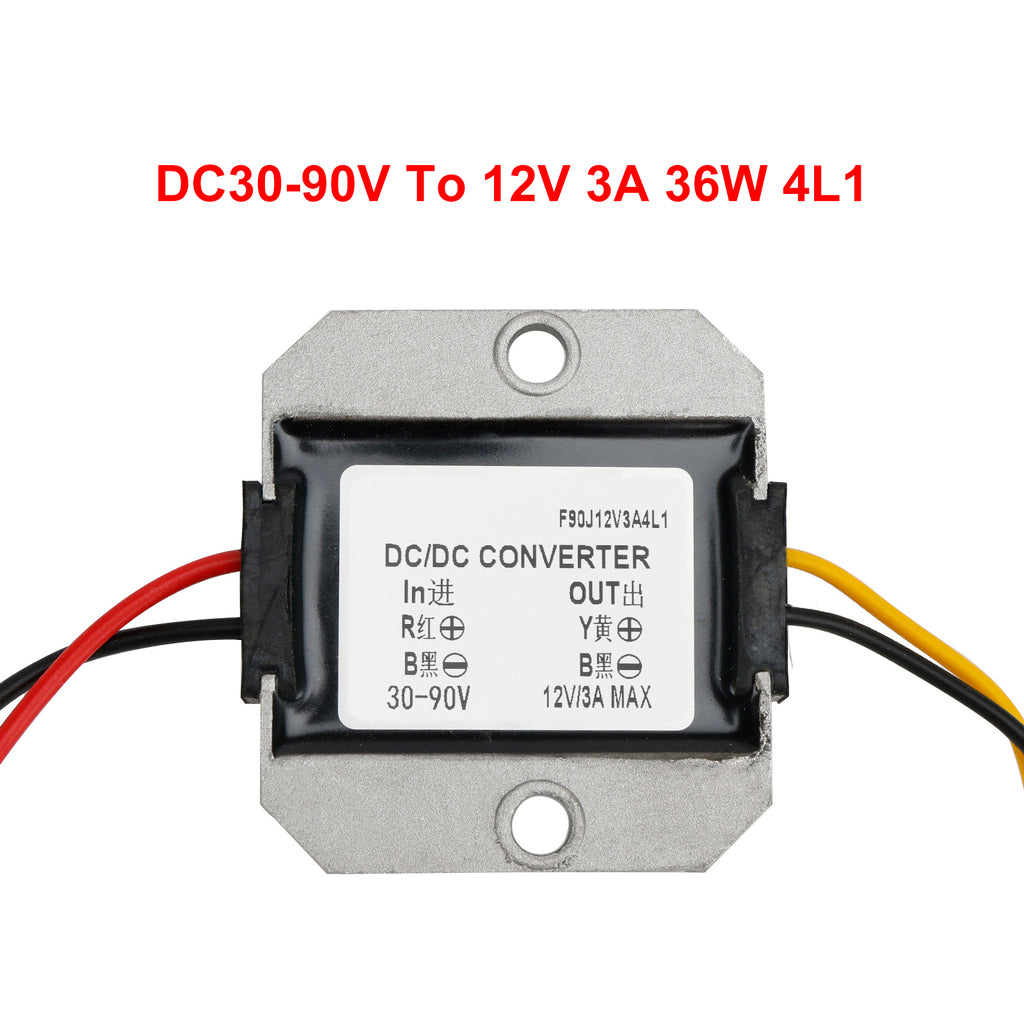

Option 8:DC30-90V To 12V 3A 36W 4L1

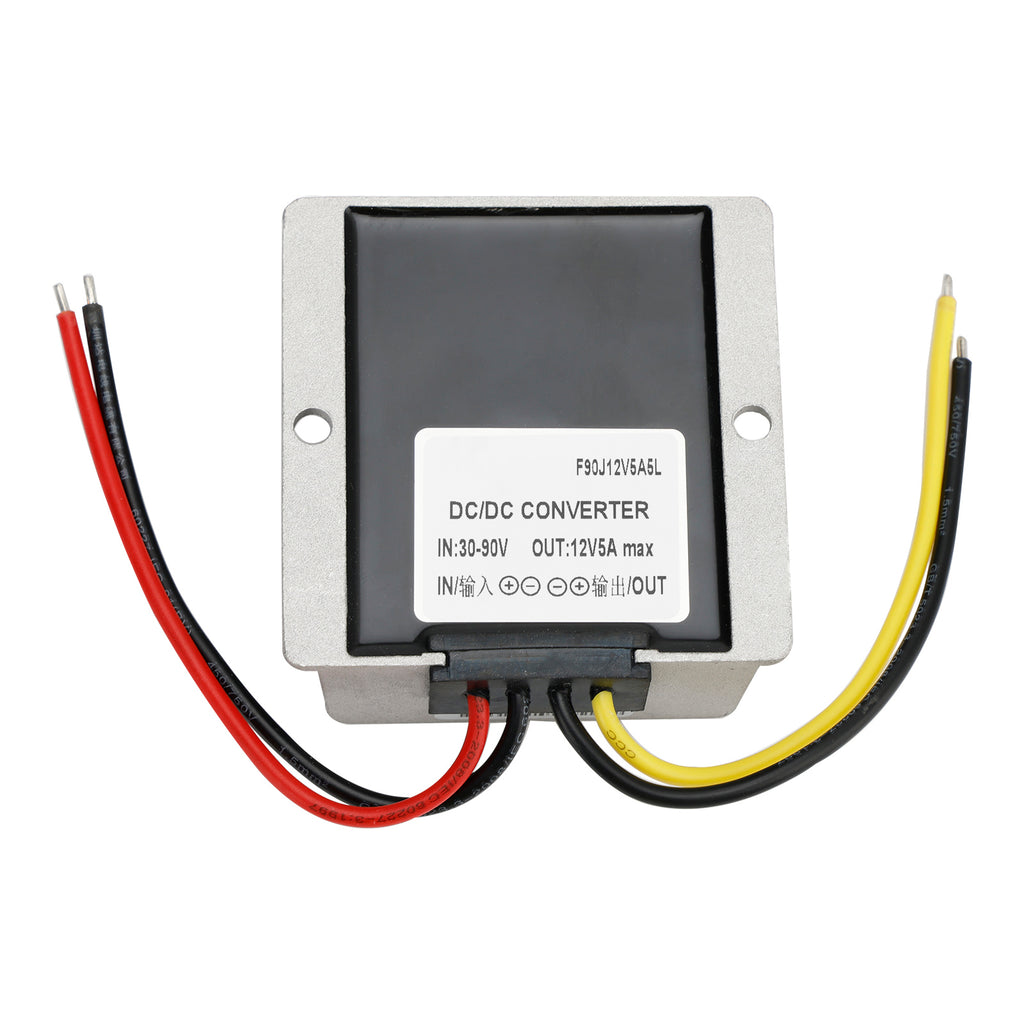

Option 9:DC30-90V To 12V 5A 60W 5L

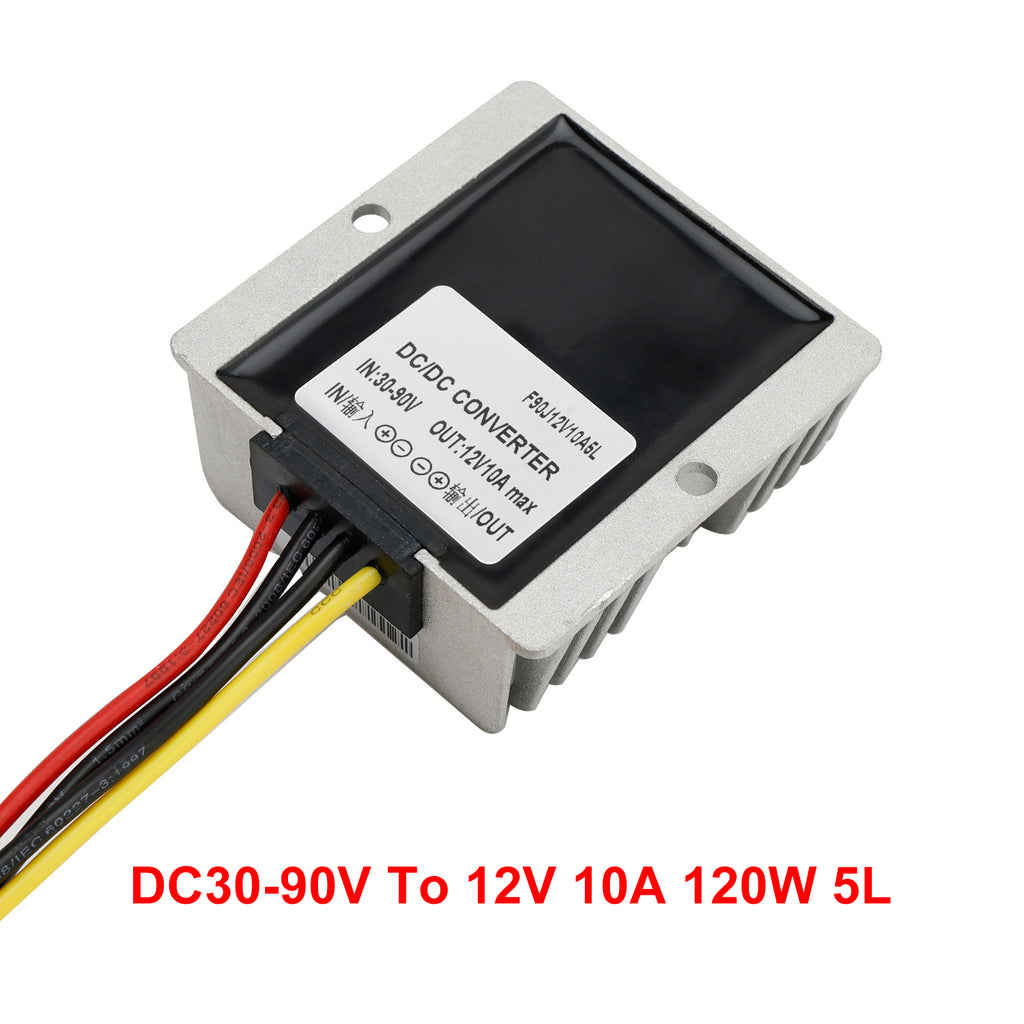

Option 10:DC30-90V To 12V 10A 120W 5L

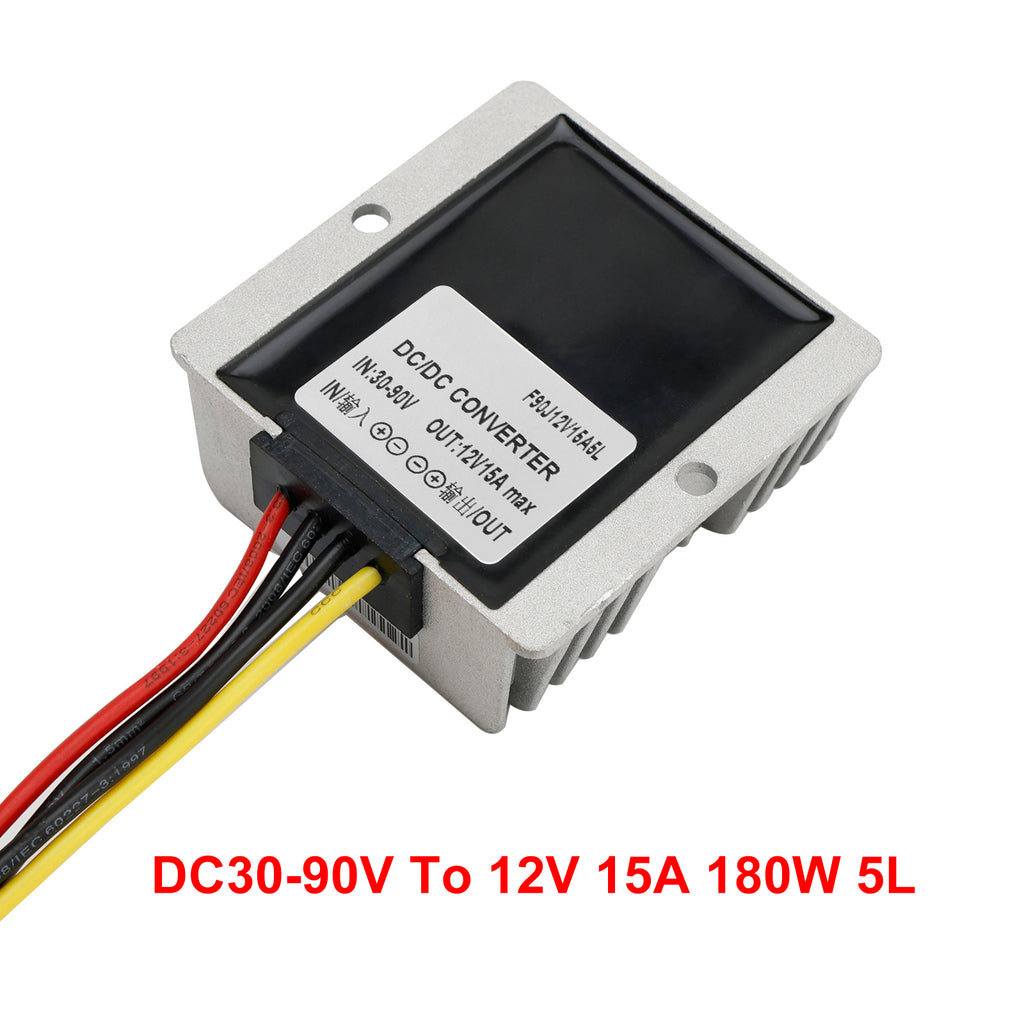

Option 11:DC30-90V To 12V 15A 180W 5L
Option 12:DC30-90V To 12V 25A 300W 5L

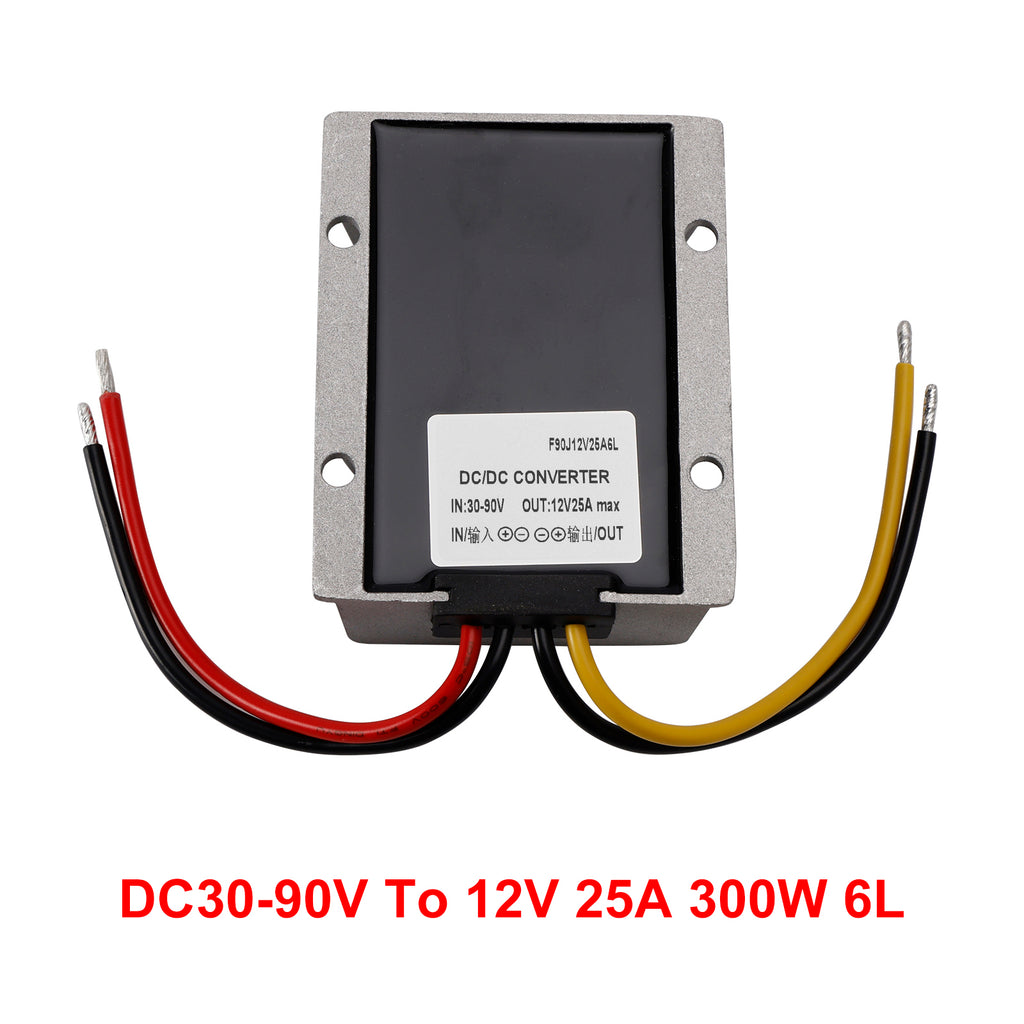

Option 13:DC30-90V To 12V 25A 300W 6L

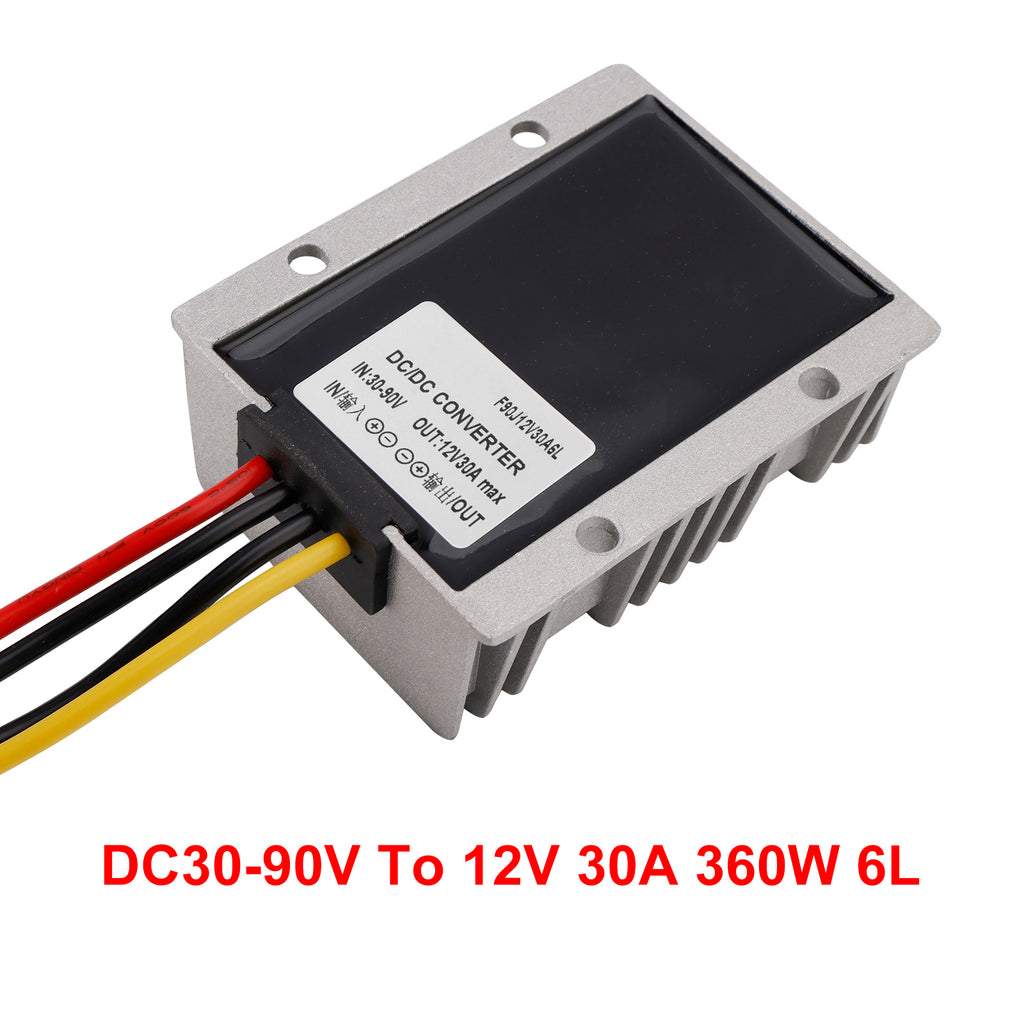

Option 14:DC30-90V To 12V 30A 360W 6L

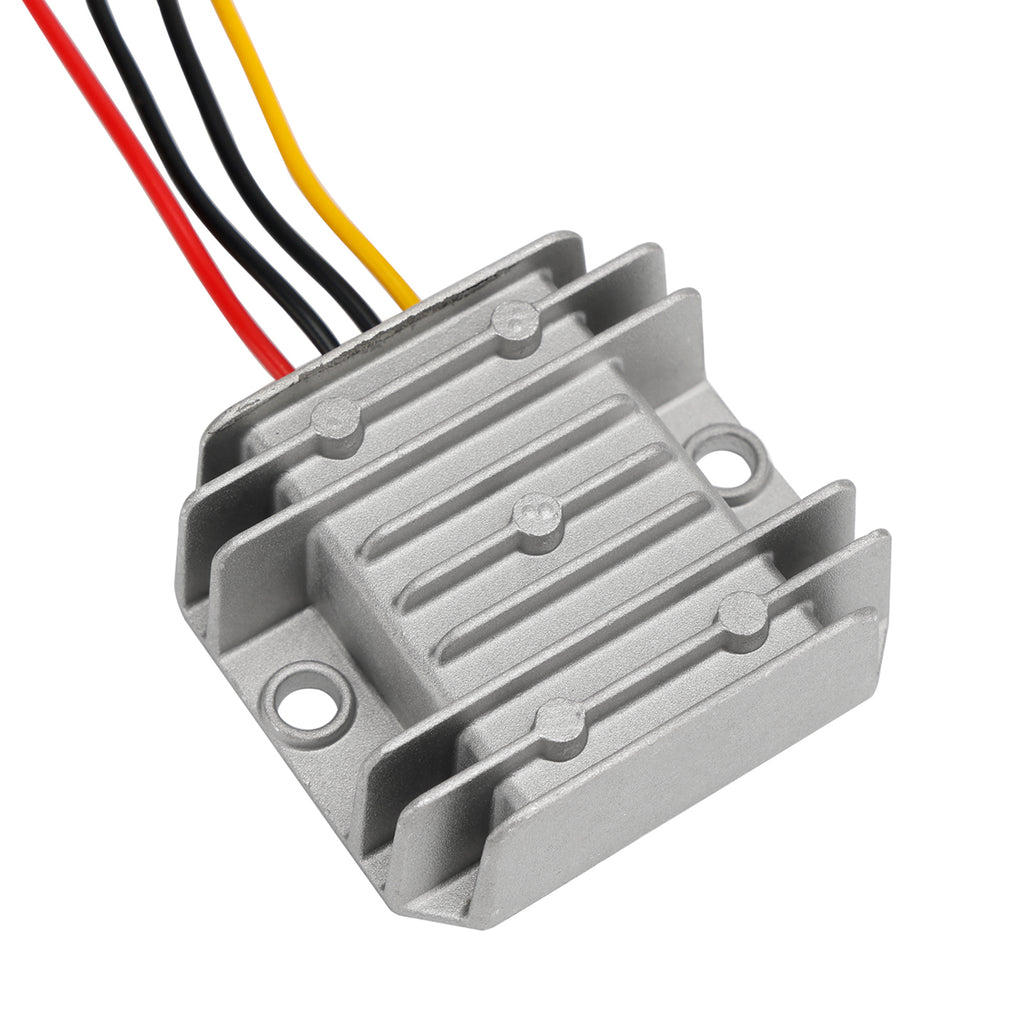

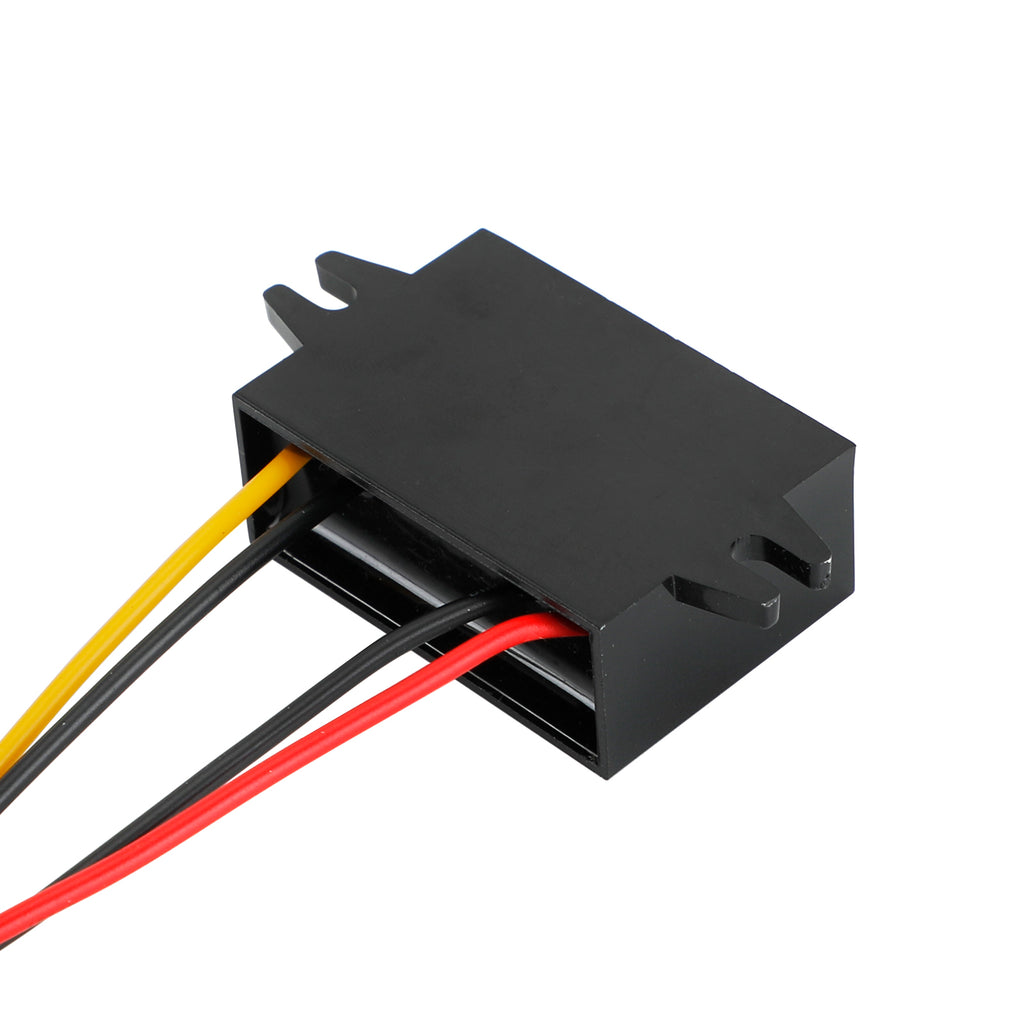

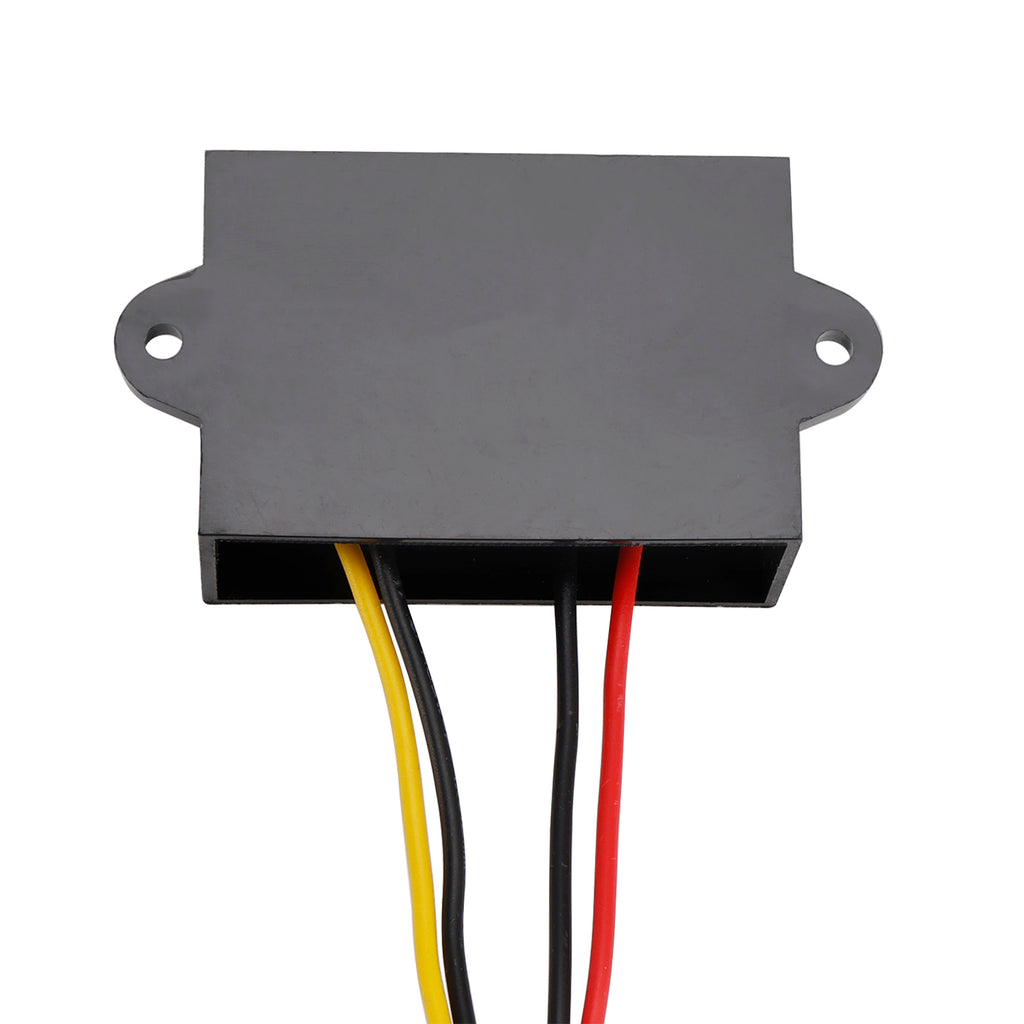

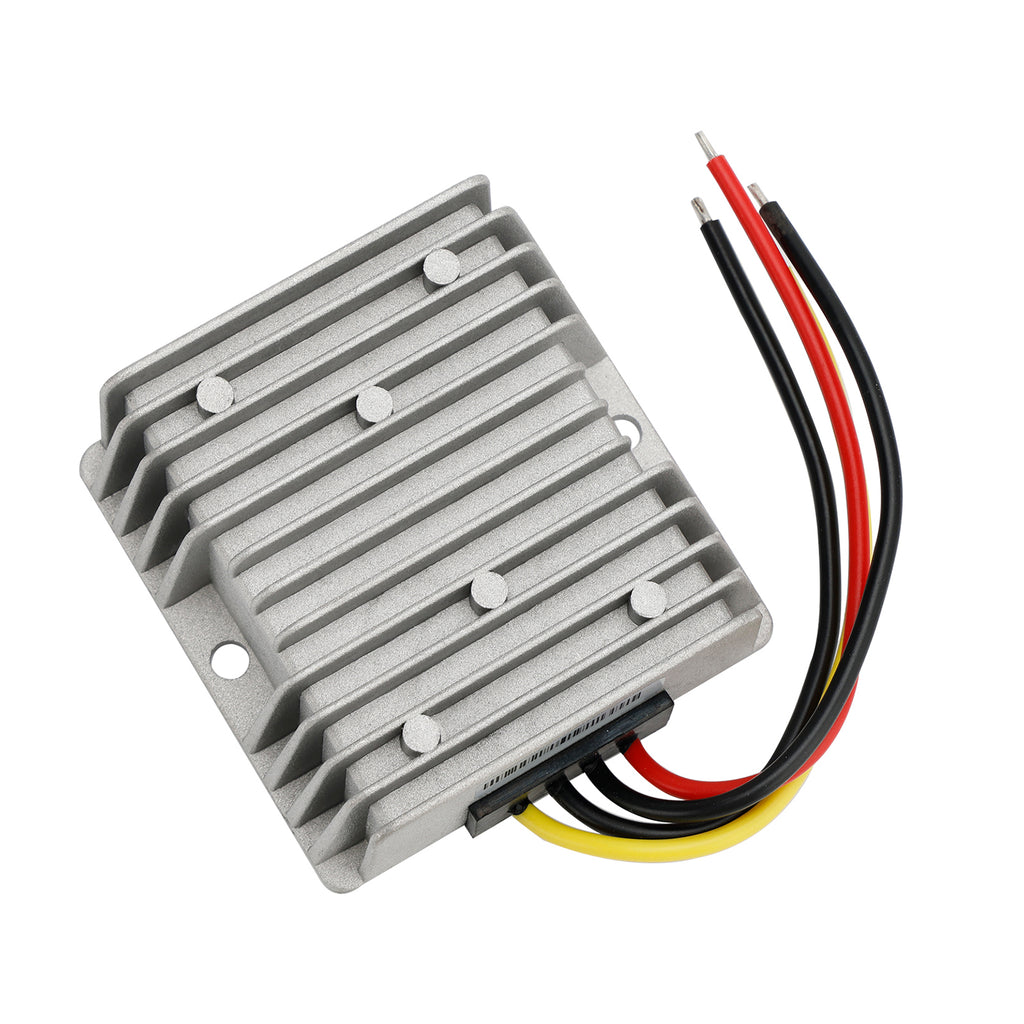

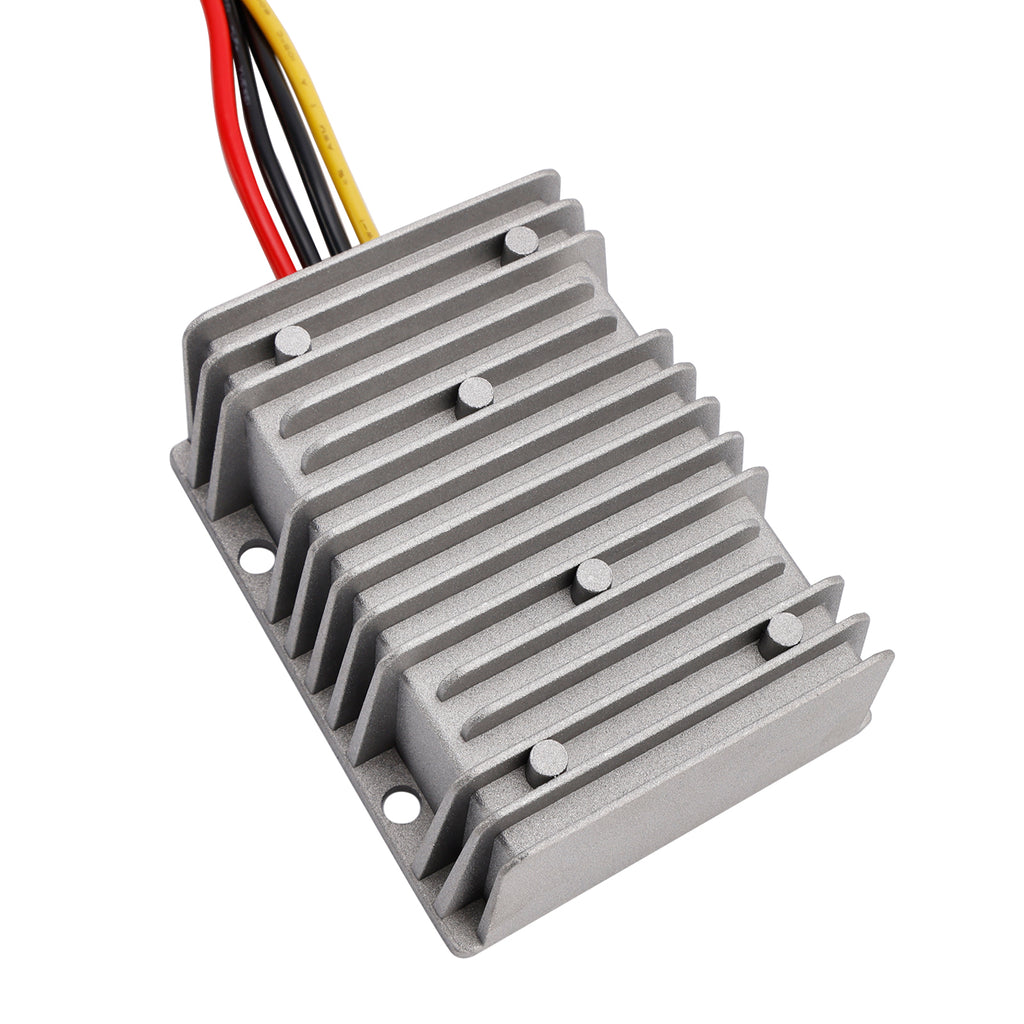

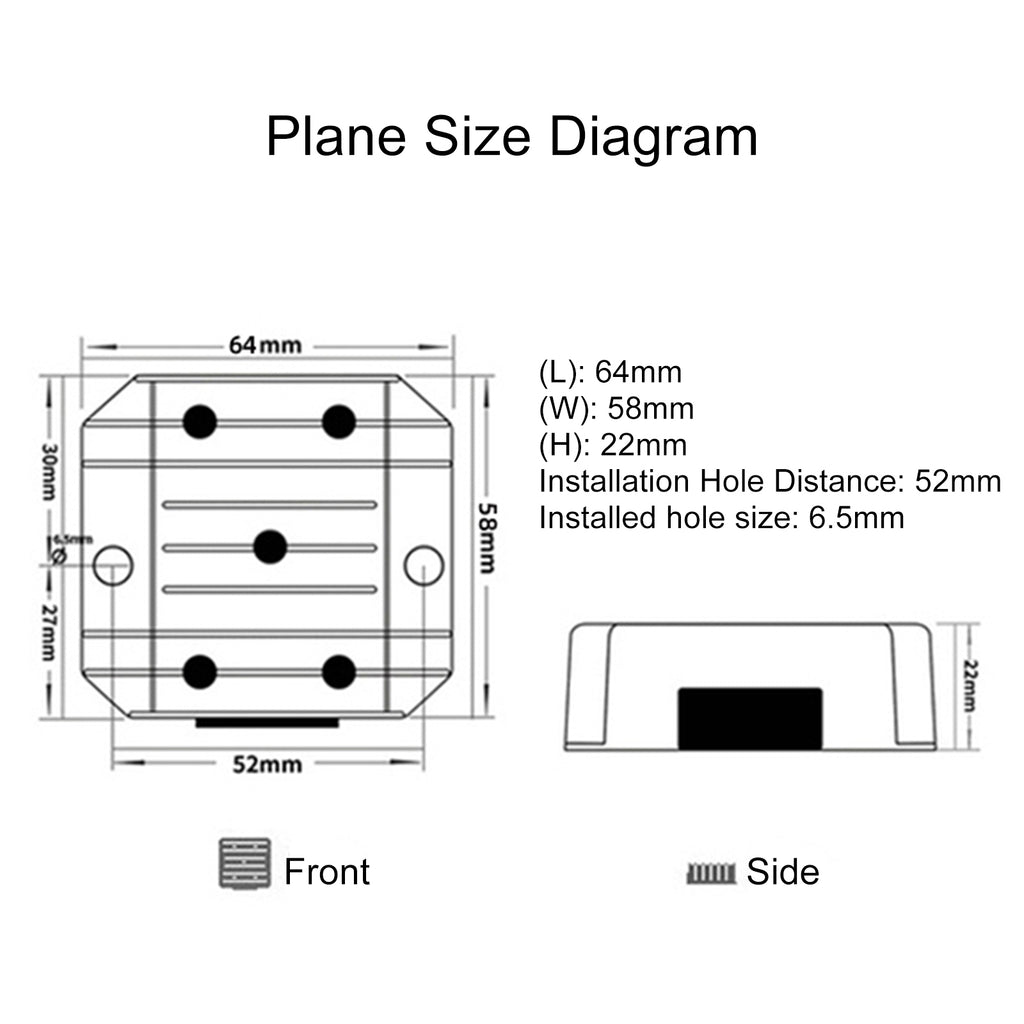

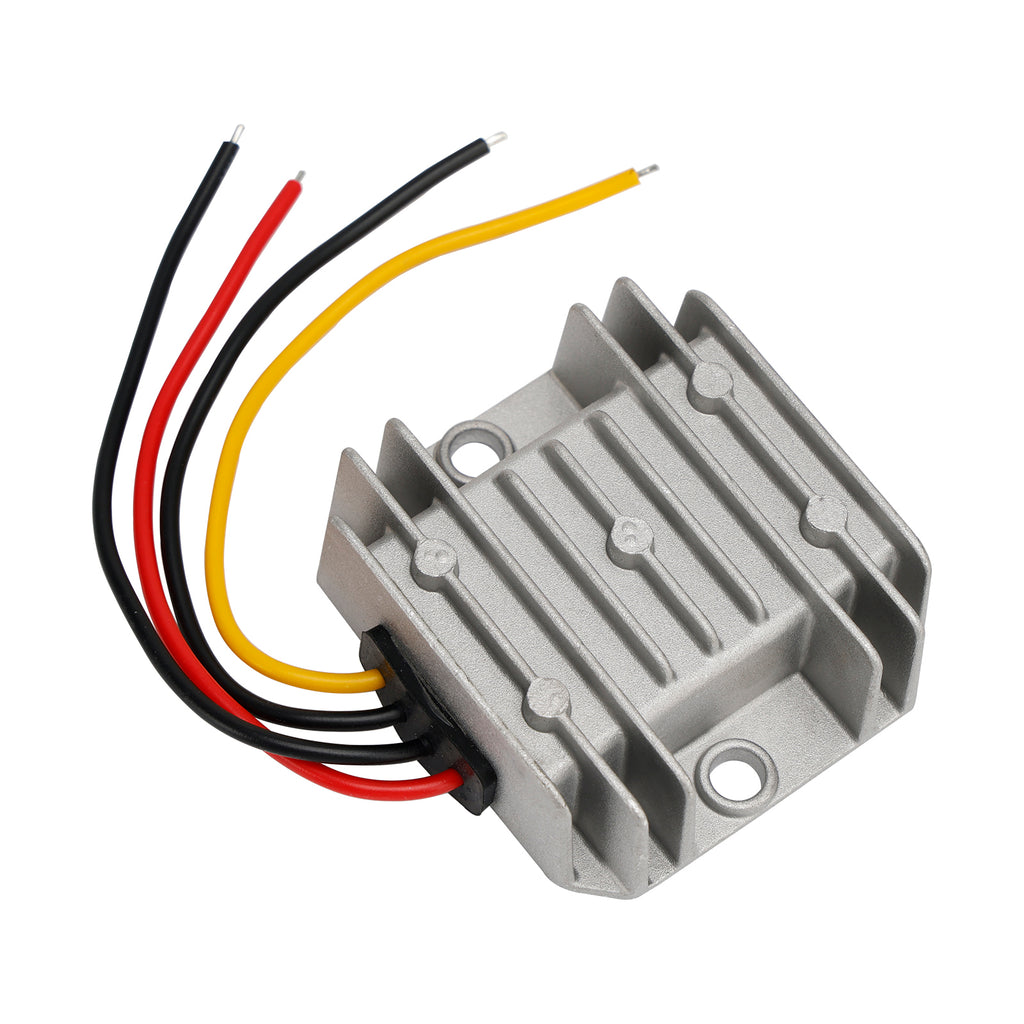

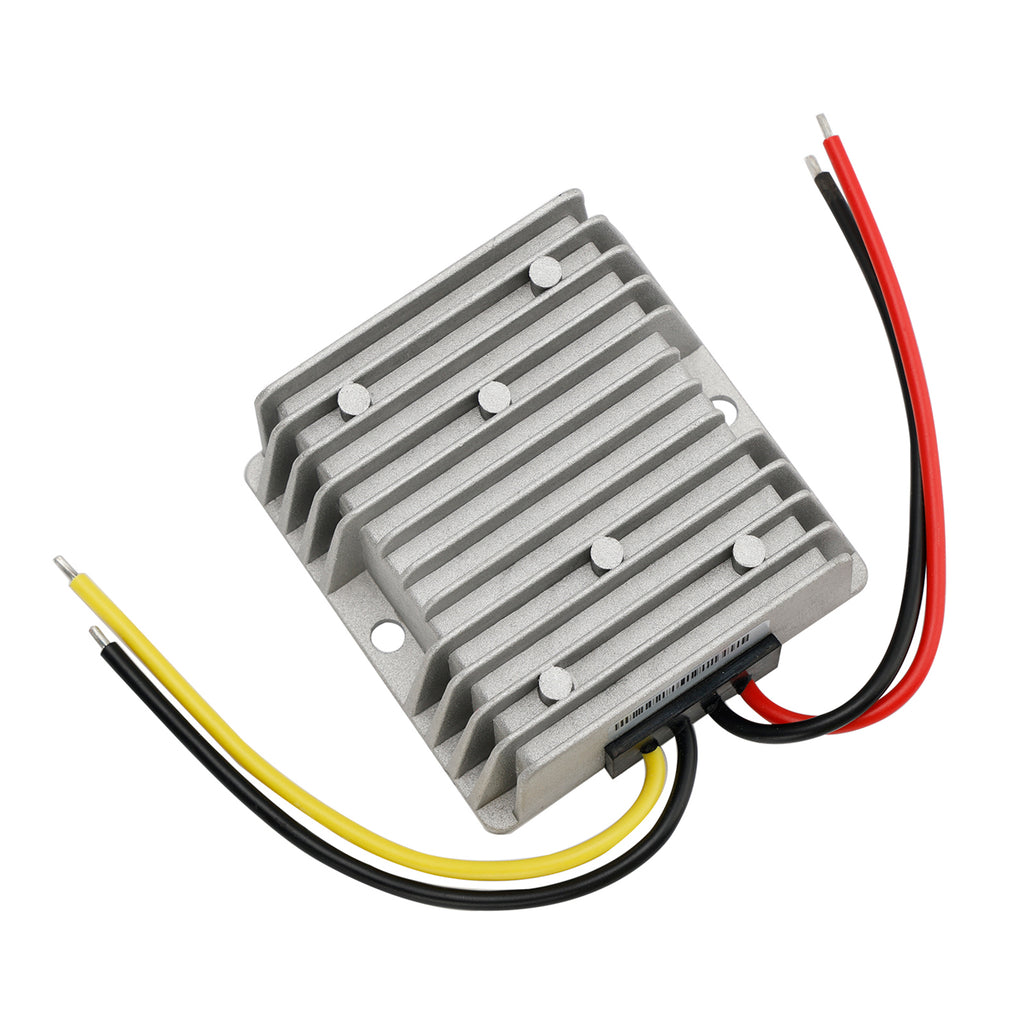

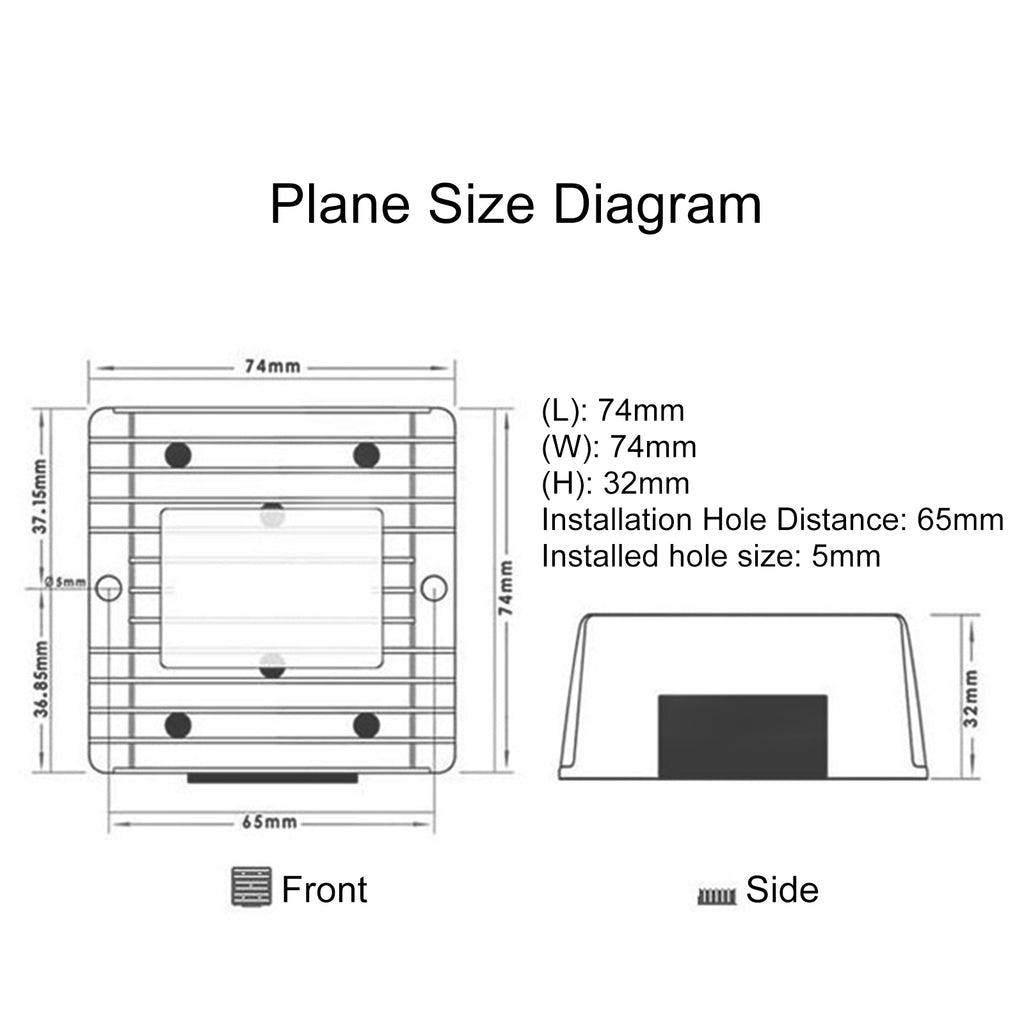

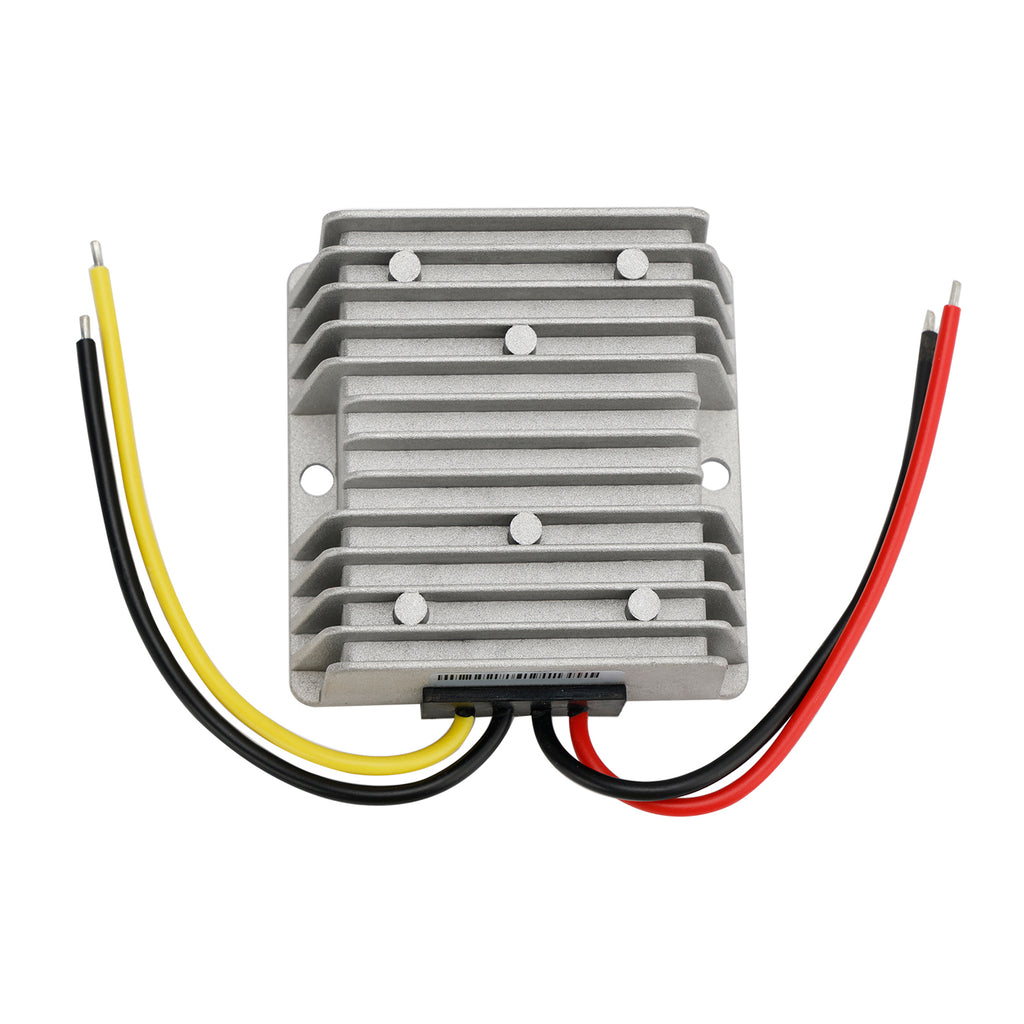

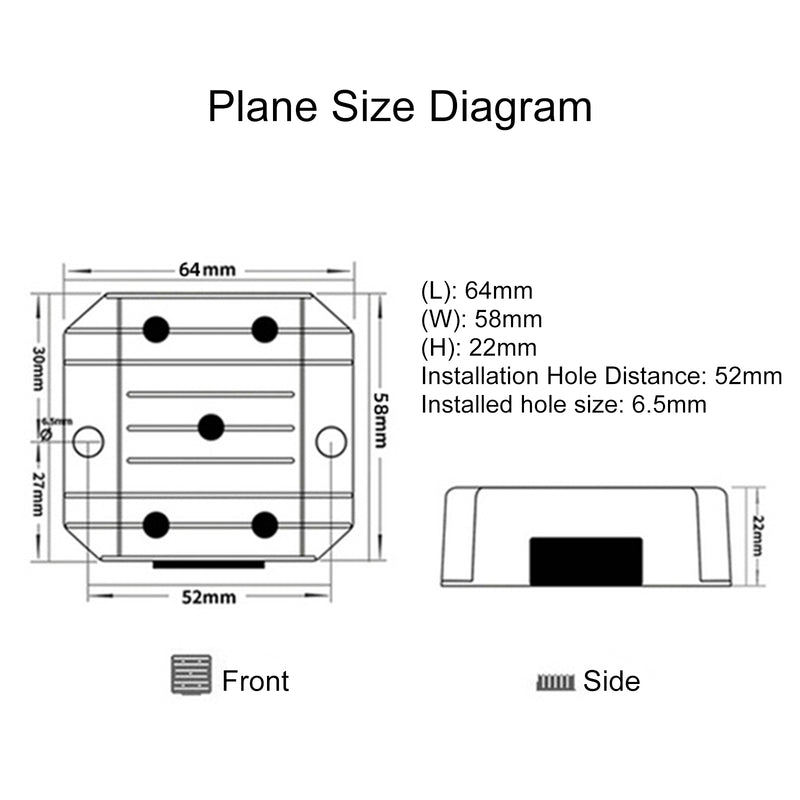

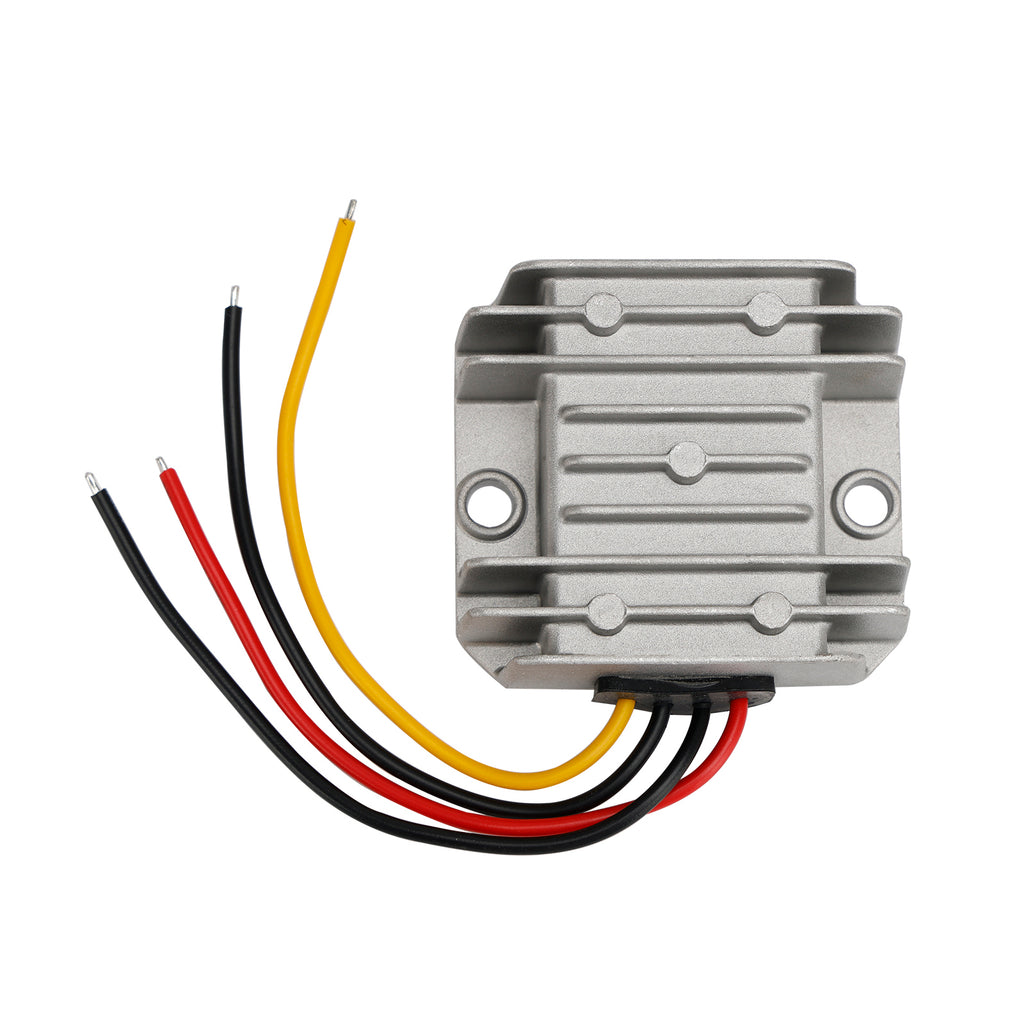

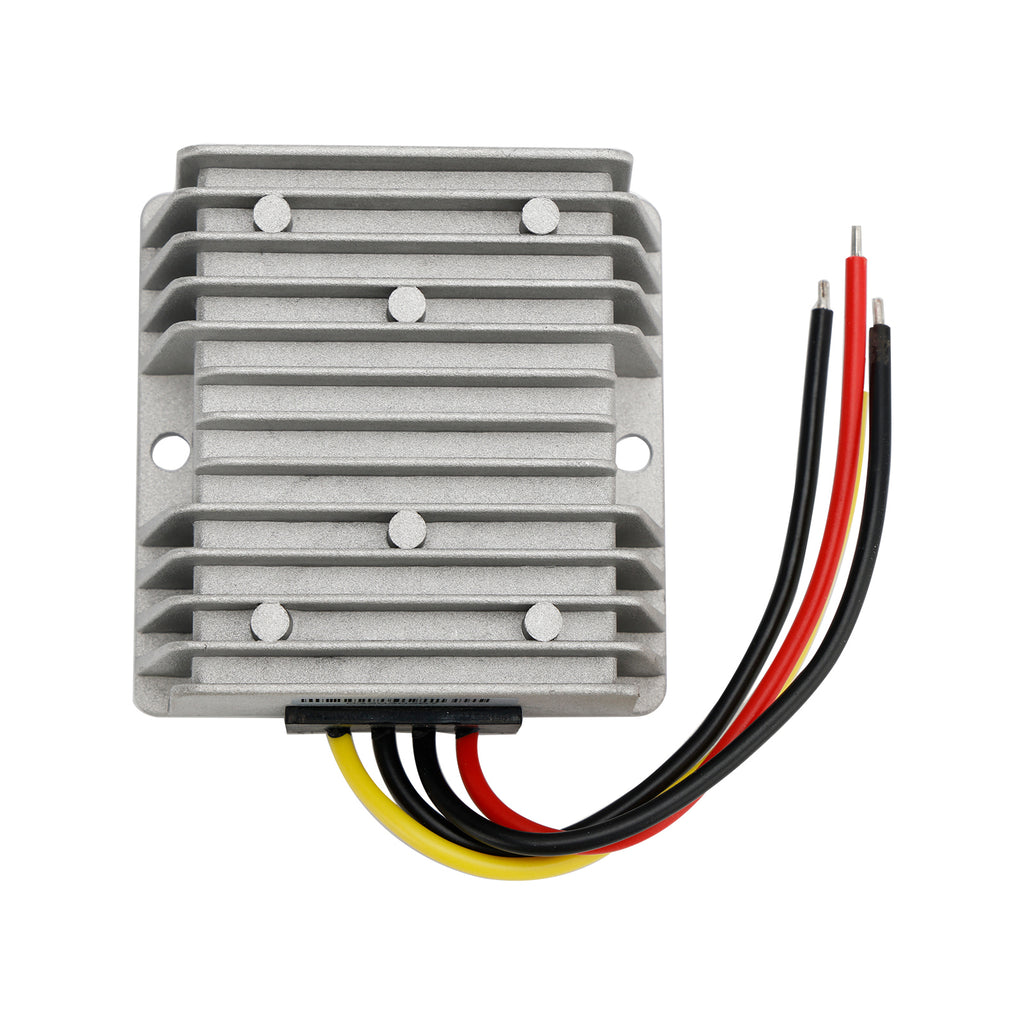

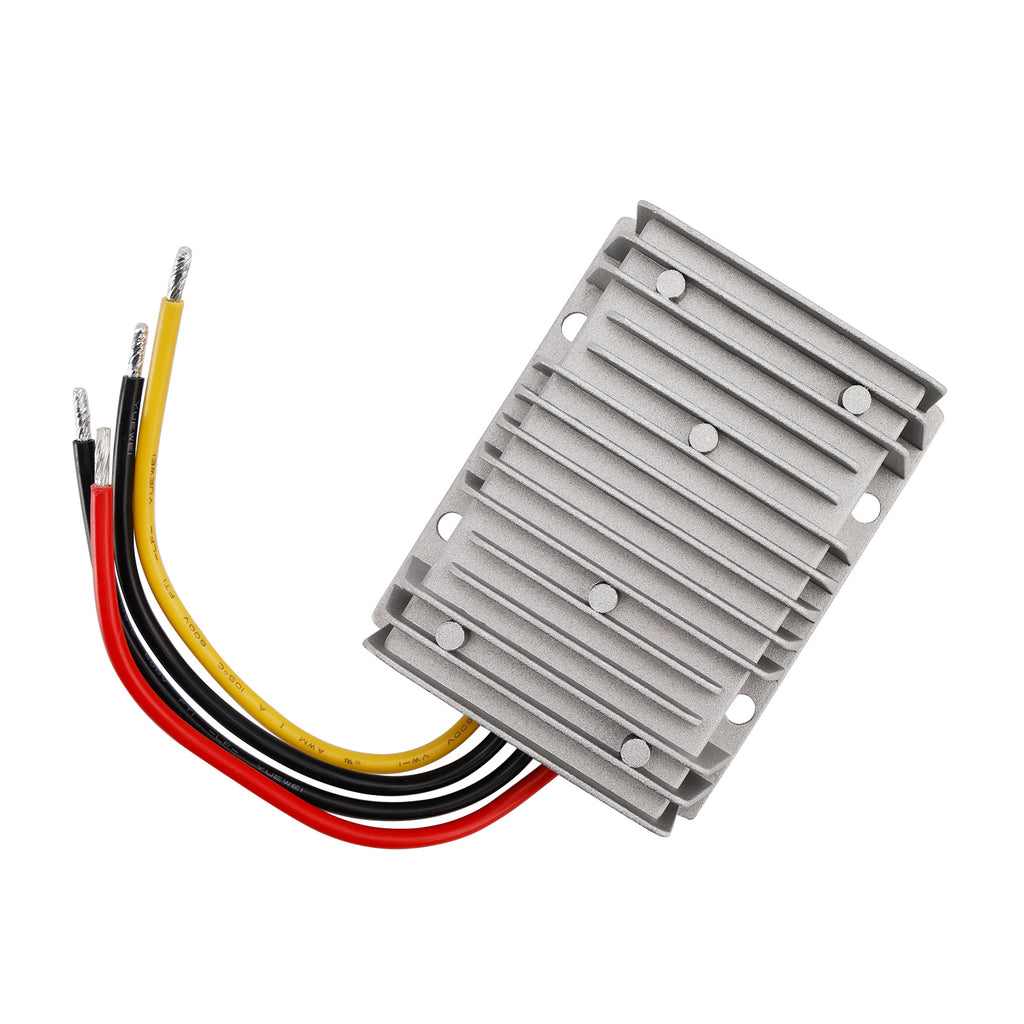

Note: Product appearance can be viewed in pictures
Conversion efficiency: Over 90%
Static consumption: Less than 20MA
No-load adjustment rate: 2%
Load regulation: 3%
Operating temperature: -25Β°C ~ +65Β°C
Wire lengths: About 12~13cm
Waterproof Rating: Ip67

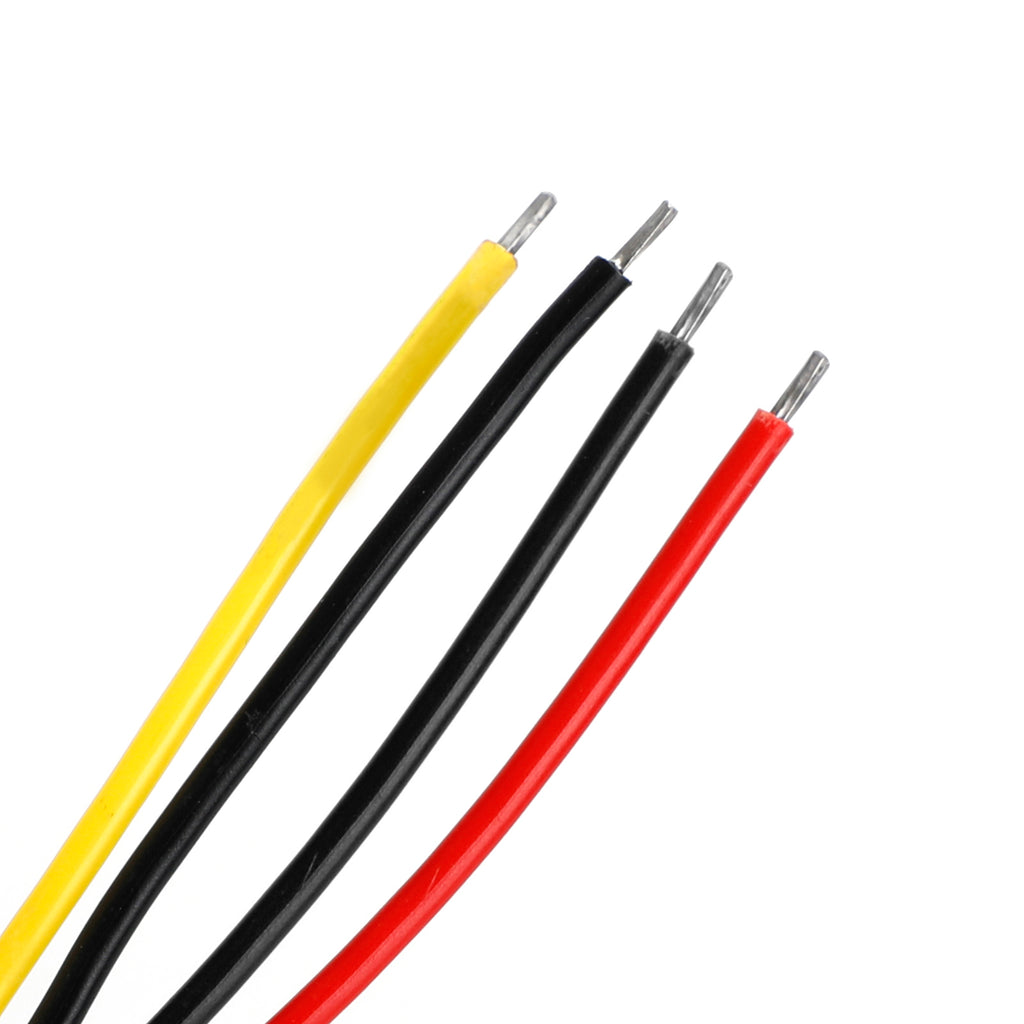

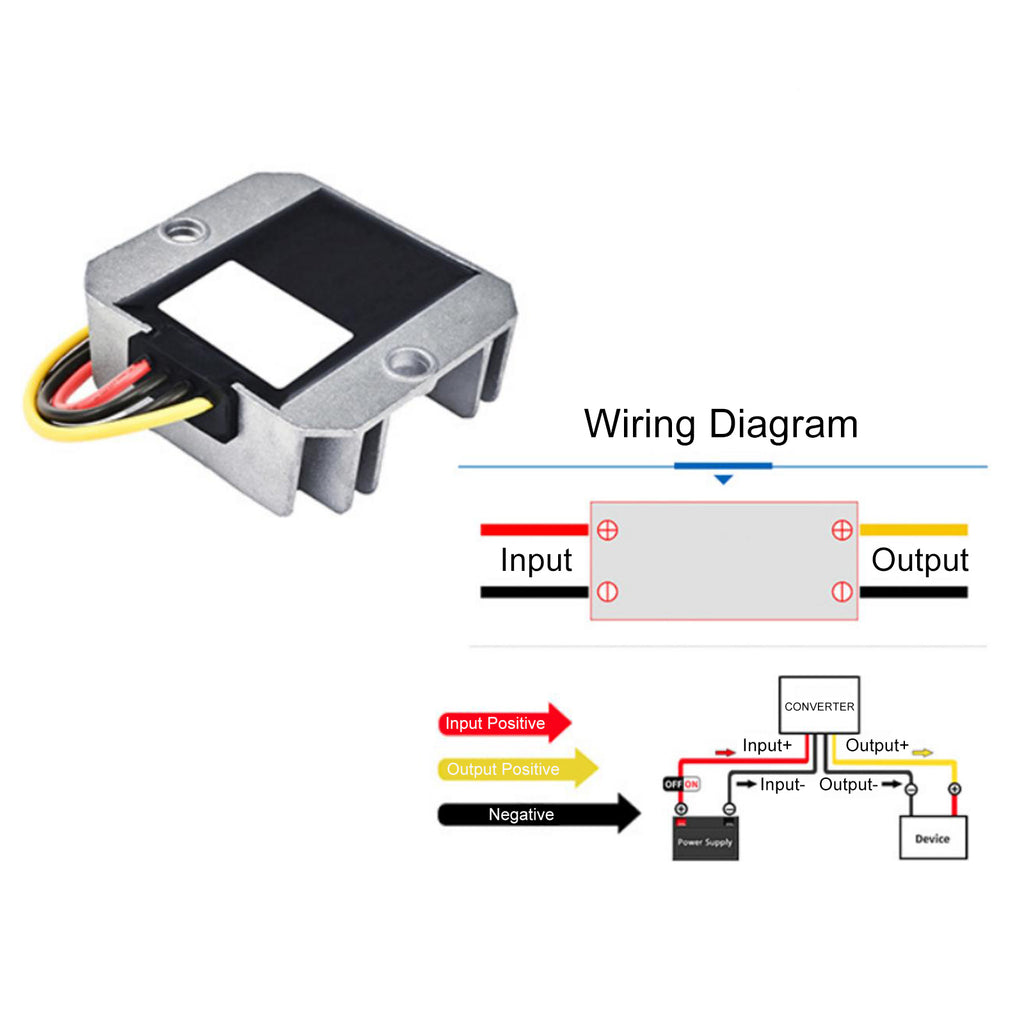

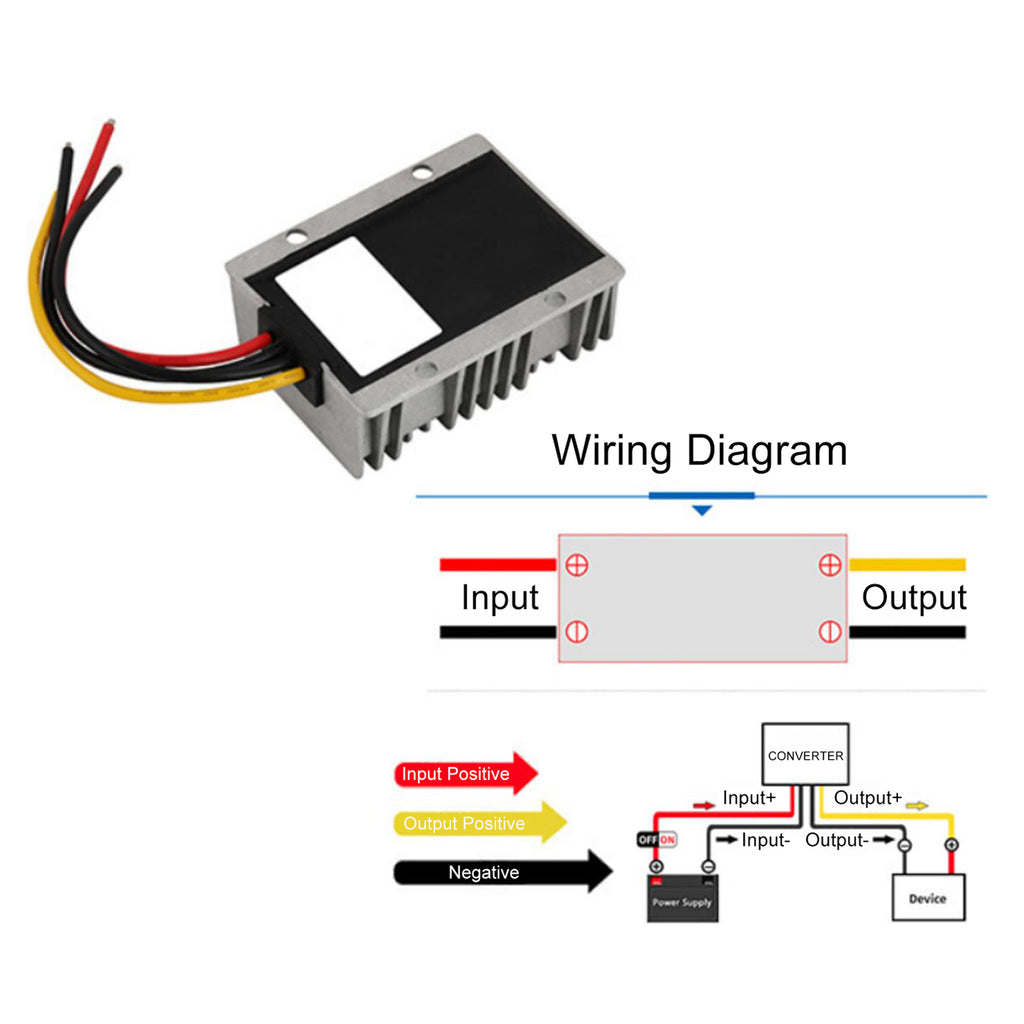

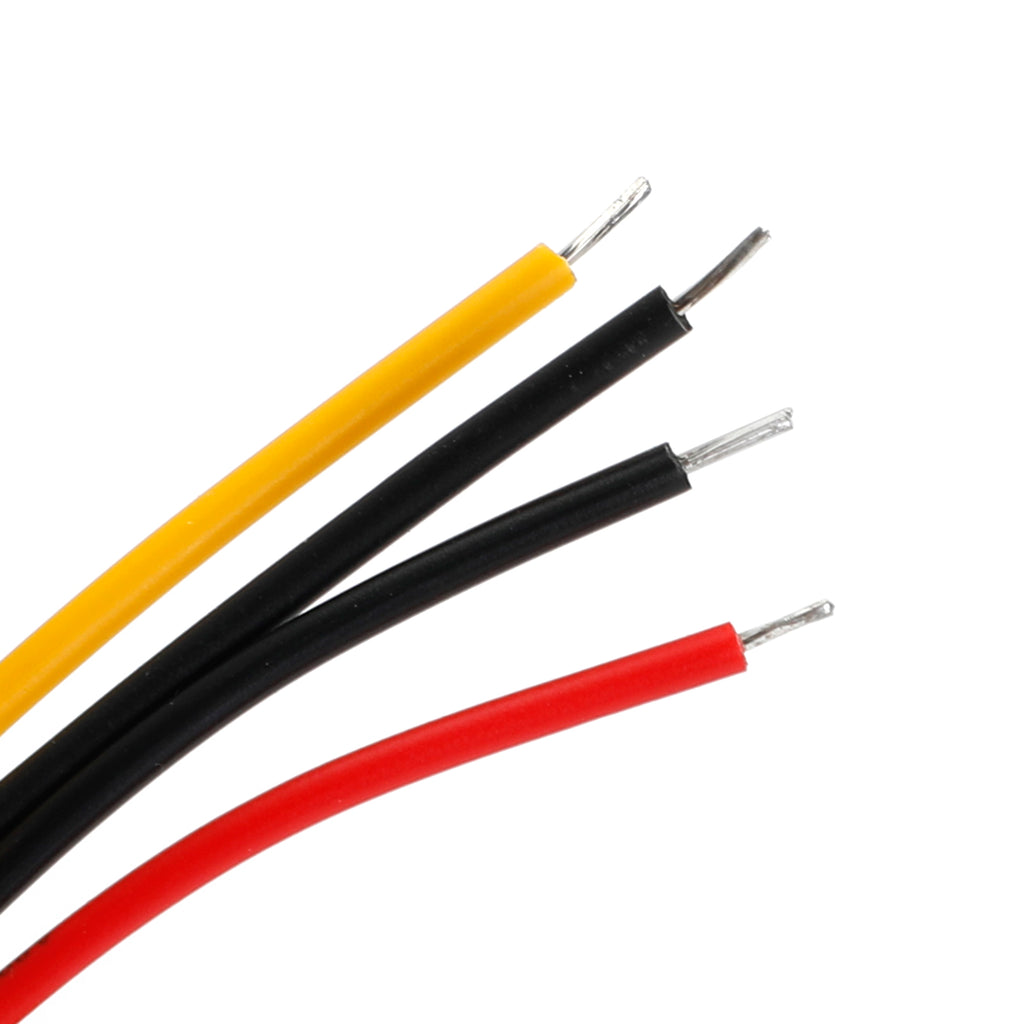

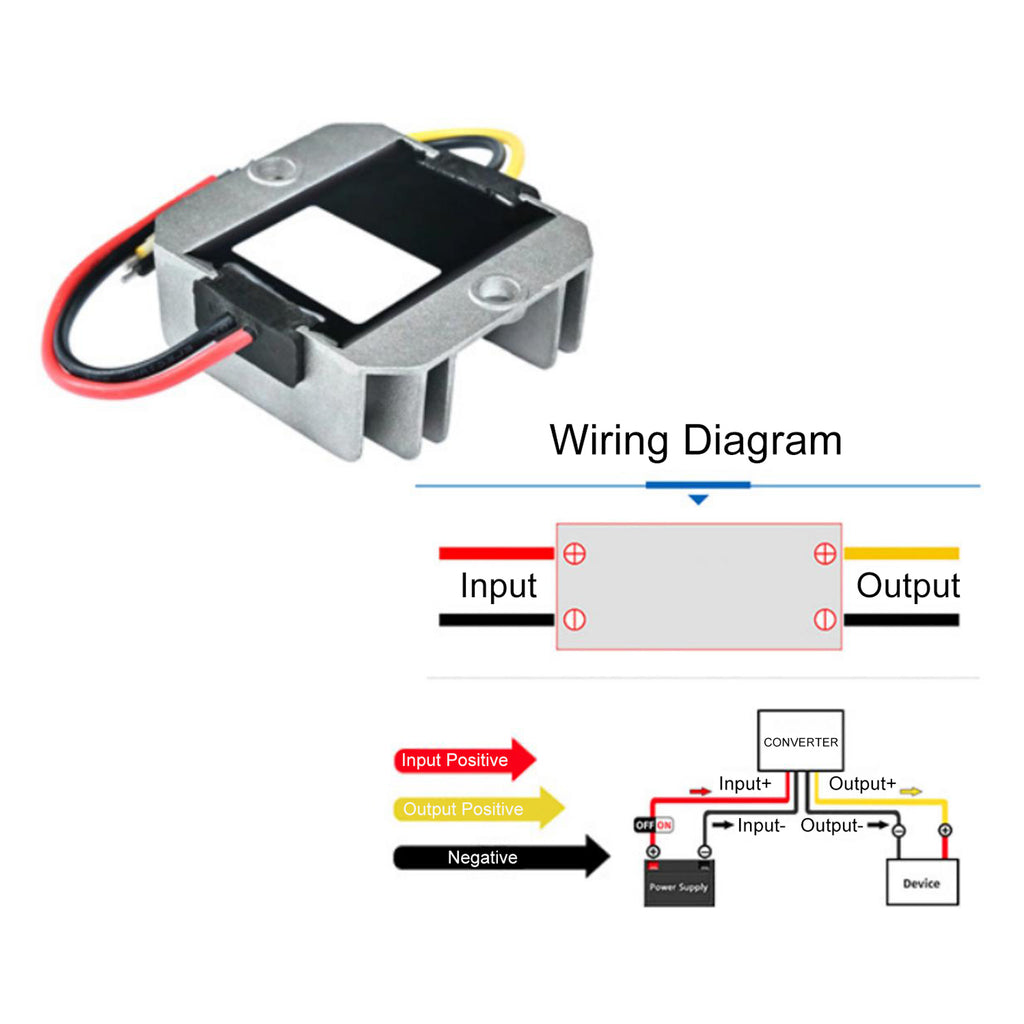

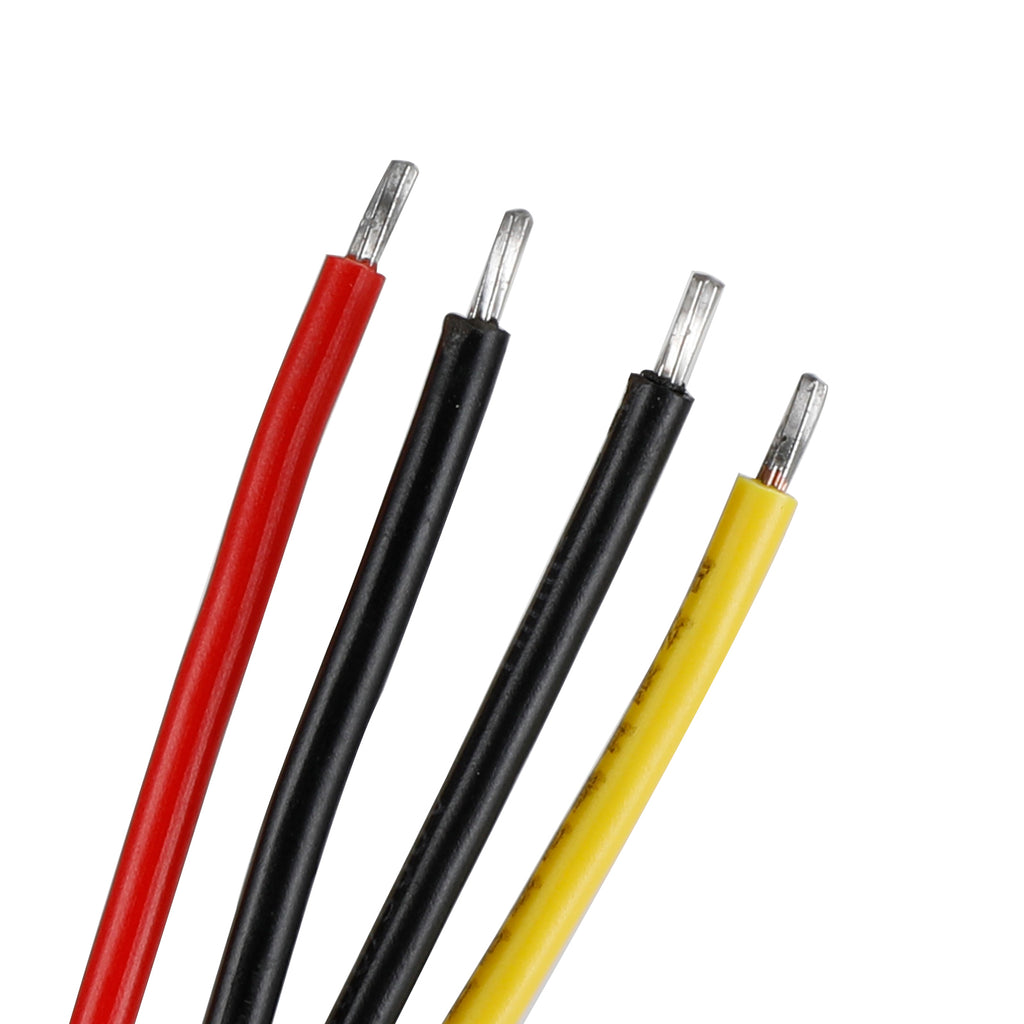

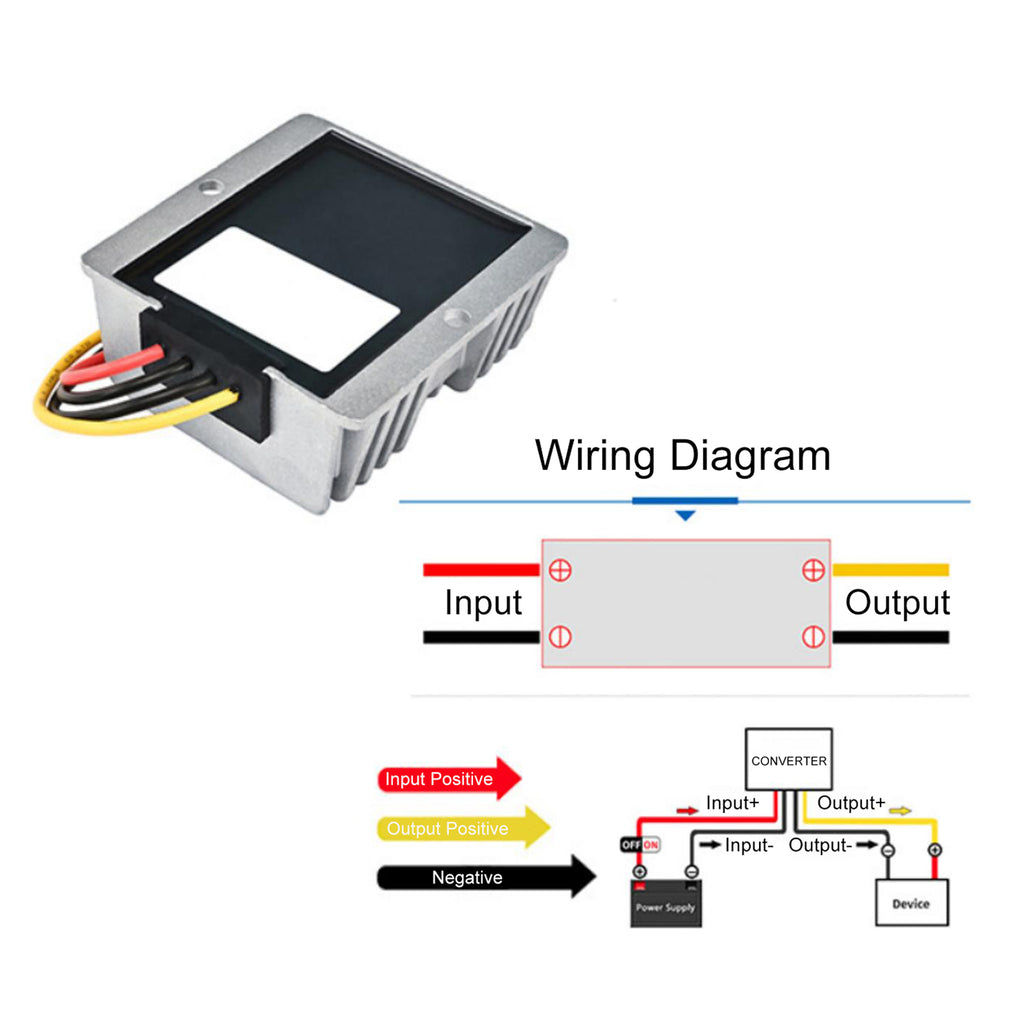

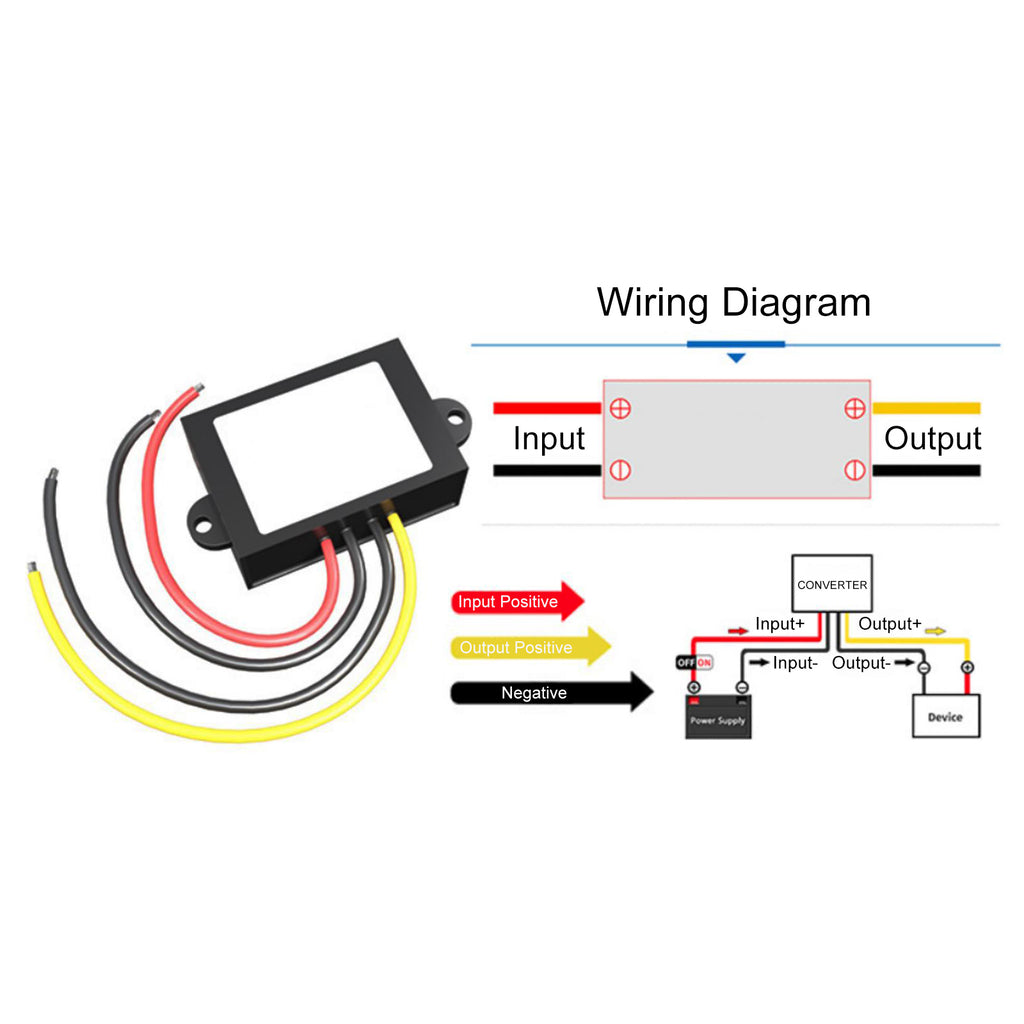

Input wire color : (+)Red, (-)Black.Output wire color : (+)Yellow, (-)Black.
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC/DC Converter Regulator
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
