Description
Waterproof DC/DC Converter Regulator 12V Step Up to 48V 1-6A
Feature:
1:Made of high-quality materials, long service life, long term stable and reliable.
2:With overcurrent, overvoltage, overtemperature and short circuit protection, reliable multi-protection design to enhance your using safety.

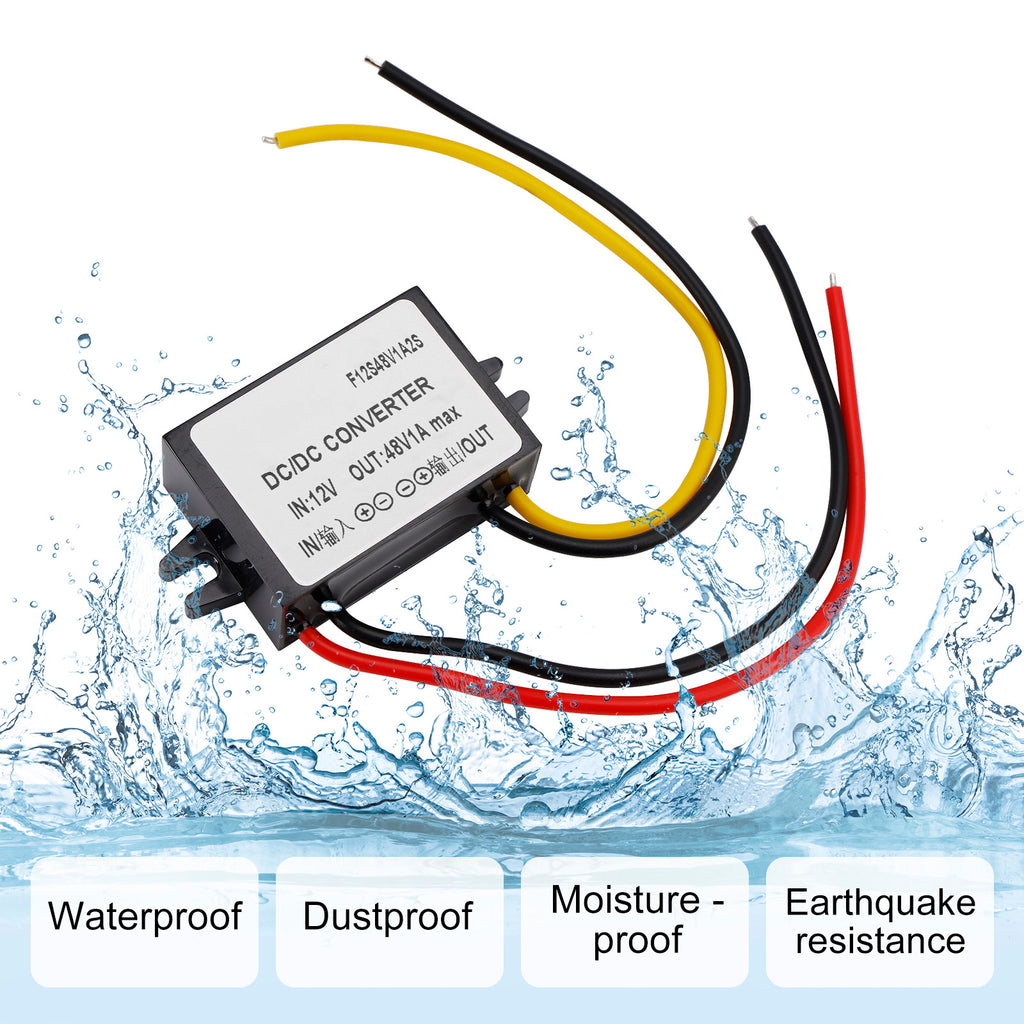

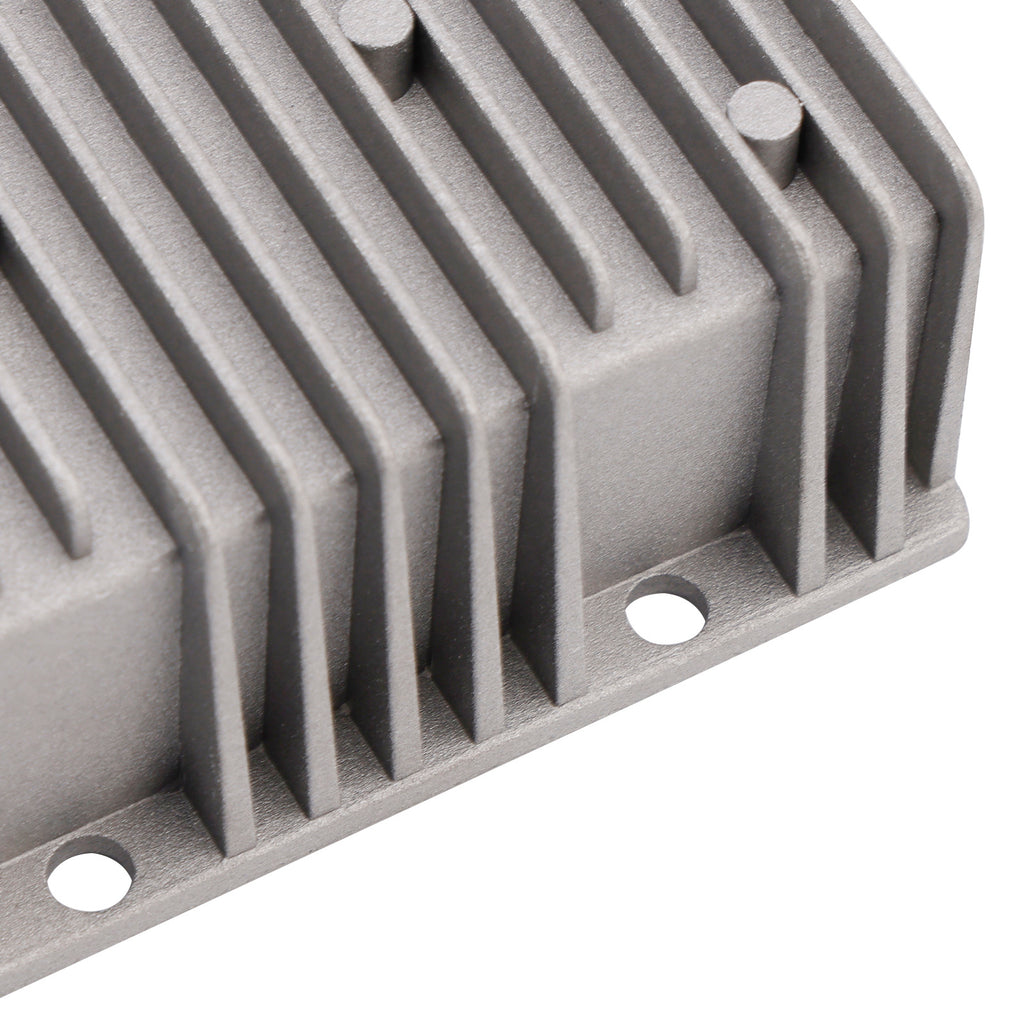

3:Waterproof, shockproof Design,good heat dissipation, easy to install
4:This product does not have the function of charging the battery, it is only used for voltage conversion.
5:Widely used in LED photo lighting, LED display screens, monitoring systems, power automation, communication systems and other fields.
Specifics:
Condition: 100% Brand New
Input rated voltage: 12V/24V DC
Input voltage range: 10 ~ 30V DC
Output voltage: 48V DC
Model: There are 7 options as follows:

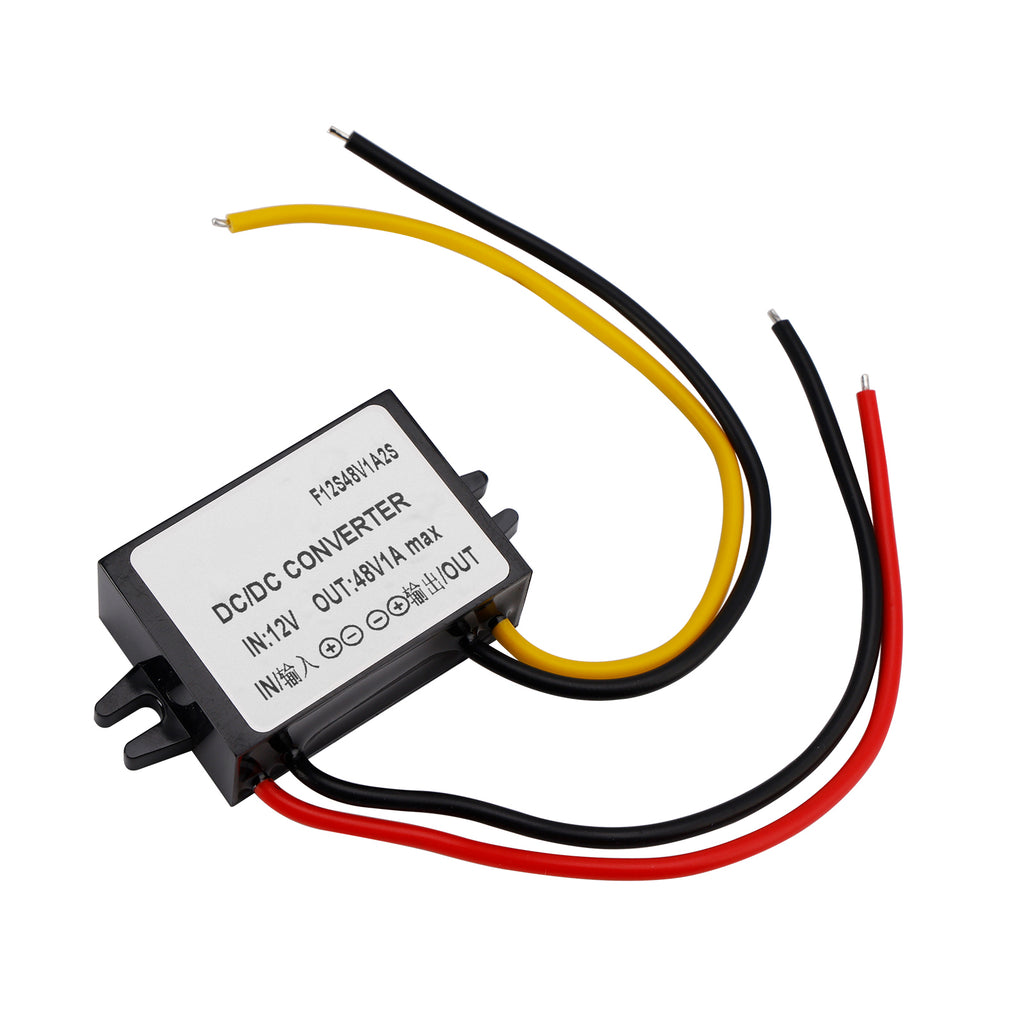

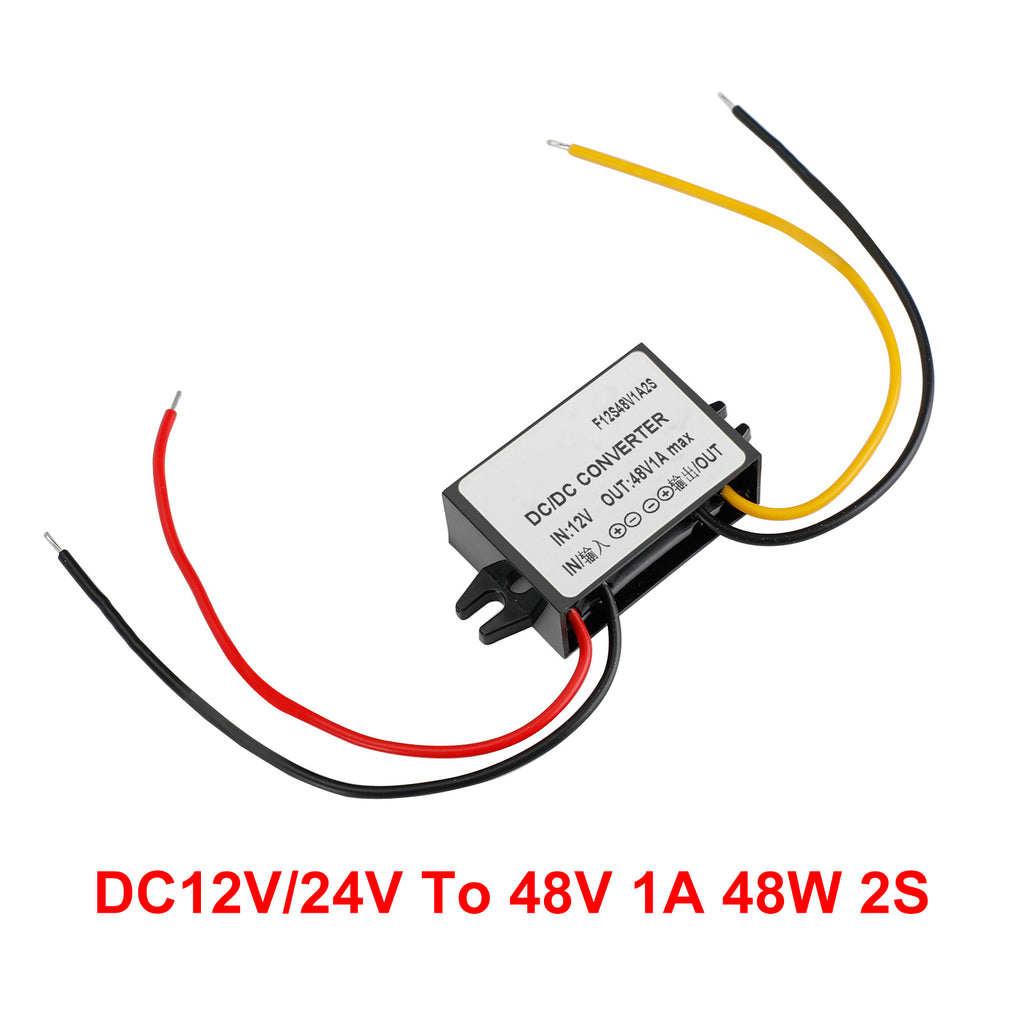

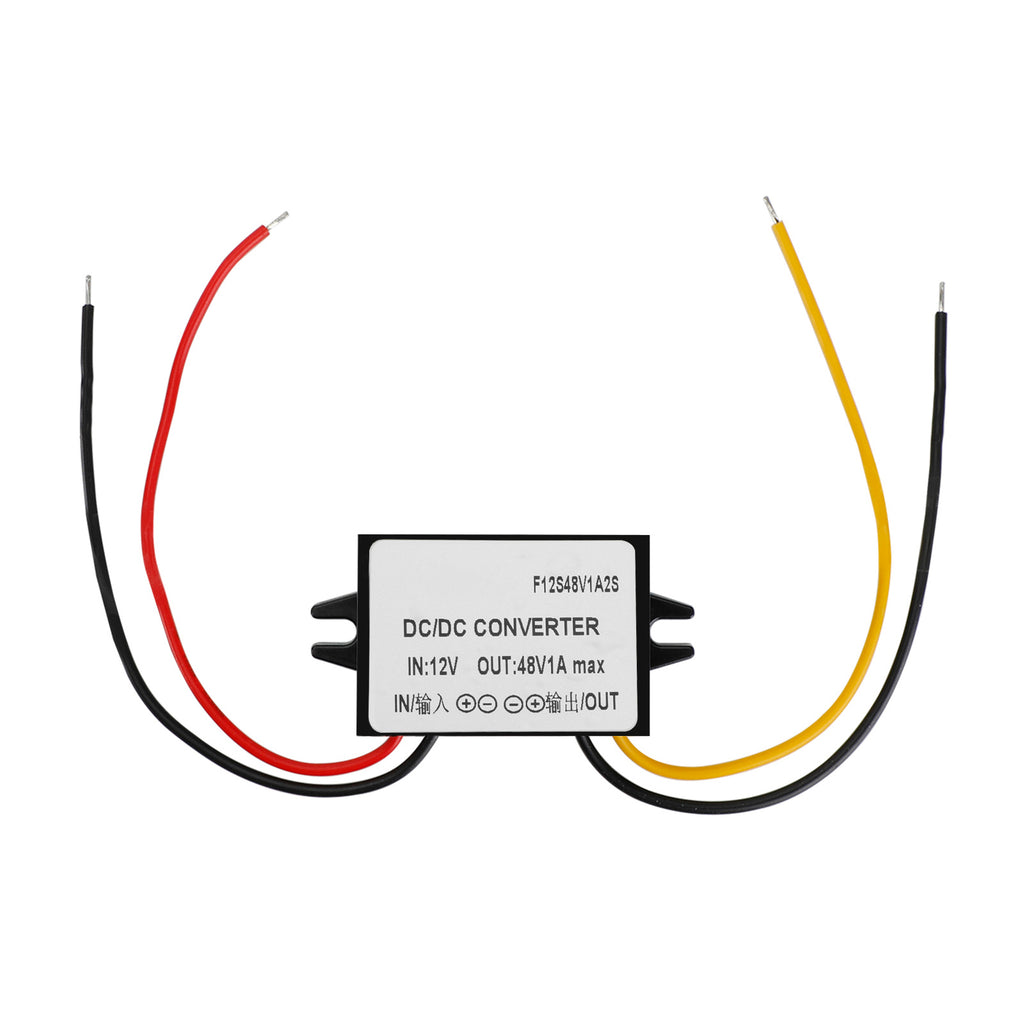

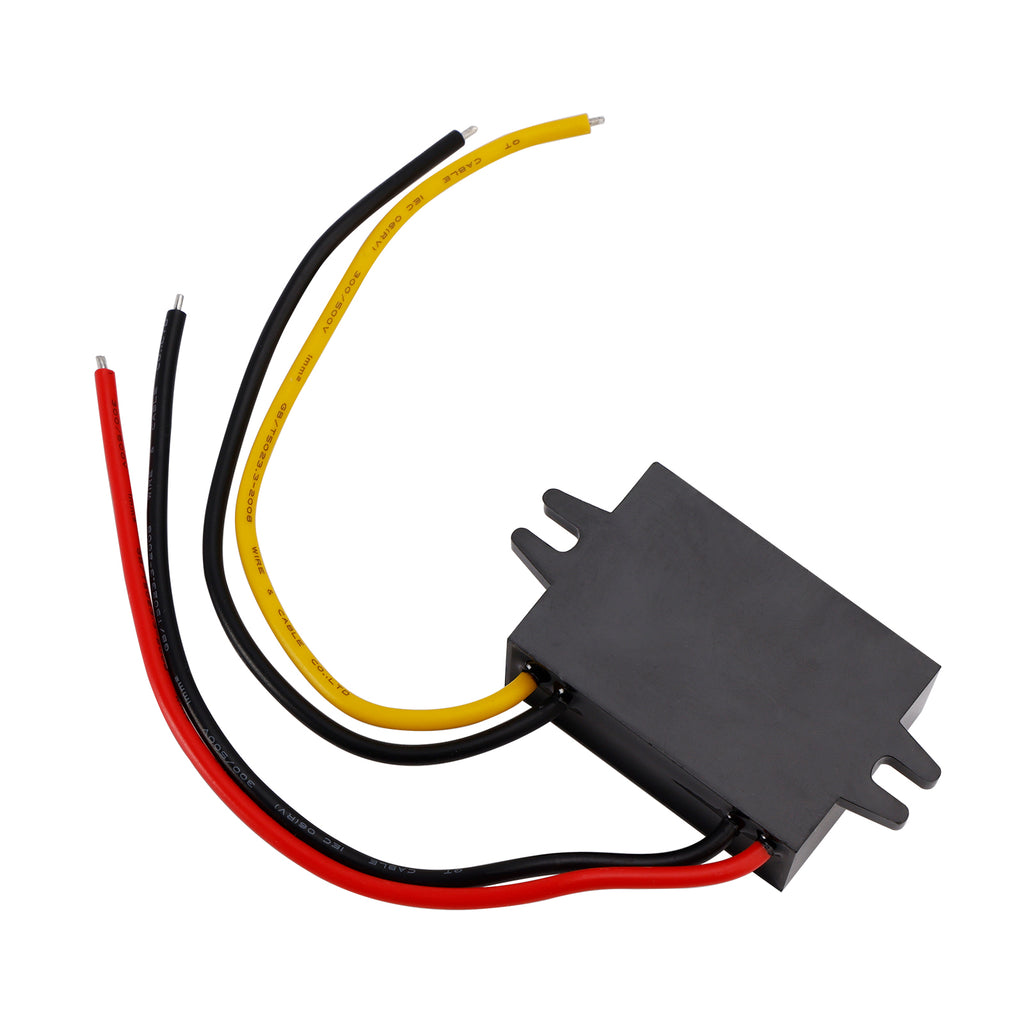

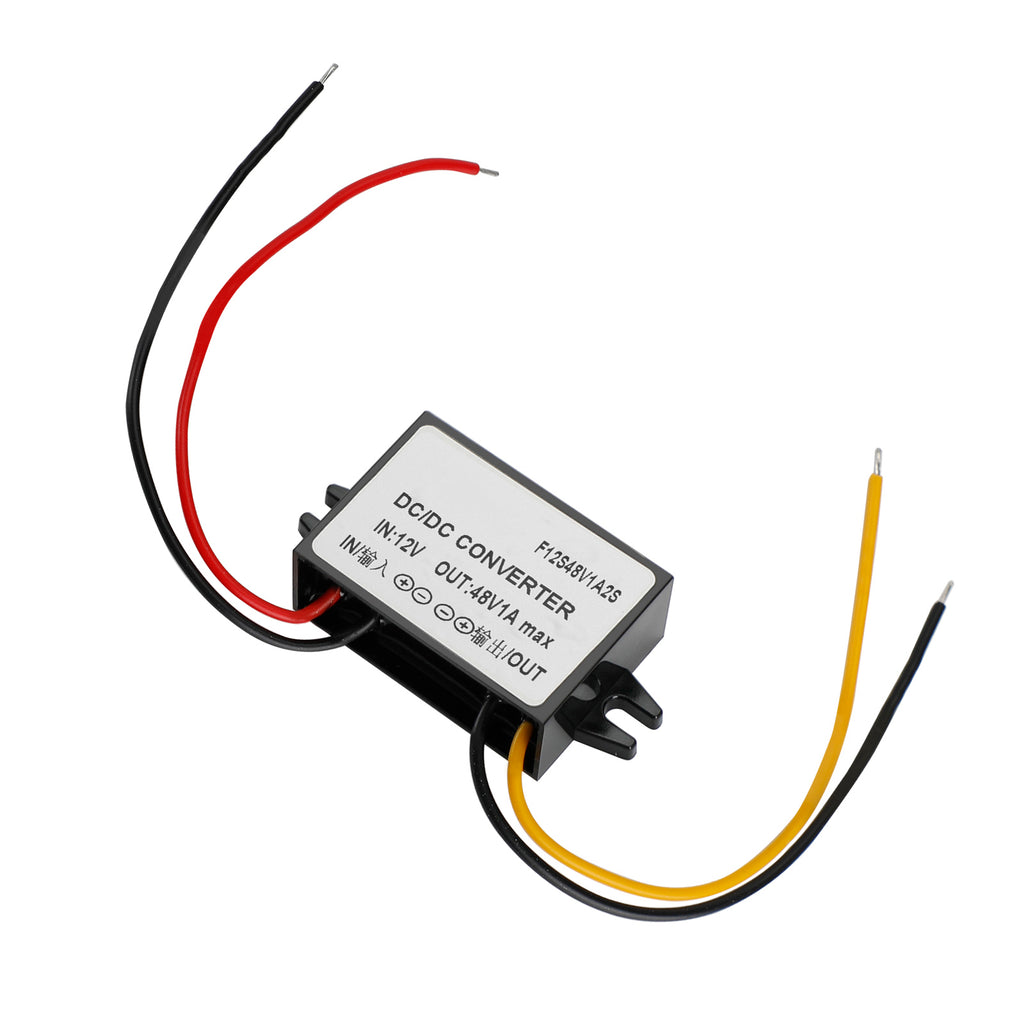

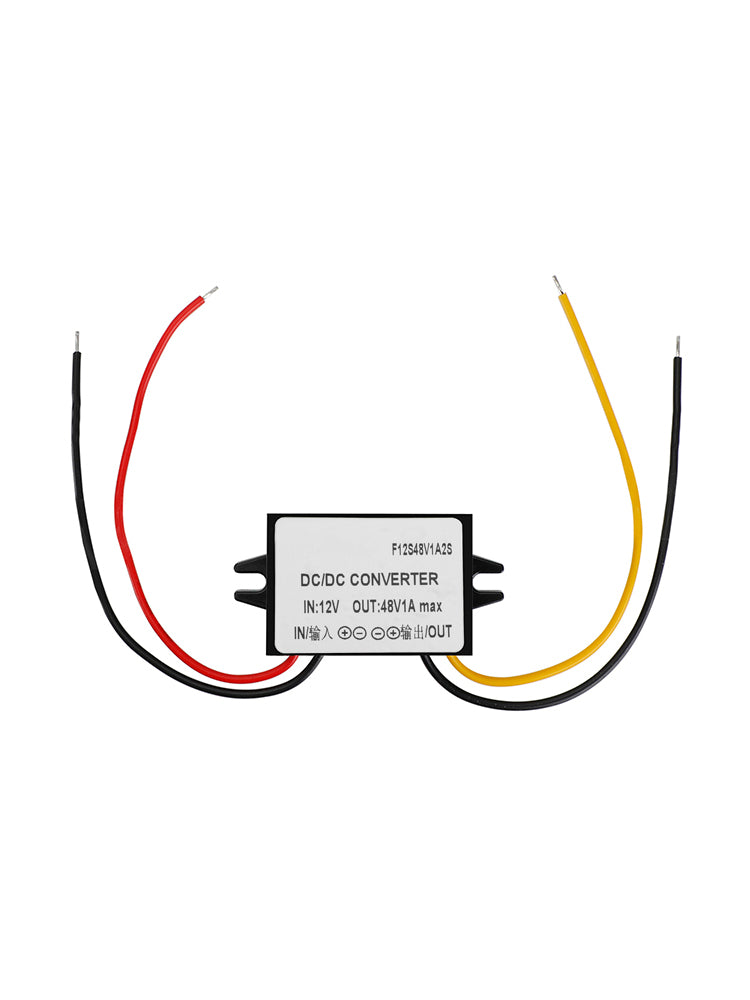

Option 1:DC12V/24V To 48V 1A 48W 2S

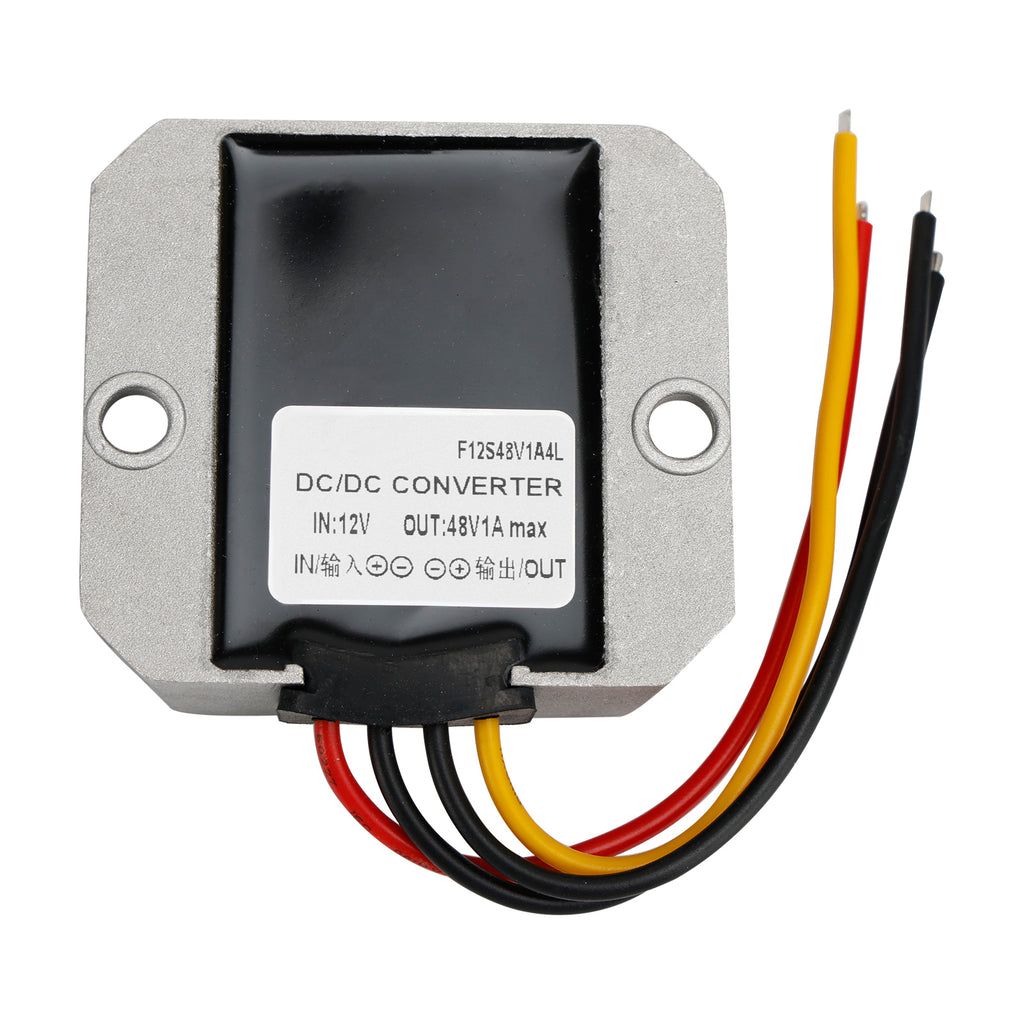

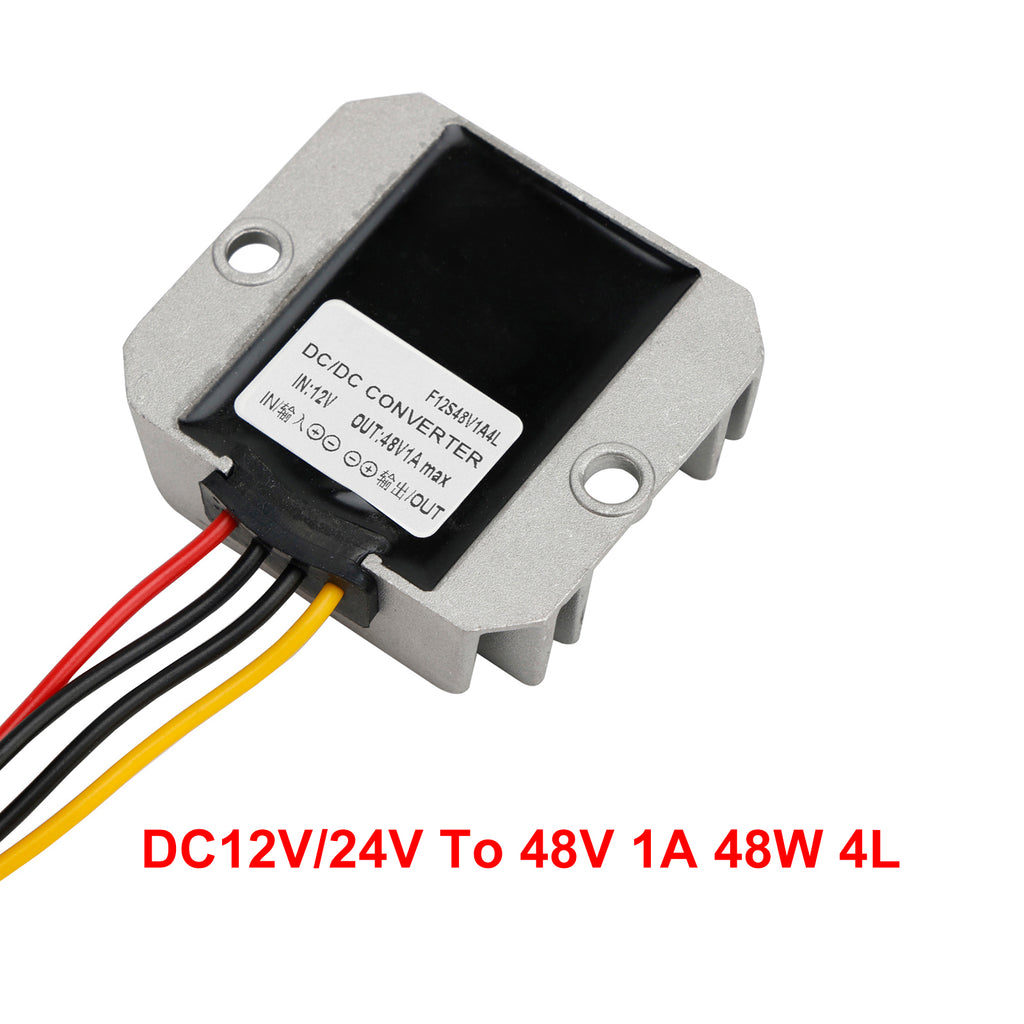

Option 2:DC12V/24V To 48V 1A 48W 4L

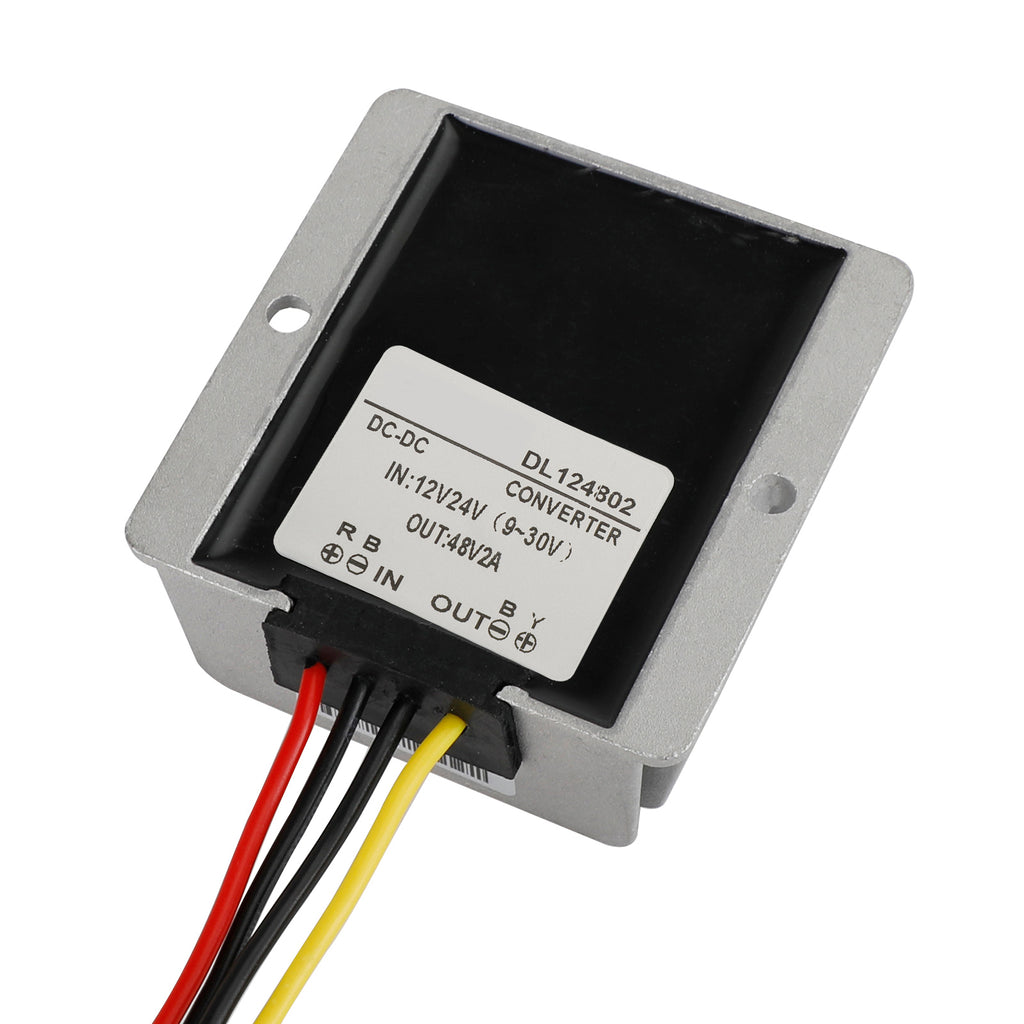

Option 3:DC12V/24V To 48V 2A 96W 5L

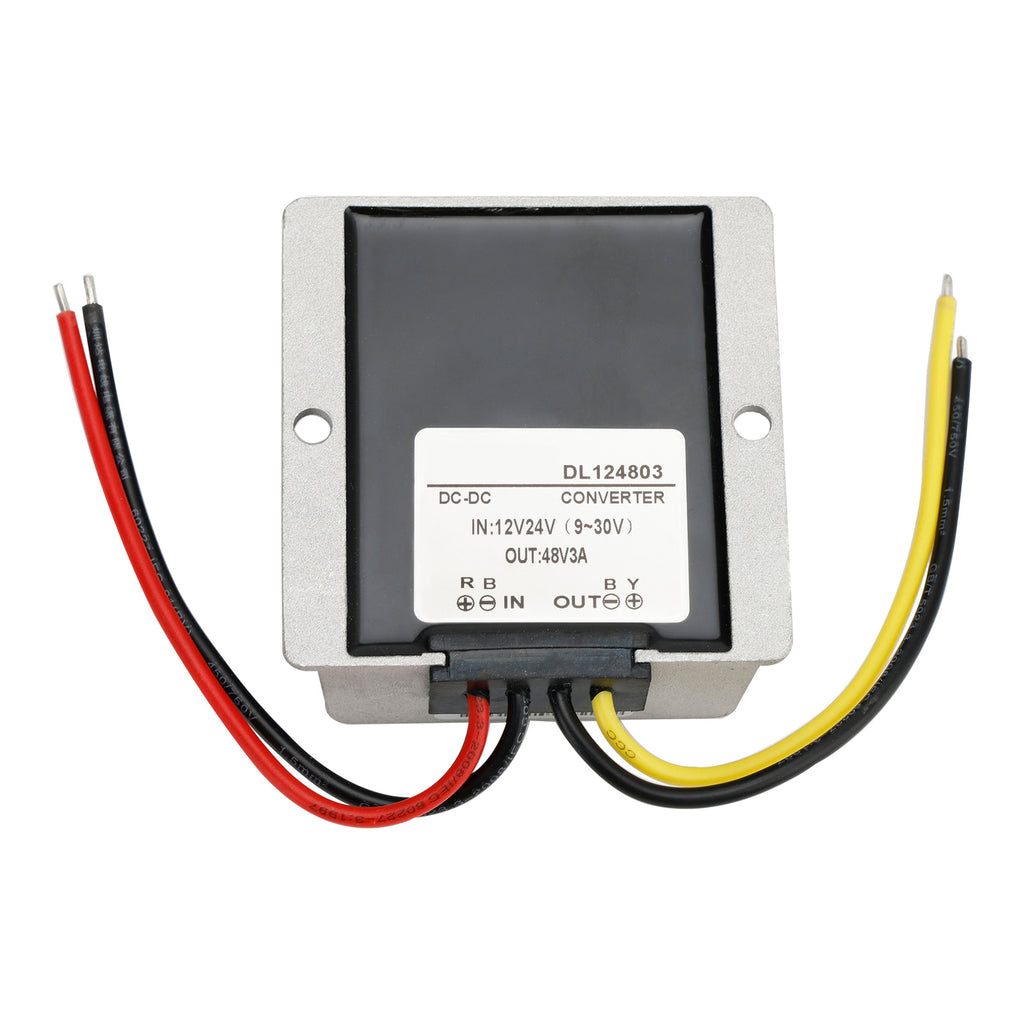

Option 4:DC12V/24V To 48V 3A 144W 5L

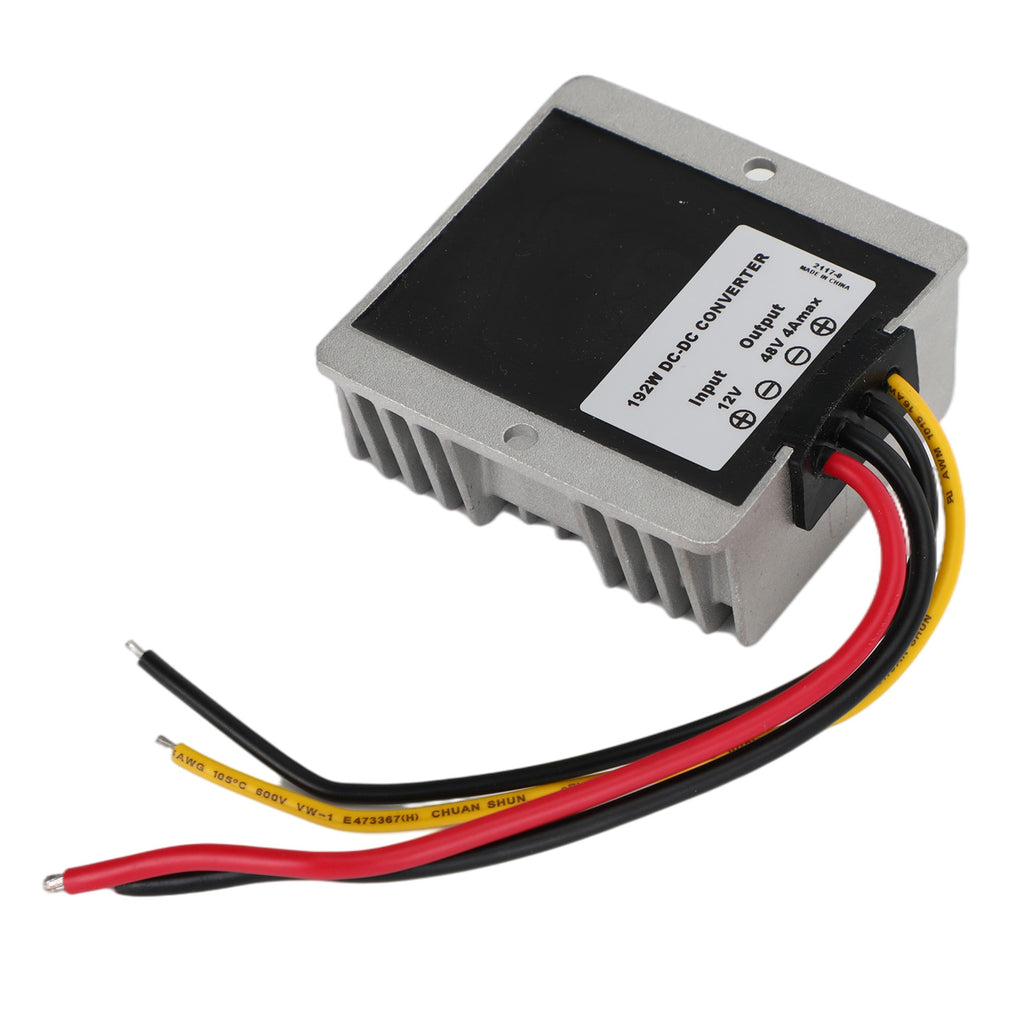

Option 5:DC12V/24V To 48V 4A 192W 5L

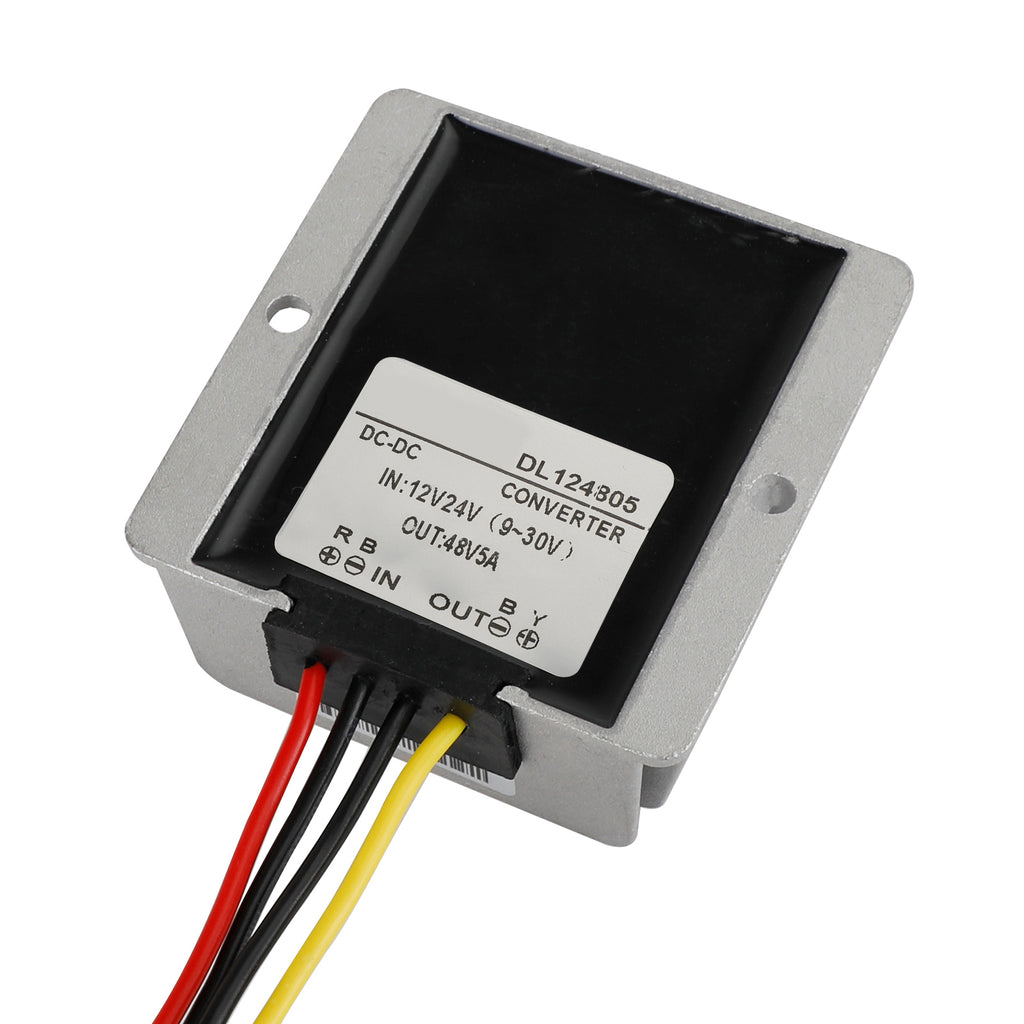

Option 6:DC12V/24V To 48V 5A 240W 5L

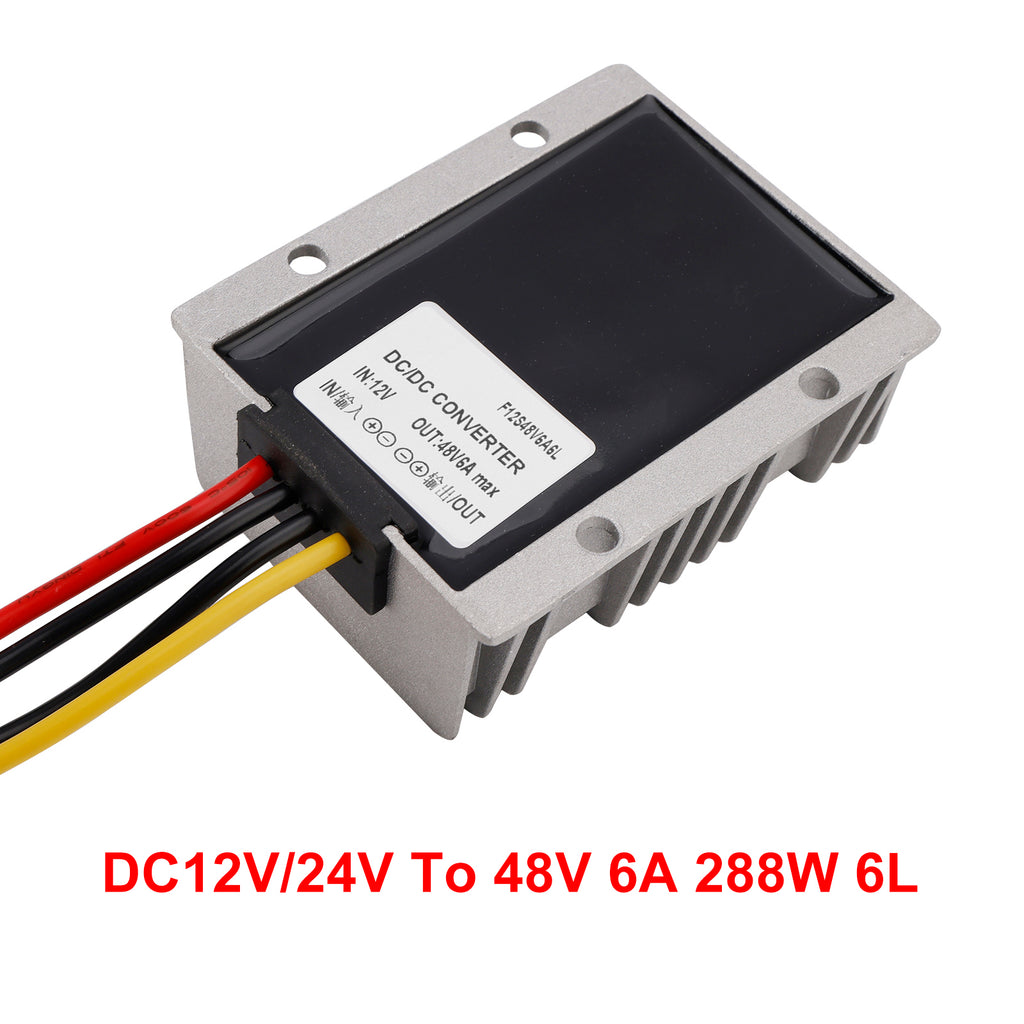

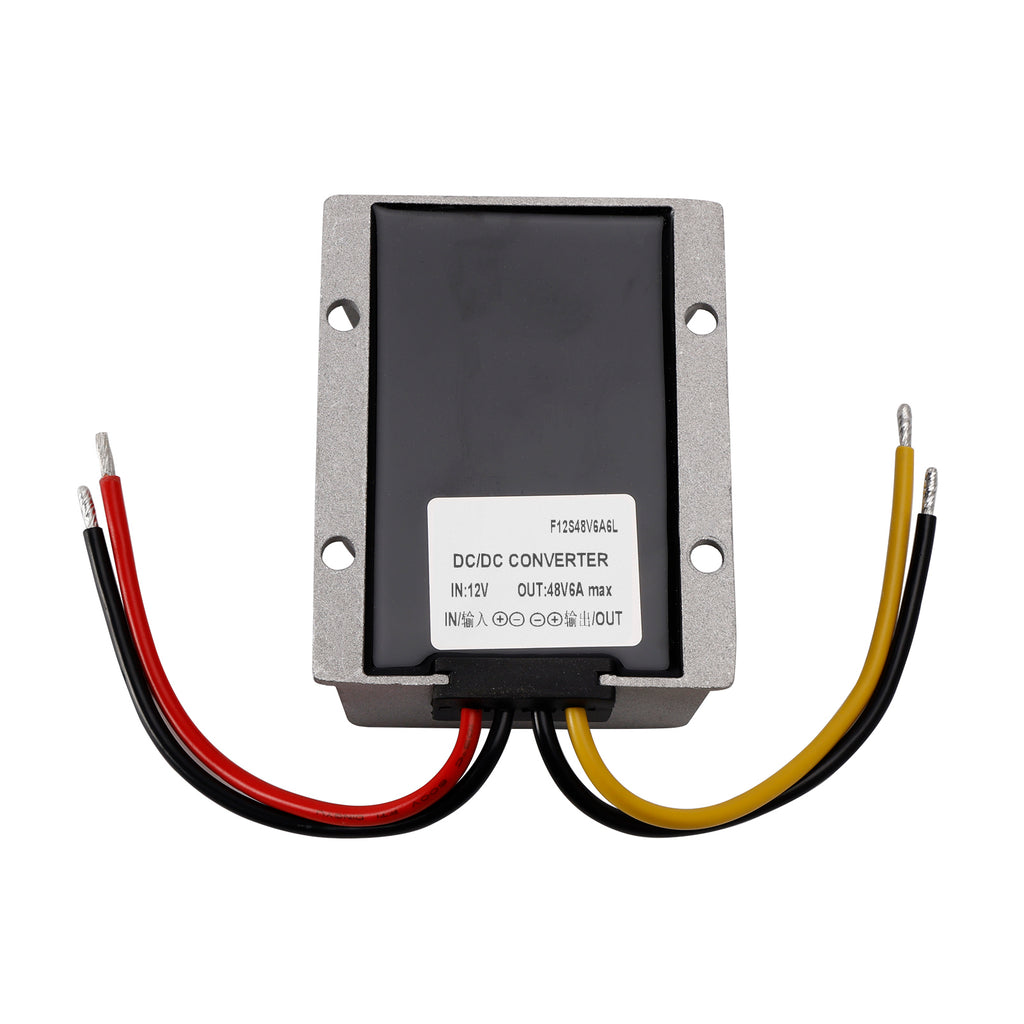

Option 7:DC12V/24V To 48V 6A 288W 6L

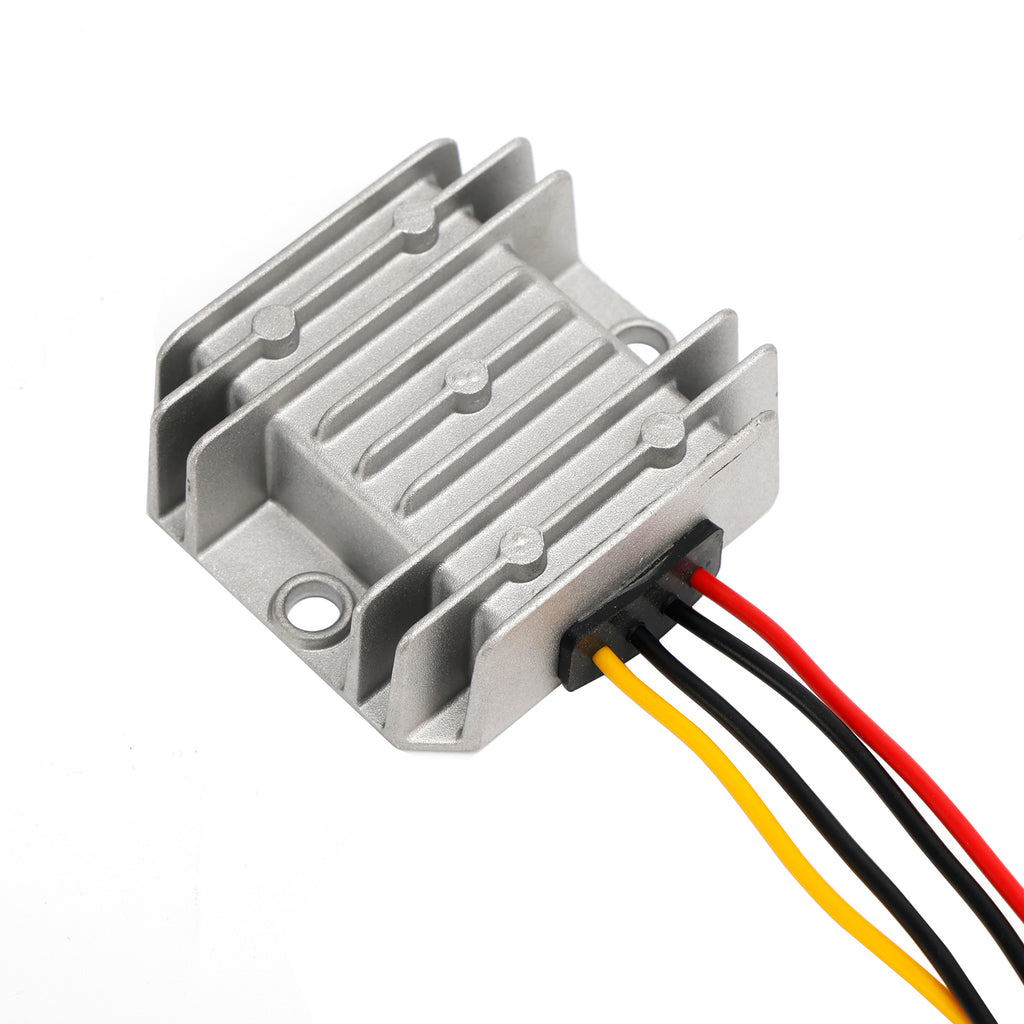

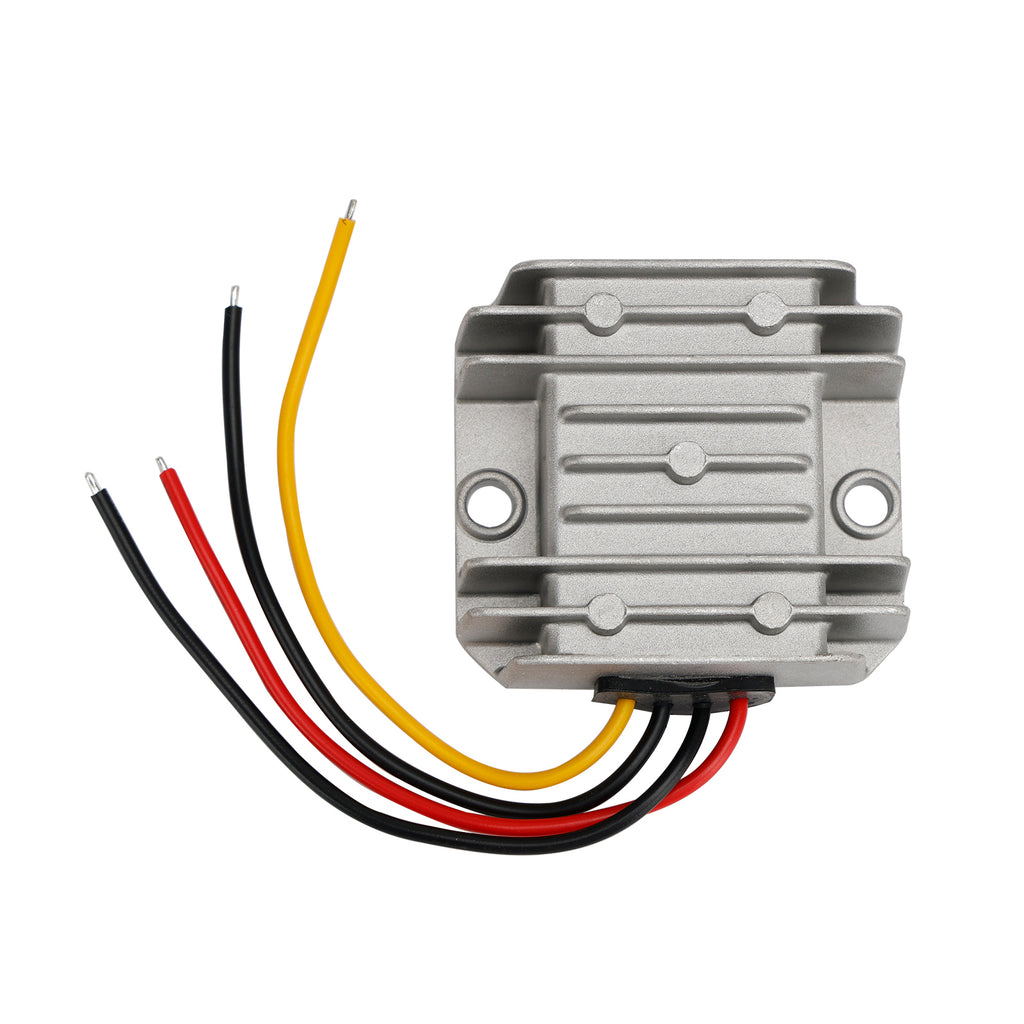

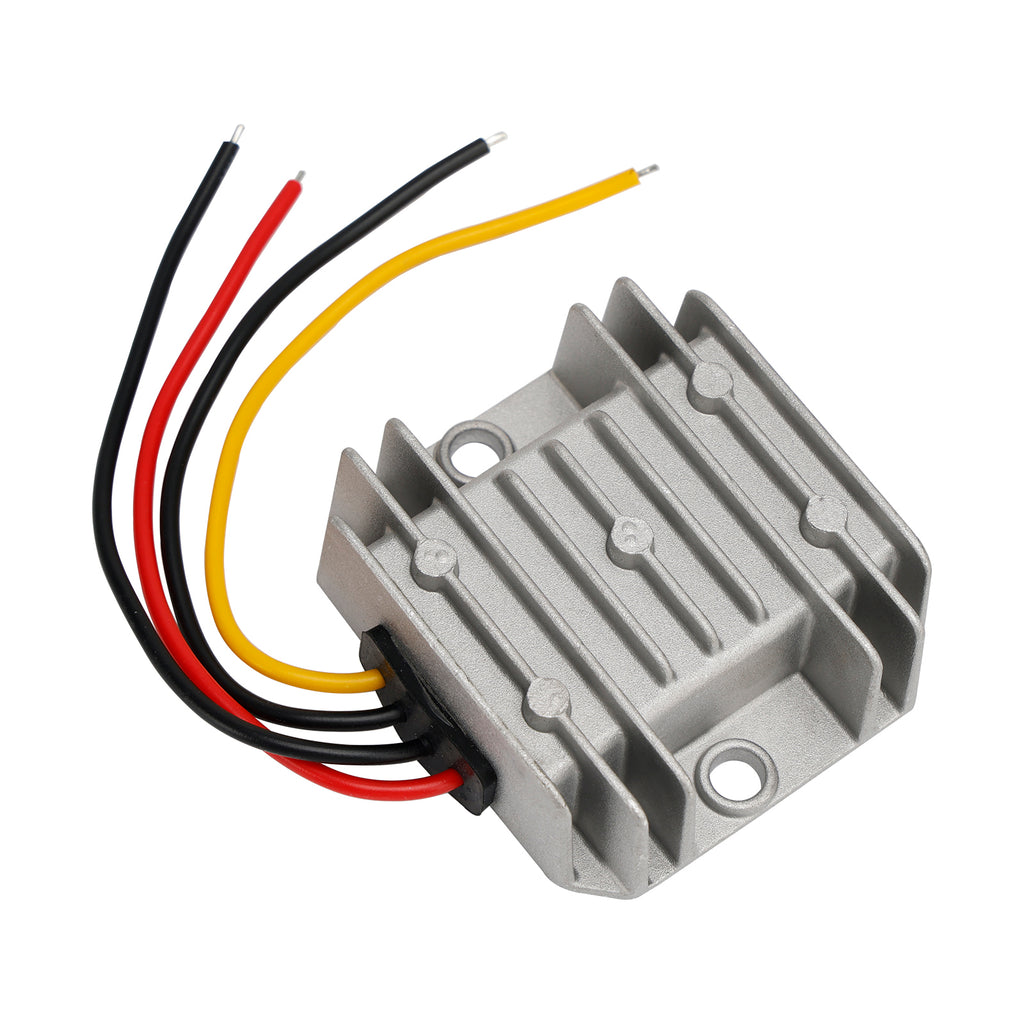

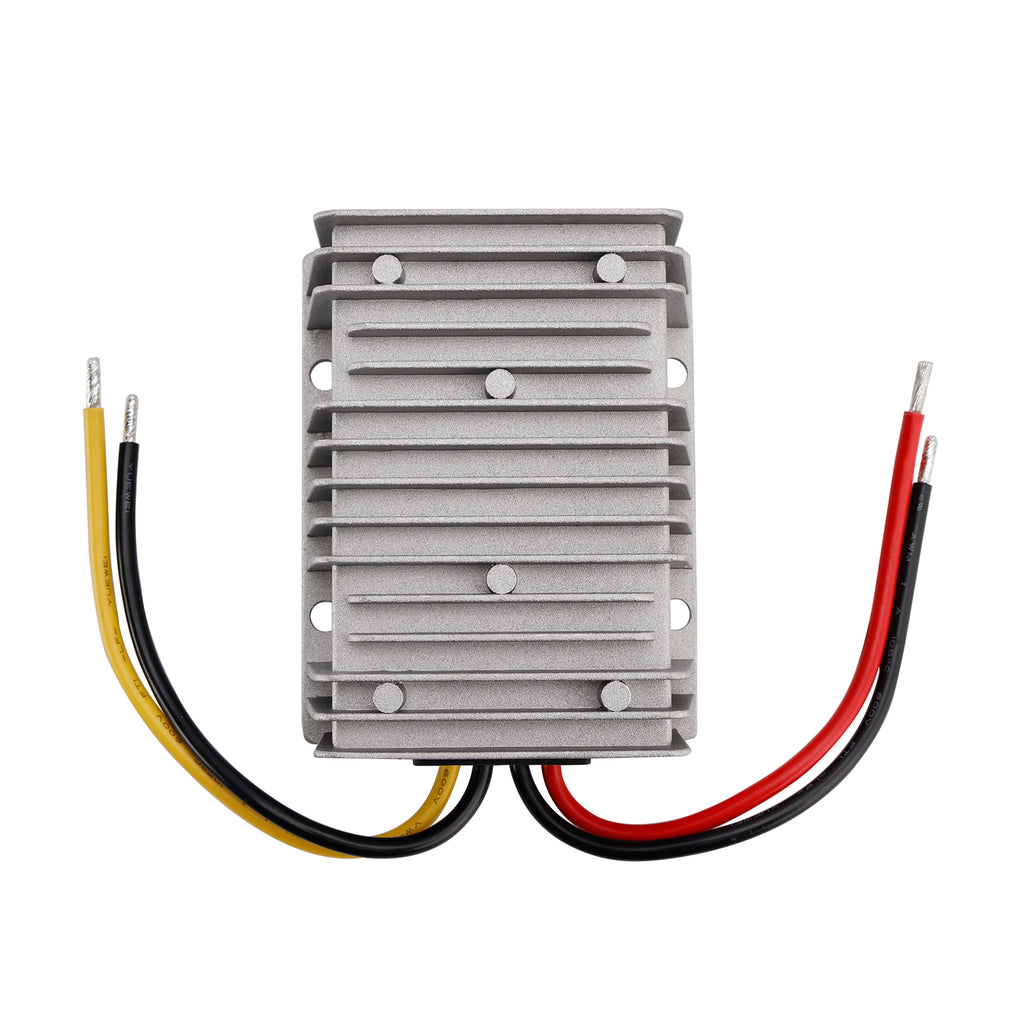

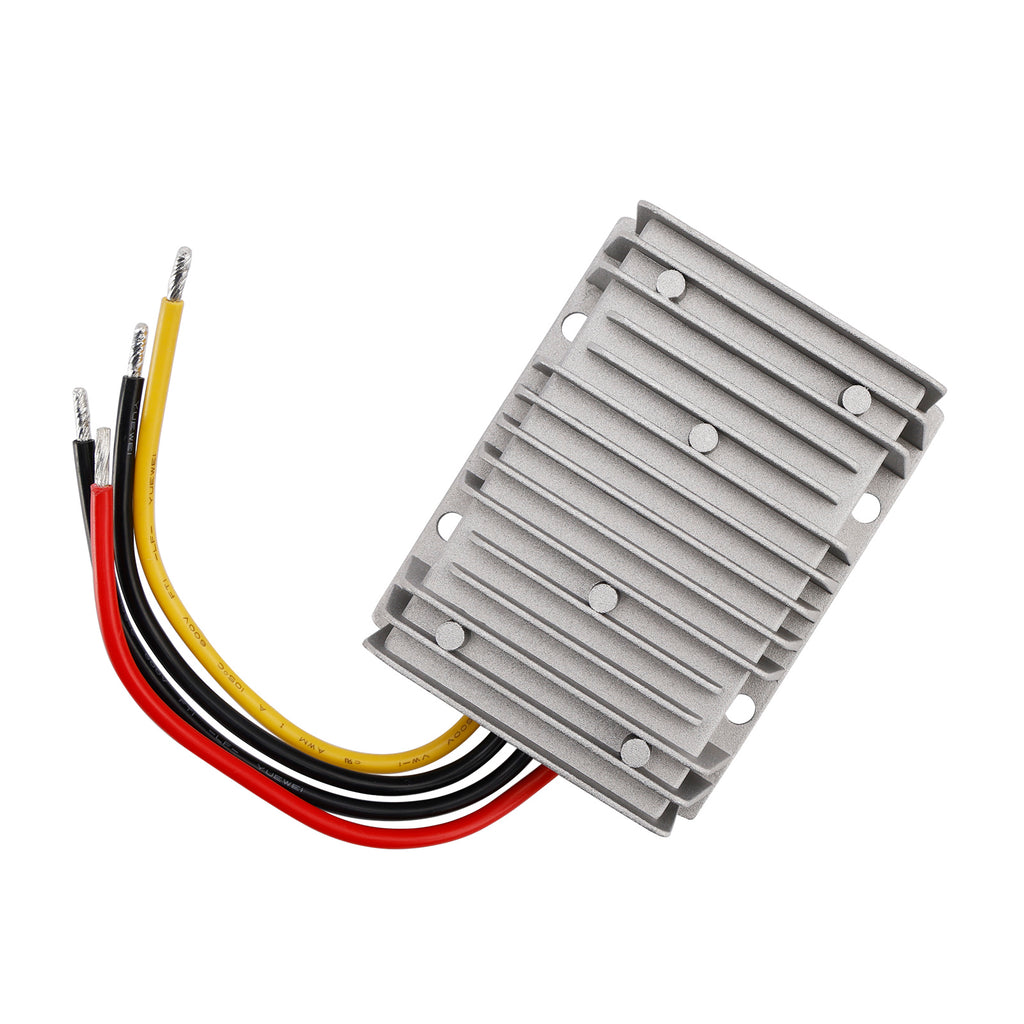

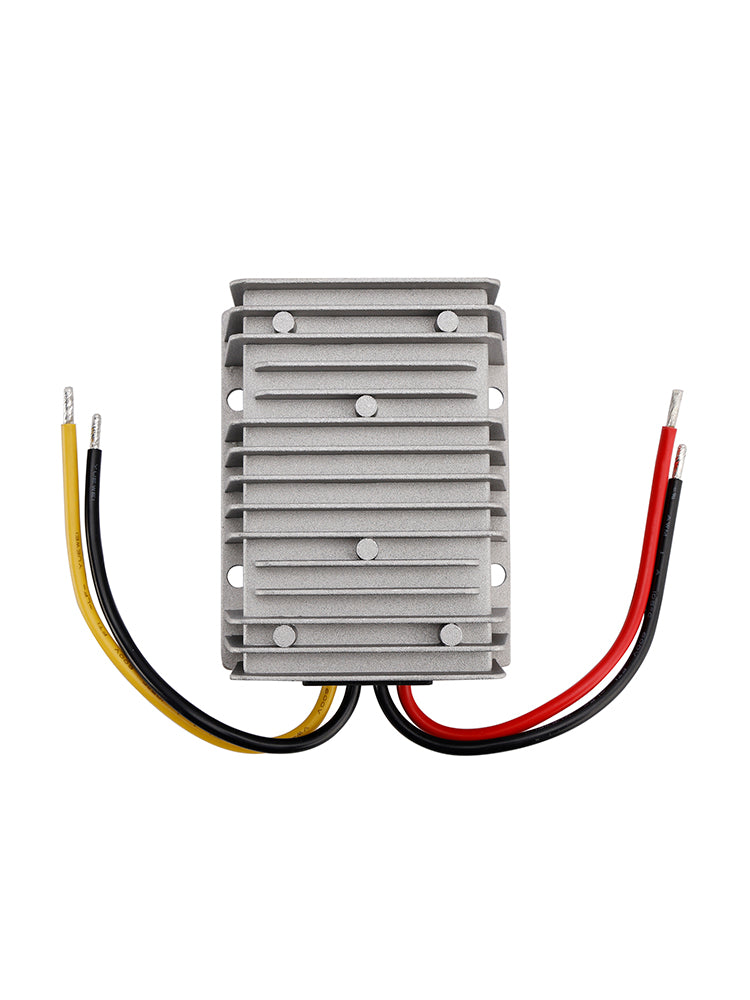

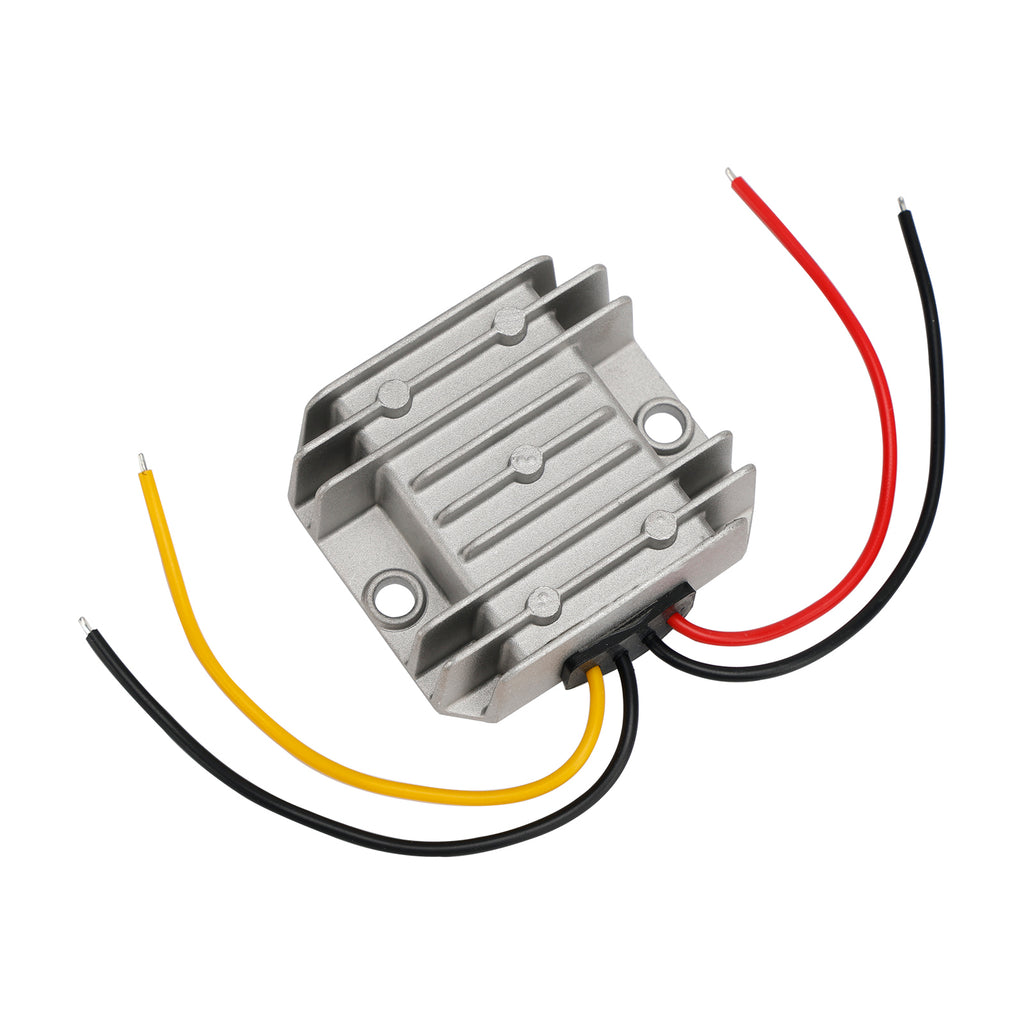

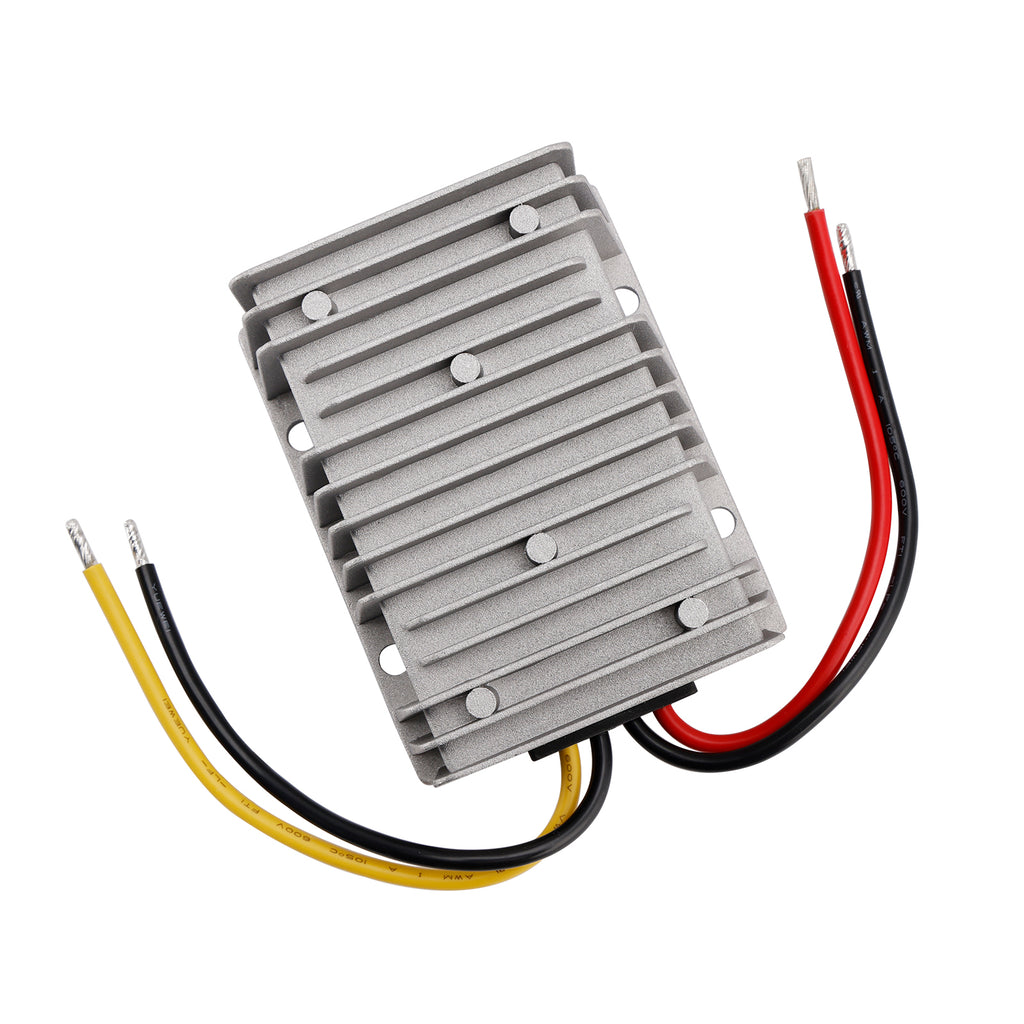

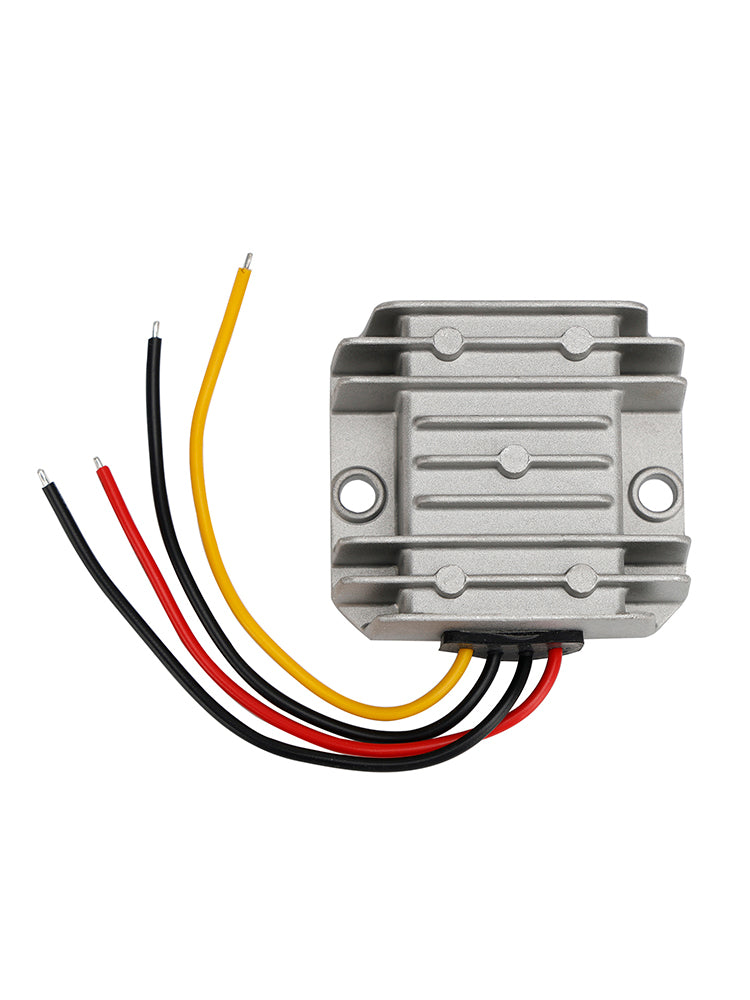

Note: Product appearance can be viewed in pictures
Conversion efficiency: Over 90%
Static consumption: Less than 20MA
No-load adjustment rate: 2%
Load regulation: 3%
Operating temperature: -25°C ~ +65°C
Wire lengths: About 12~13cm
Waterproof Rating: Ip67

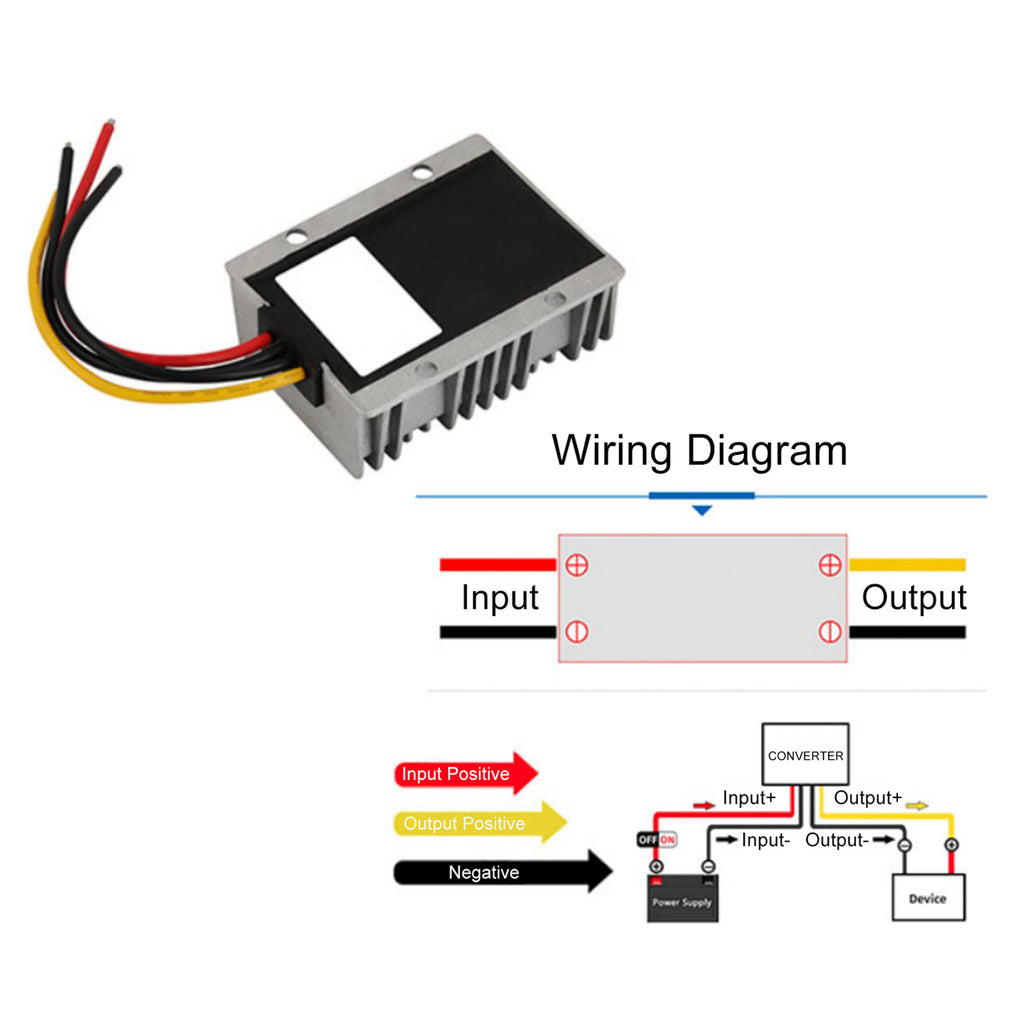

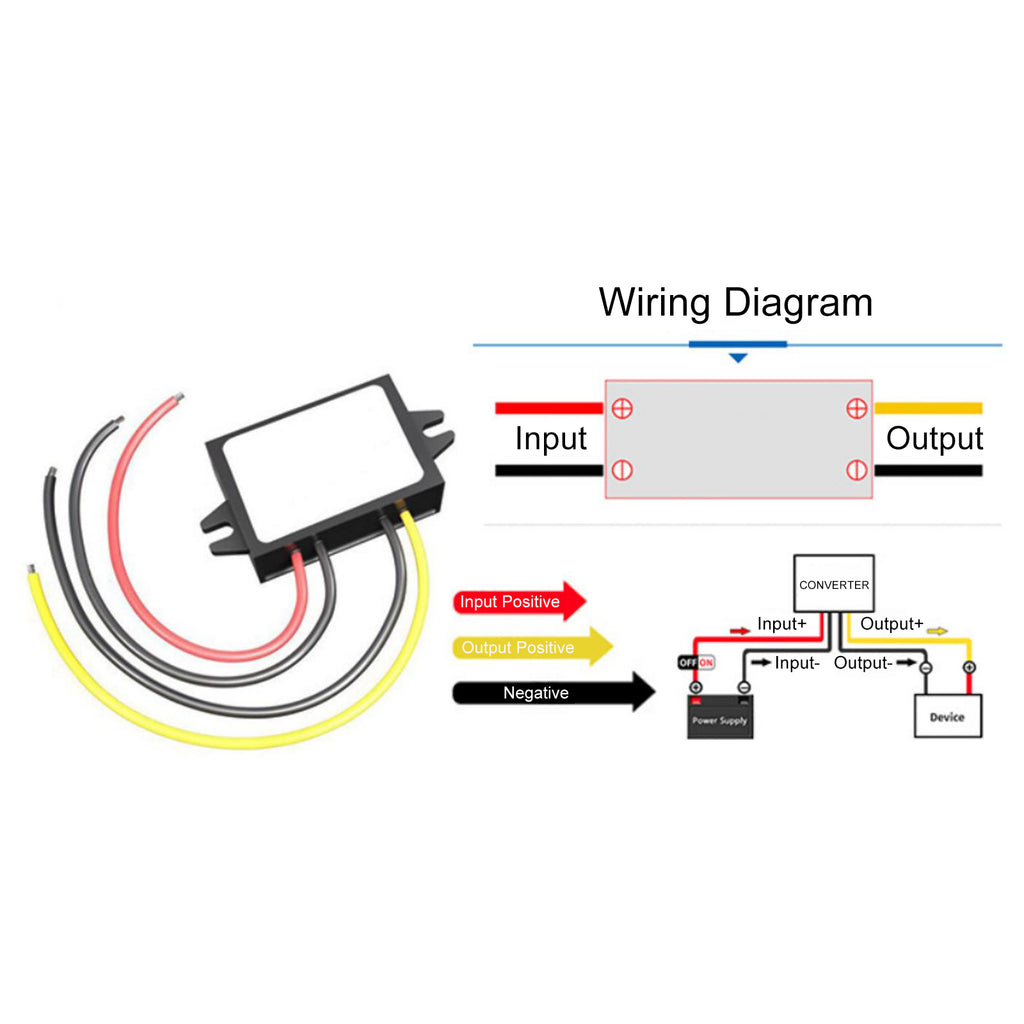

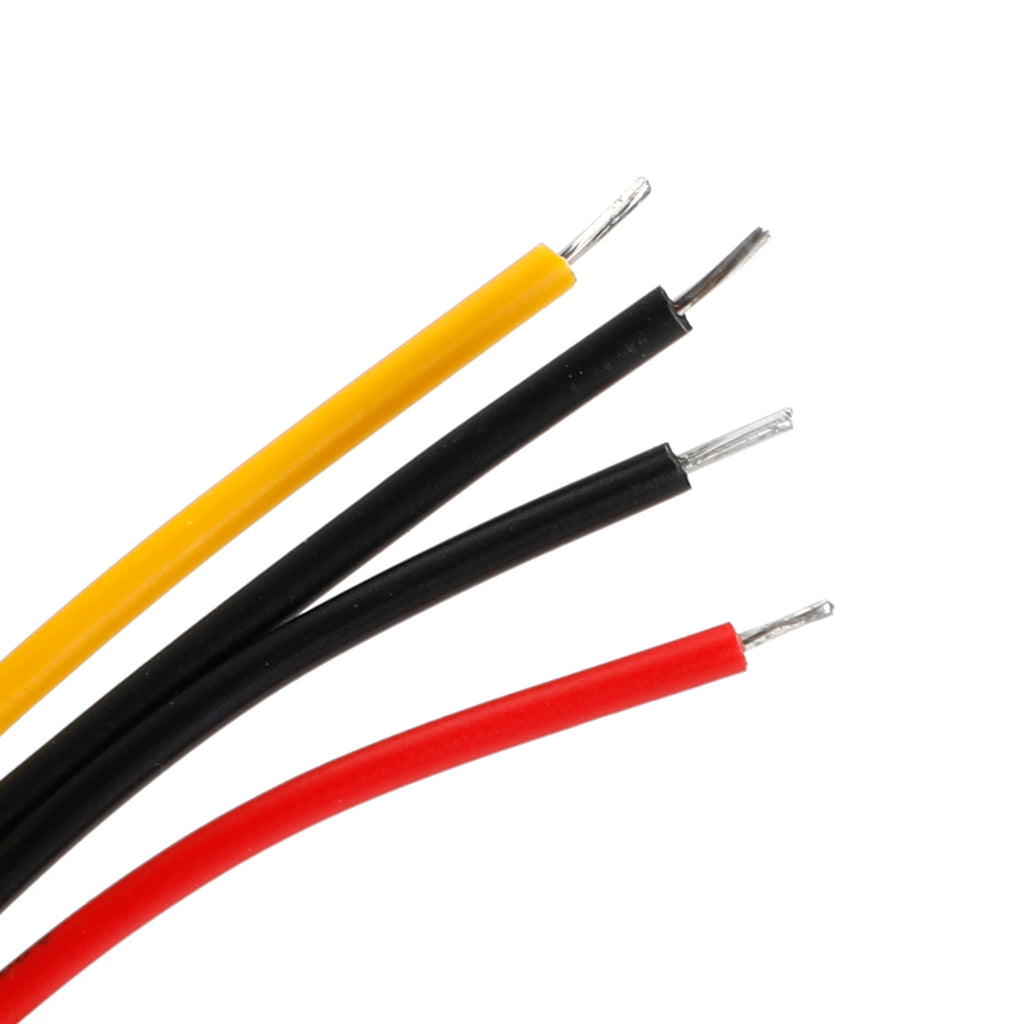

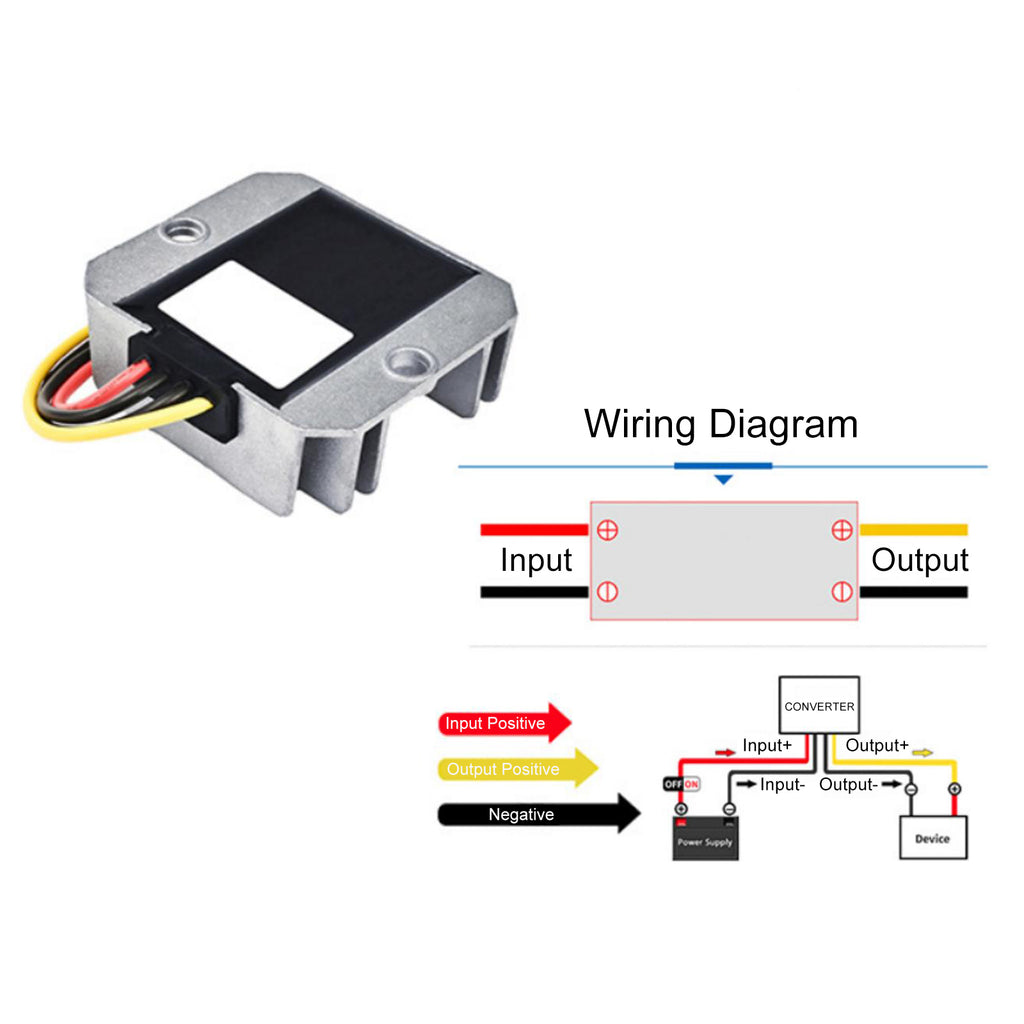

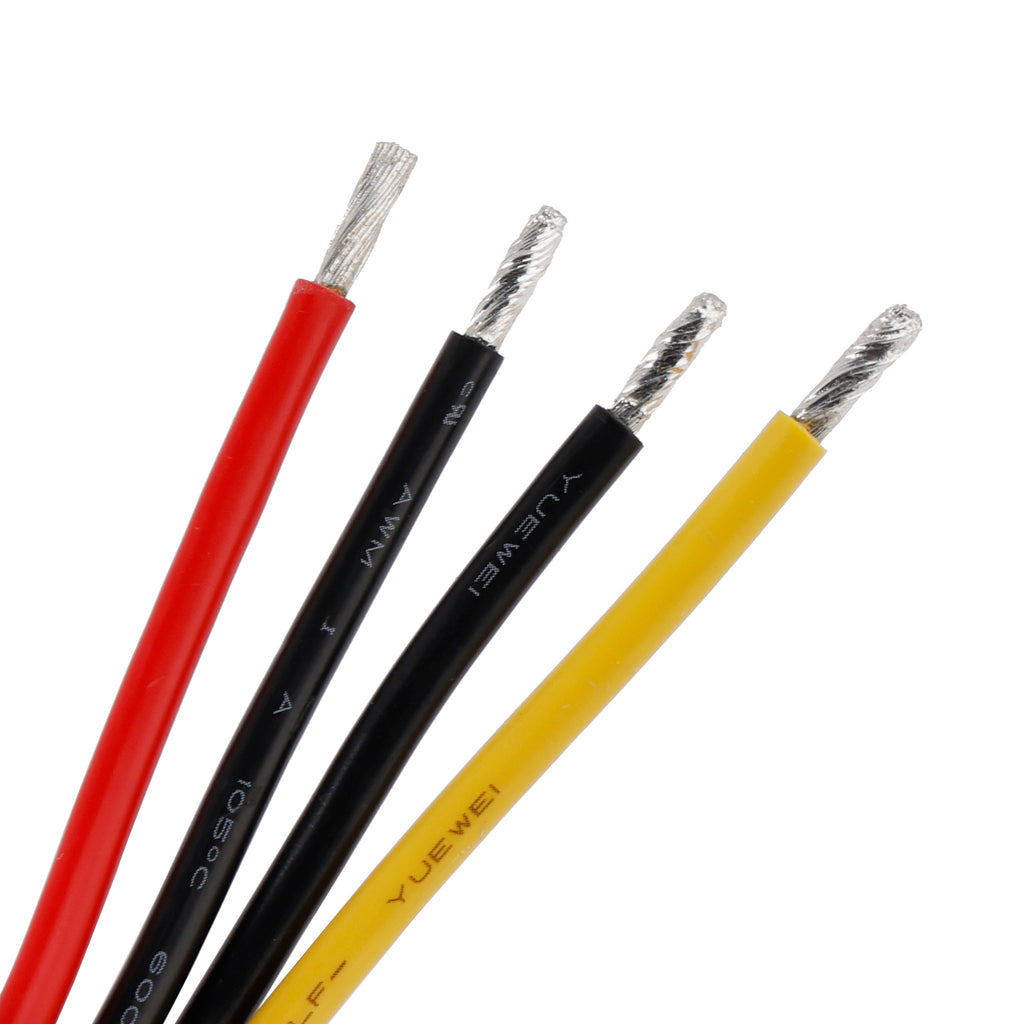

Input wire color : (+)Red, (-)Black.Output wire color : (+)Yellow, (-)Black.
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC/DC Converter Regulator
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
