Description
Waterproof DC/DC Converter Regulator 6V Step Up to 12V 1-3A
Feature:
1:Made of high-quality materials, long service life, long term stable and reliable.
2:With overcurrent, overvoltage, overtemperature and short circuit protection, reliable multi-protection design to enhance your using safety.
3:Waterproof, shockproof Design,good heat dissipation, easy to install
4:This product does not have the function of charging the battery, it is only used for voltage conversion.
5:Widely used in LED photo lighting, LED display screens, monitoring systems, power automation, communication systems and other fields.
Specifics:
Condition: 100% Brand New
Input rated voltage: 6V DC
Input voltage range: 5 ~ 11V DC
Output voltage: 12V DC
Model: There are 11 options as follows:

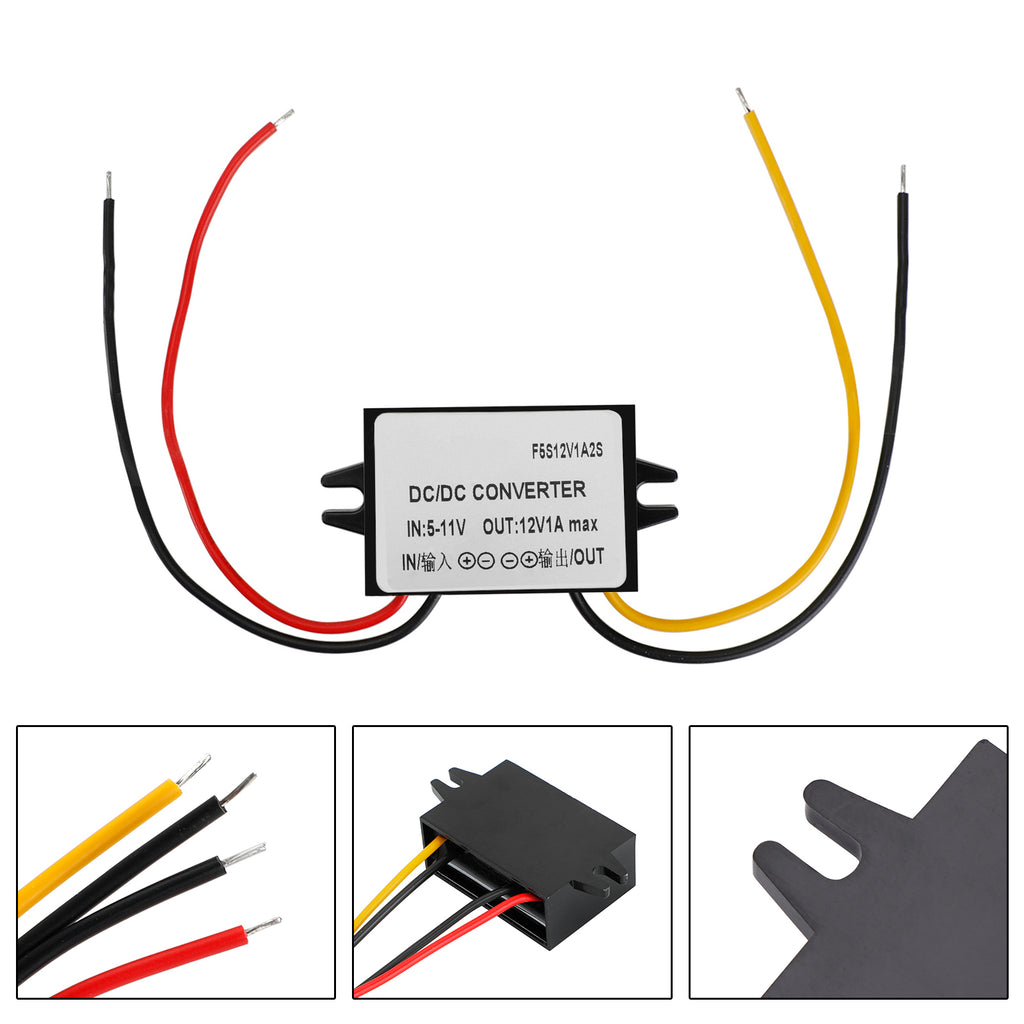

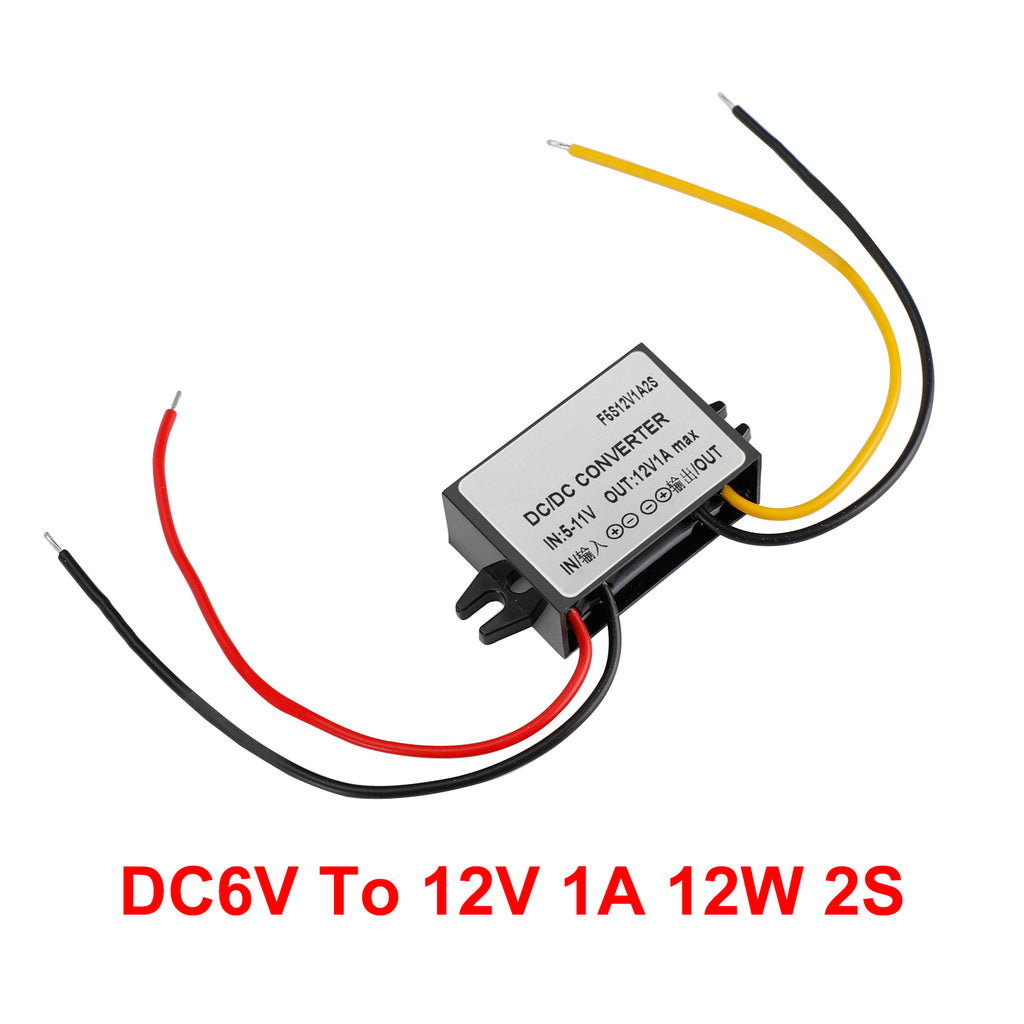

Option 1:DC6V To 12V 1A 12W 2S

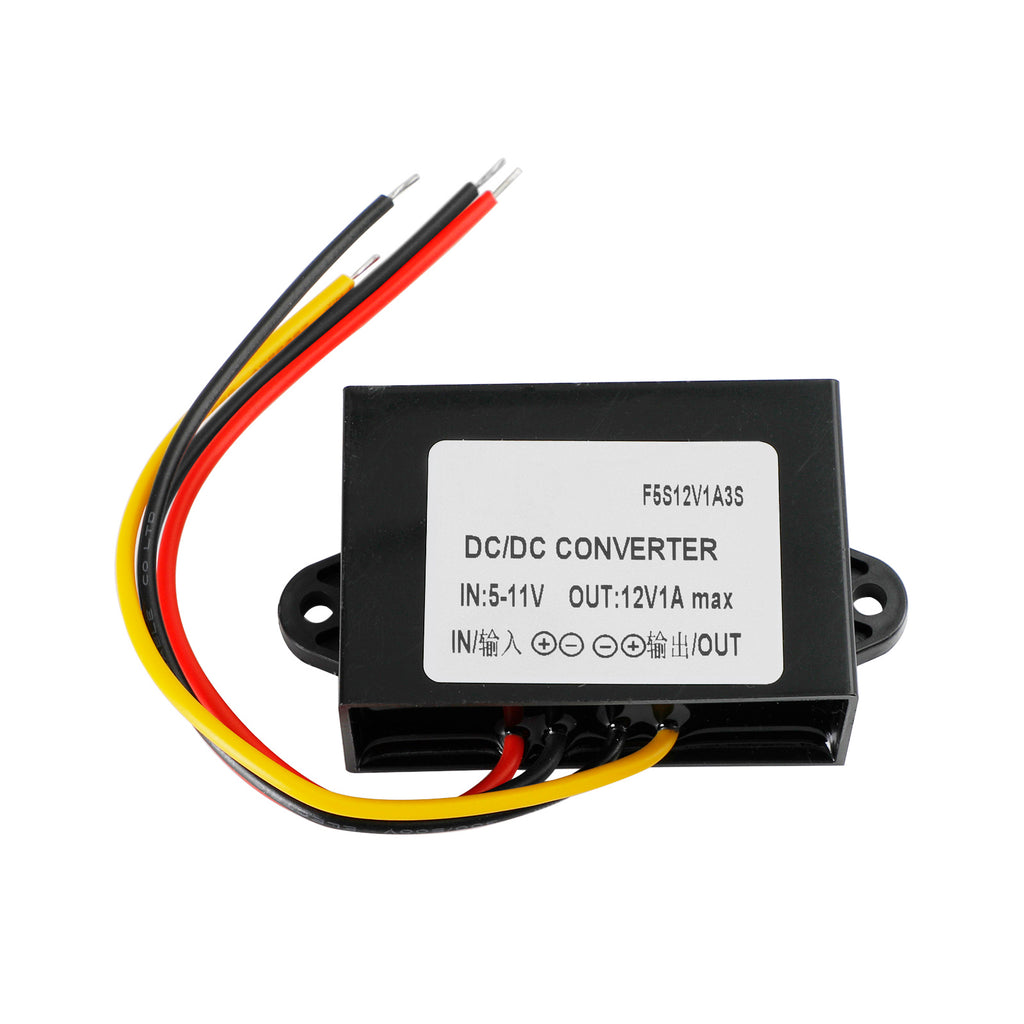

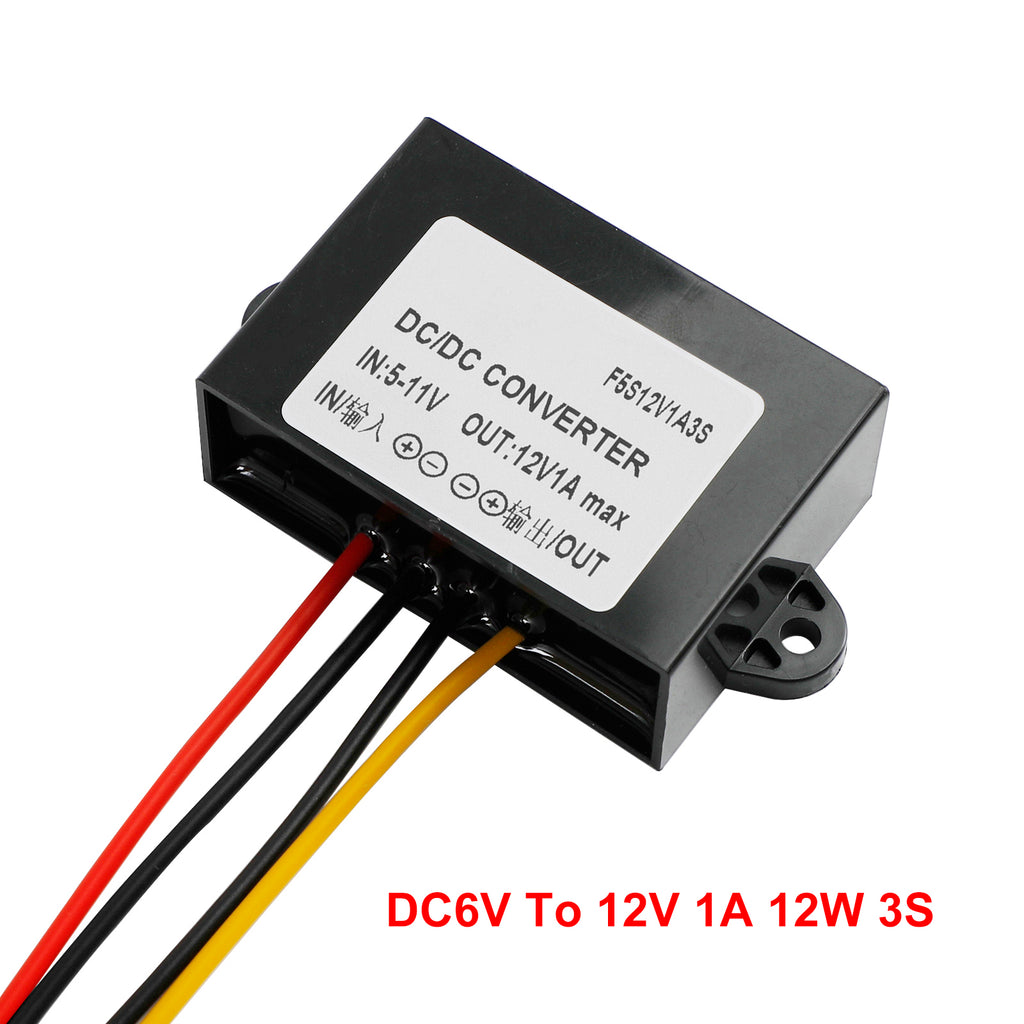

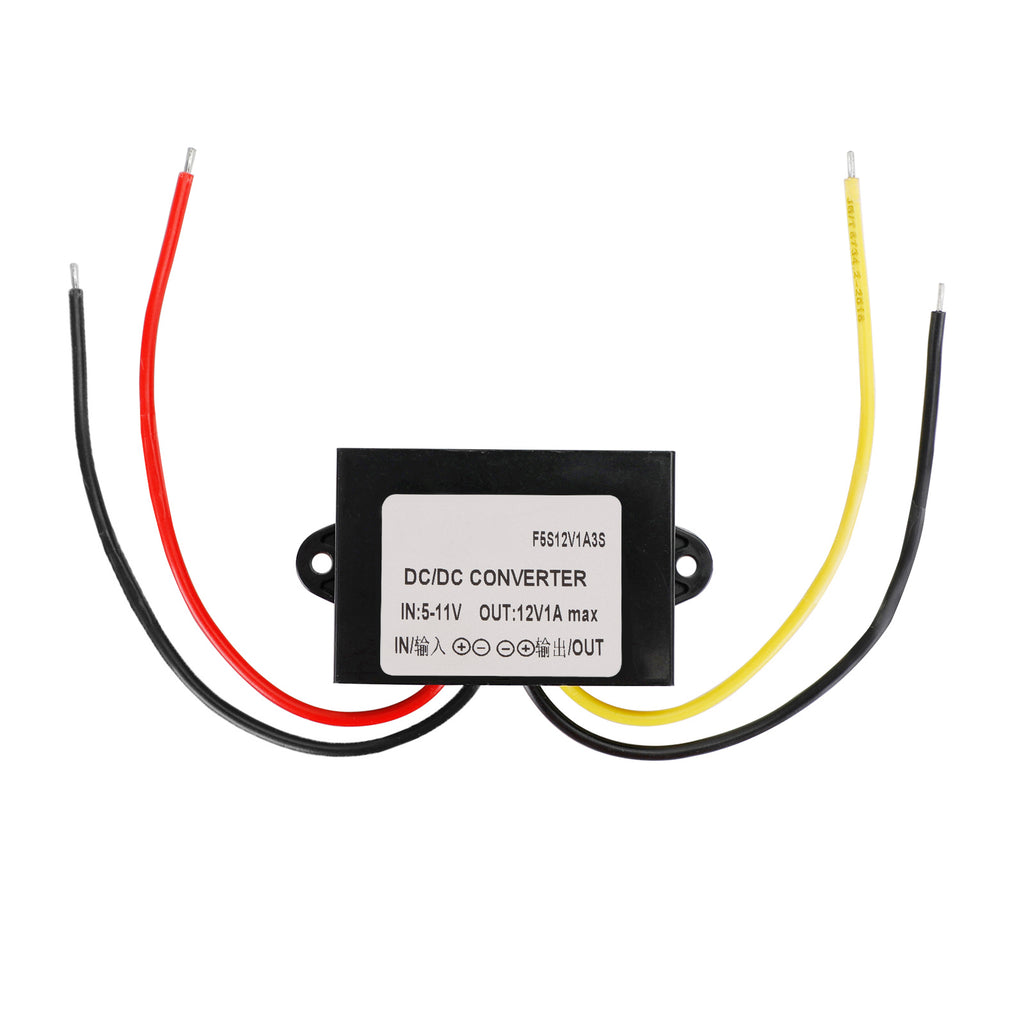

Option 2:DC6V To 12V 1A 12W 3S

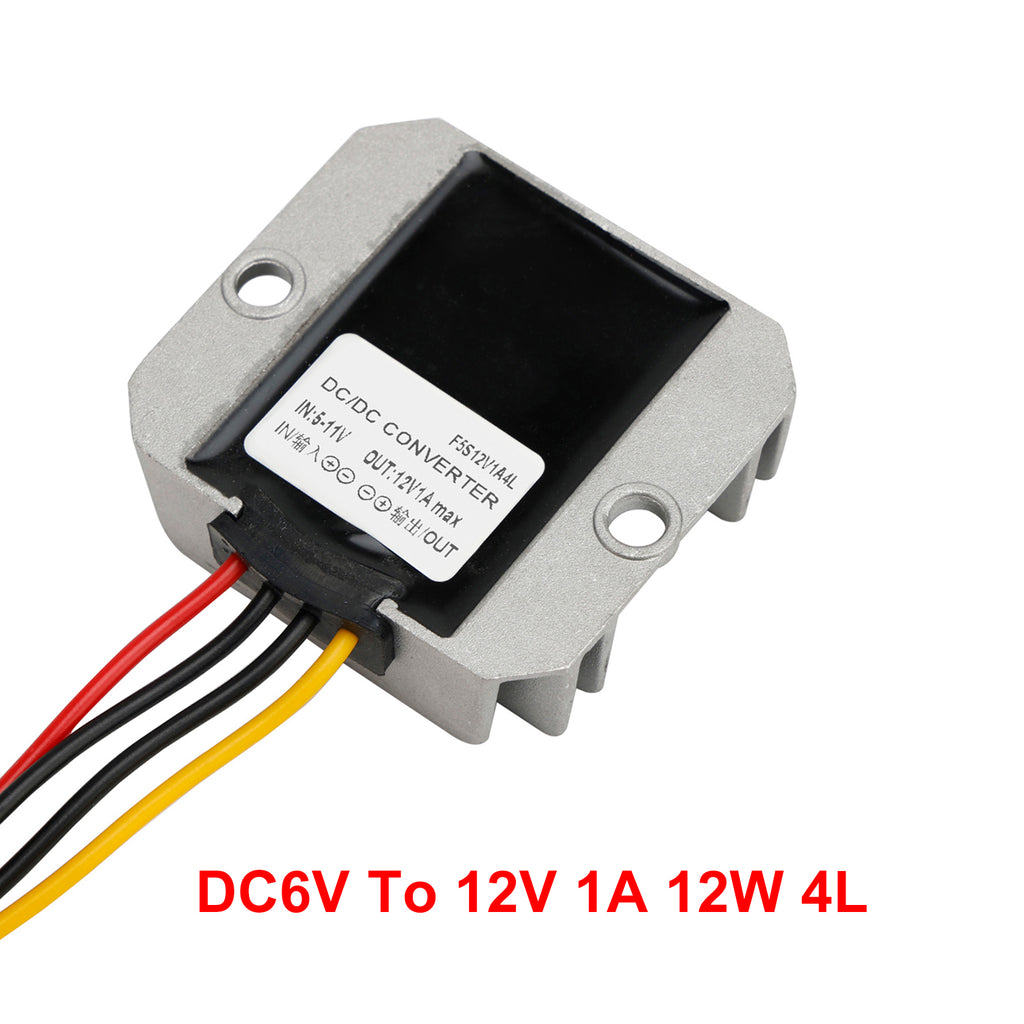

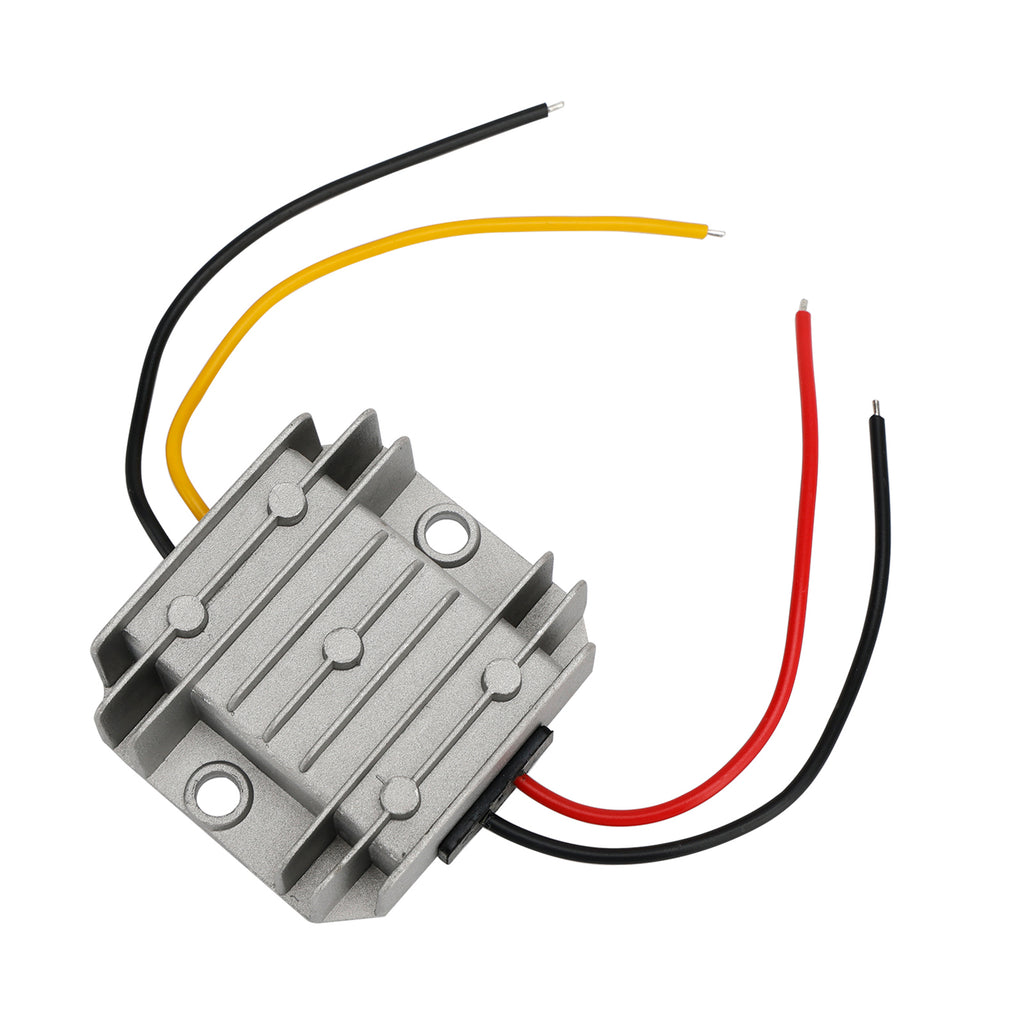

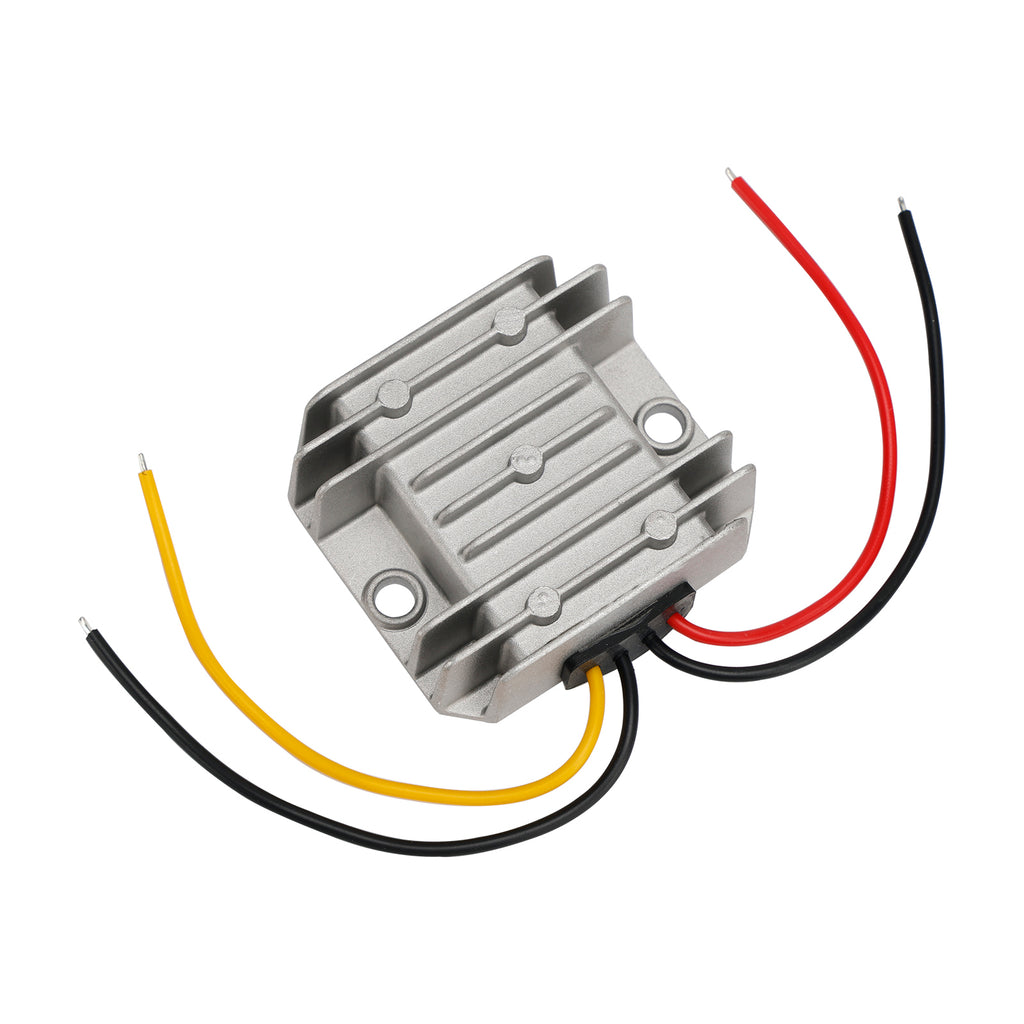

Option 3:DC6V To 12V 1A 12W 4L

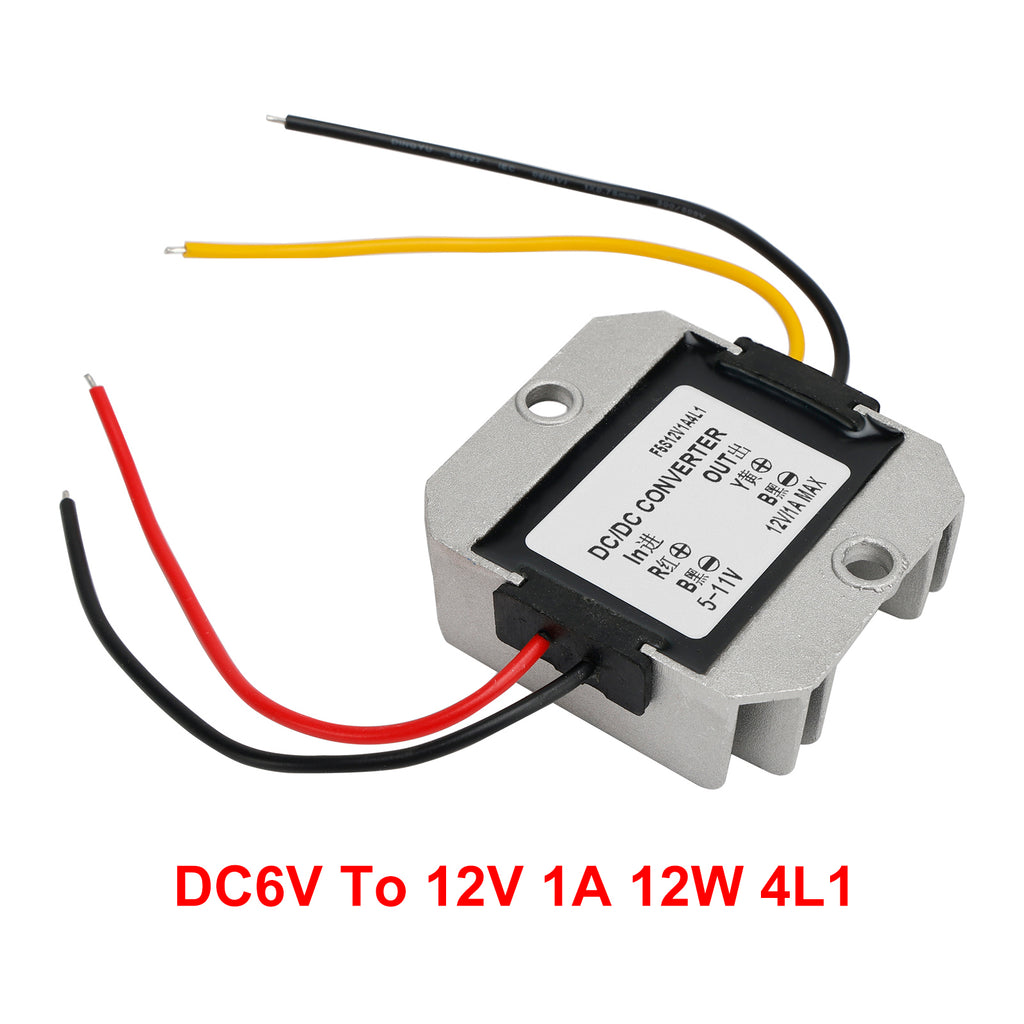

Option 4:DC6V To 12V 1A 12W 4L1

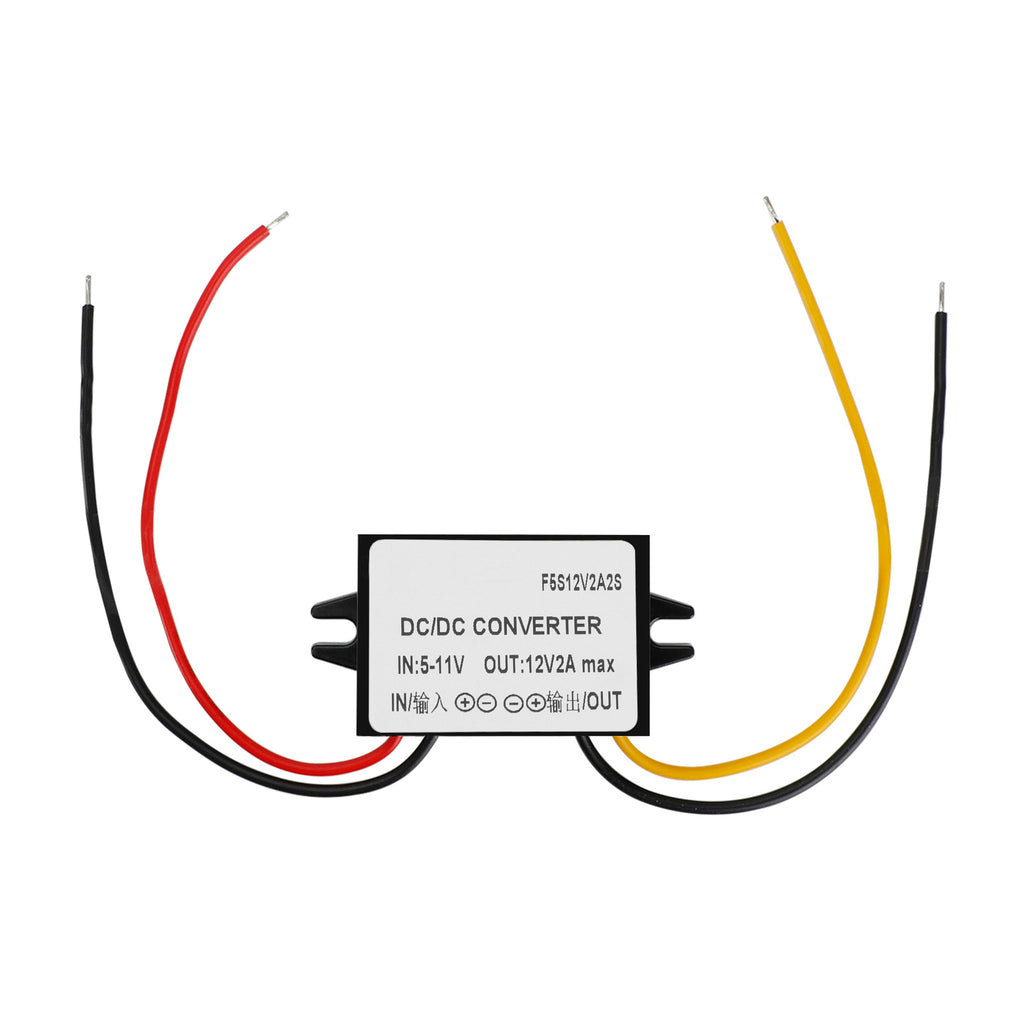

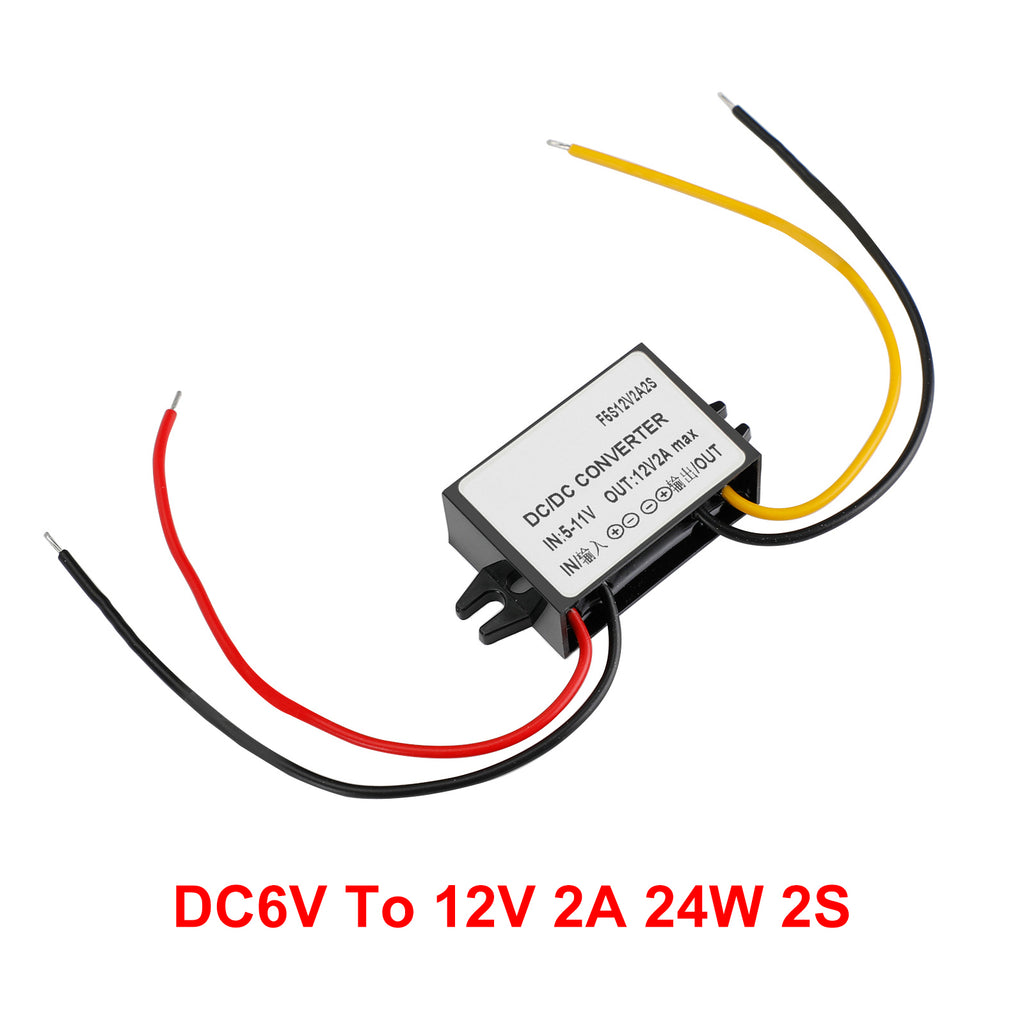

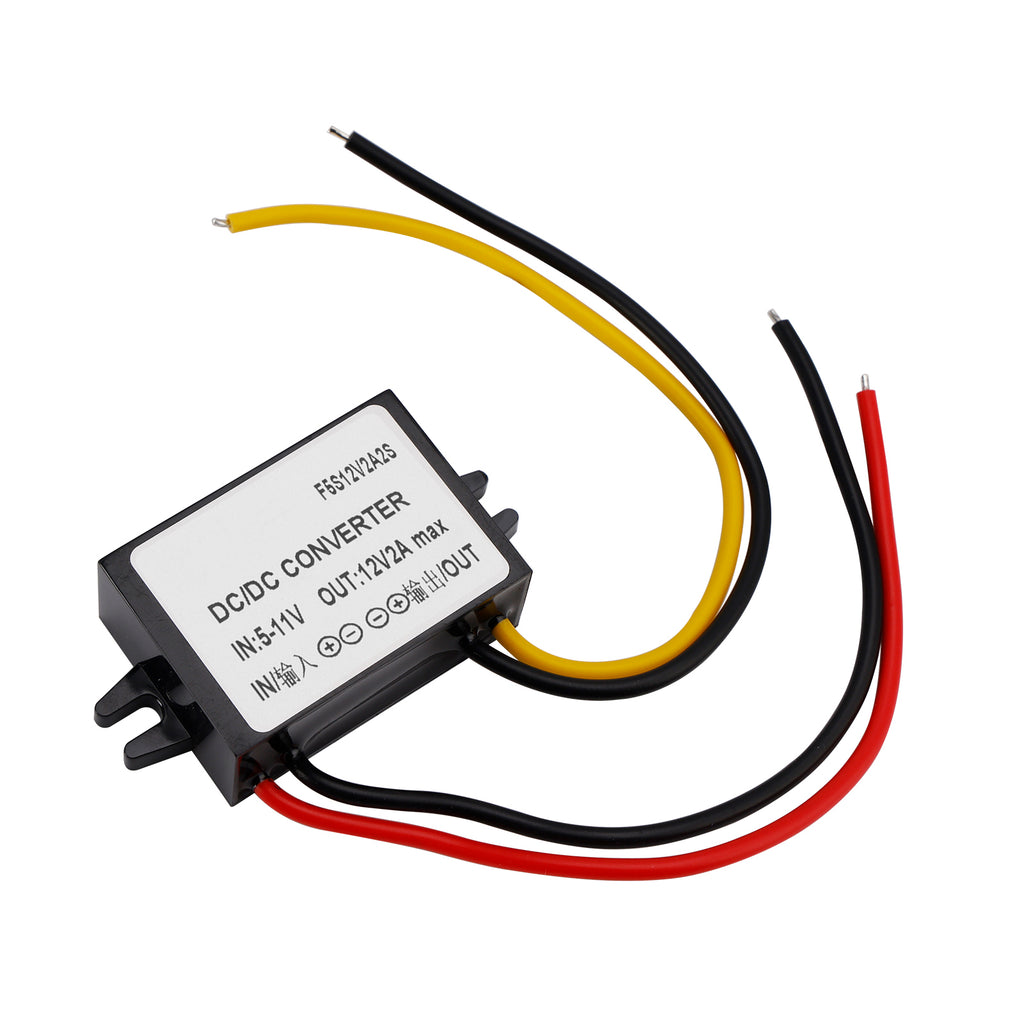

Option 5:DC6V To 12V 2A 24W 2S

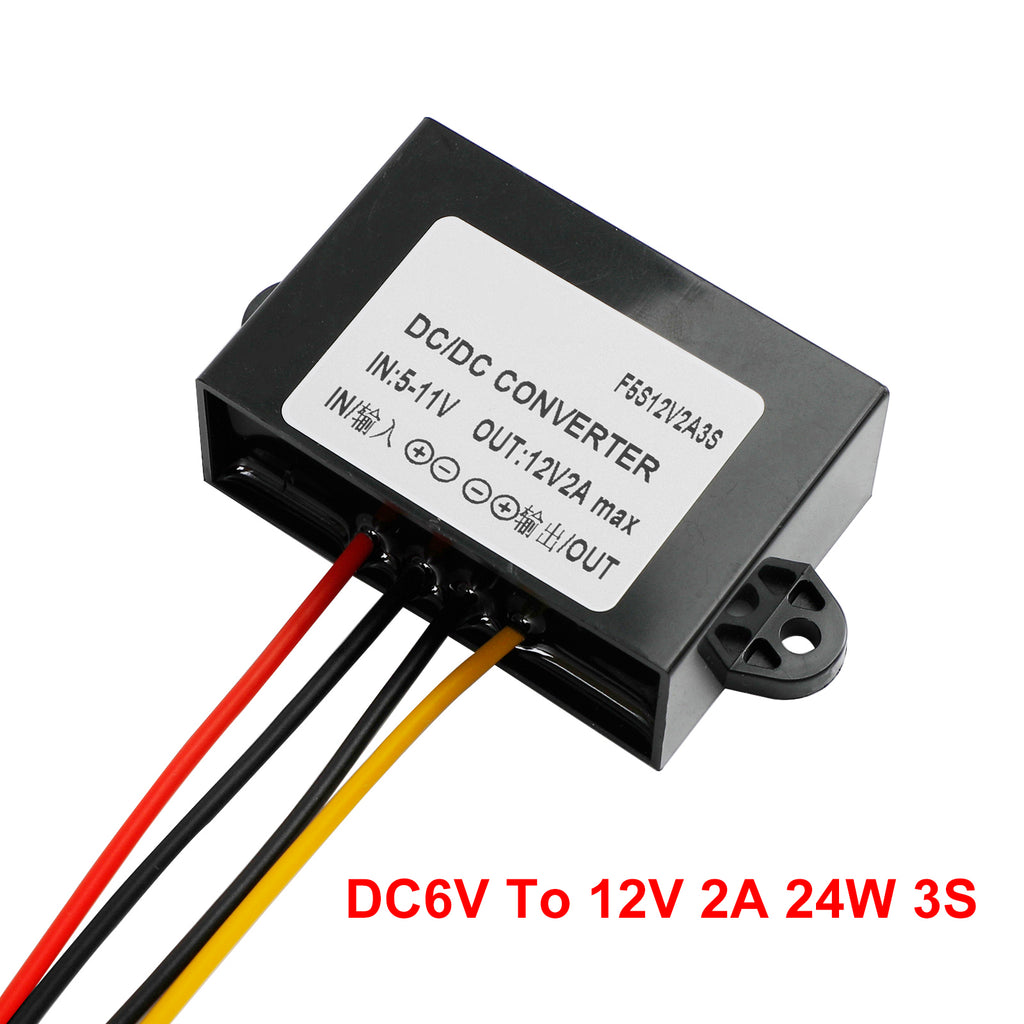

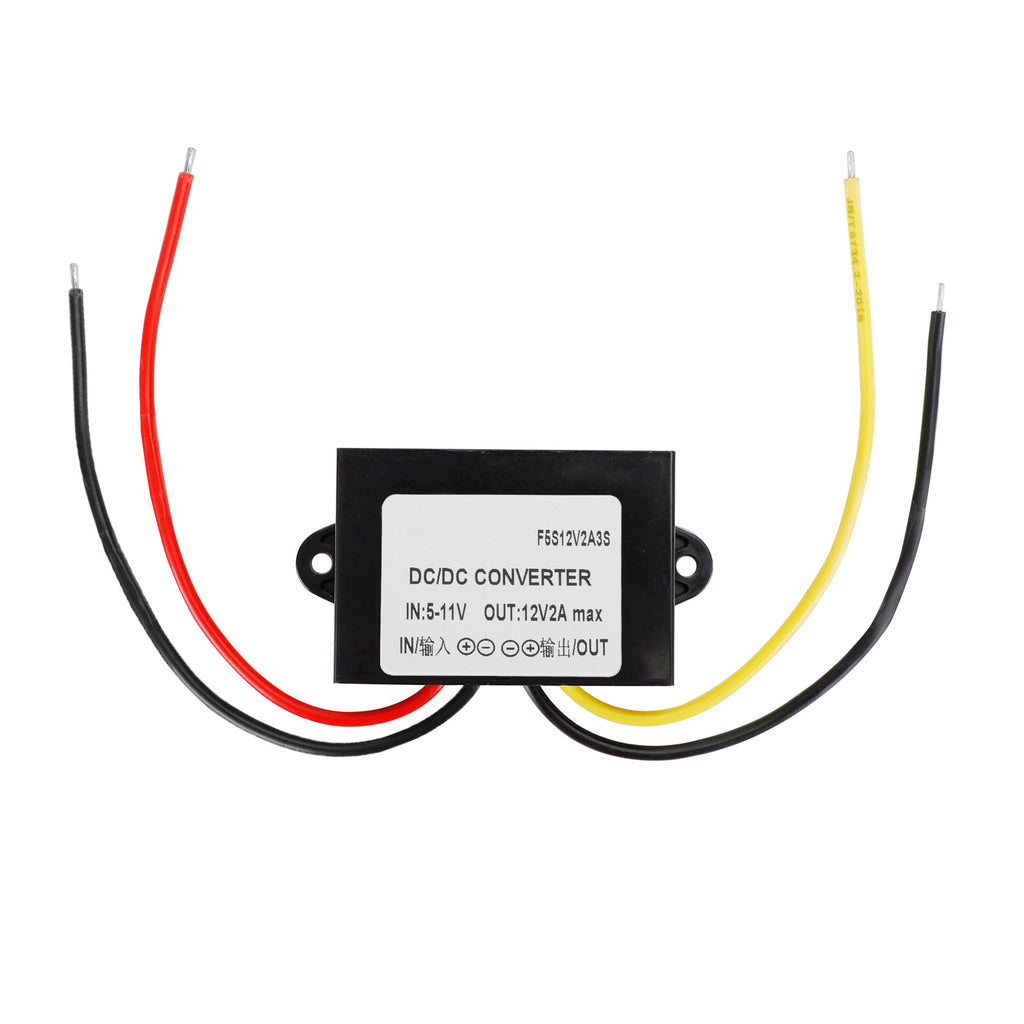

Option 6:DC6V To 12V 2A 24W 3S

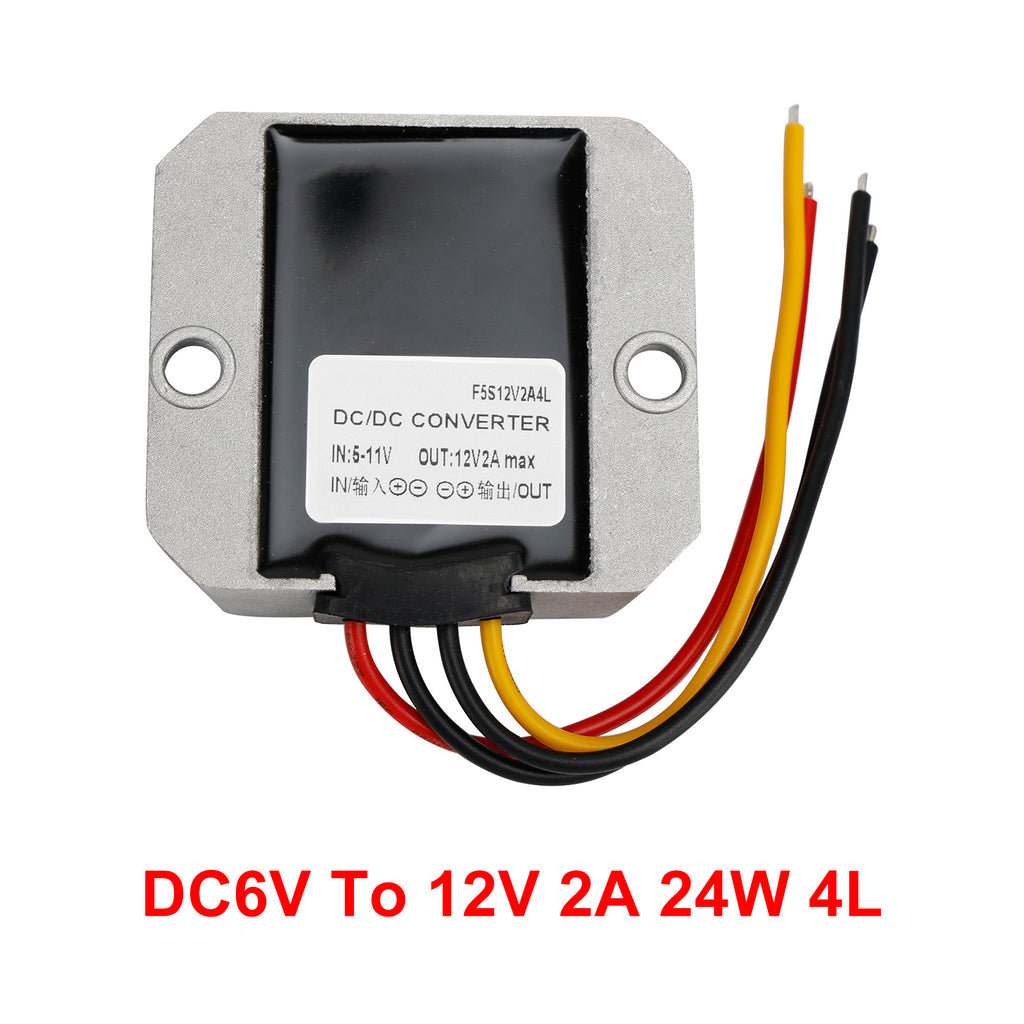

Option 7:DC6V To 12V 2A 24W 4L

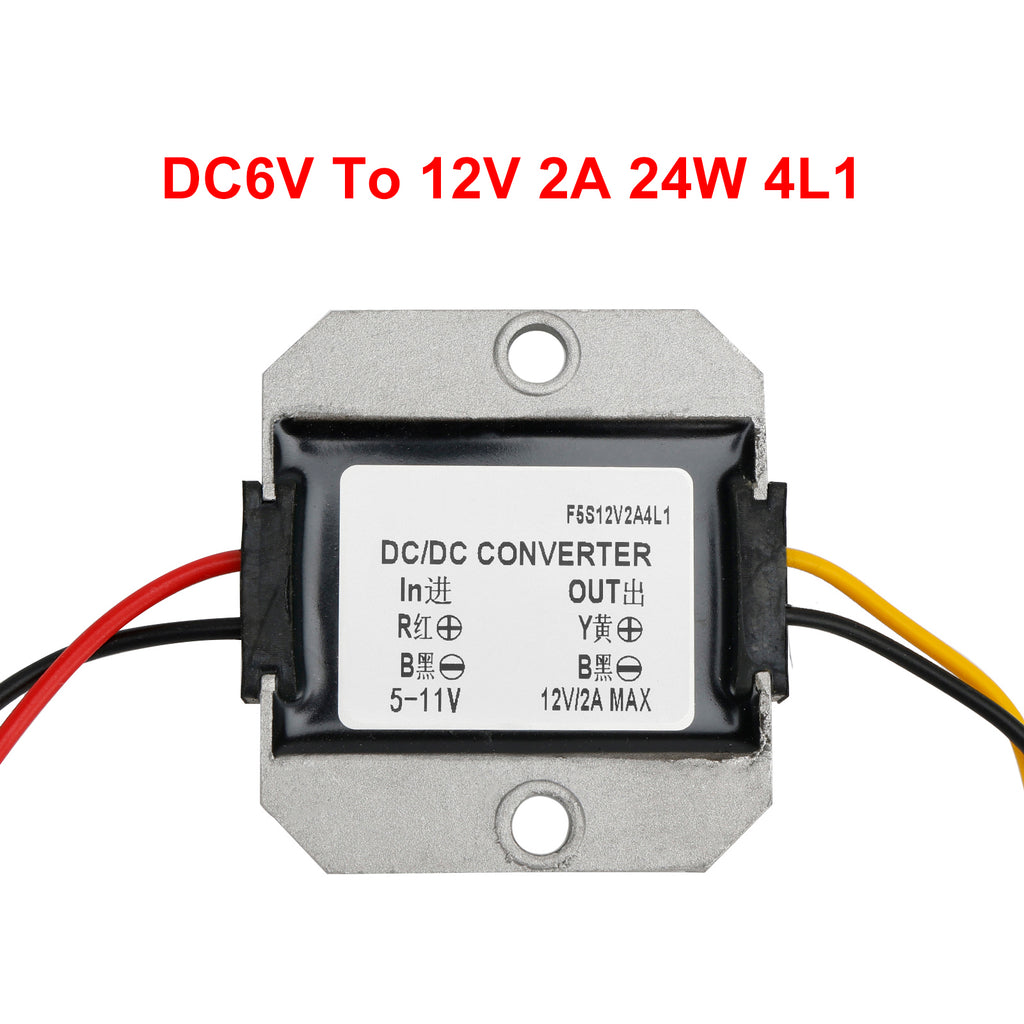

Option 8:DC6V To 12V 2A 24W 4L1

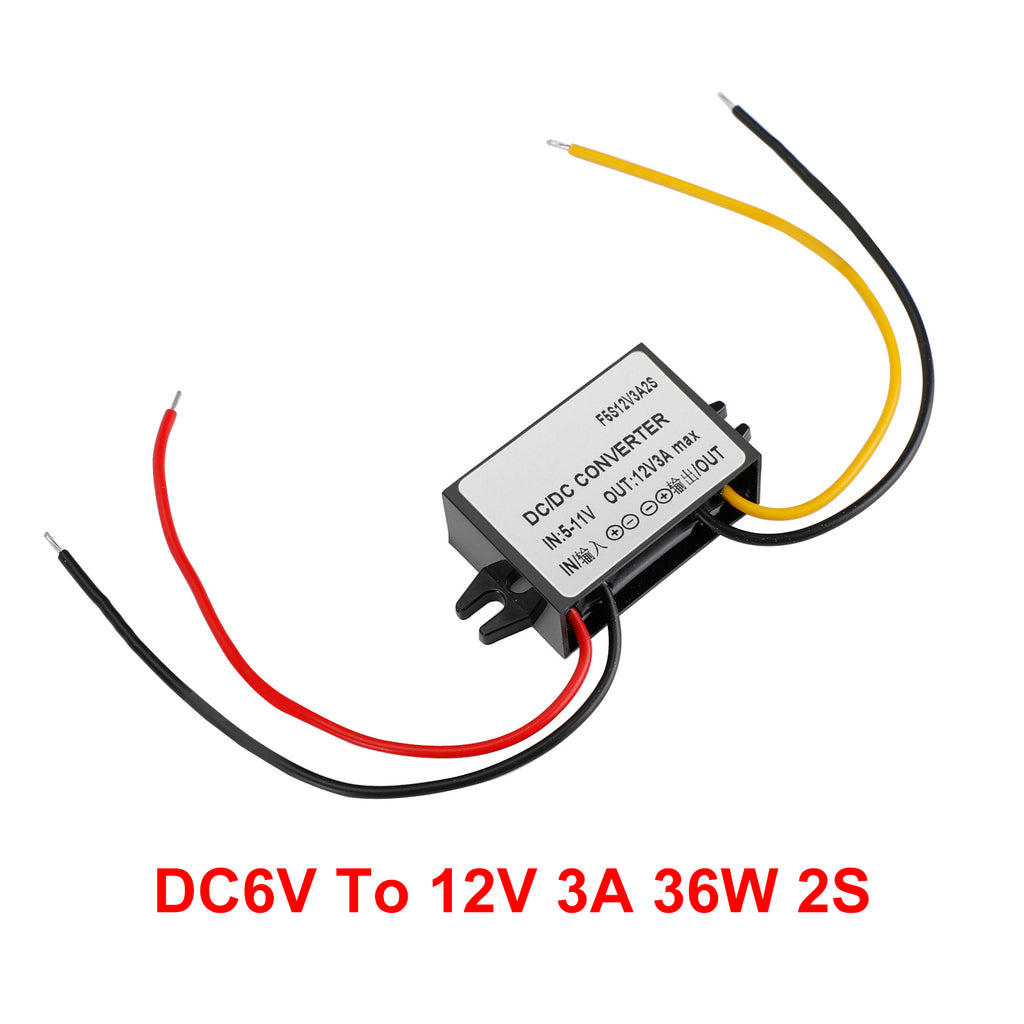

Option 9:DC6V To 12V 3A 36W 2S

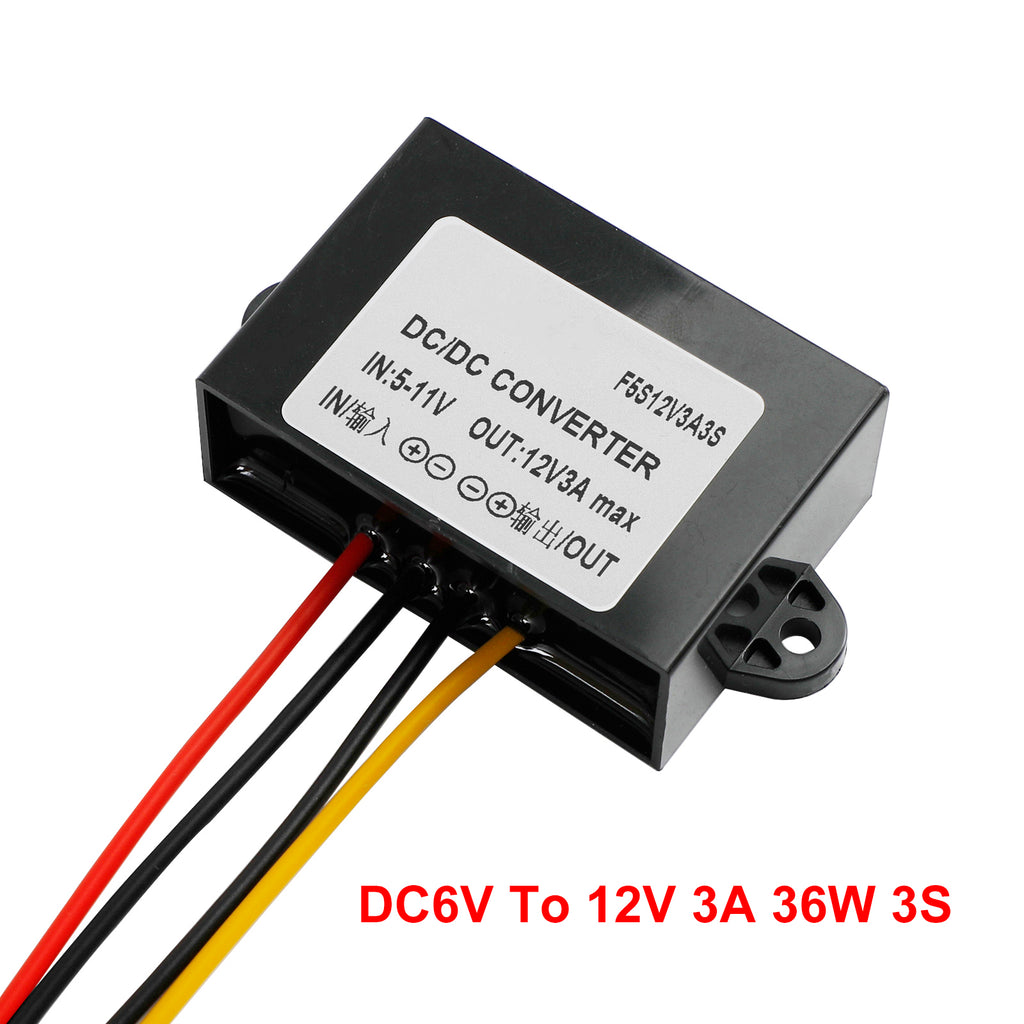

Option 10:DC6V To 12V 3A 36W 3S

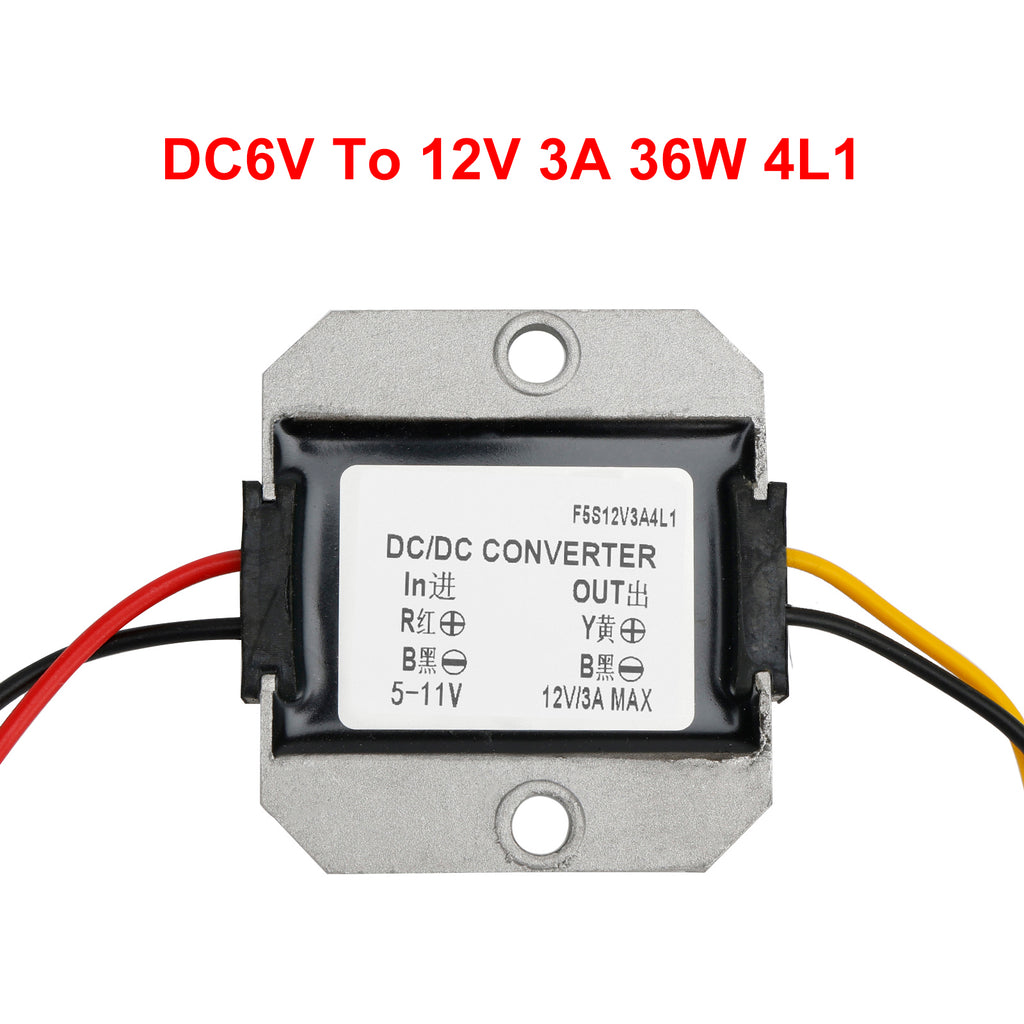

Option 11:DC6V To 12V 3A 36W 4L1

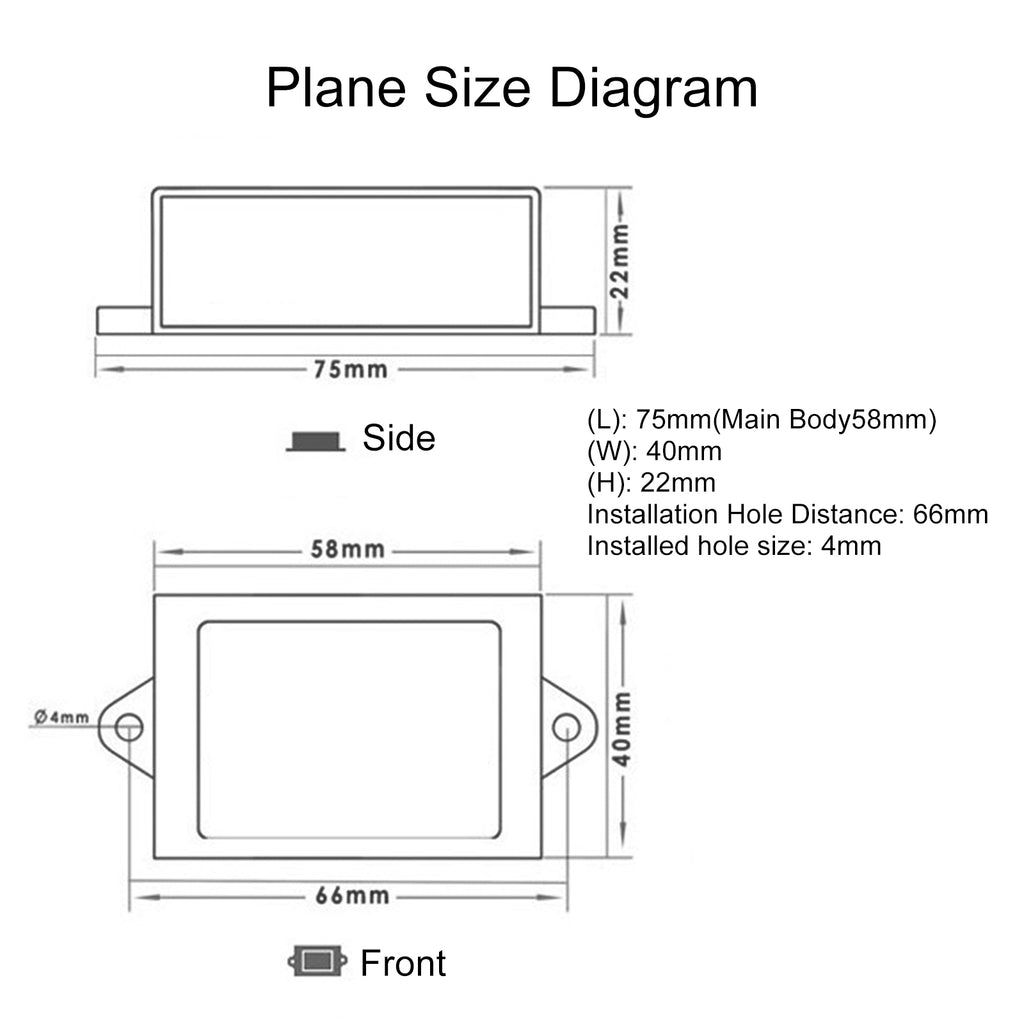

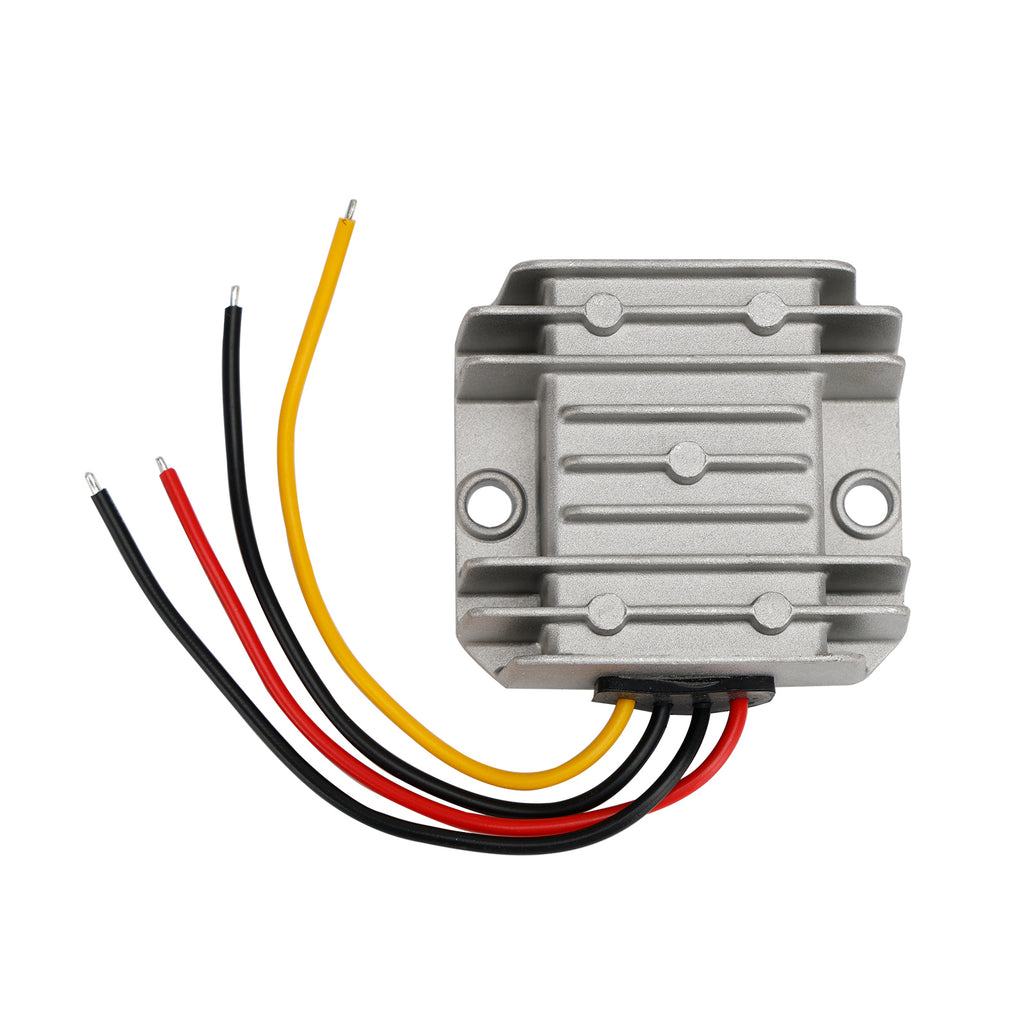

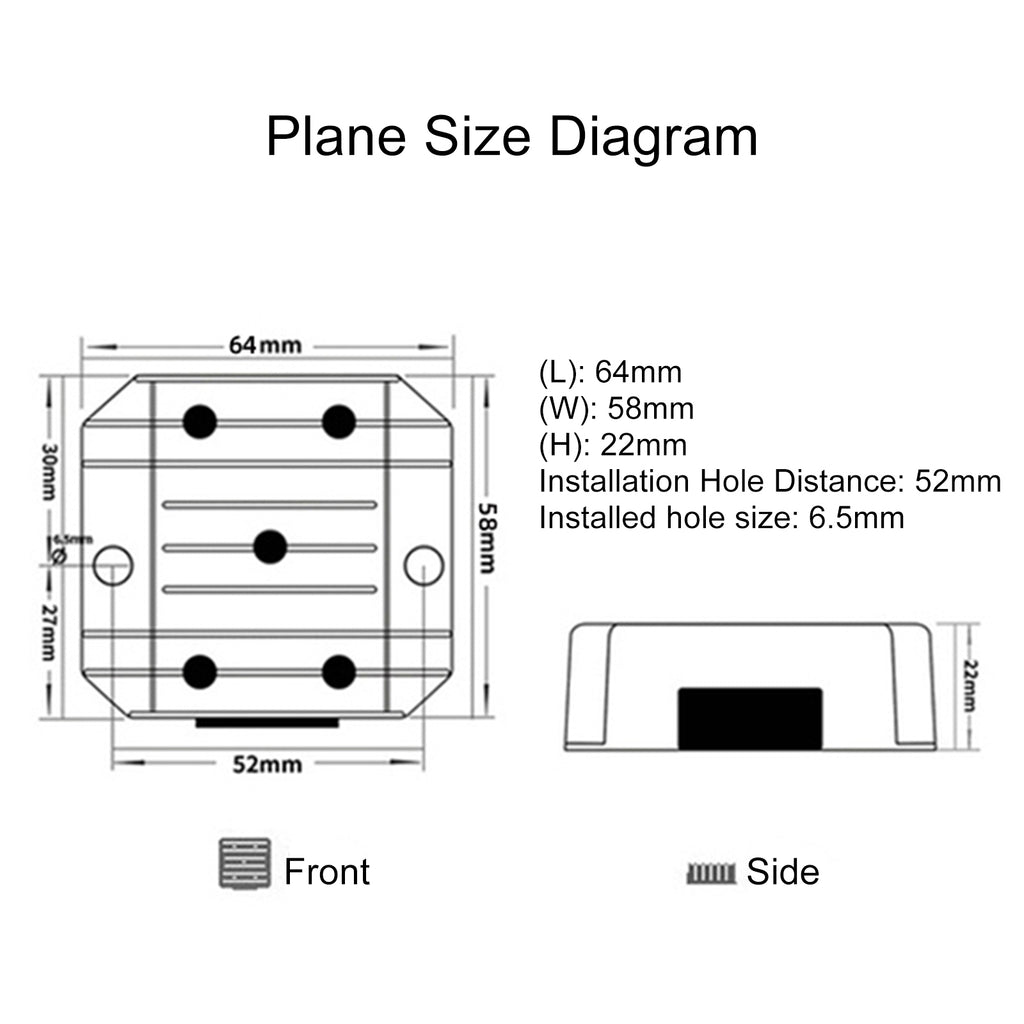

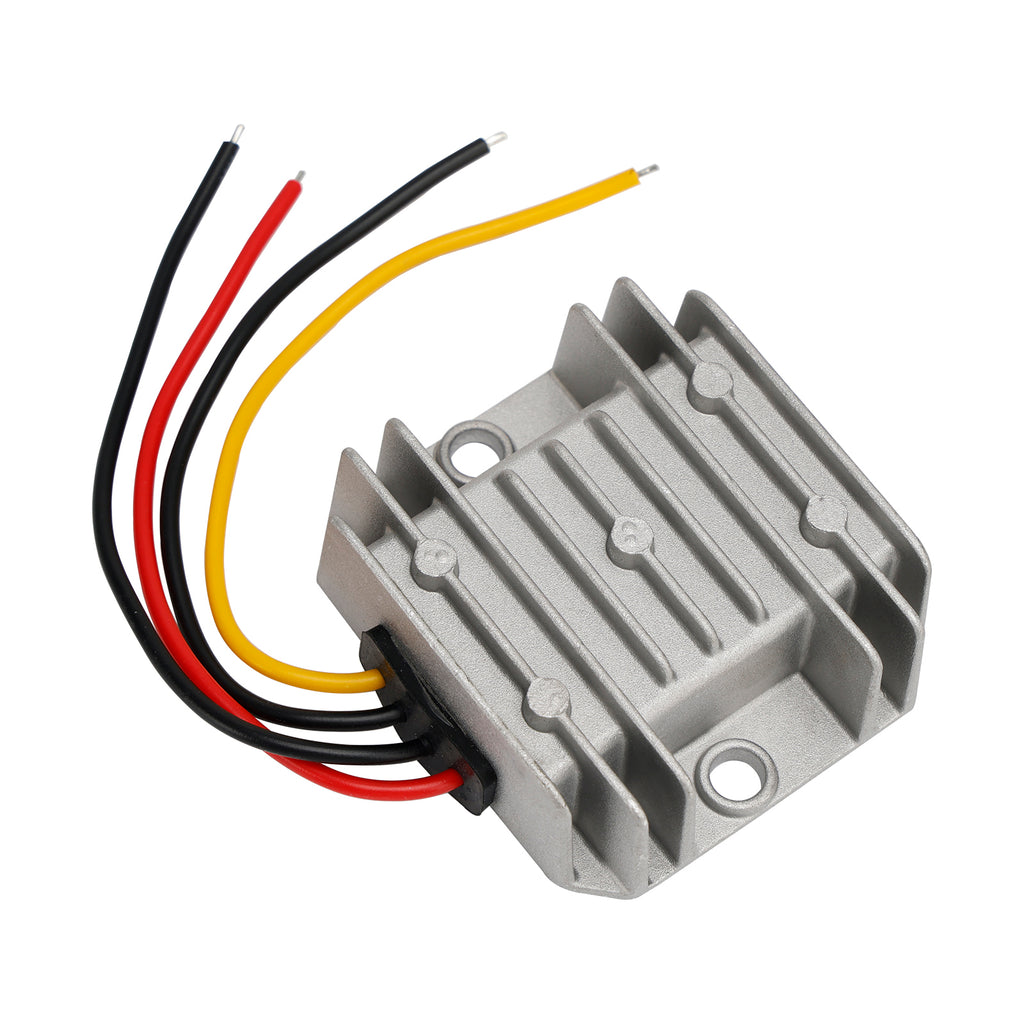

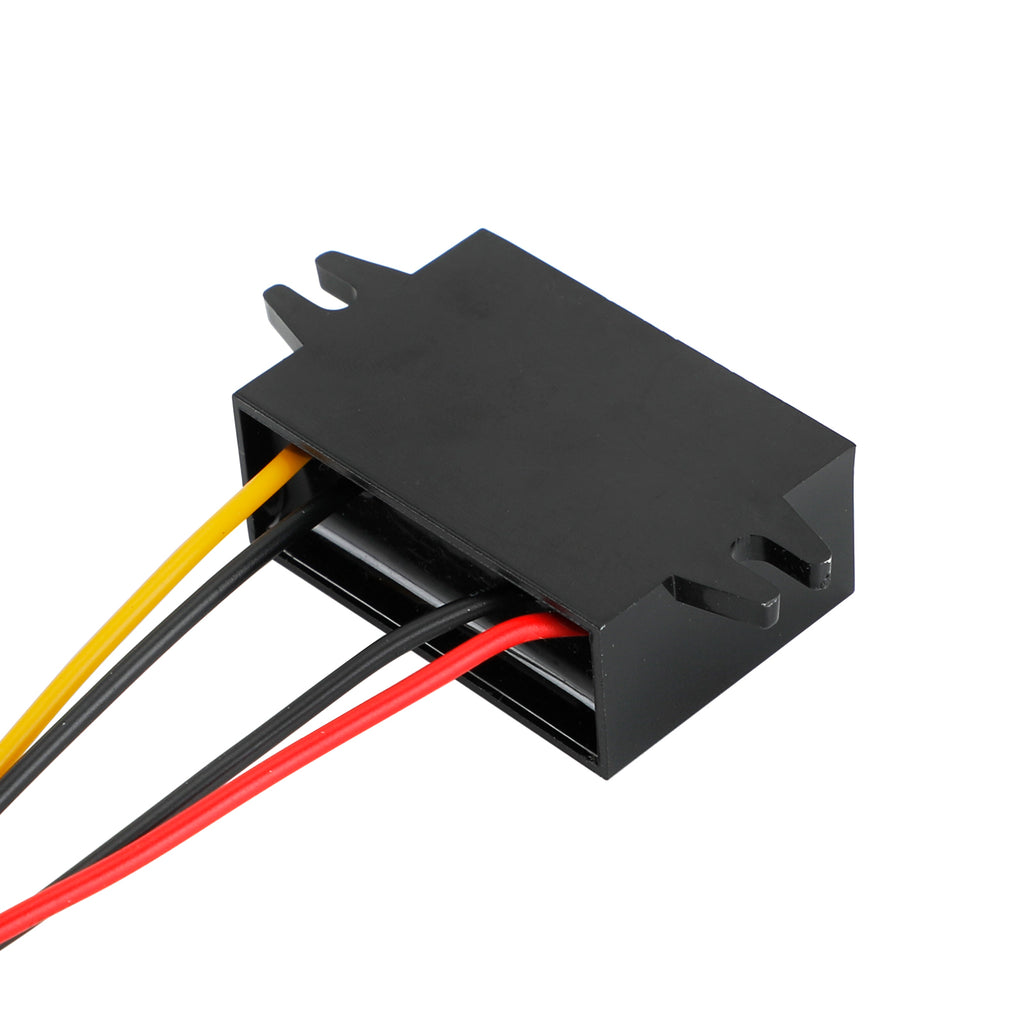

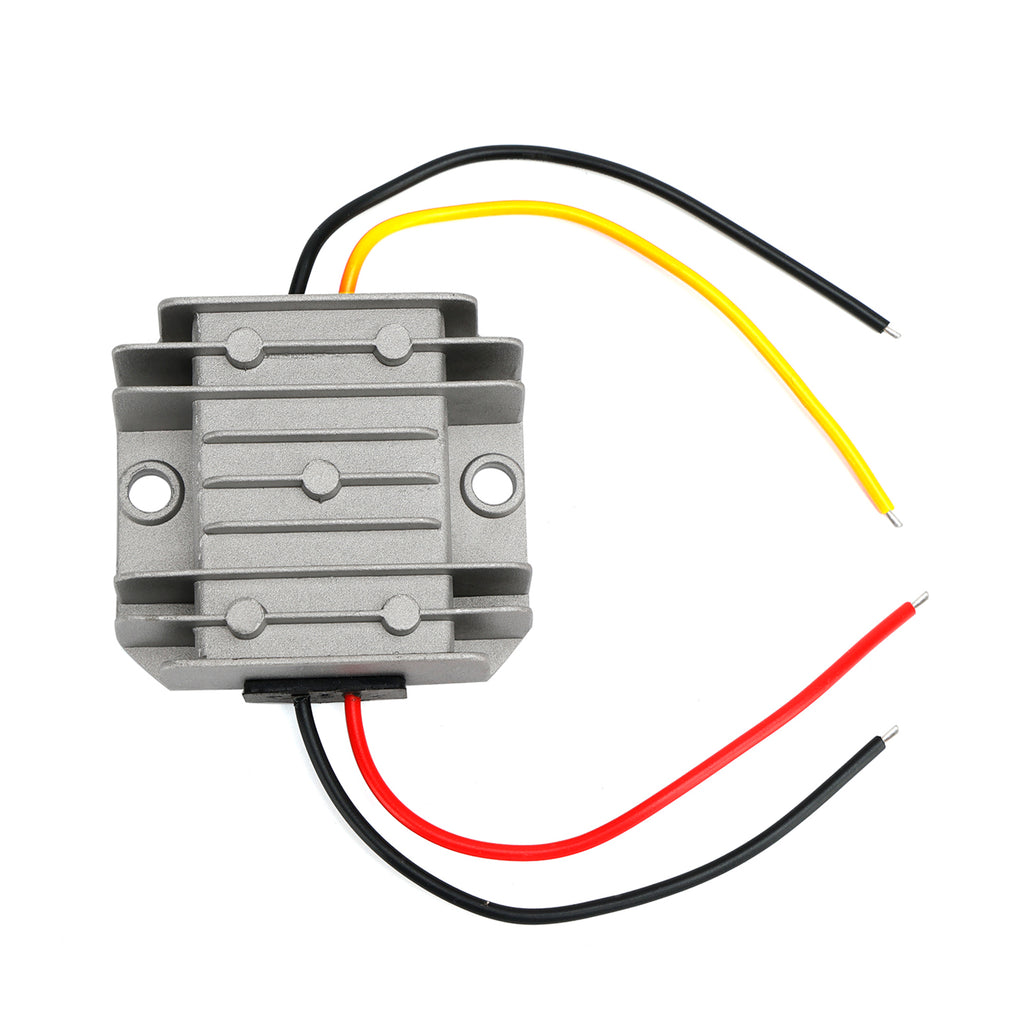

Note: Product appearance can be viewed in pictures
Conversion efficiency: Over 90%
Static consumption: Less than 20MA
No-load adjustment rate: 2%
Load regulation: 3%
Operating temperature: -25°C ~ +65°C
Wire lengths: About 12~13cm

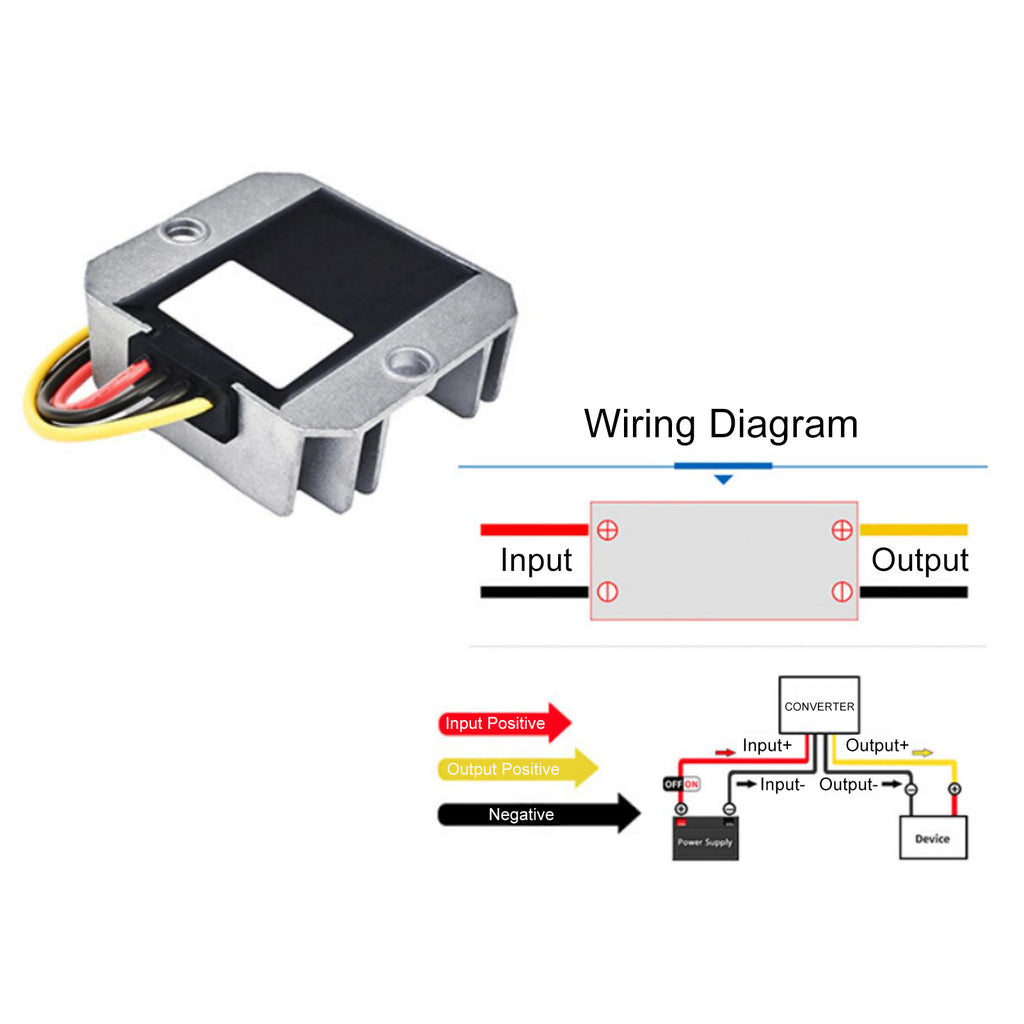

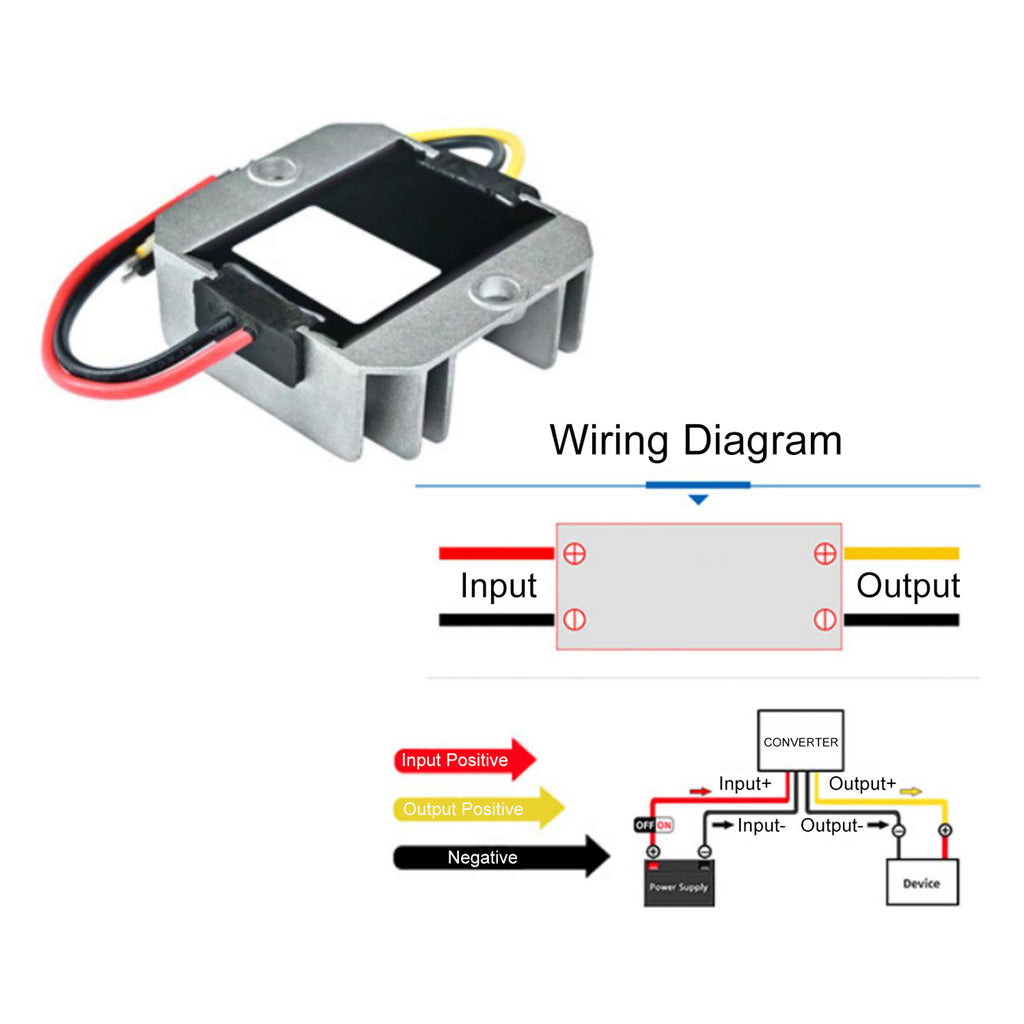

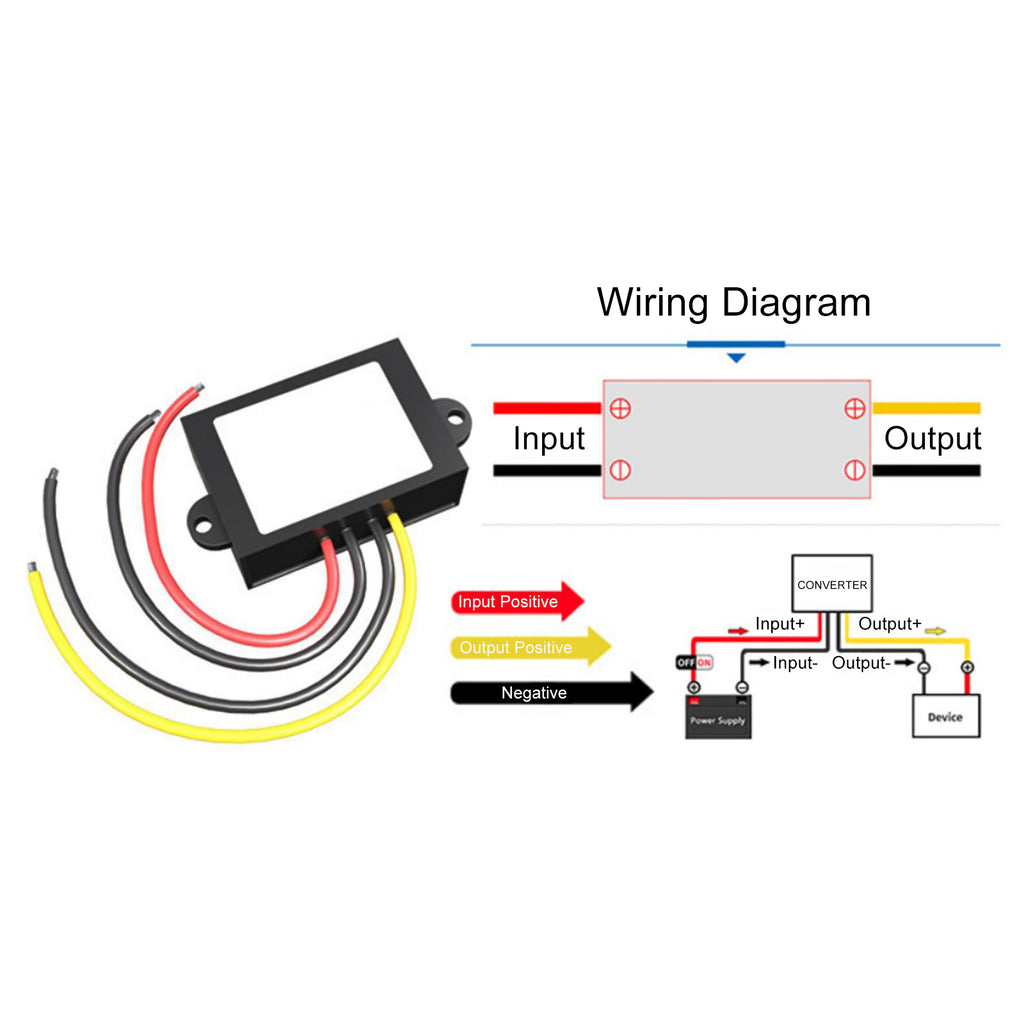

Input wire color : (+)Red, (-)Black.Output wire color : (+)Yellow, (-)Black.
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC/DC Converter Regulator
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
