Description
Waterproof DC-DC 12V Step Up to 24V 1-20A Car Power Supply Converter Regulator
Feature:
1:Made of high-quality materials, long service life, long term stable and reliable.
2:With overcurrent, overvoltage, overtemperature and short circuit protection, reliable multi-protection design to enhance your using safety.

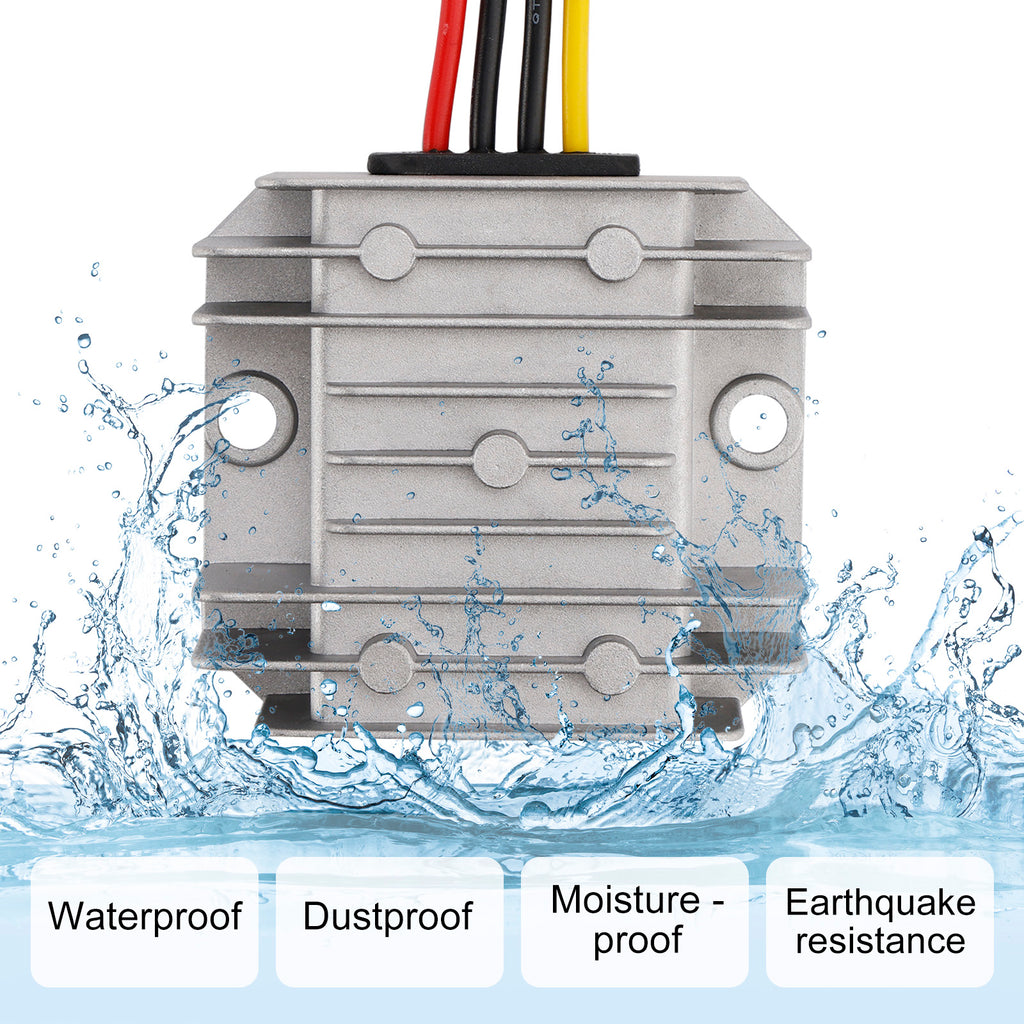

3:Waterproof, shockproof Design,good heat dissipation, easy to install
4:This product does not have the function of charging the battery, it is only used for voltage conversion.
5:Widely used in LED photo lighting, LED display screens, monitoring systems, power automation, communication systems and other fields.
Specifics:
Condition: 100% Brand New
Input rated voltage: 12V DC
Input voltage range: 10 ~ 20V DC
Output voltage: 24V DC
Model: There are 13 options as follows:

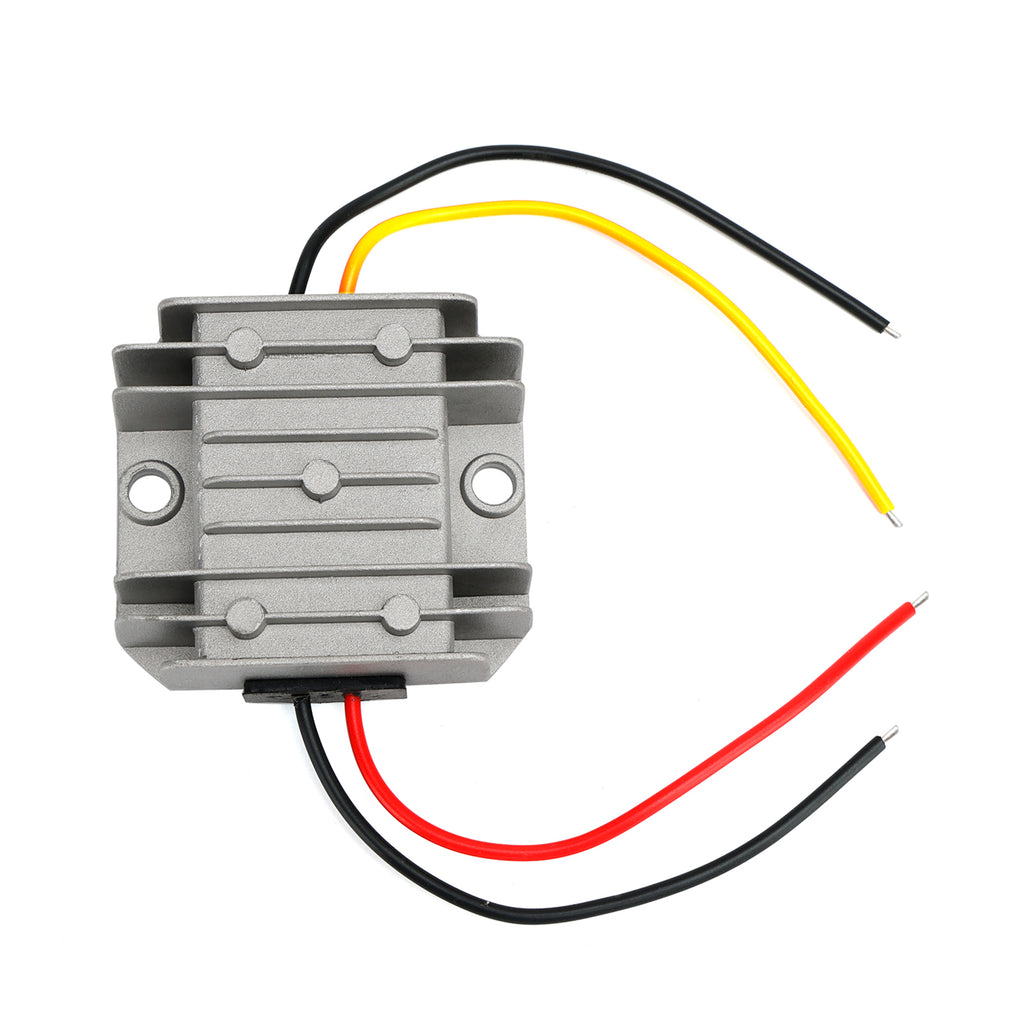

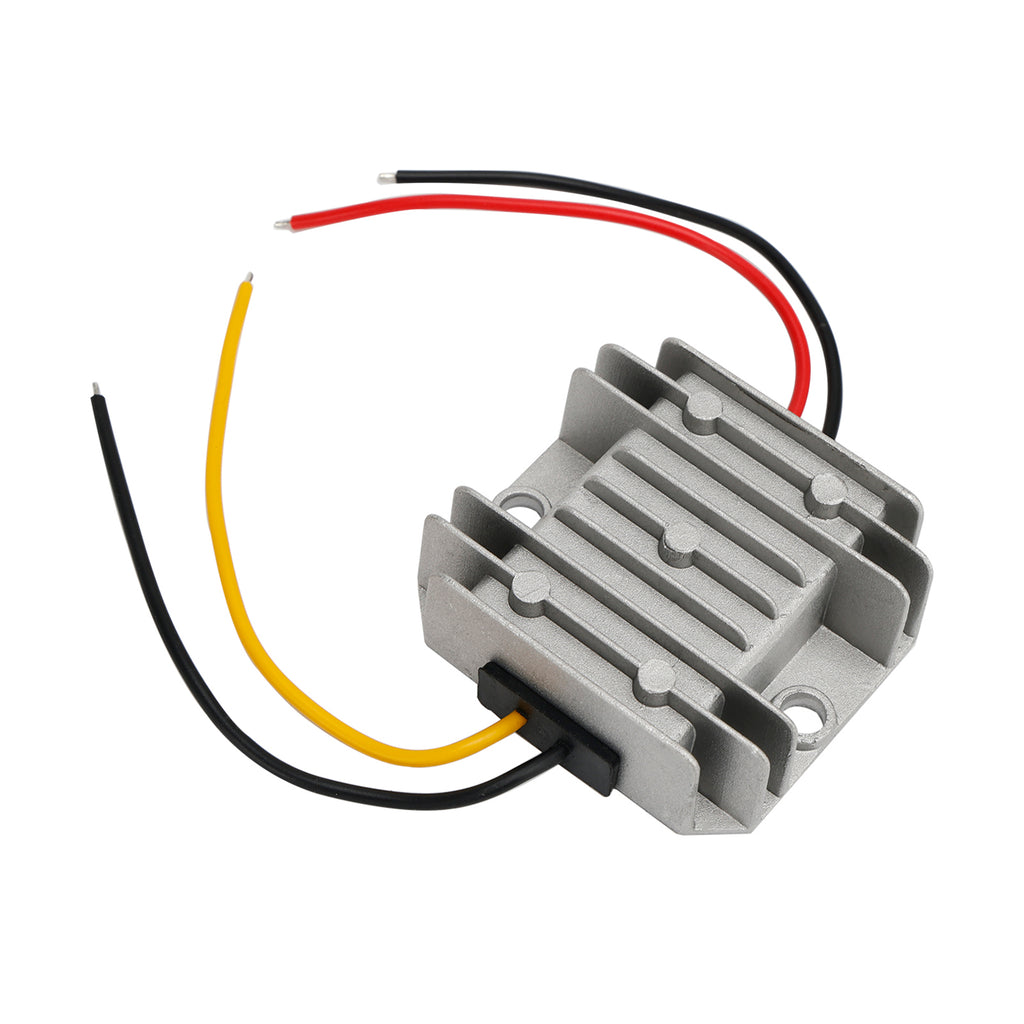

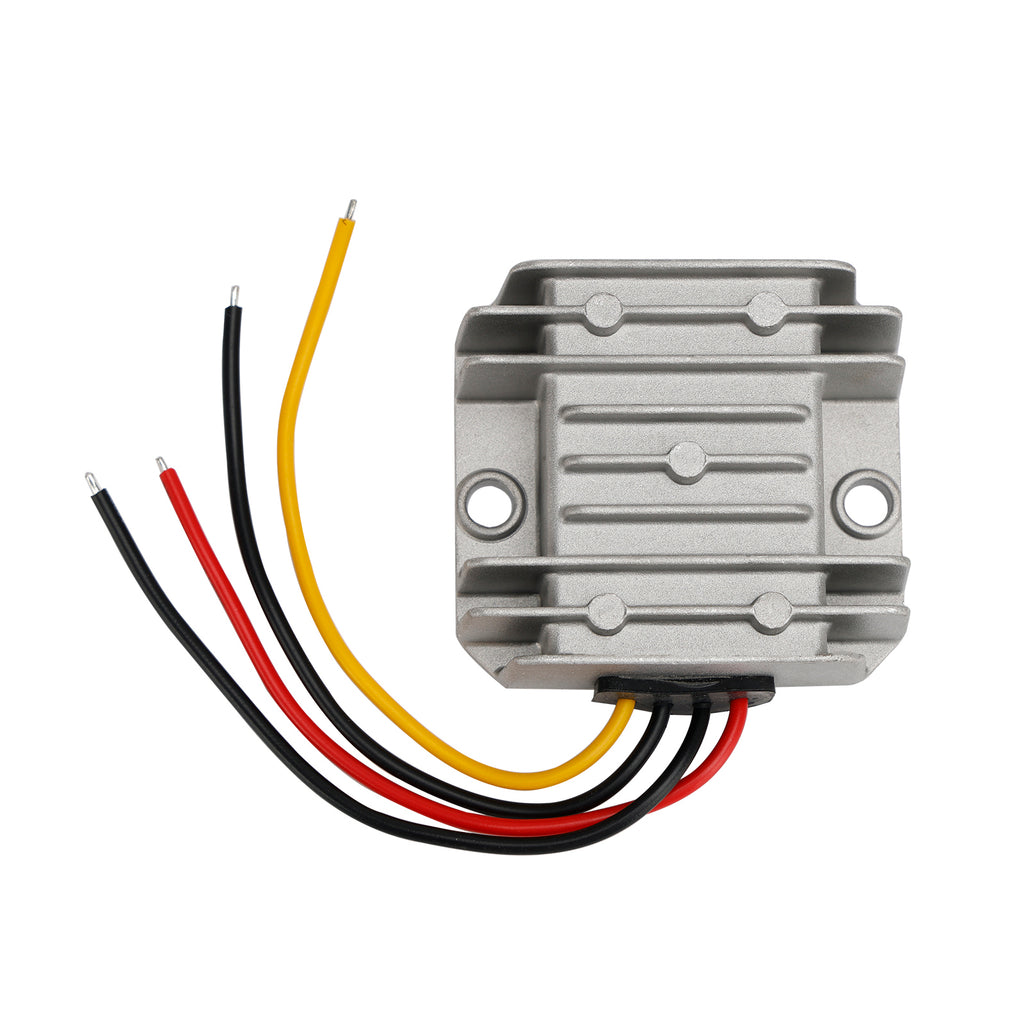

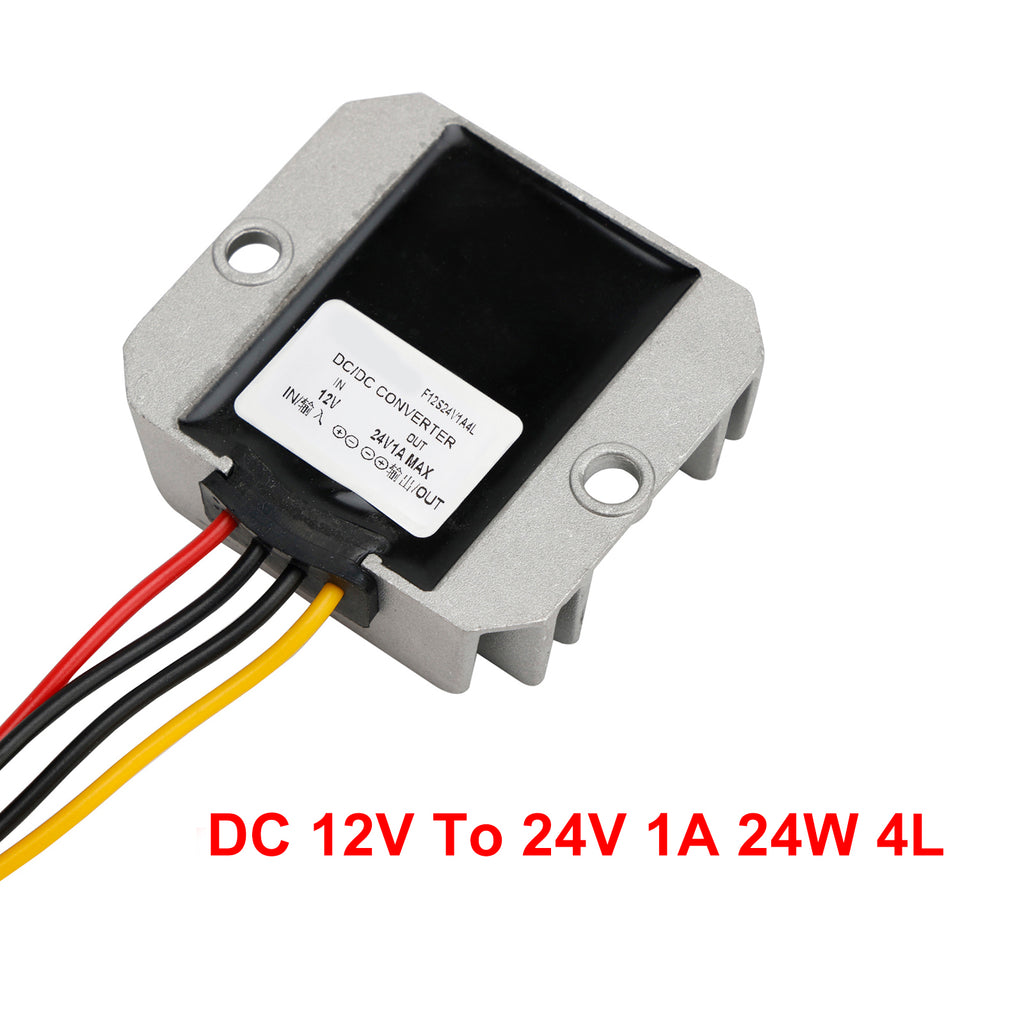

Option 1:DC 12V To 24V 1A 24W 4L

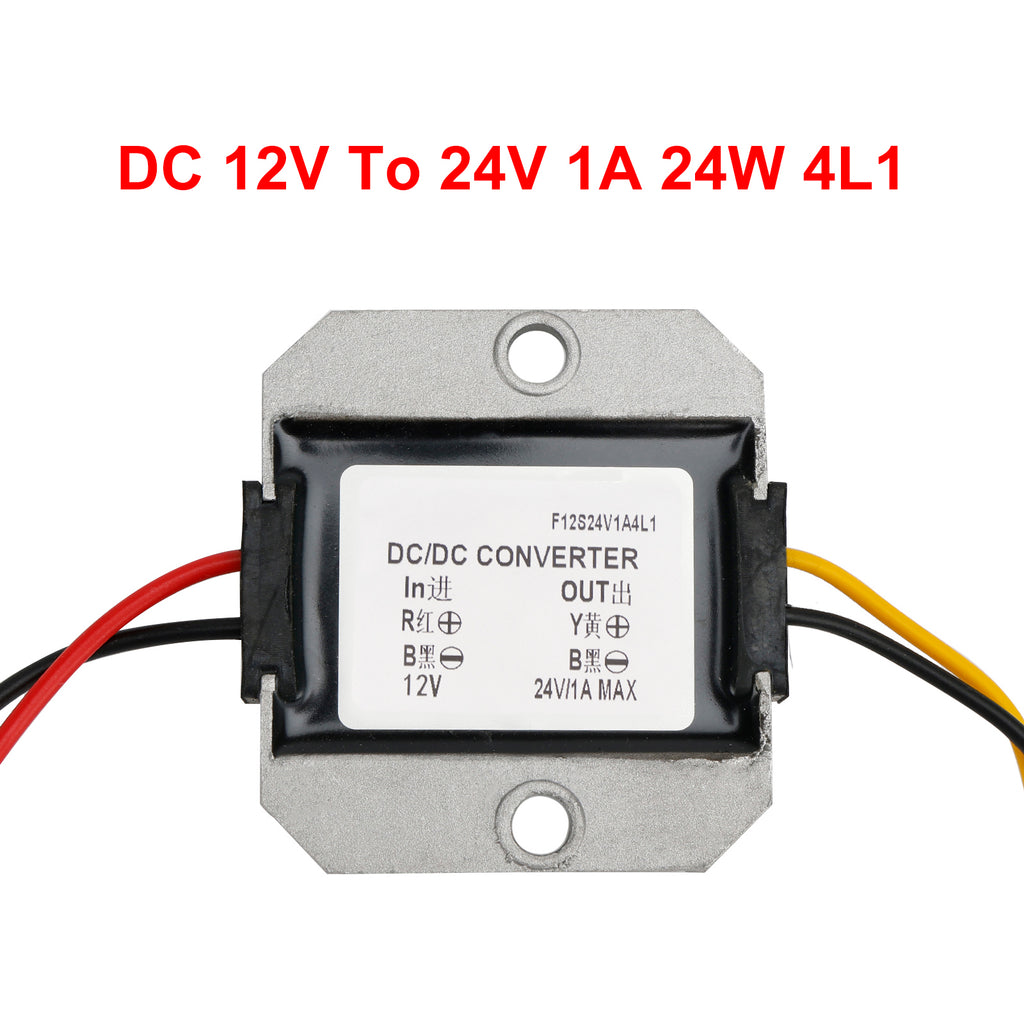

Option 2:DC 12V To 24V 1A 24W 4L1

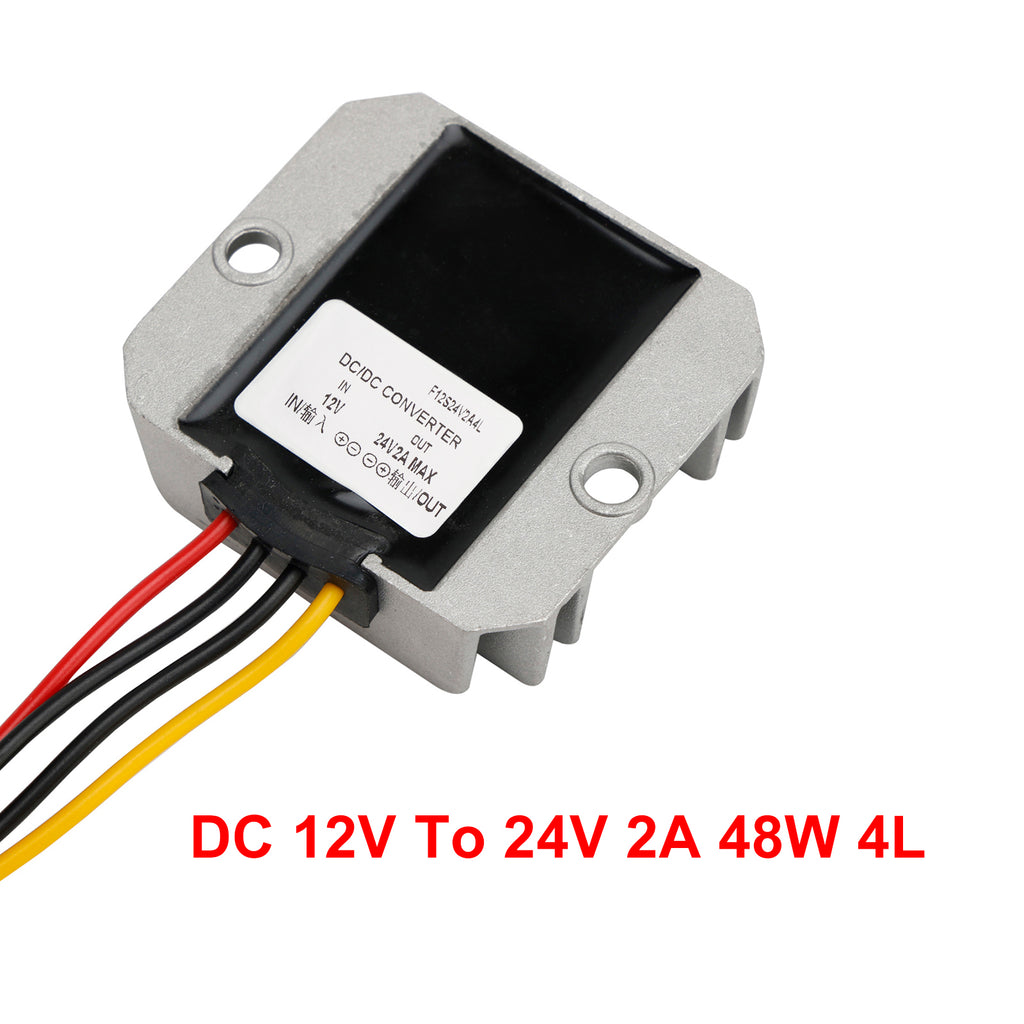

Option 3:DC 12V To 24V 2A 48W 4L
Option 4:DC 12V To 24V 2A 48W 4L1

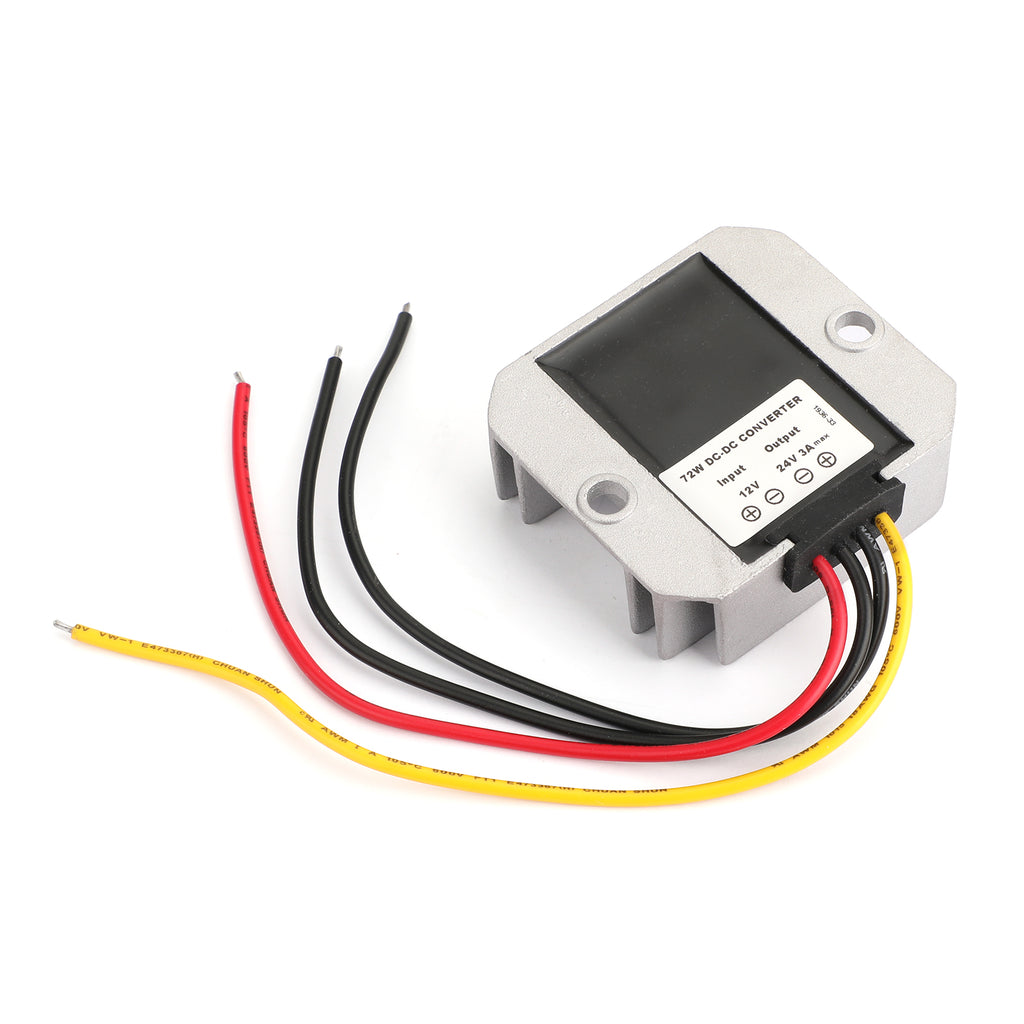

Option 5:DC 12V To 24V 3A 72W 4L
Option 6:DC 12V To 24V 3A 72W 4L1

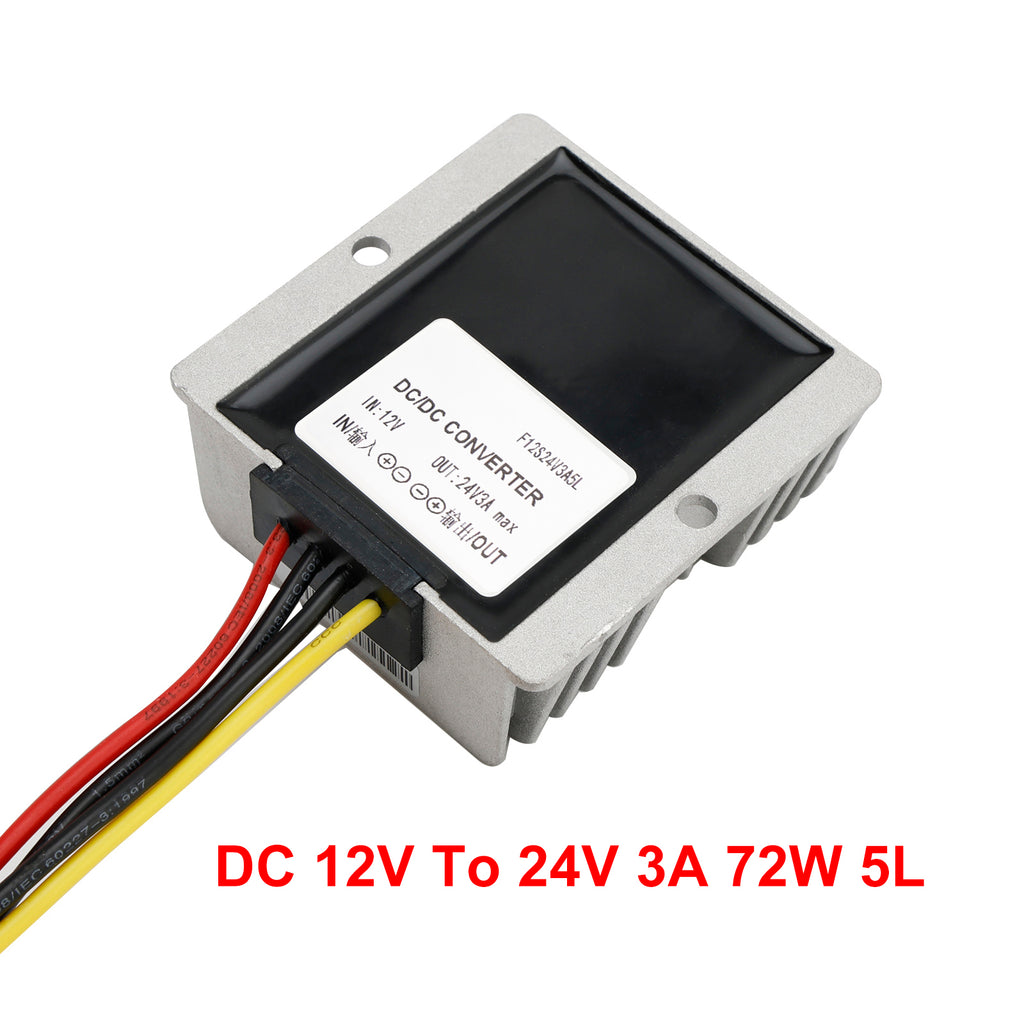

Option 7:DC 12V To 24V 3A 72W 5L

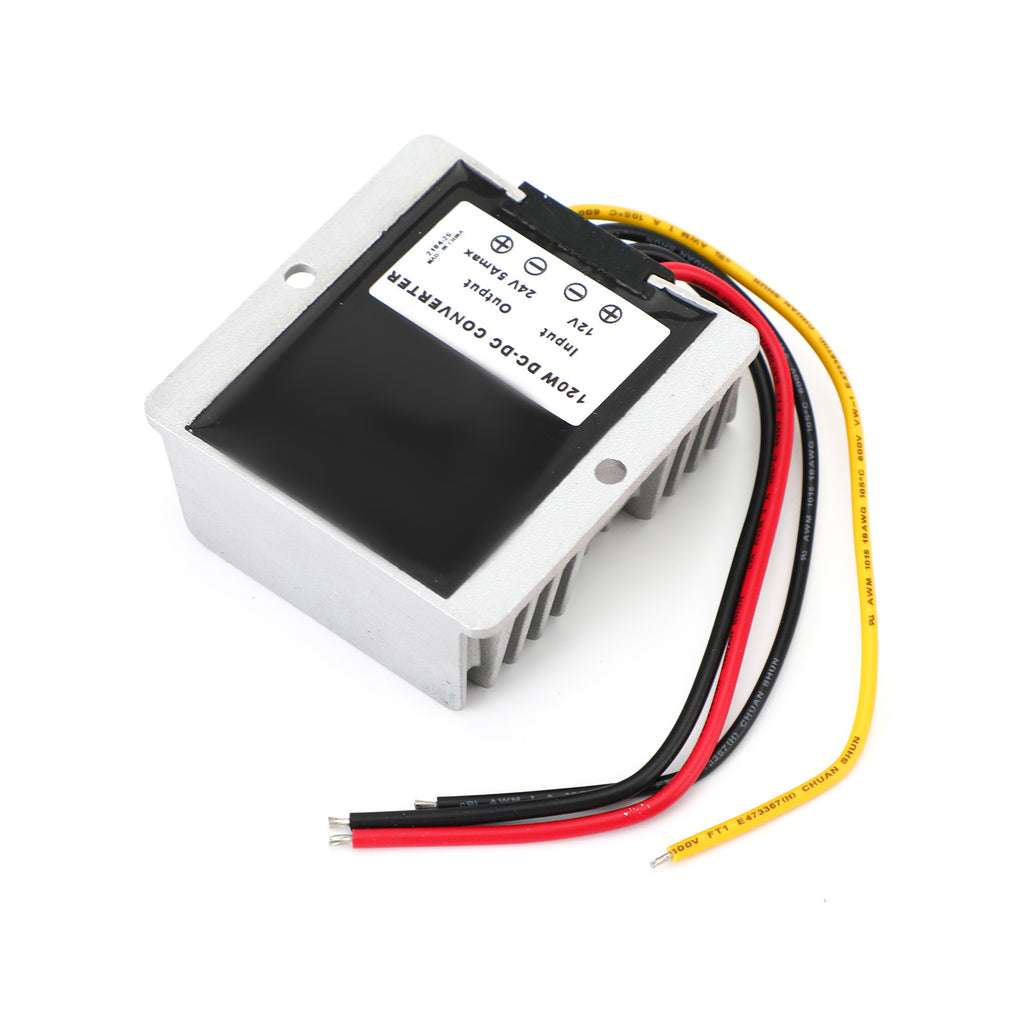

Option 8:DC 12V To 24V 5A 120W 5L

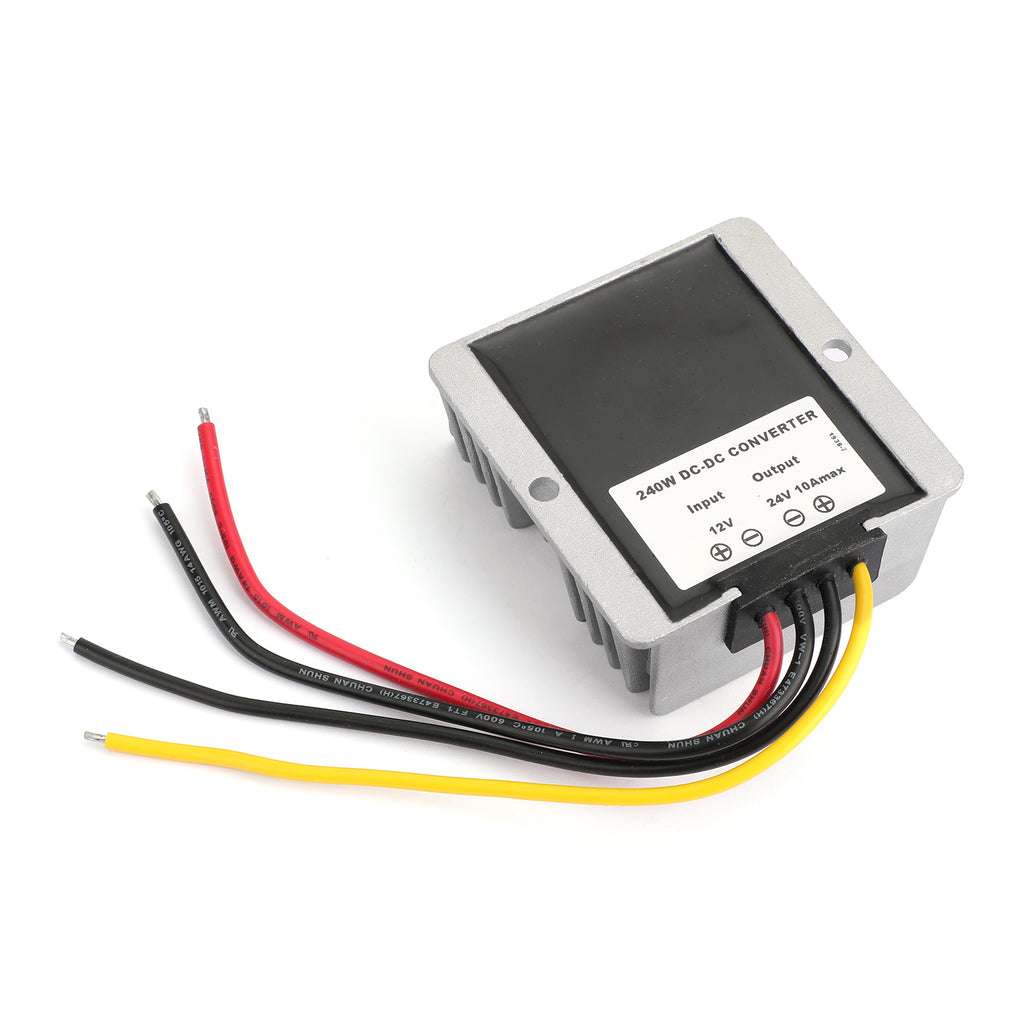

Option 9:DC 12V To 24V 10A 240W 5L
Option 10:DC 12V To 24V 12A 288W 5L
Option 11:DC 12V To 24V 12A 288W 5L

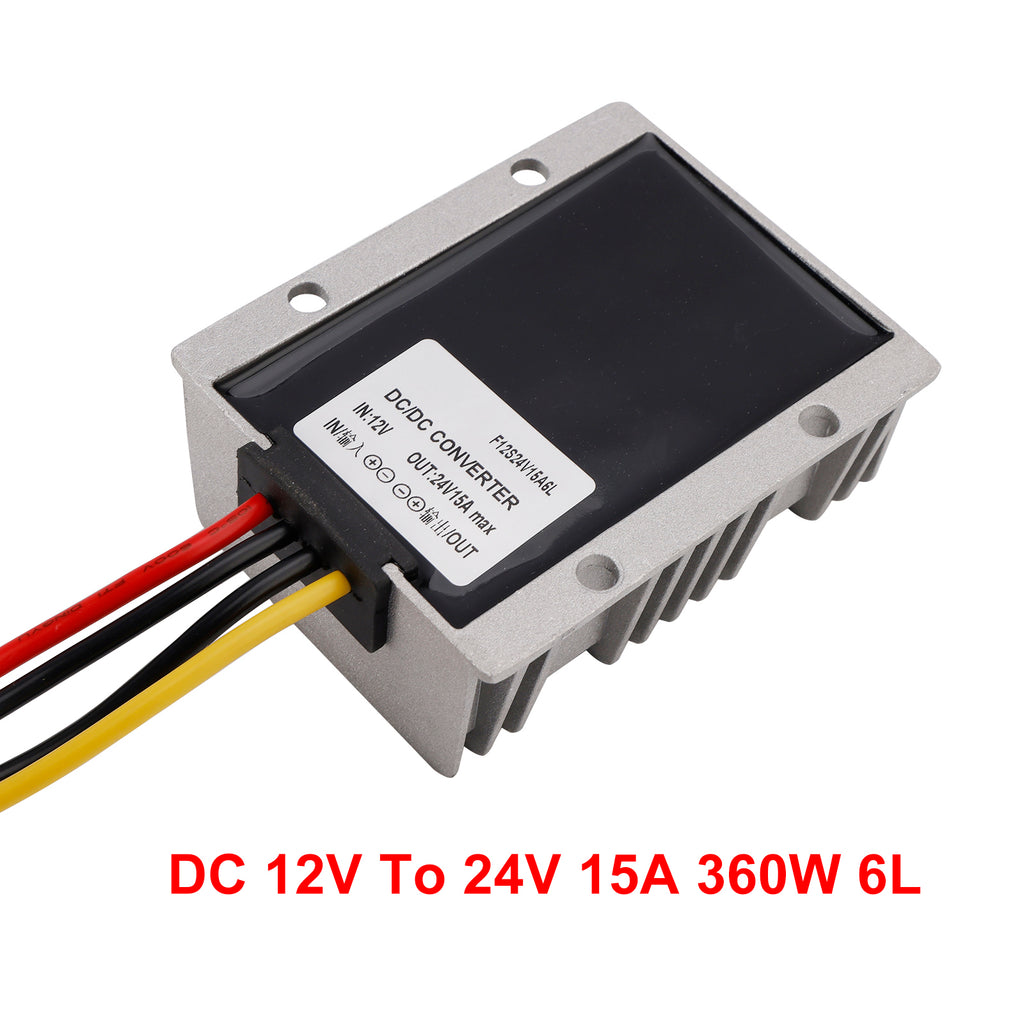

Option 12:DC 12V To 24V 15A 360W 6L

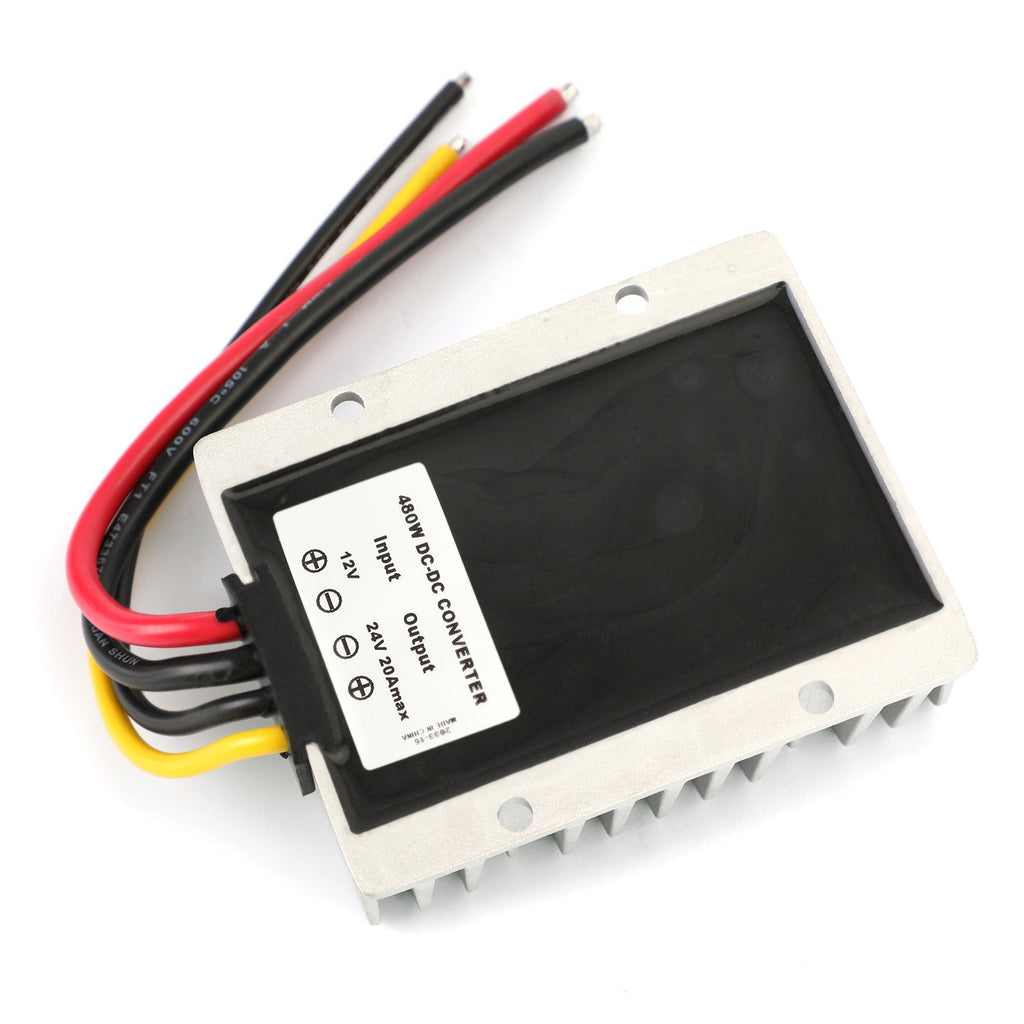

Option 13:DC 12V To 24V 20A 480W 6L

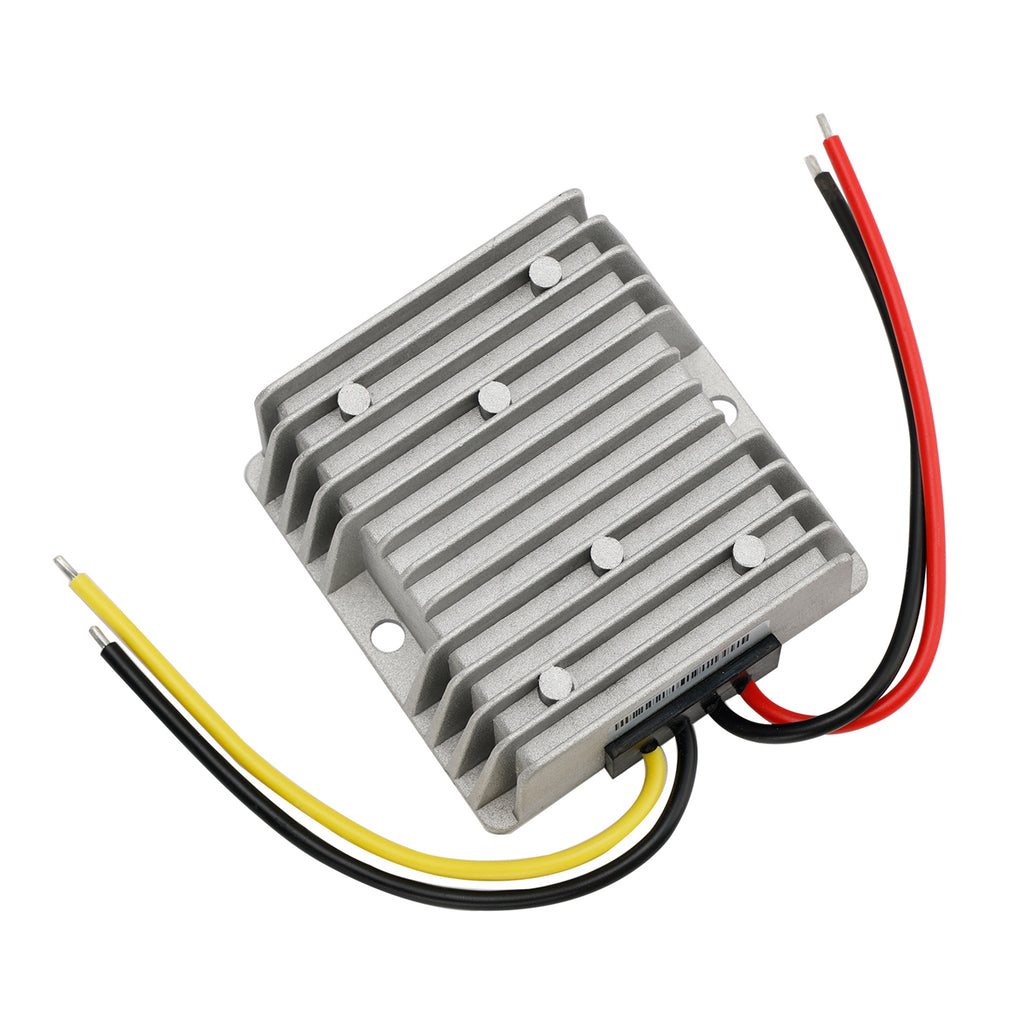

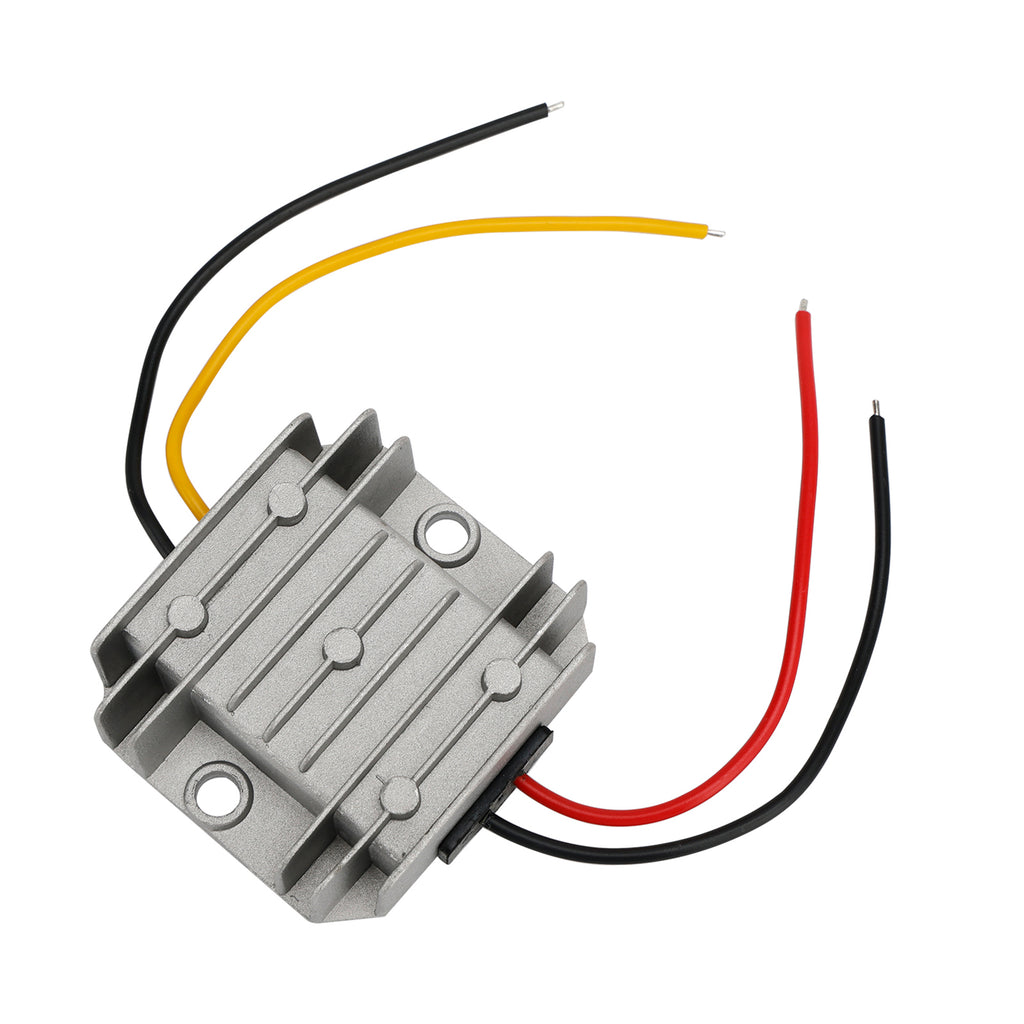

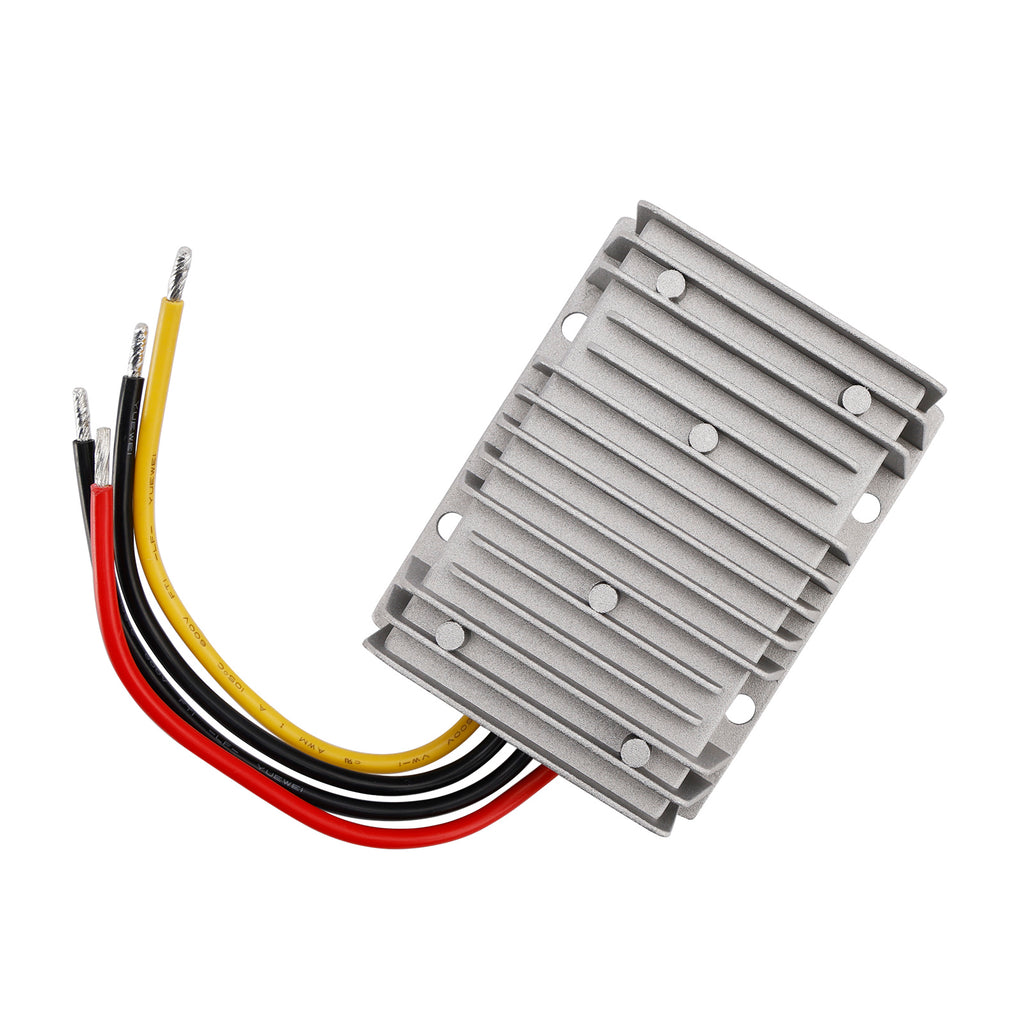

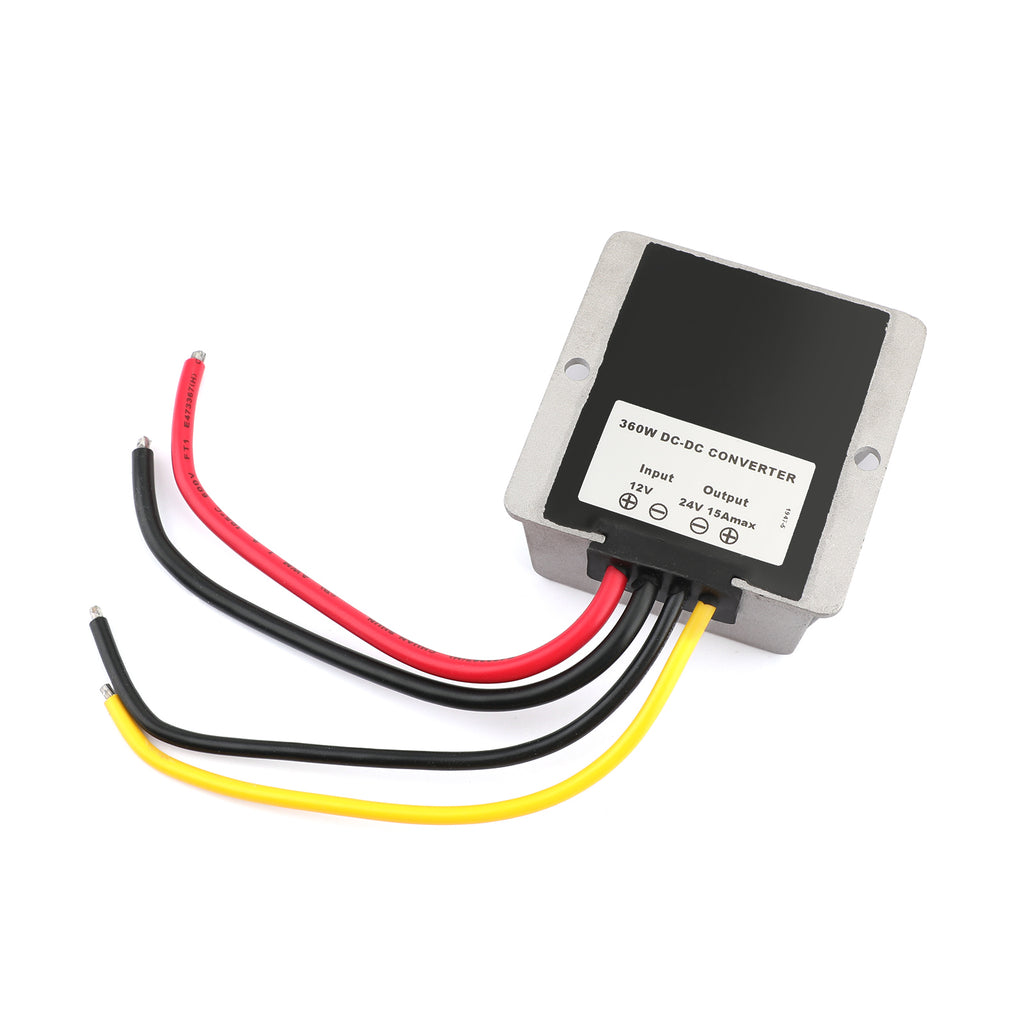

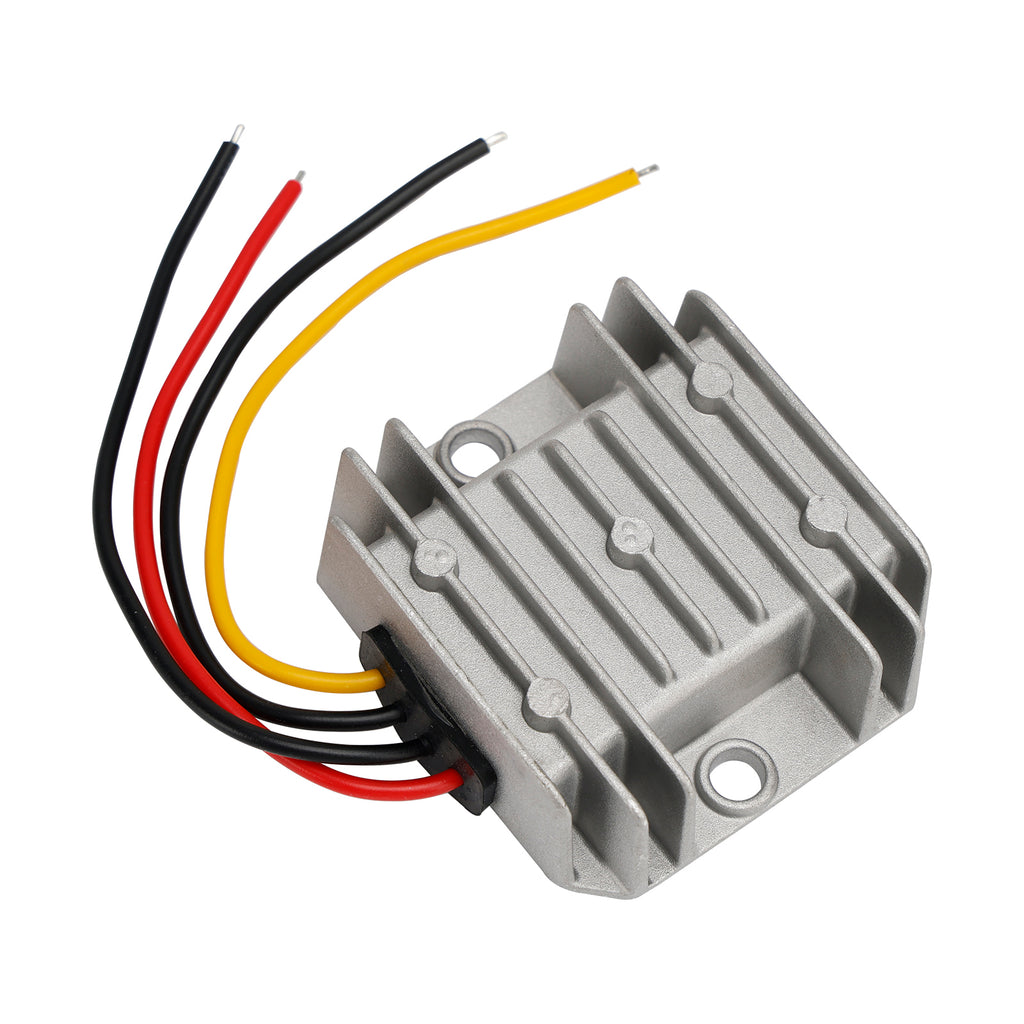

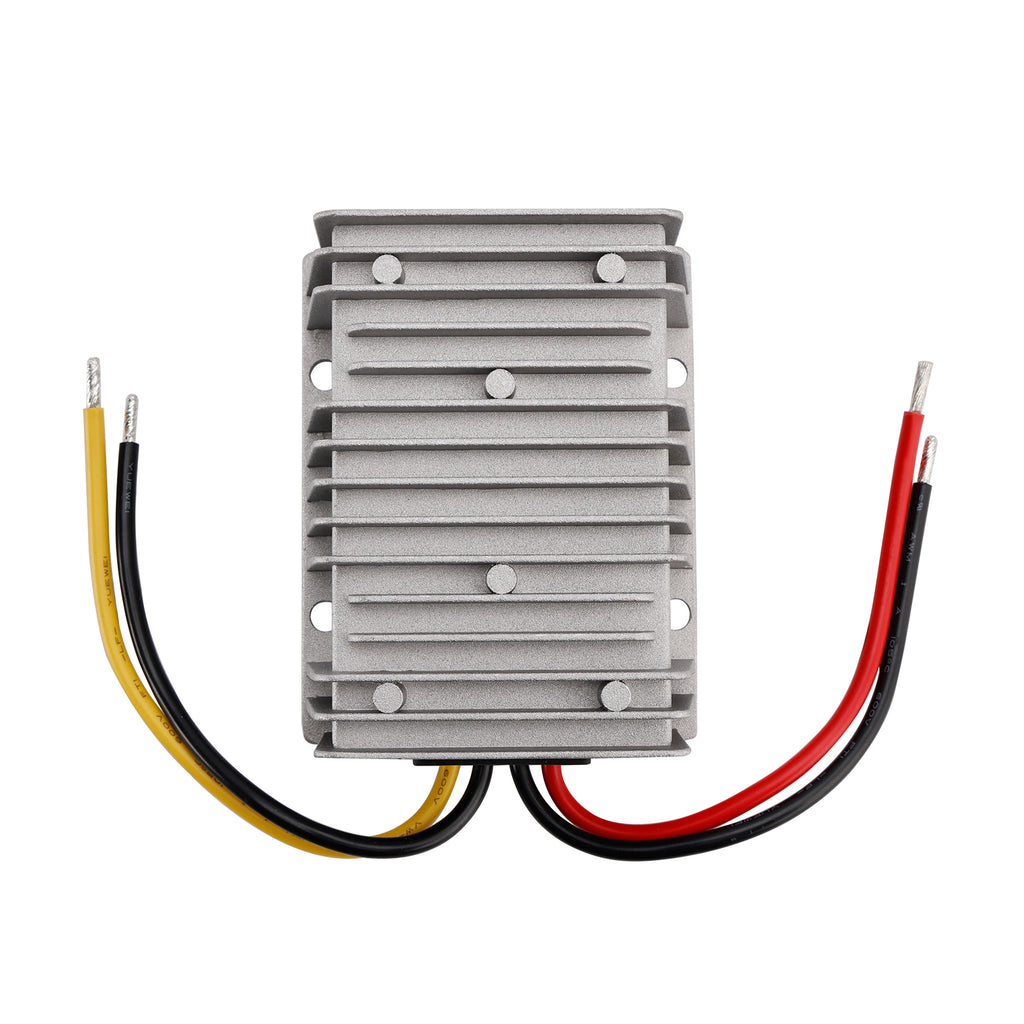

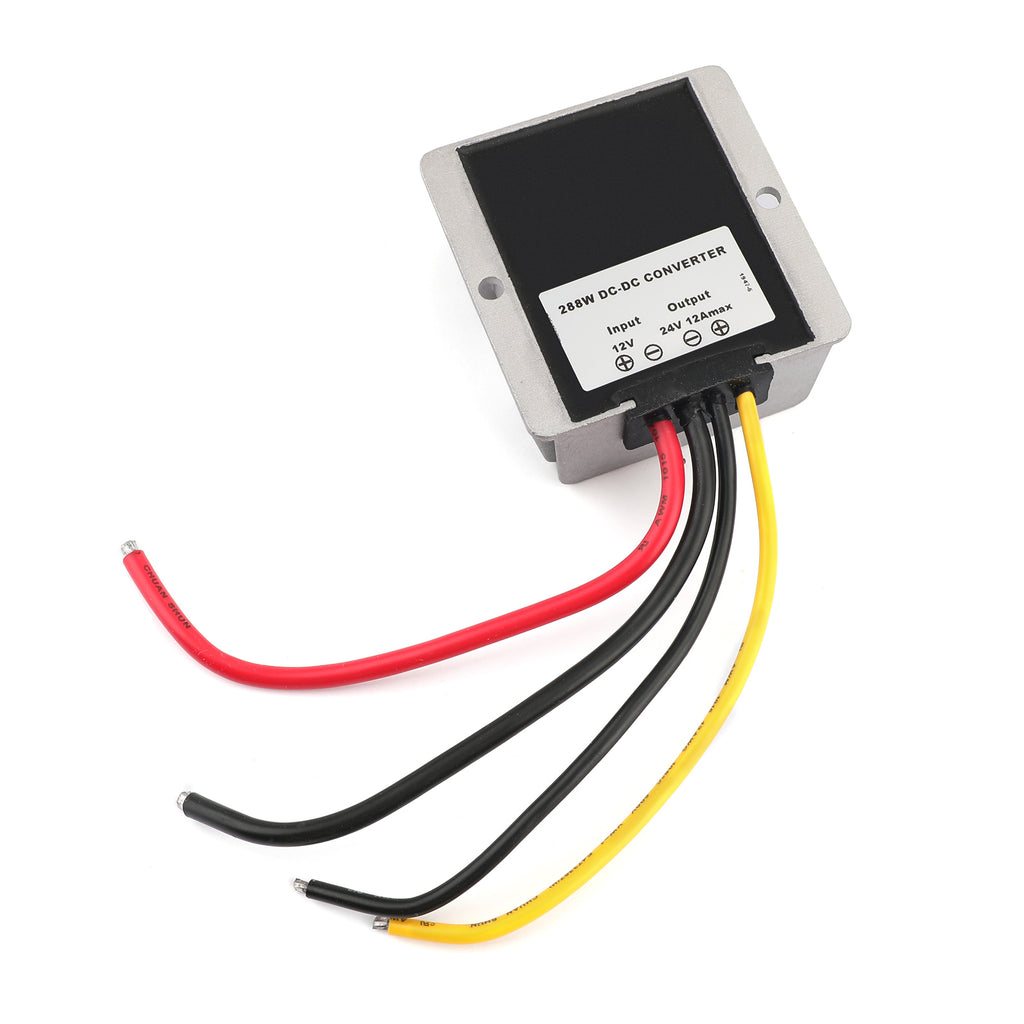

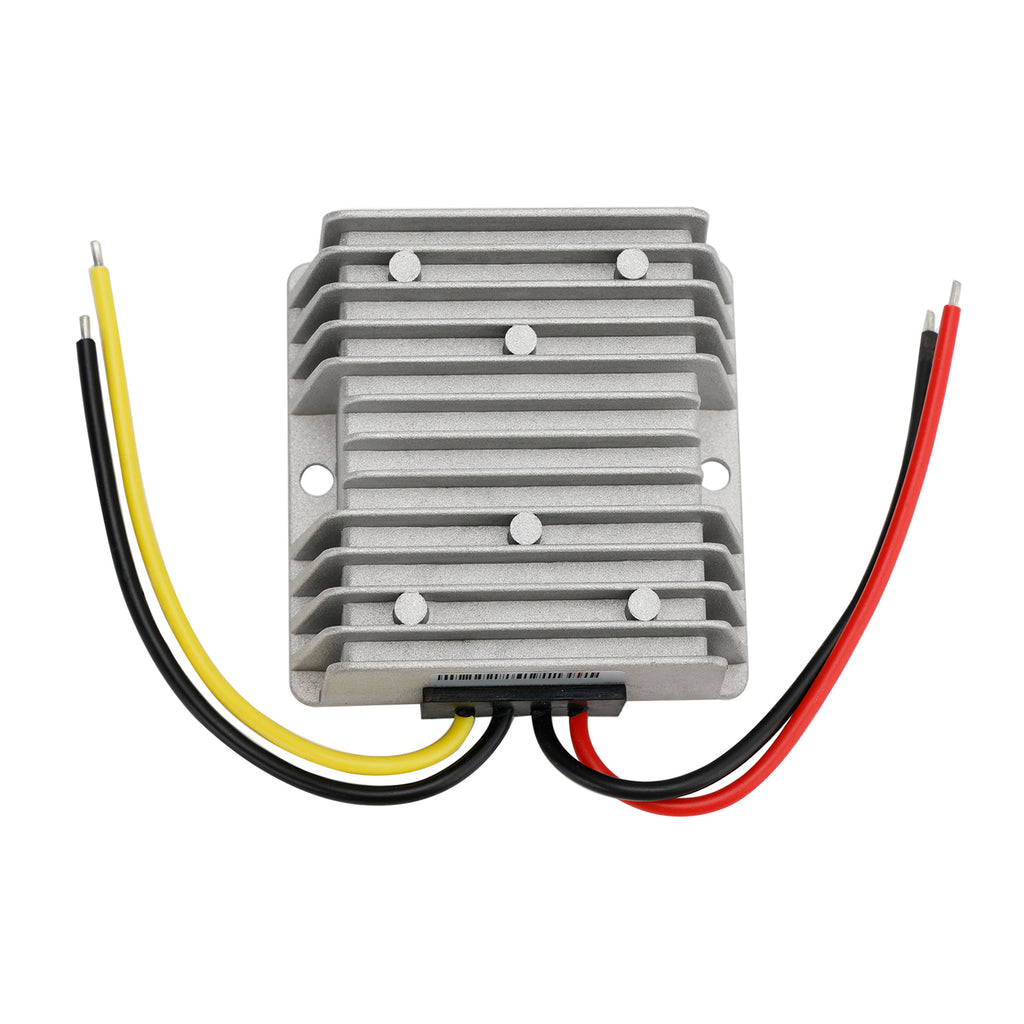

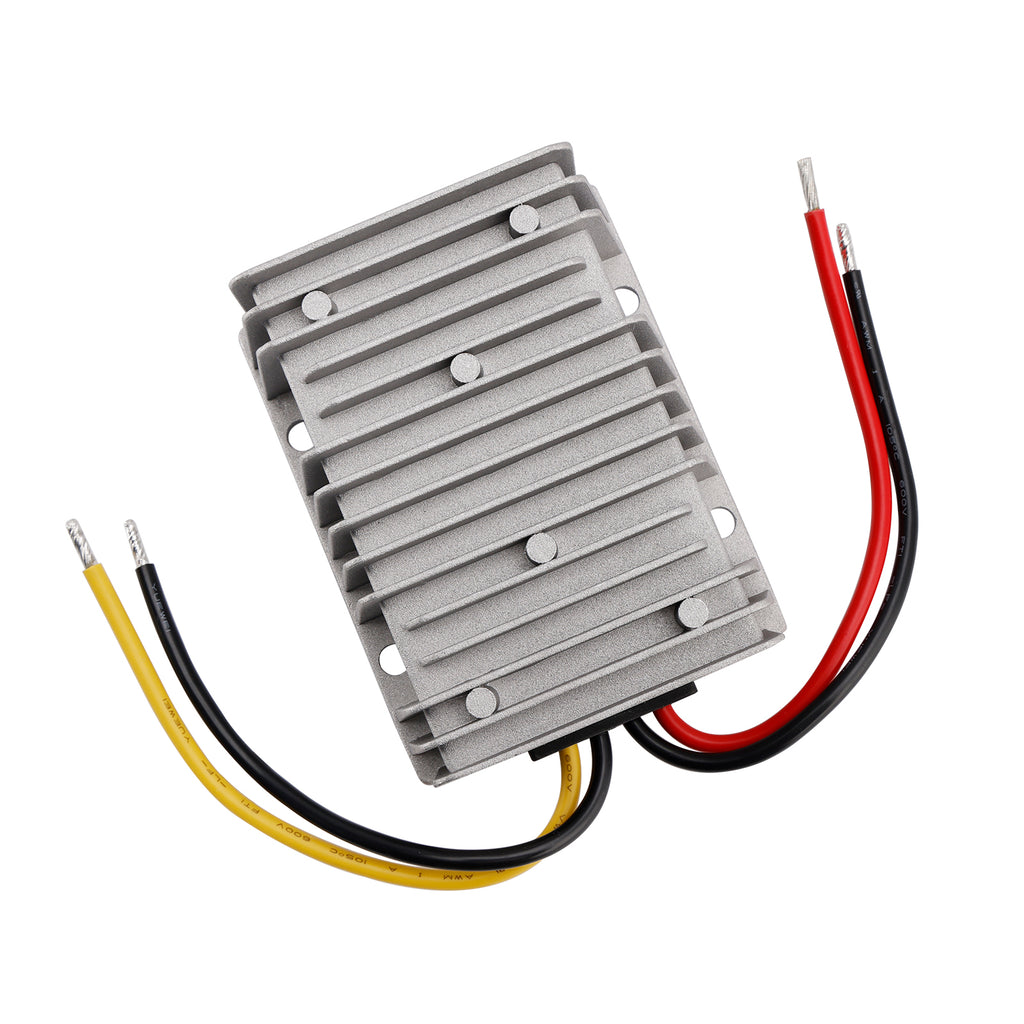

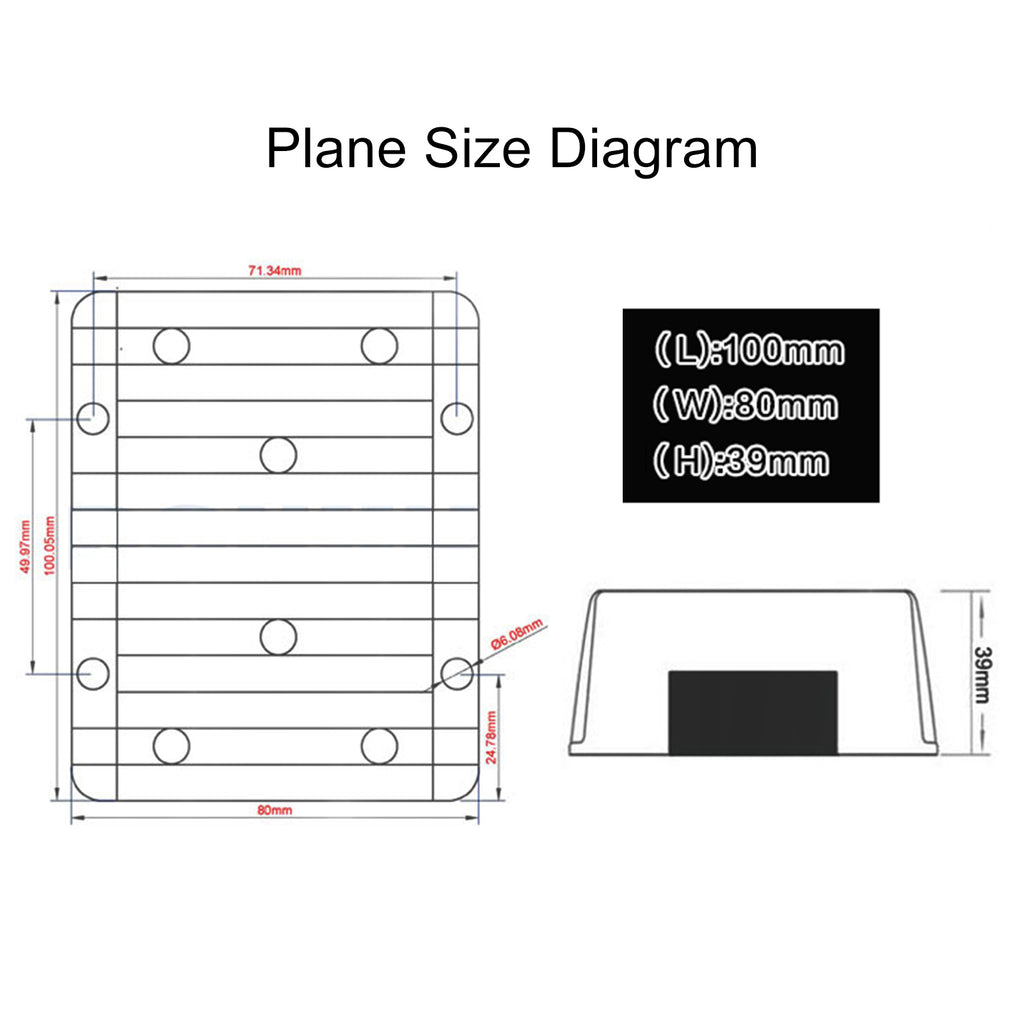

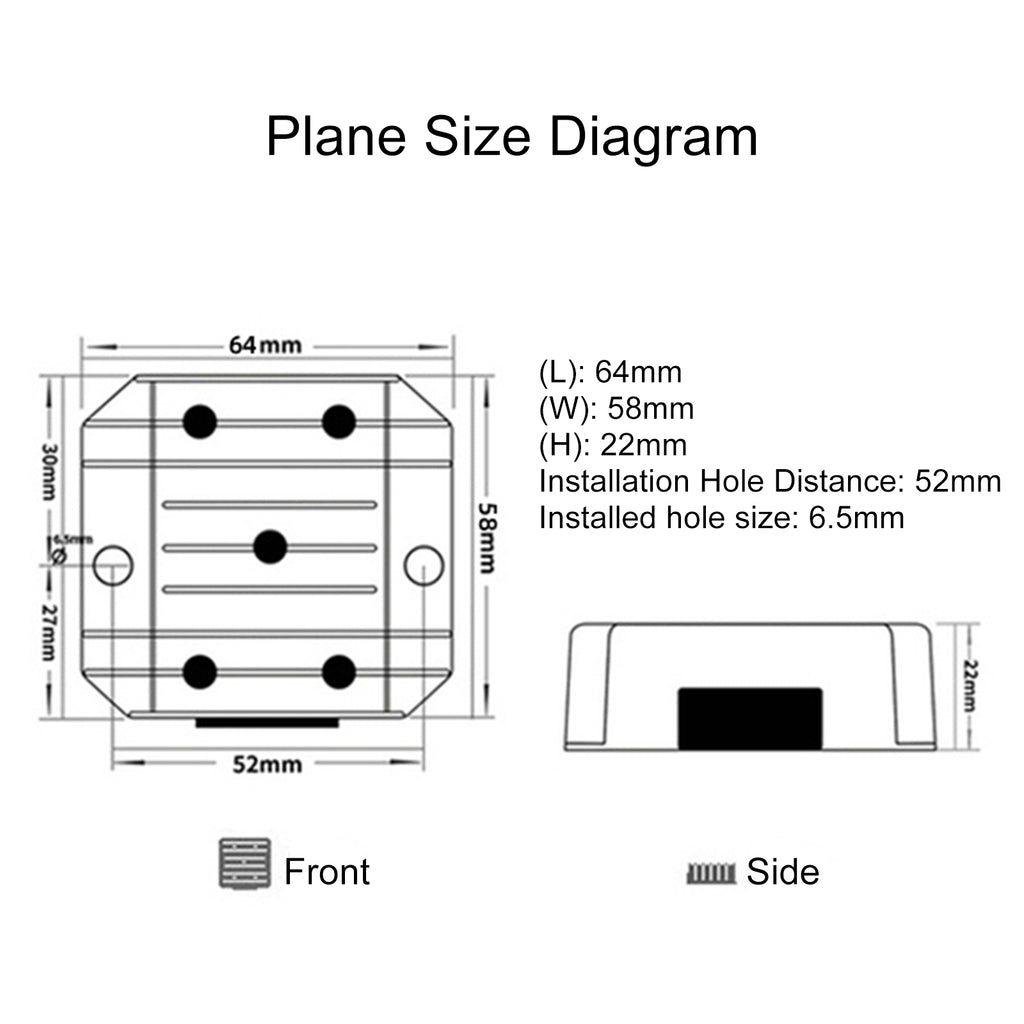

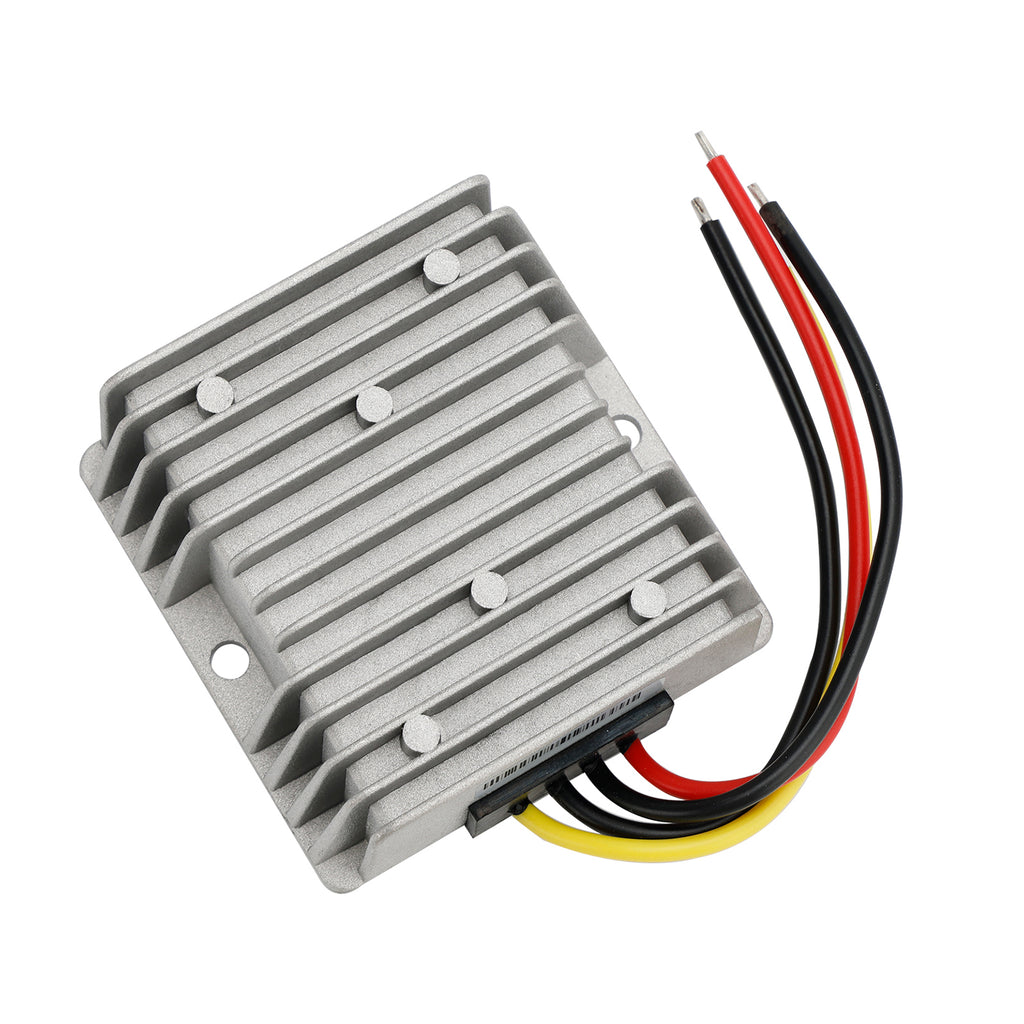

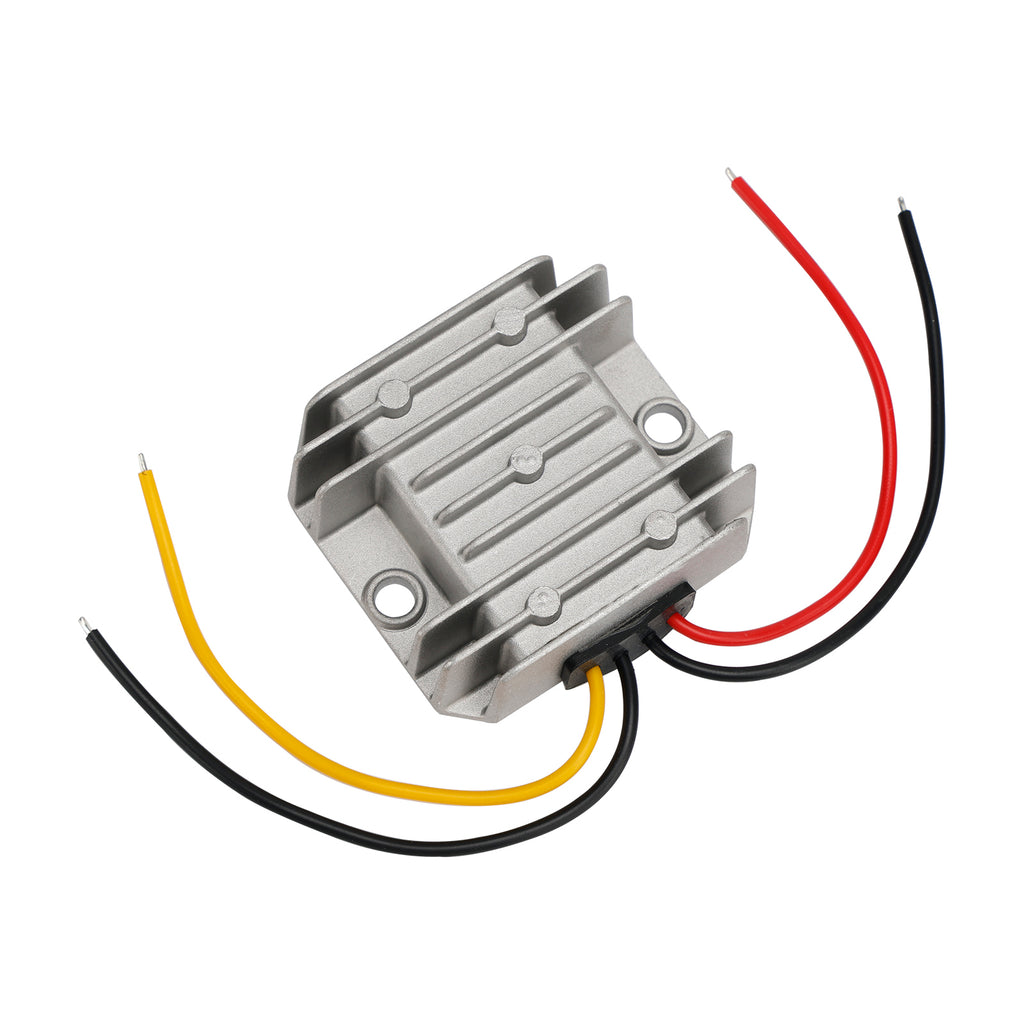

Note: Product appearance can be viewed in pictures
Conversion efficiency: Over 90%
Static consumption: Less than 20MA
No-load adjustment rate: 2%
Load regulation: 3%
Operating temperature: -25°C ~ +65°C
Wire lengths: About 12~13cm
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.

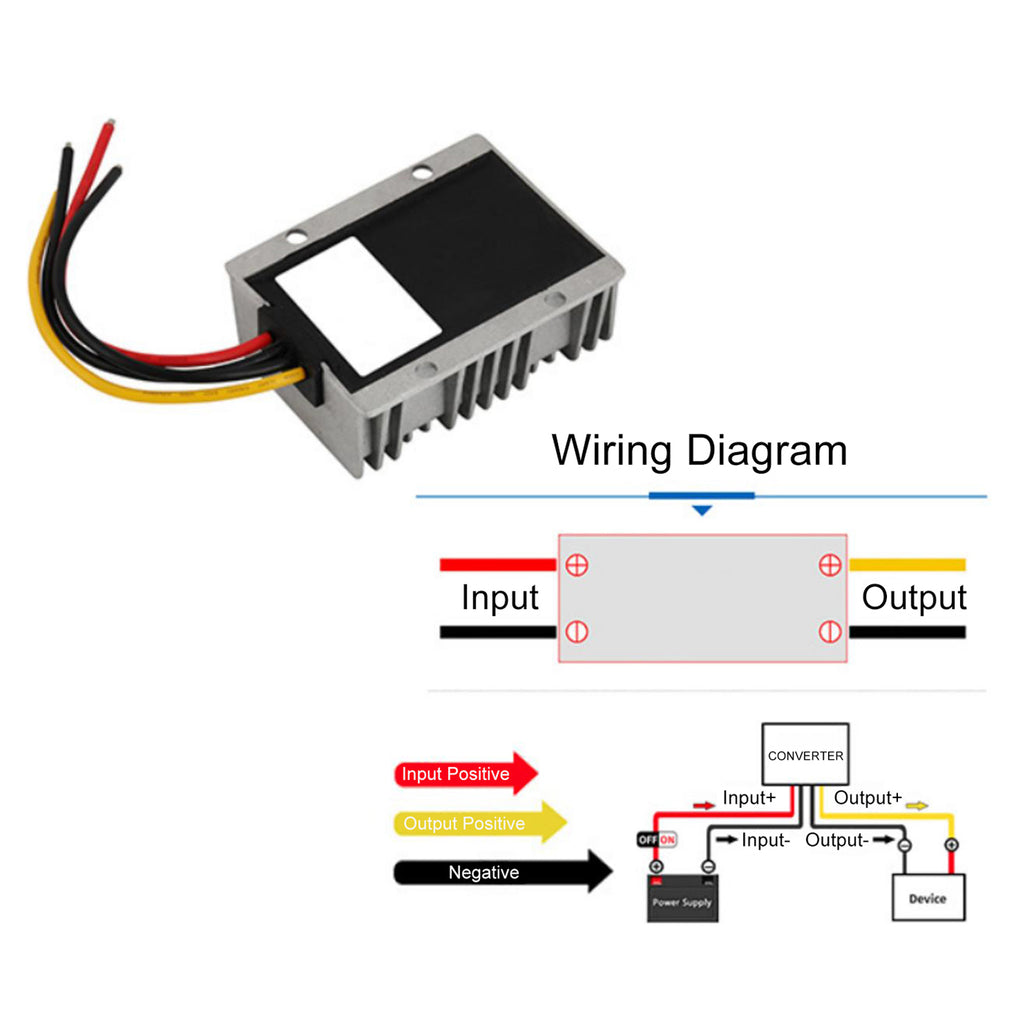

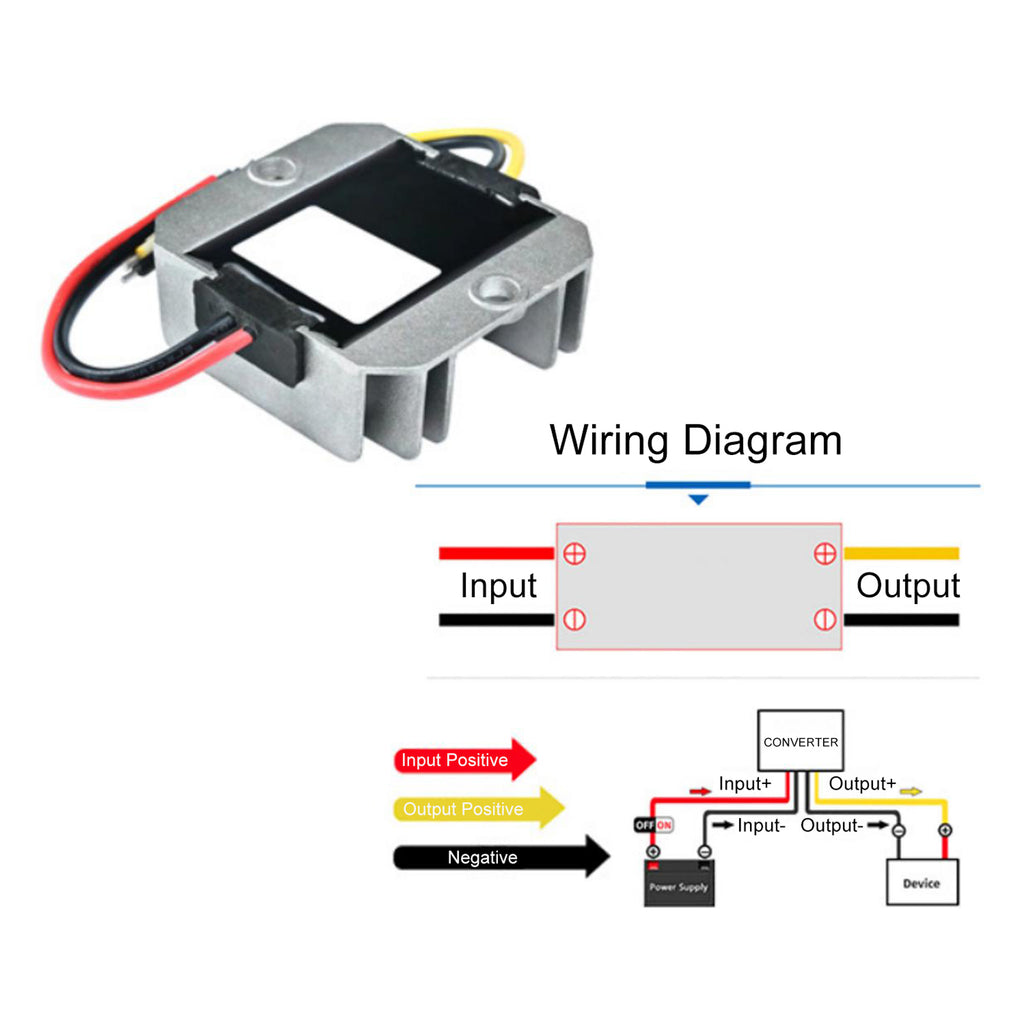

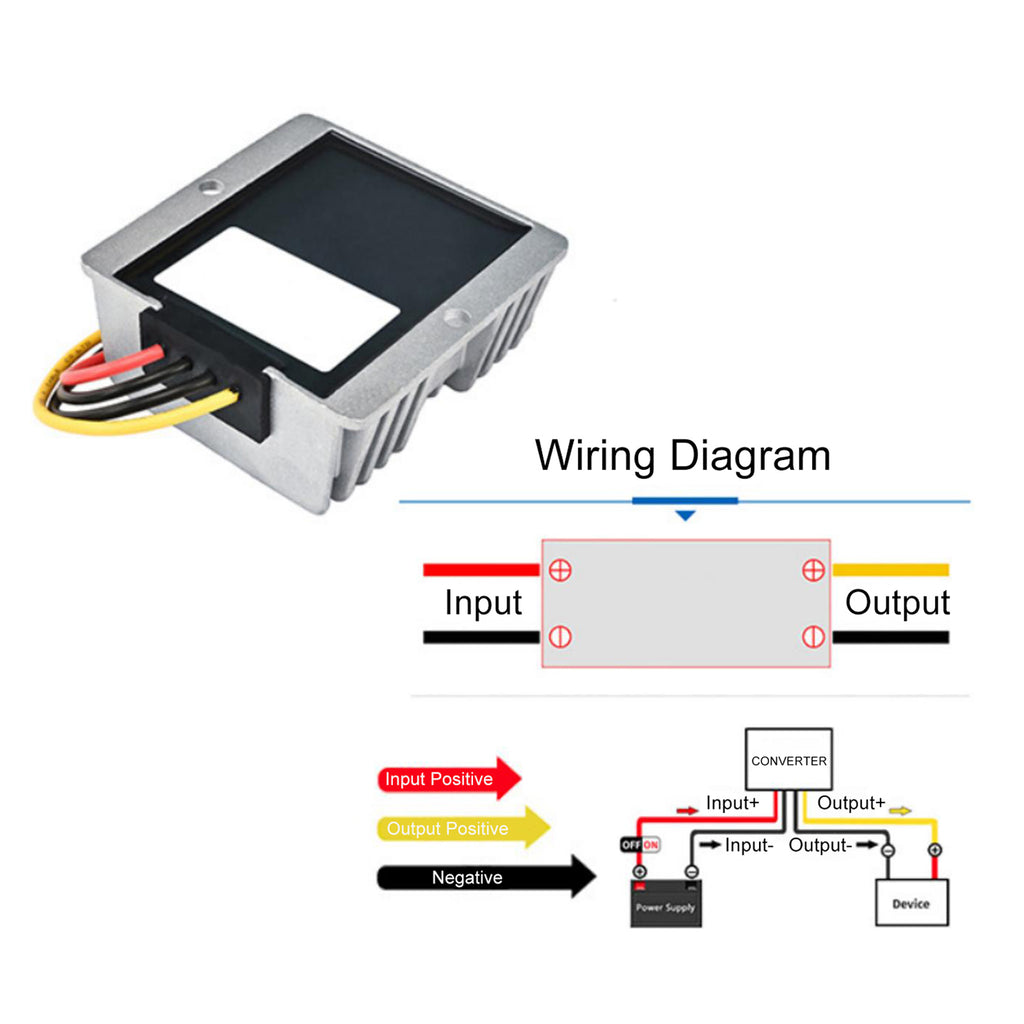

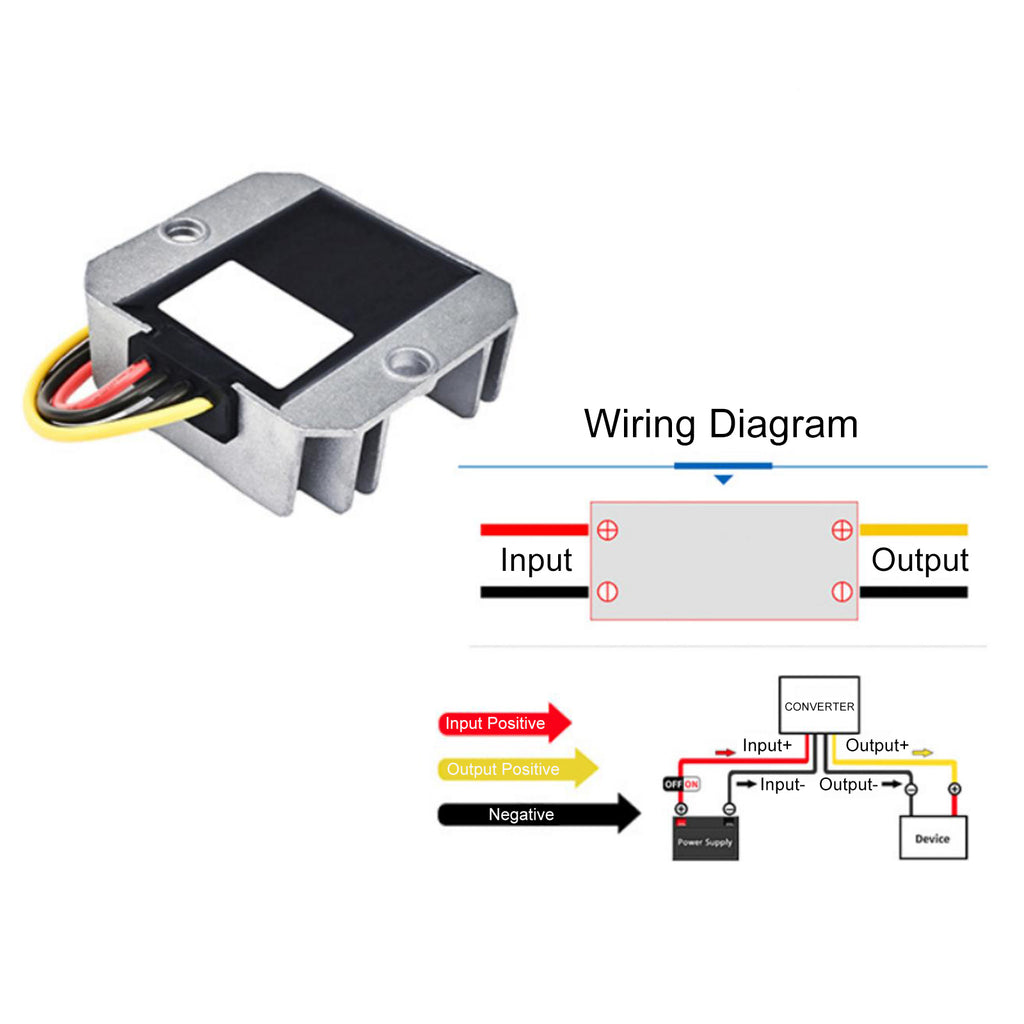

4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC/DC Converter Regulator
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
