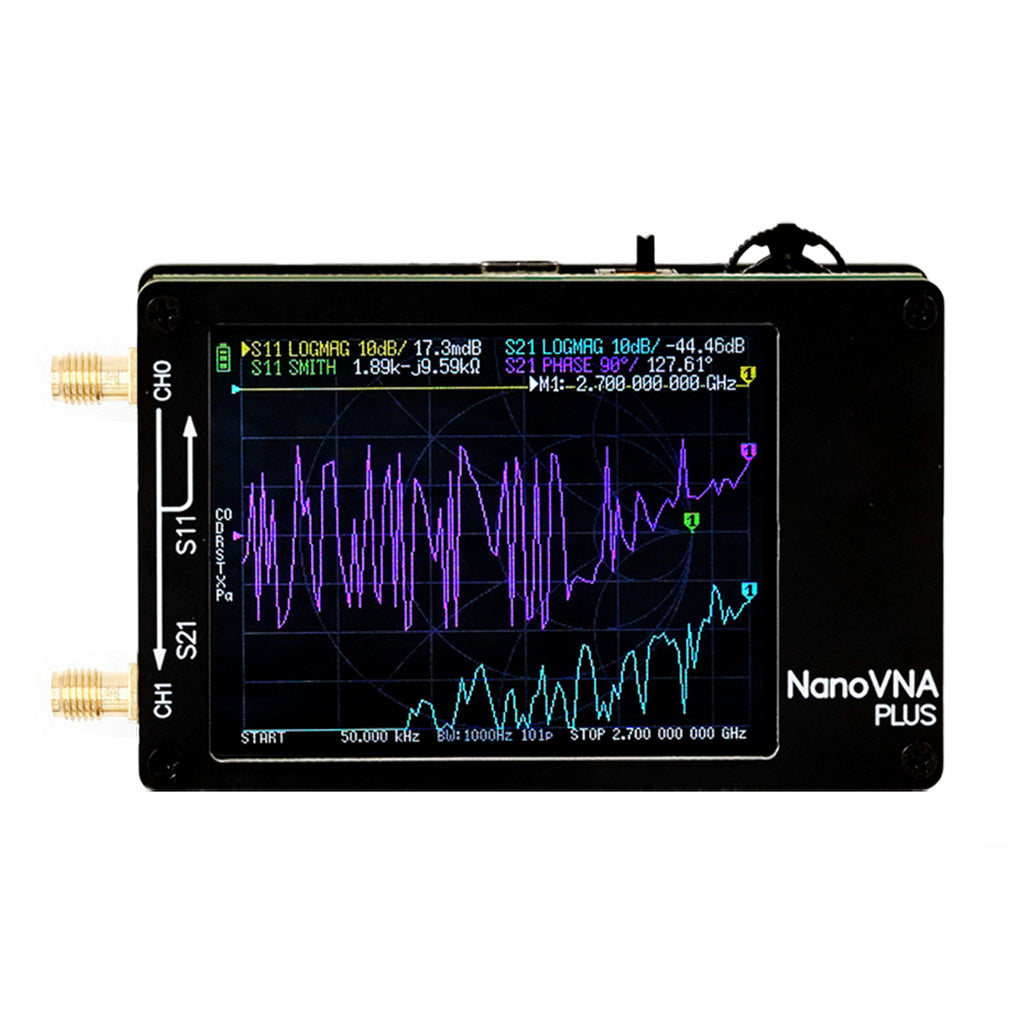

2.8Inch Upgraded NanoVNA Plus 50kHz-2.7GHz Handheld Vector Network Analyzer
Description:

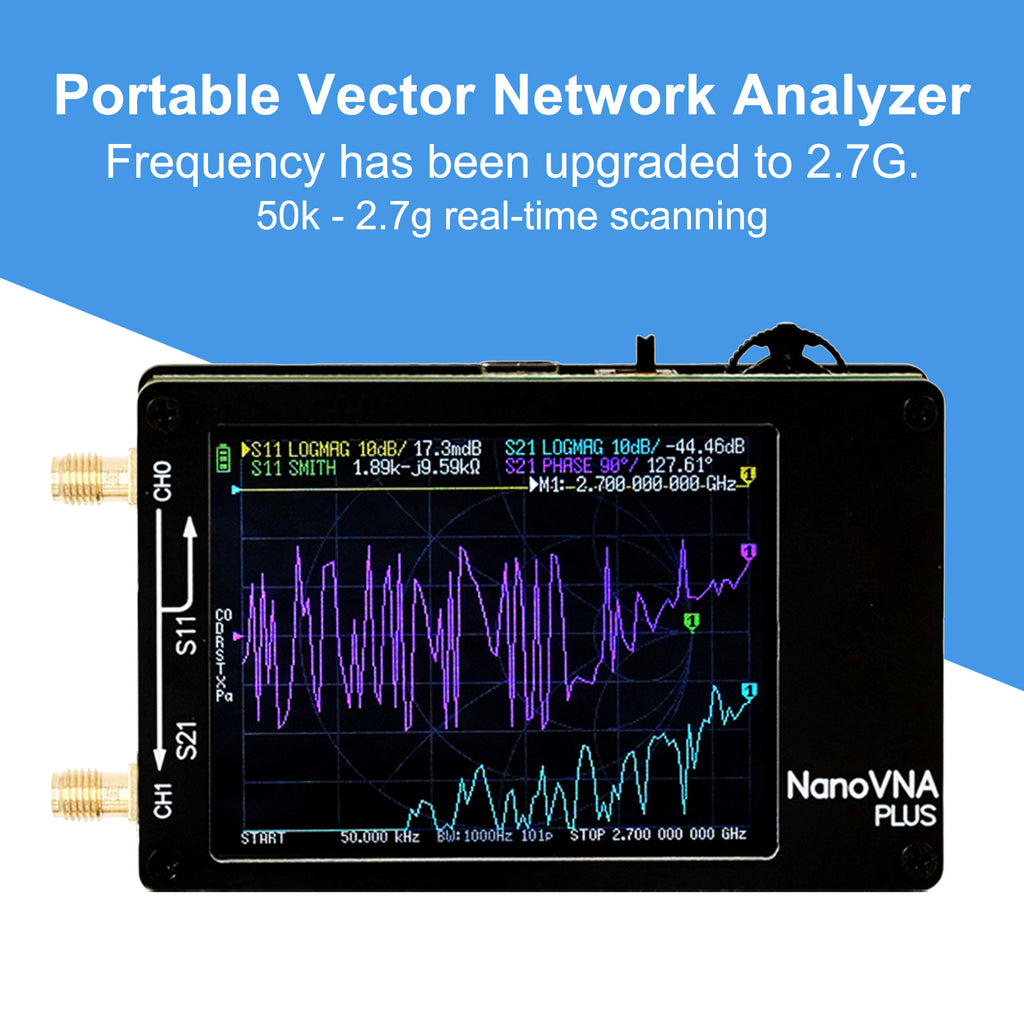

NanoVNA Plus, It is a portable handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients. After multiple upgrades, NanoVNA Plus is currently the highest performing version, with a measurement frequency range upgraded to 50KHz-2.7GHz and better performance than the previous 1.5GHz old version.
Specifics:
Condition: 100% Brand New
Bandwidth: 50kHz - 2.7GHz
Dynamic range: 80dB (50kHz - 900MHz); 60dB (900MHz - 1.5GHz); 50dB (1.5GHz - 2.7GHz)
SWR: < 1.1
Frequency precision: < 0.5ppm
Frequency stability: < 2.5ppm
Scanning points: 101

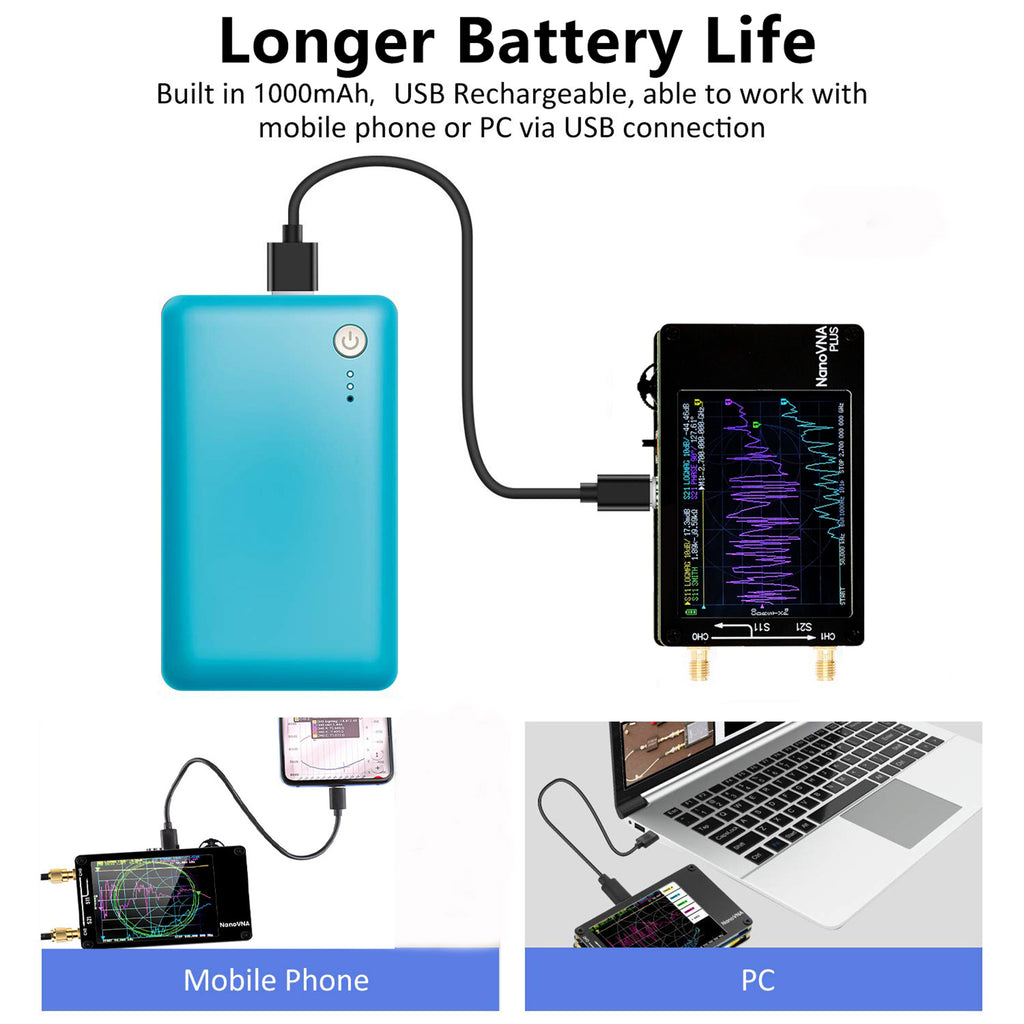

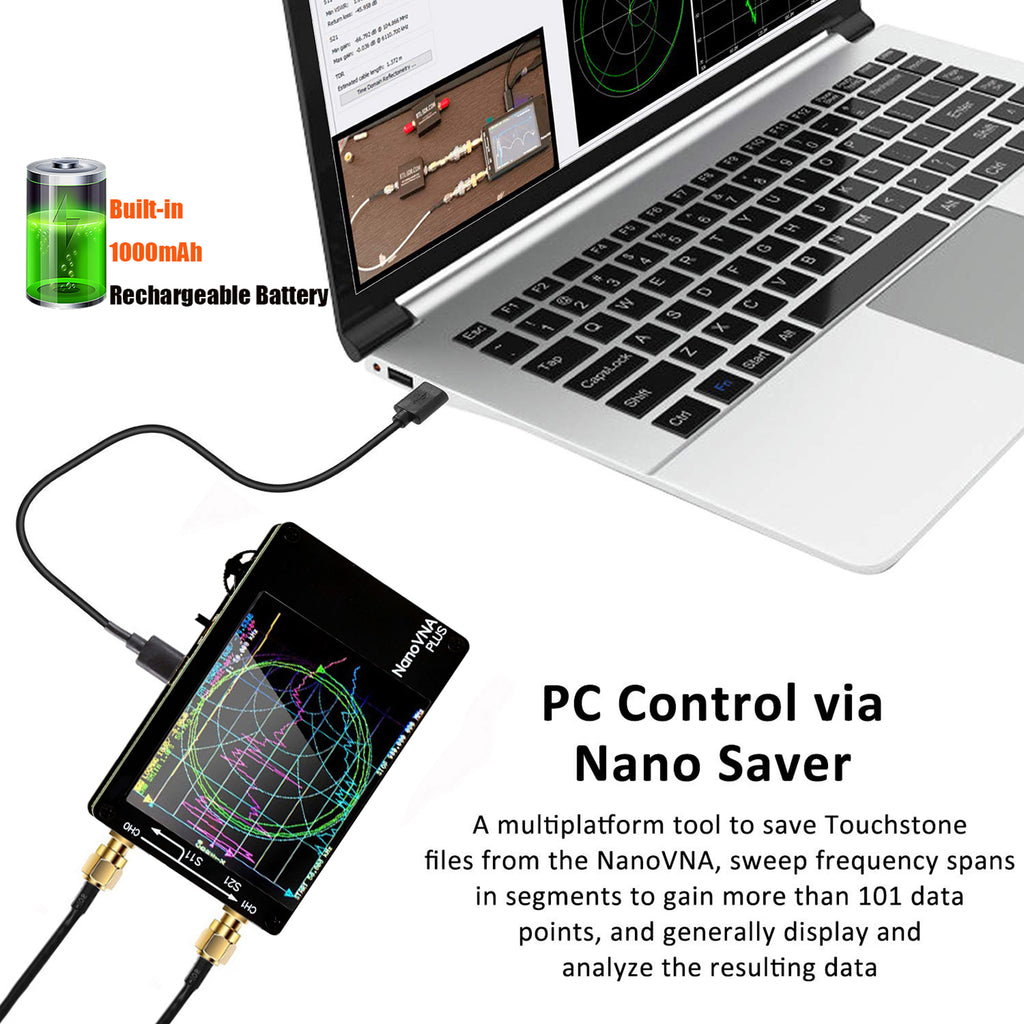

Built-in 1000mAh battery

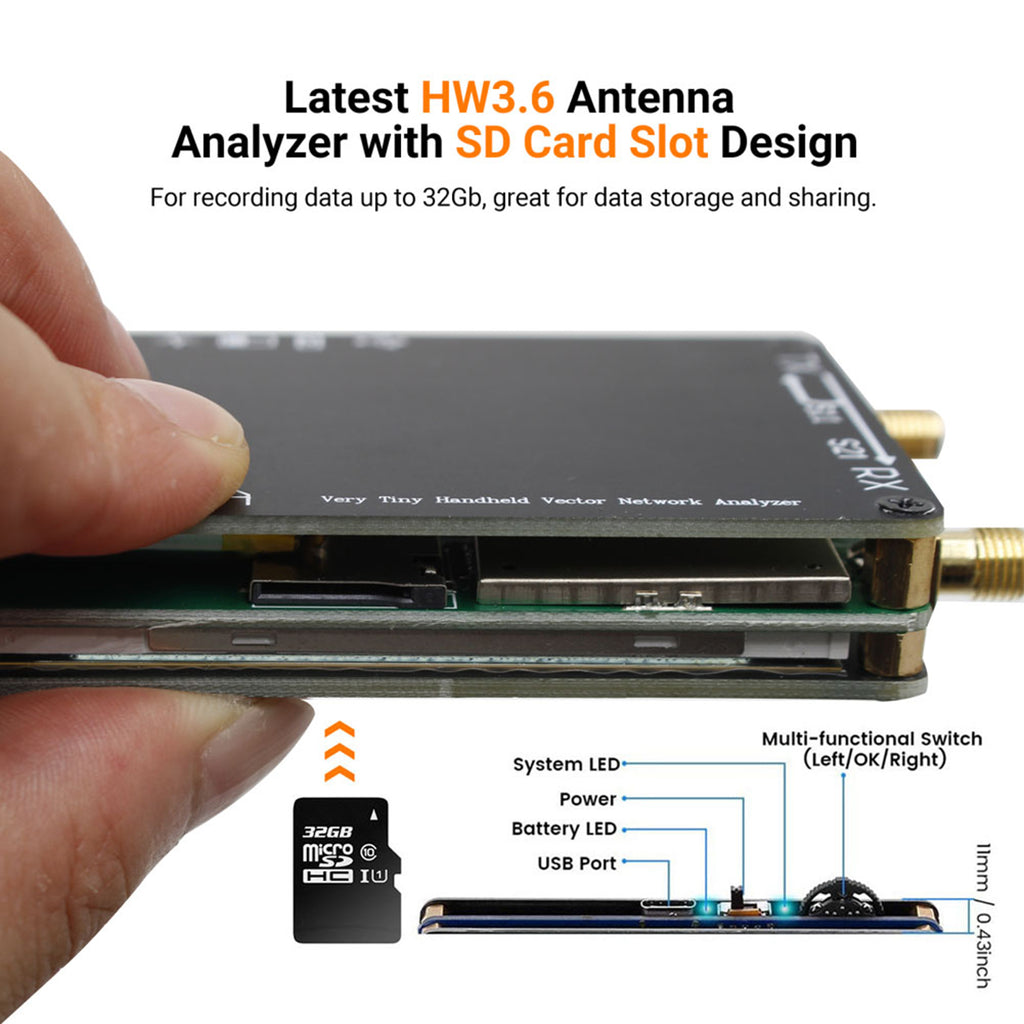

Micro SD supports a maximum of 32GB and only supports SPI mode
Add RTC support
Change the port names to Port1 and Port2
Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.The color might be a little different from the actual product due to color display of different monitors.
Package Included:
There are 2 options as follows:

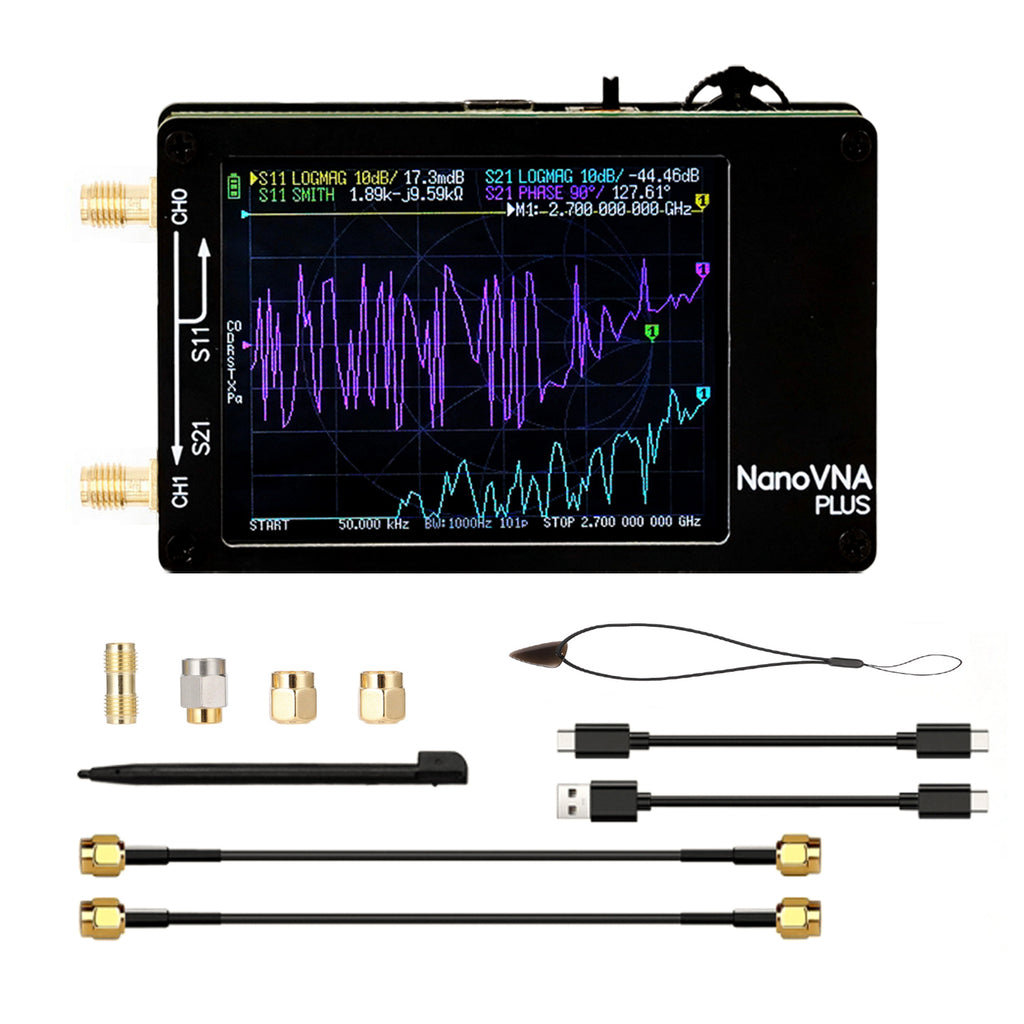

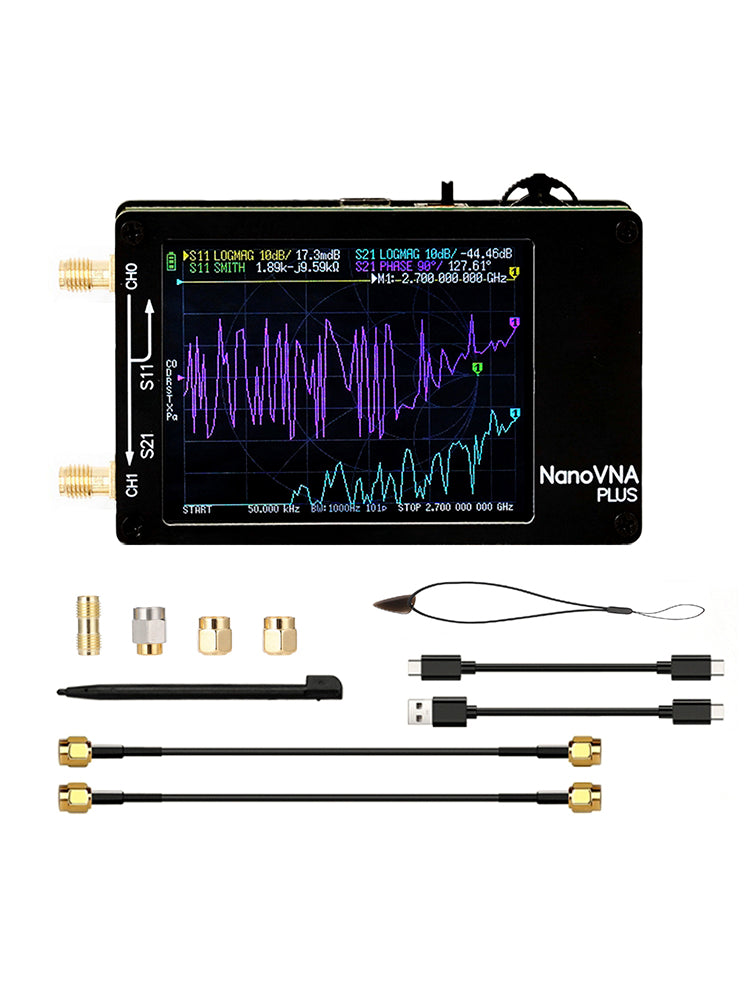

Option 1:
1 x Host
2 x 20cm SMA Male to Male RG174 RF Cables
1 x Type-C to Type-C Connection Cable
1 x USB Type-C Data Cable
1 x Touch Pen
1 x Pick
1 x SMA LOAD
1 x SMA OPEN
1 x SMA SHORT
1 x SMA Female to Female Connector

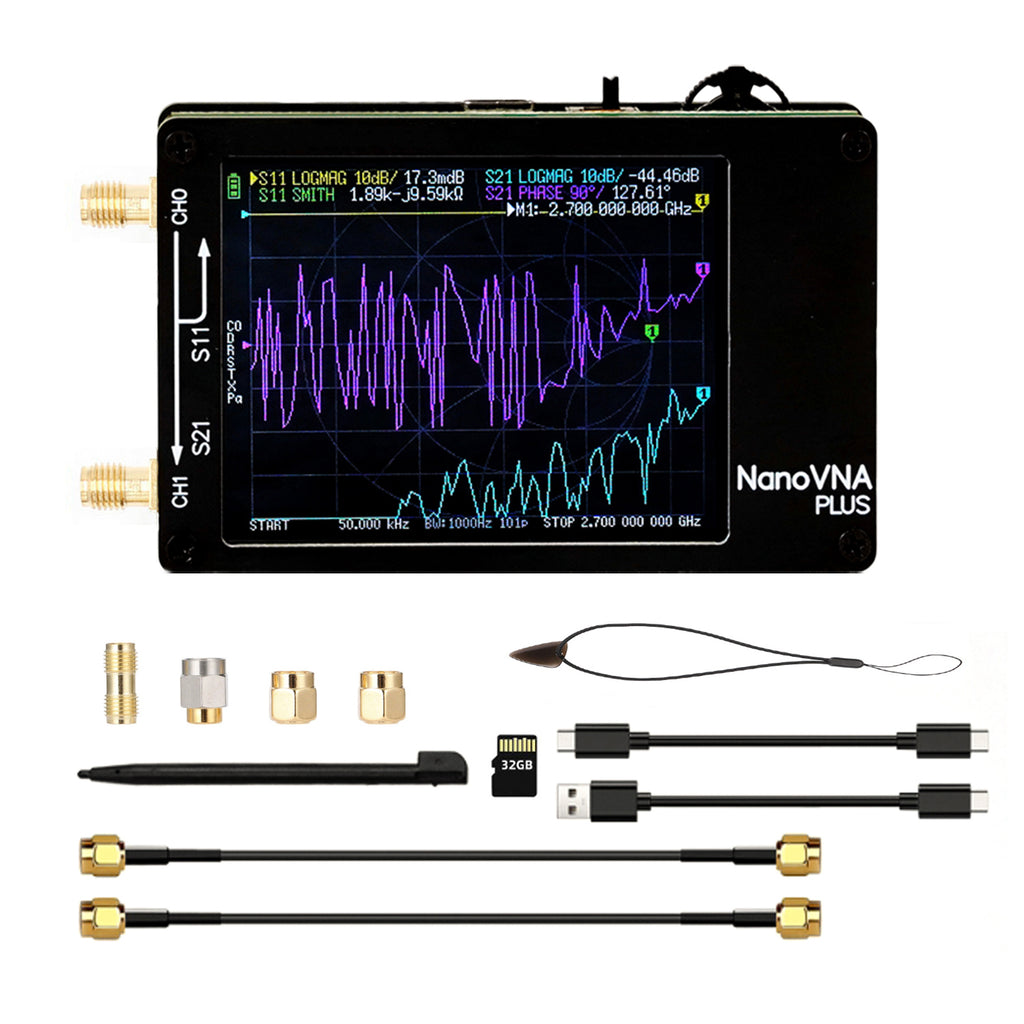

Option 2:
1 x Host
2 x 20cm SMA Male to Male RG174 RF Cables
1 x Type-C to Type-C Connection Cable
1 x USB Type-C Data Cable
1 x Touch Pen
1 x Pick
1 x SMA LOAD
1 x SMA OPEN
1 x SMA SHORT
1 x SMA Female to Female Connector
1 x 32GB Micro SD Card
