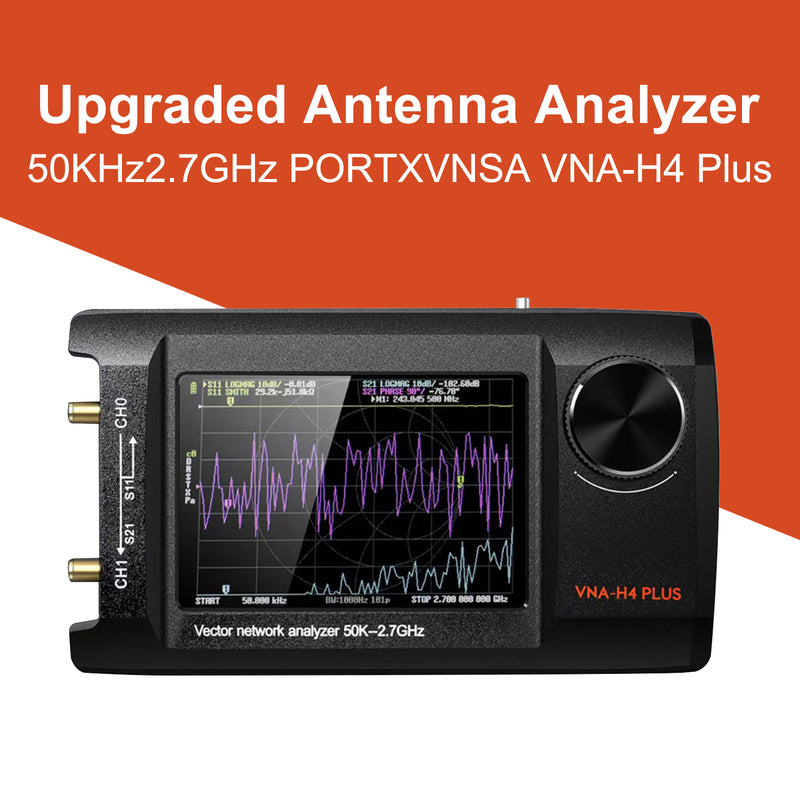

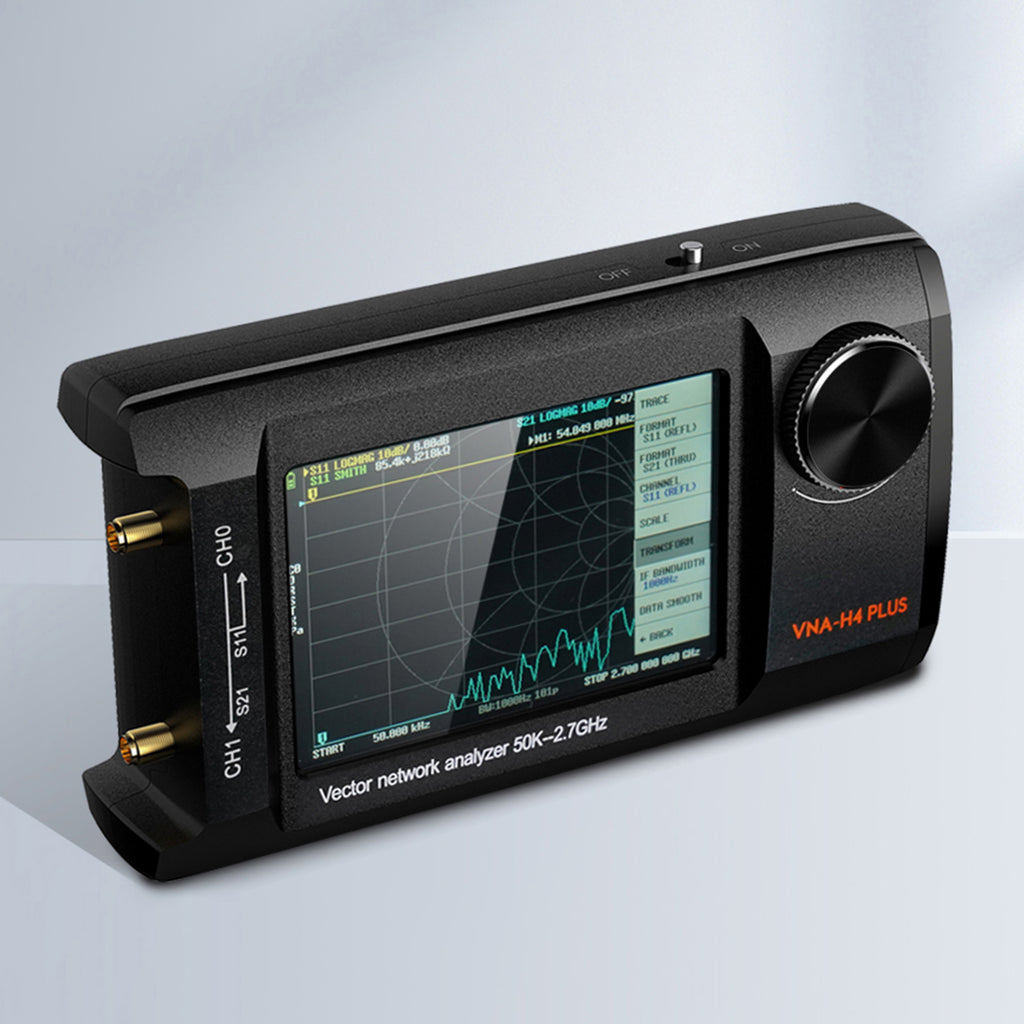

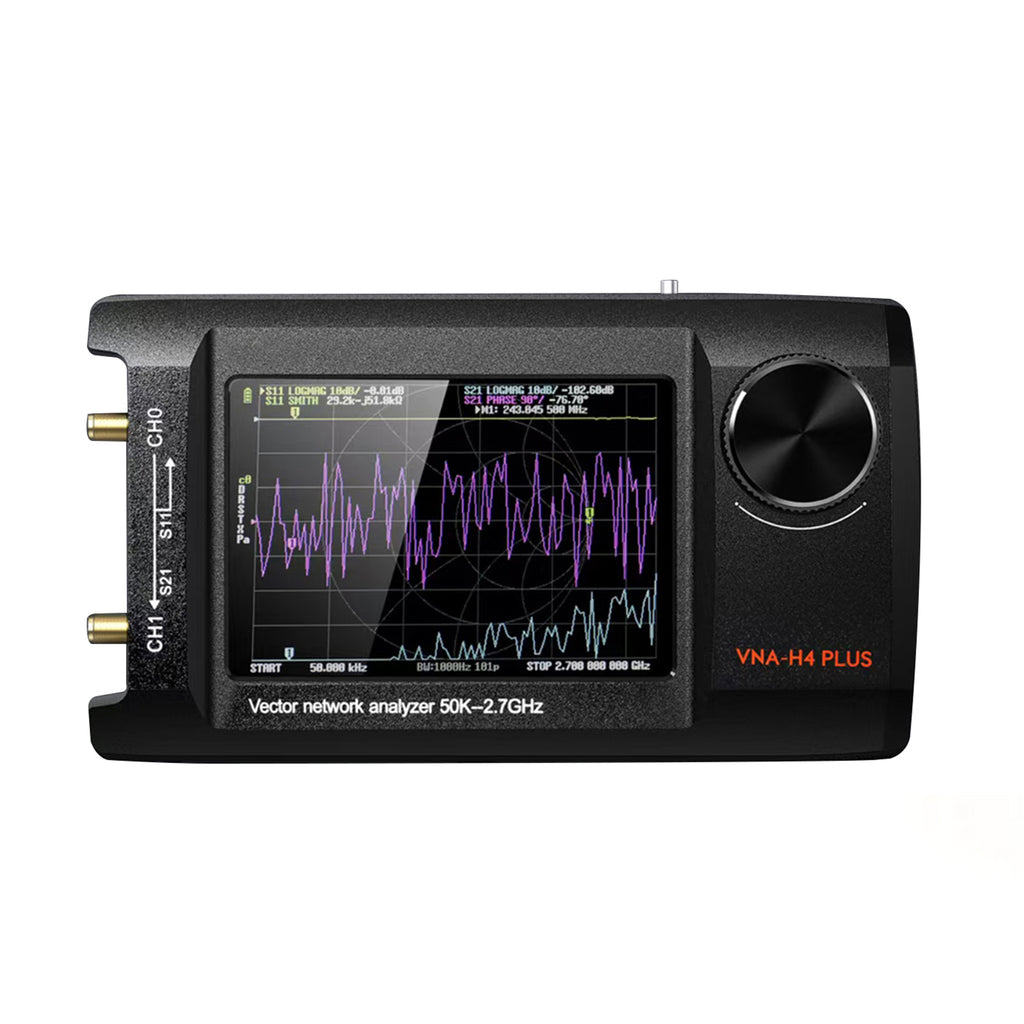

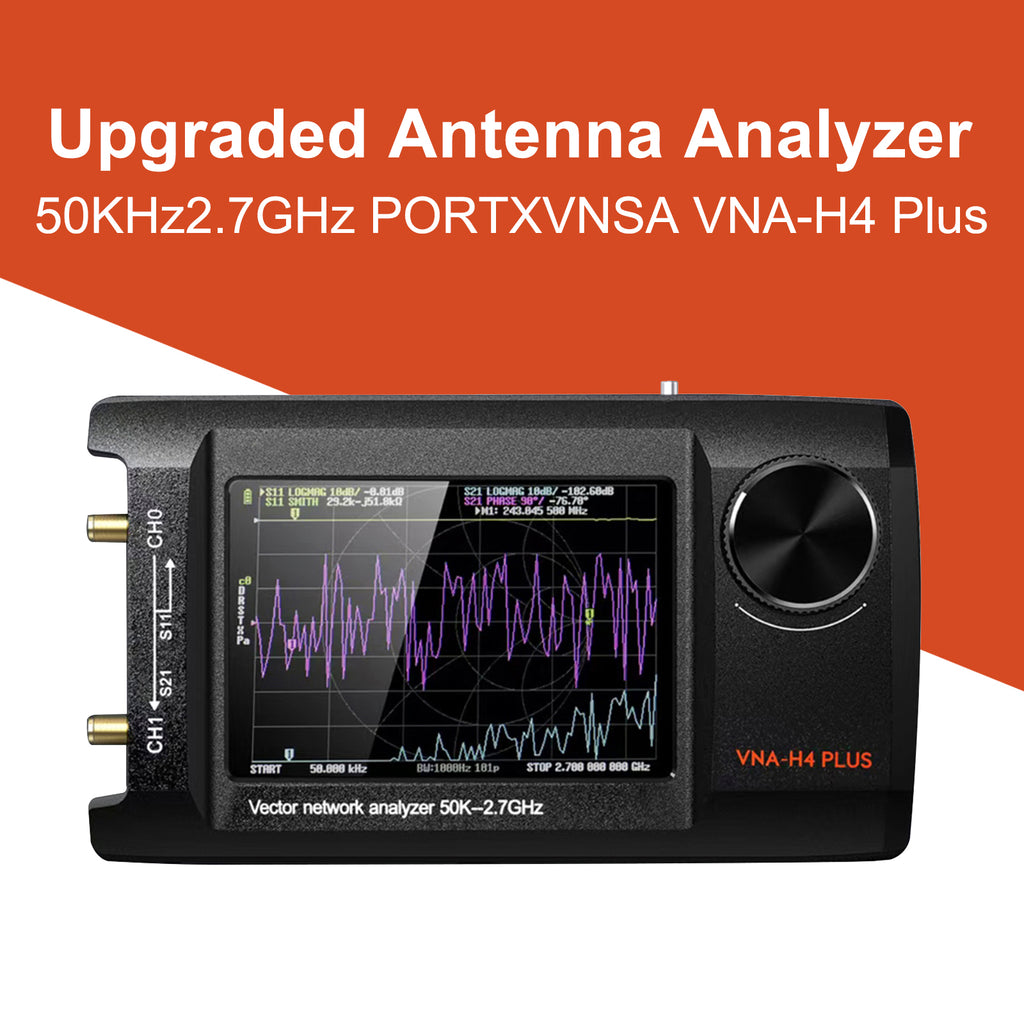

4Inch Upgraded NanoVNA Plus 50kHz-2.7GHz Handheld Vector Network Analyzer
Description:

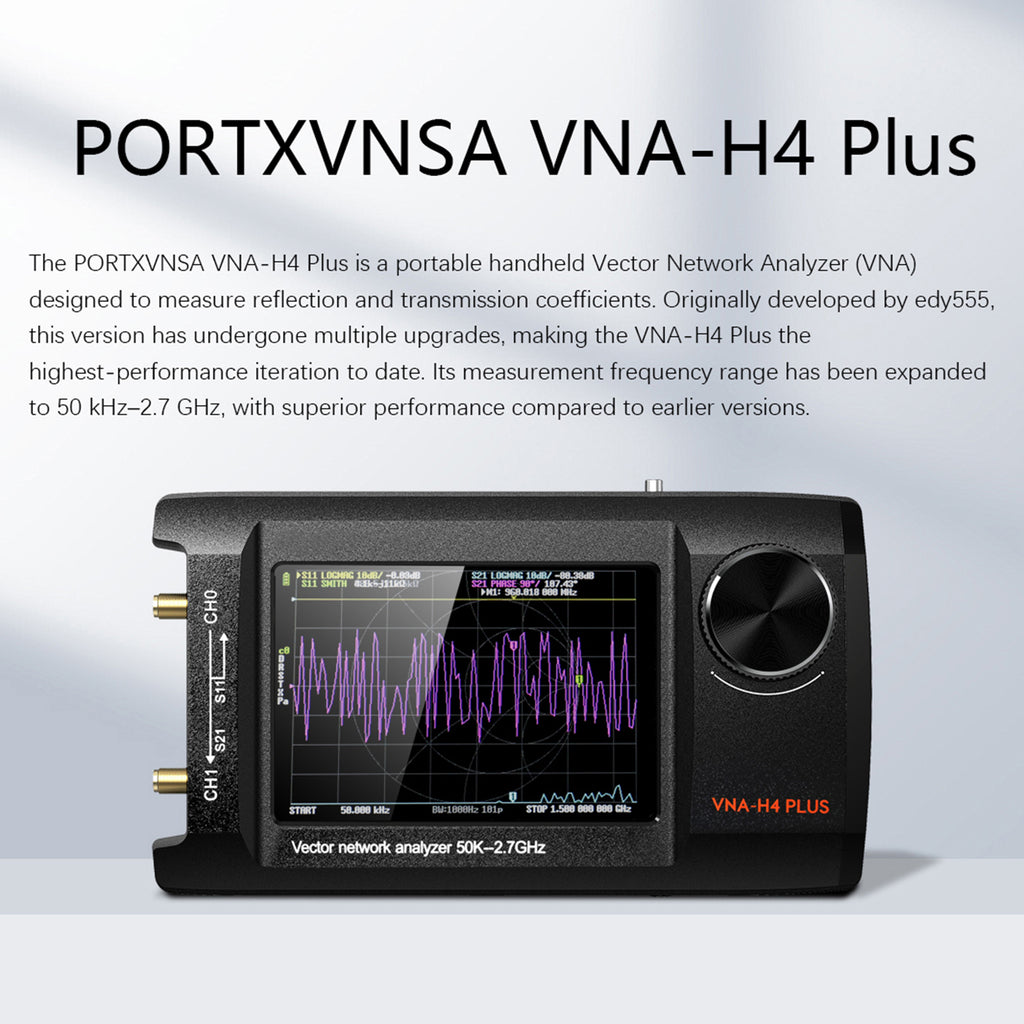

NanoVNA-H4 Plus is a portable handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients. Originally designed by edv555. After several upgrades, VNA-H4 is the highest performance version at present, with the measurement frequency range upgraded to 50KHz-2.7GHz, and the performance is better than the previous version.
Feature:
1: Adopting ergonomic design, the appearance is fully upgraded.

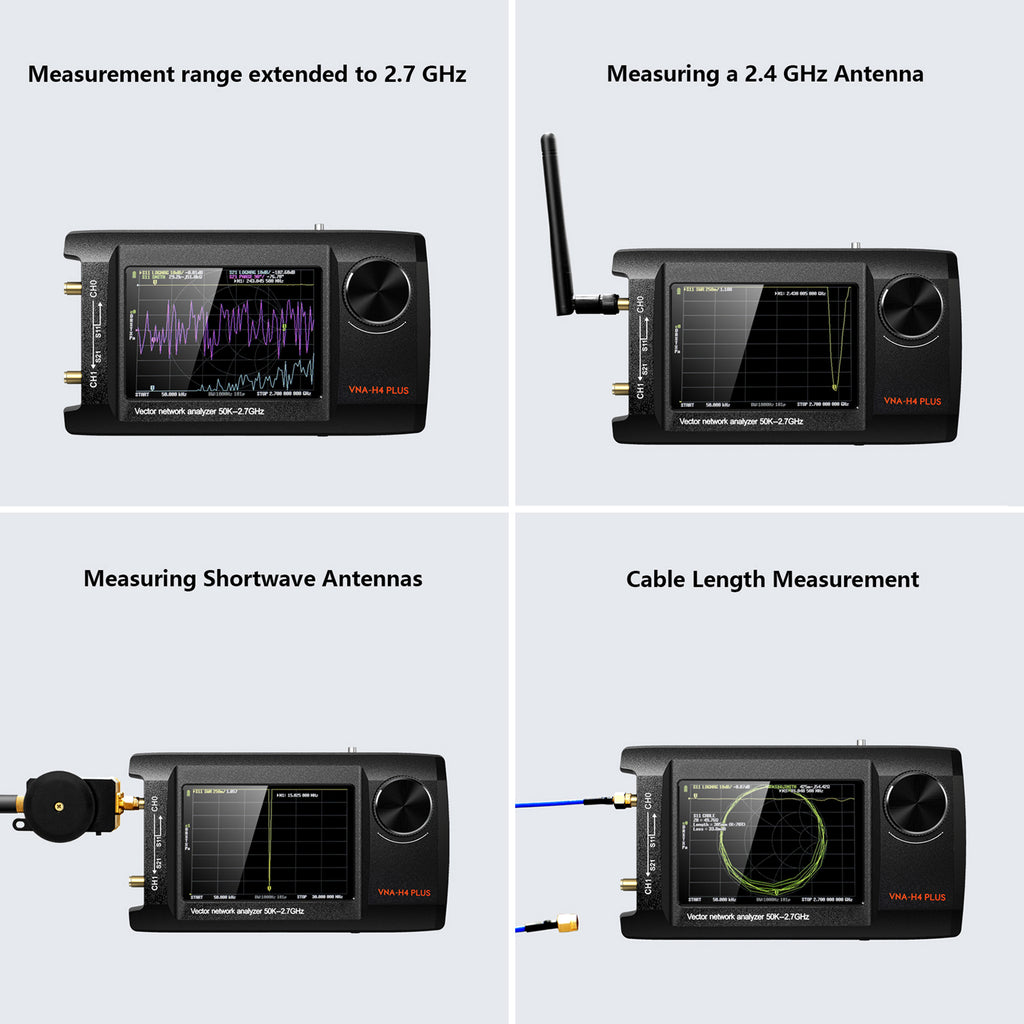

2: The measurement range is upgraded to 50KHz-2.7GHz and the scanning points are increased to 401 points.

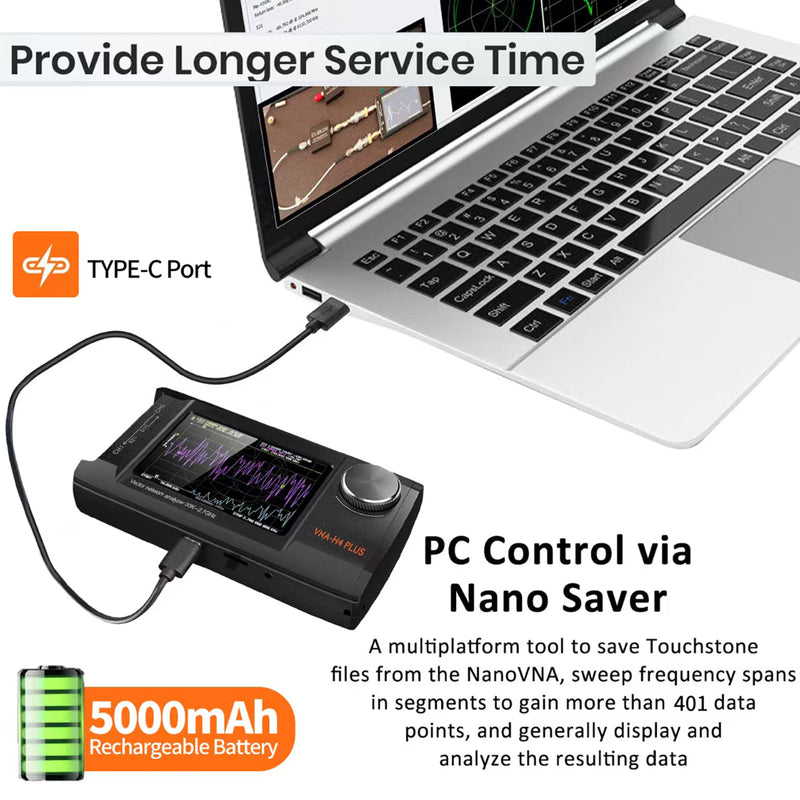

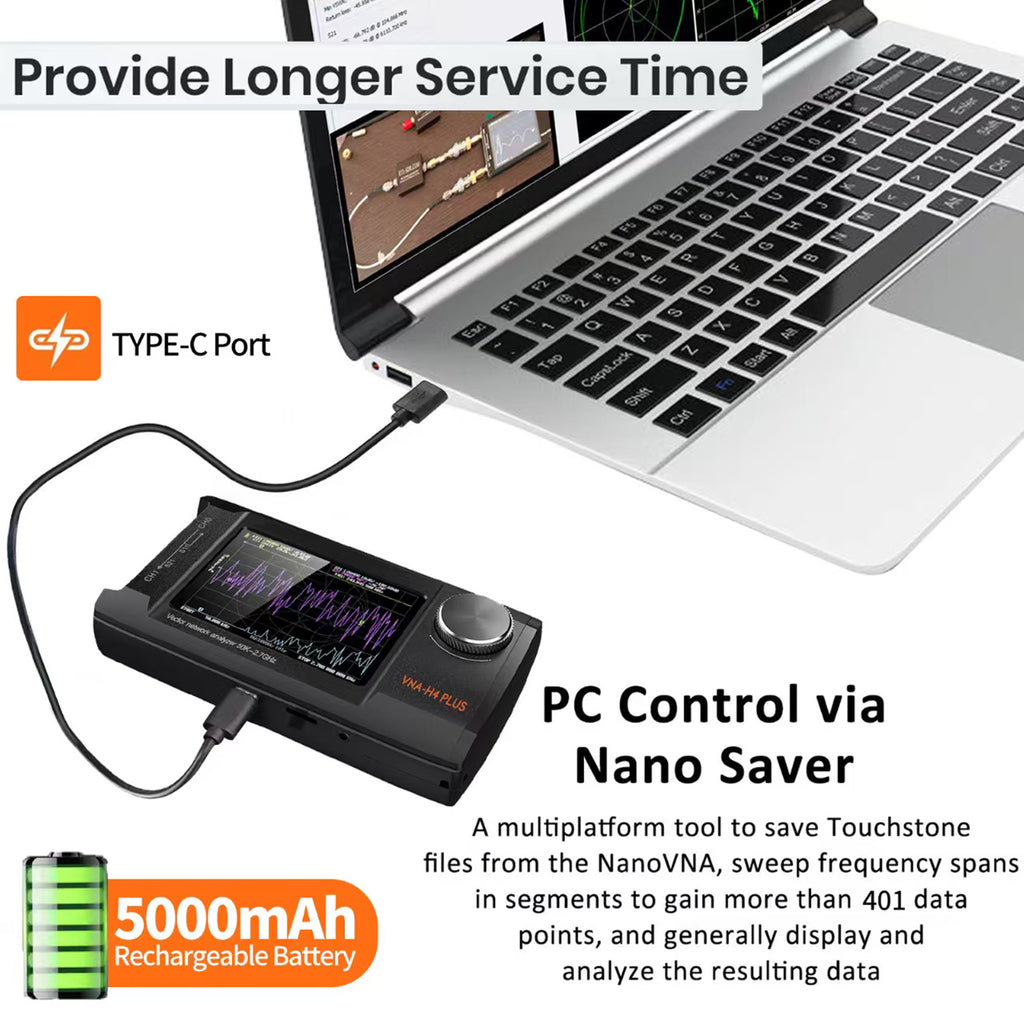

3: Support SD card to save test data and export data conveniently.

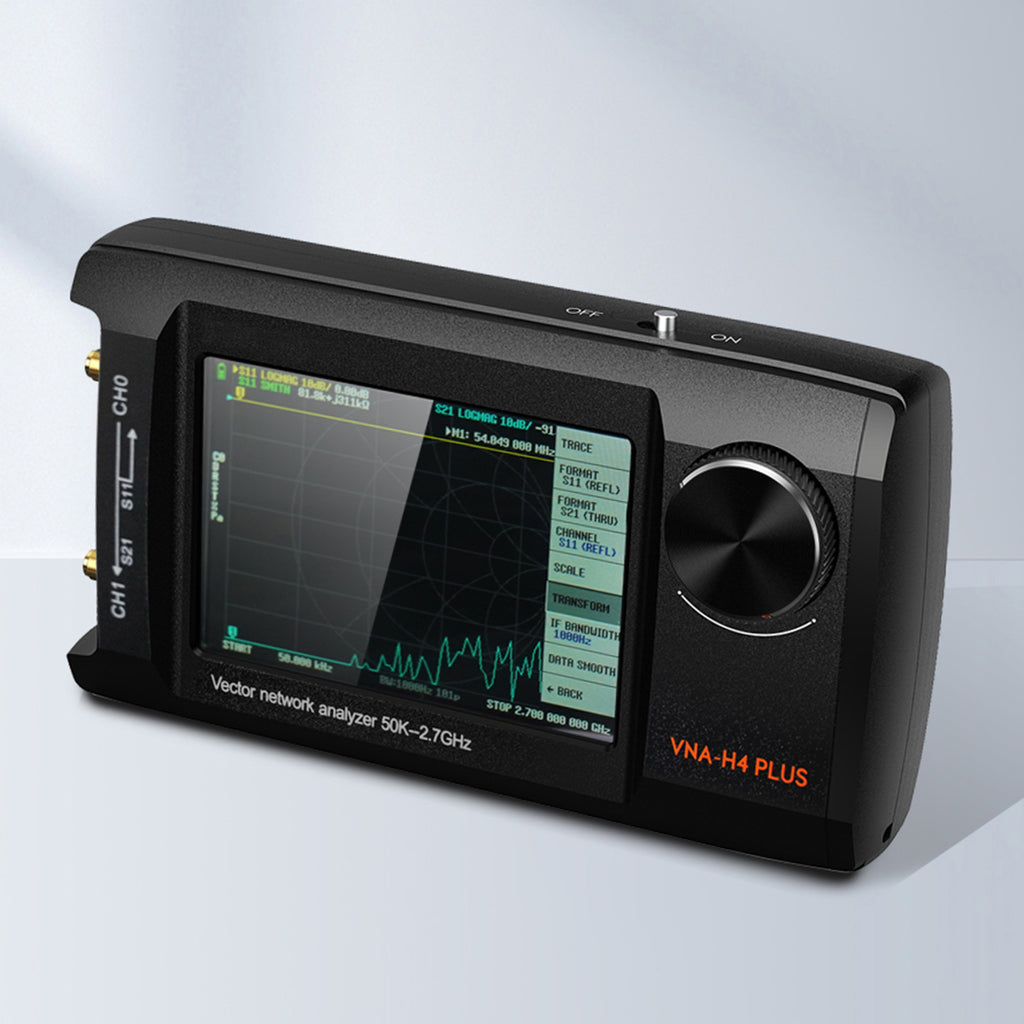

4: With resistive touch screen function, and upgraded large knob operation, the operation is more convenient.
5: Large capacity built-in 5000mAh battery for longer battery life.
6: 4-inch IPS LCD display, IPS has the characteristics of wide viewing angle, accurate color reproduction, high contrast and uniform brightness.
Specifics:
Condition: 100% Brand New
Bandwidth: 50KHz-2.7GHz
Dynamic range: 80dB (50KHz-900MHz) 60dB (900MHz-1.5GHz) 50dB (1.5GHz-2.7GHz)
Reflection coefficient: SWR: <1.1
Frequency accuracy: <0.5 ppm
Frequency stability: <2.5 ppm
Scanning points: 401
Product size: 160x92*35mm
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.The color might be a little different from the actual product due to color display of different monitors.

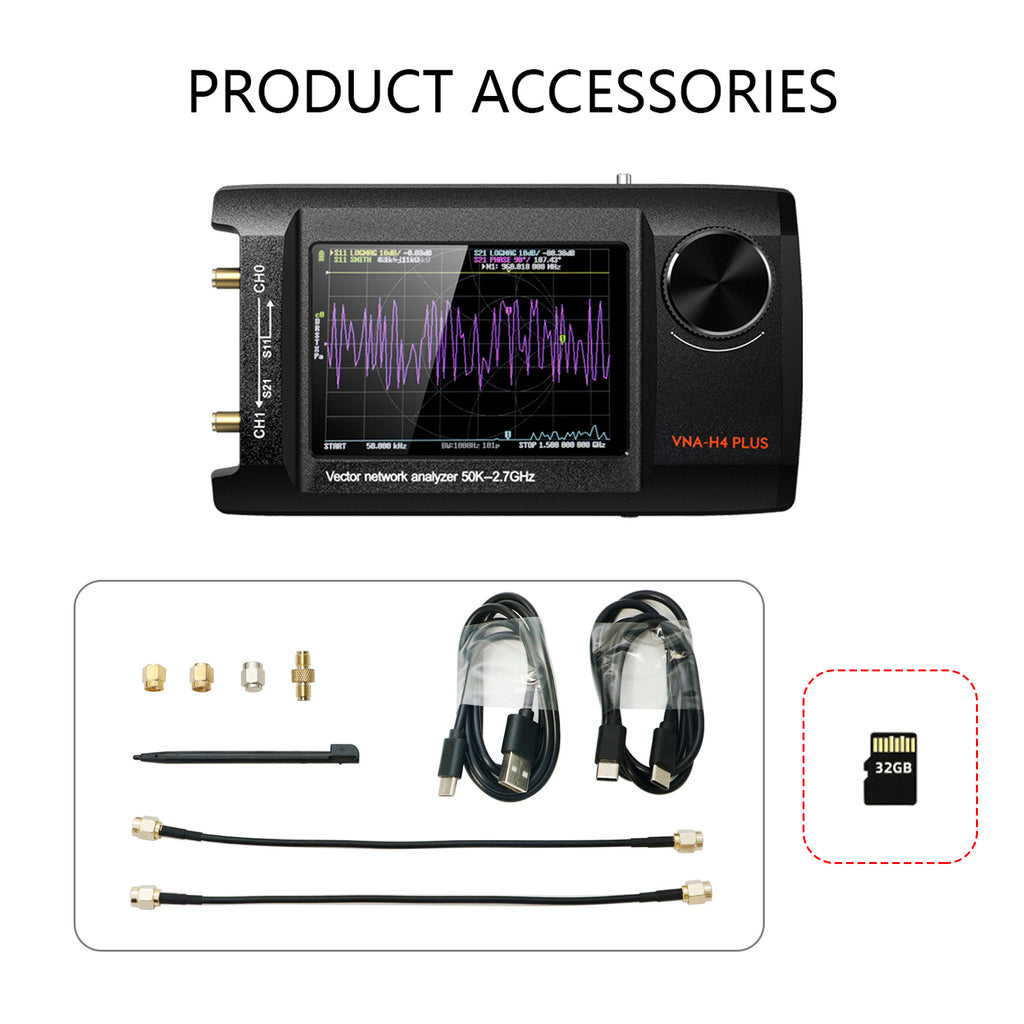

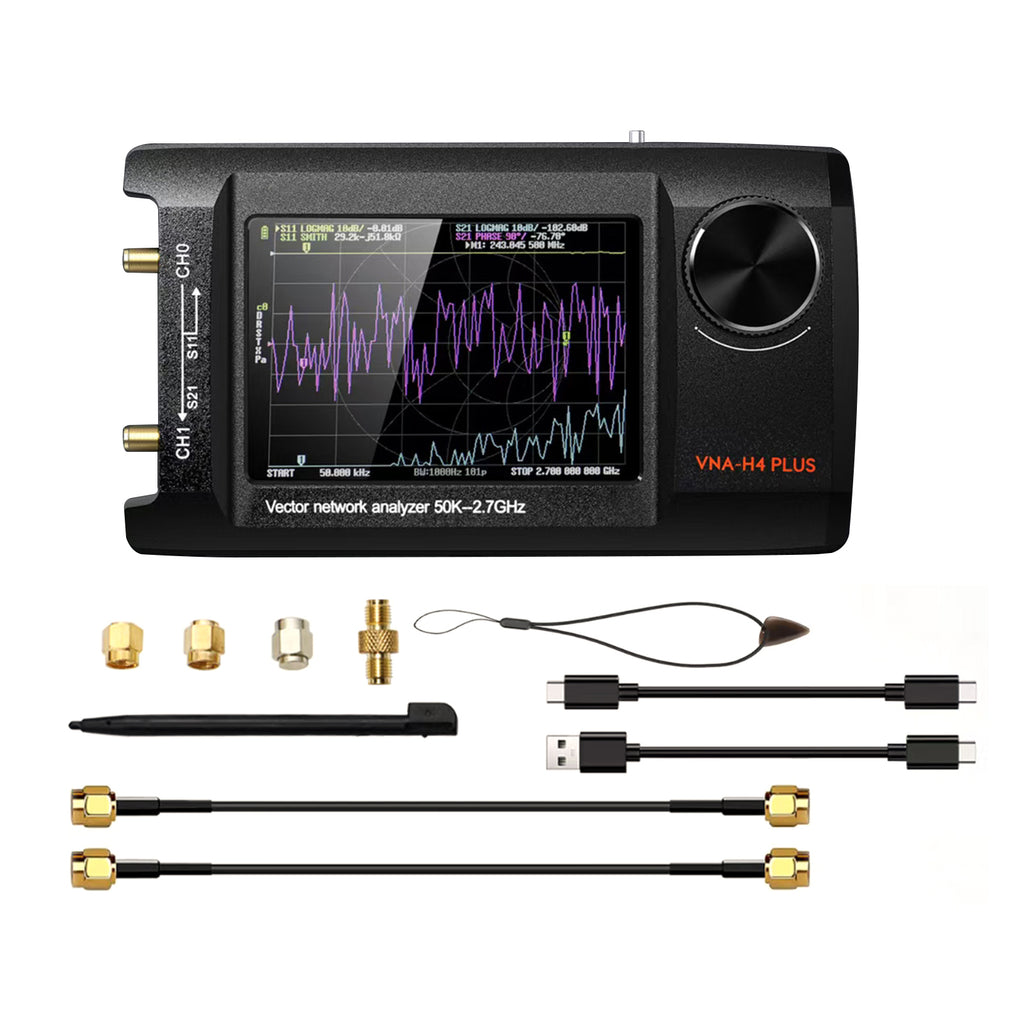

Package Included:
There are 2 options as follows:

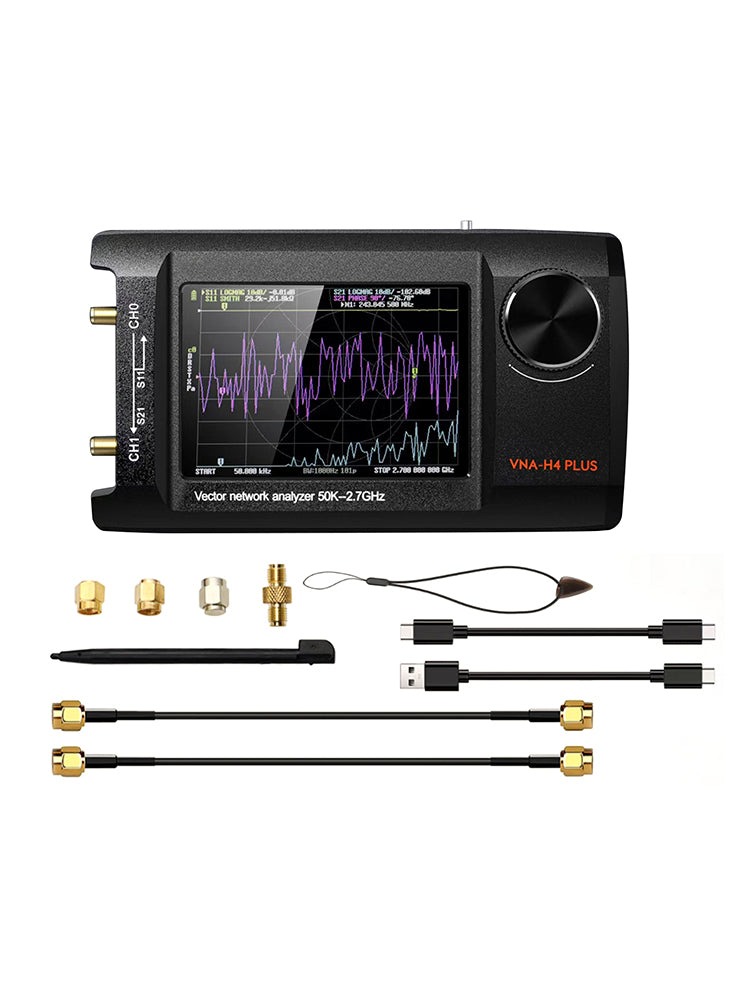

Option 1:
1 X USB type-c cable
2 X 15cm SMA male to male TG316 RF cables
1 X SMA male calibration kit OPEN
1 X SMA male calibration kit short
1 X SMA male calibration kit LOAD
1 X SMA female to female connector
1 X Type-c to Type-c cable
1 X Stylus pen
1 X Pick
1 X NanoVNA-H4 PLUS host

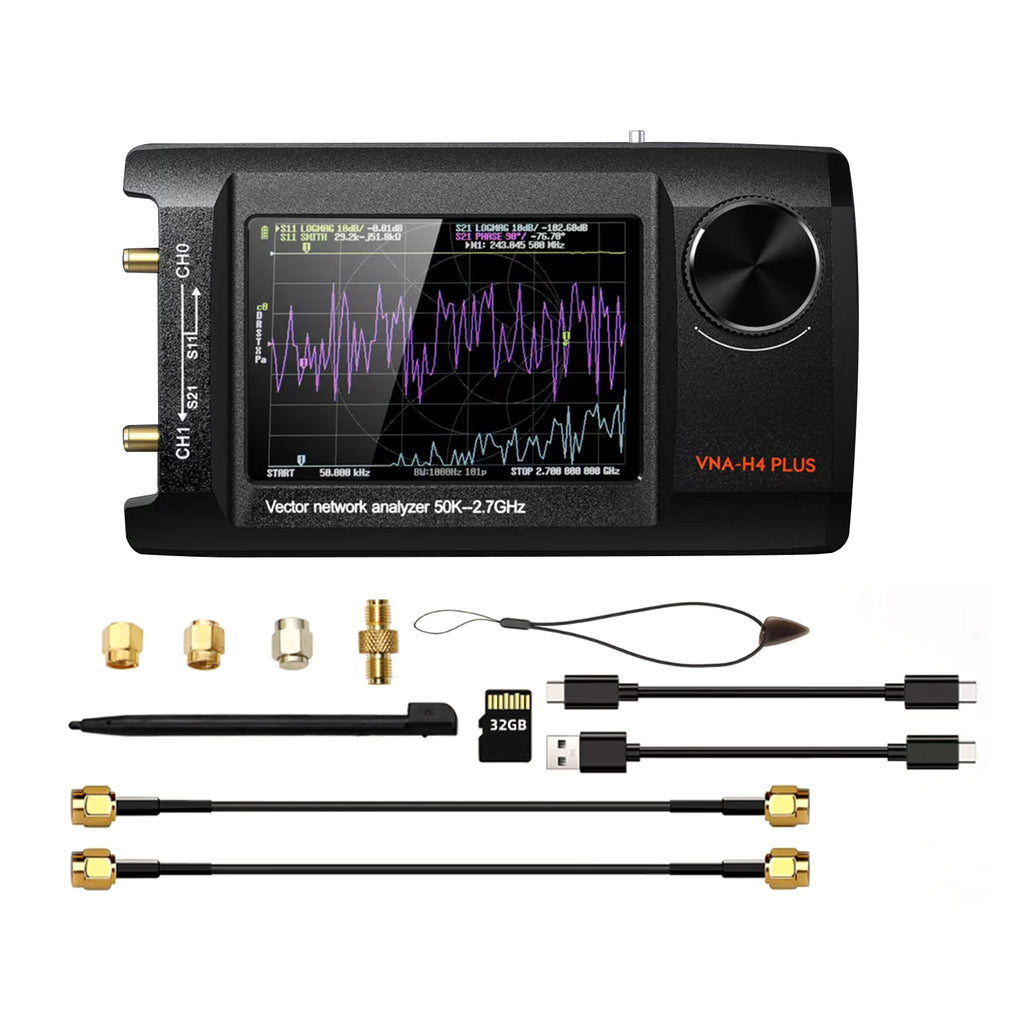

Option 2:
1 X USB type-c cable
2 X 15cm SMA male to male TG316 RF cables
1 X SMA male calibration kit OPEN
1 X SMA male calibration kit short
1 X SMA male calibration kit LOAD
1 X SMA female to female connector
1 X Type-c to Type-c cable
1 X Stylus pen
1 X Pick
1 X NanoVNA-H4 PLUS host
1 X 32GB Micro SD Card
